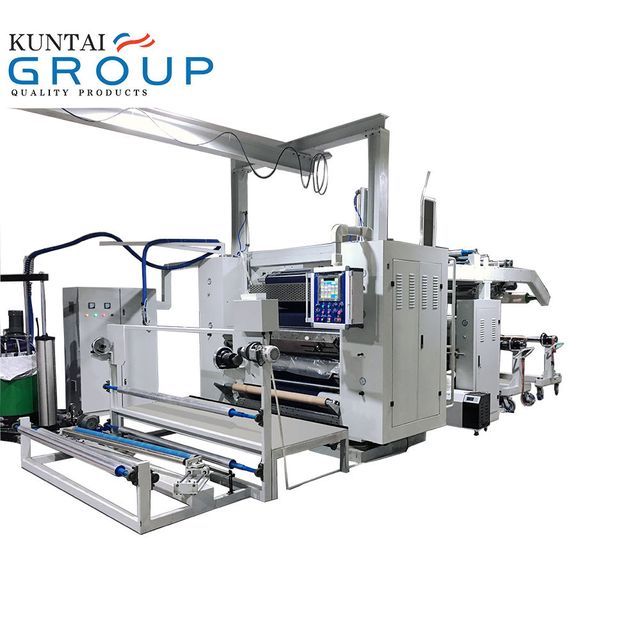

Hot Melt Adhesive Laminating Machine/Cloth Laminating Machine
- $72500.00 / 1 - 2 sets
$64000.00 / >=3 sets - 1 set
- Jiangsu Kuntai Machinery Co., Ltd.
- Jiangsu, China
- Ms Annie Lv
After warranty service: | spare parts | Core components: | Engines, Motors, Pumps |
weight: | 11500 | Supply capacity: | 50 hot melt adhesive laminating machines/fabric laminating machines per month |
Maximum coating width: | 1600mm/1800mm/2400mm/customizable | feature: | Automated, efficient, multifunctional |
Video shipment inspection: | if | Package preview: | |
Showroom location: | not any | Marketing Type: | normal product |
glue: | polyurethane glue | After-sales service provided: | free spare parts |
Production capacity: | 50 kW | Applicable industries: | manufacturing plant |
Voltage: | 220V/380V/customizable | application: | Cloth, foam, fleece coating machine |
Health status: | new | port: | Shanghai |
Automatic level: | automatic | Type of machine: | Laminating machine |
usage: | Leather/fabric/non-woven/textile/PU/PP/aluminum foil/glass wool etc. | strength: | 45kw, 50kw |
Core component warranty: | 1 year | Packaging Details: | Export Standard Packaging Hot Melt Adhesive Laminating Machine/Cloth Laminating Machine |
Origin: | Jiangsu, China | Local service location: | not any |
Warranty: | 1 year | Dimensions (L*W*H): | 11600 x 3400 x 3700mm |
brand: | khun tai | Mechanical test report: | if |
payment terms: | L/C, Western Union, T/T |
Hot melt PUR non-woven fabric laminating machine
Hot Melt Adhesive Laminating Machine/Cloth Laminating Machine
application:

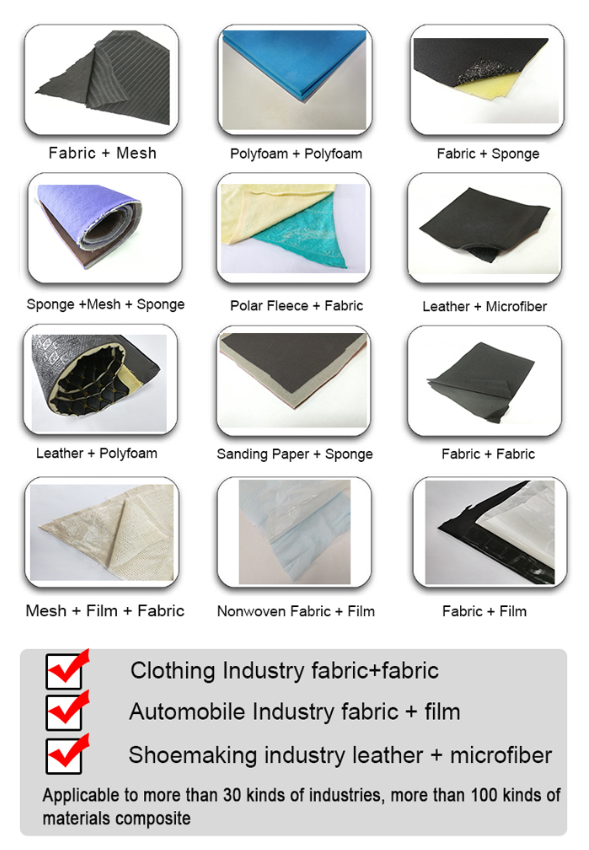

Hot melt adhesive laminating machine is suitable for:
1. EVA+PVC, PU or artificial leather
2. EVA+ fabric (shoe material, etc.)
3. Neoprene + fabric (for diving suits, etc.)
4. PU Foam + Fabric (for bras, car seat cushions, etc.)
5. TPU film + fabric. (Climbing clothing, camouflage clothing, mattress protectors, packaging materials, etc.)
6. Fabric + fabric. (for clothing, medical supplies, sofa fabrics, etc.)
Hot melt adhesive:
For industrial use, hot melt adhesives offer several advantages over solvent-based adhesives. Volatile
Organic compounds are reduced or eliminated, and drying or curing steps are eliminated. hot melt advertising
-hesives have a long shelf life and can usually be handled without special precautions.
State-of-the-art hotmelts, moisture reactive hotmelts (PUR & TPU), high tack
And it's environmentally friendly. Can be used for lamination of 99.9% of textiles. Laminate is
Soft and high temperature resistant. After moisture reaction, the material is less susceptible to
temperature. In addition, the laminate is durable elastic, resistant to abrasion, oil and ag
- Resistance. Especially the atomization performance, neutral color and various other properties of PUR make medi
-cal industry applications become possible.

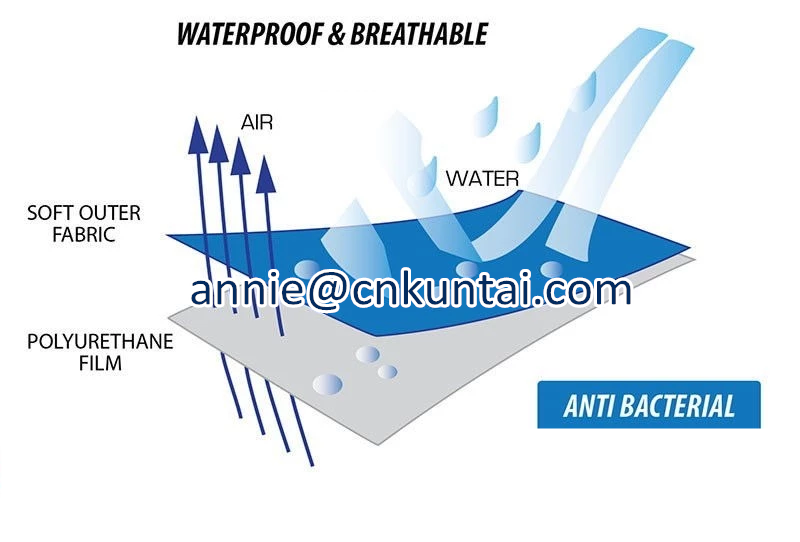

When PTFE, PE, TPU and other functional waterproof and breathable membranes are used in combination, water
- Waterproof insulation, waterproof protection, oil-water-gas filtration, etc.
A new material will be created. The needs of the clothing industry, motor manufacturing, and medical industries,
The environmental protection industry will meet.
Our hot melt laminating machine is mainly composed of fabric unwinding and unwinding unit, fabric and film
Conveyor system and tension controller, film unwinding and liner or film carrier take-up, thermal
Melting glue melting device (optional), pump (optional), heat conduction oil source system (optional), glue point transfer
Unit, bonding device, cooling device, PLC and other devices. It is compact, highly automated and easy to operate
maintain.
options:
1. Accumulators for foams, textiles, backings, etc.
2. Trimming device
3. Inspection machine
4. The swing device swings the final laminated materials into piles
5. Cutting machine
Standard technical parameters (customizable):
Model: | KT-PUR-1800 |
Maximum material width: | 1600mm |
Machine roll width: | 1800mm |
Glue amount: | 5-80 g/m² |
Machine speed: | 10-60m/min |
strength: | 45.0 kW |
Current and voltage: | customizable |
Estimated net weight: | 11500 kg |
Estimated dimensions: | 11800 x 3400 x 3700 mm |
Main features:
- Hot-melt adhesive makes it possible to produce environmentally friendly products, and realizes no pollution in the whole bonding process.
- Using this laminating machine, the material is firmly bonded, and the product is soft, comfortable, washable and breathable.
- This machine adopts touch screen programmable logic controller system control, modular design structure, simple and convenient operation.
- Brand-name motors and frequency converters are optional, and the performance of the whole machine is stable.
- The tension-free unwinding device makes the laminated material flat and smooth, ensuring a good bonding effect.
- Fabric and film openers also provide smooth, level material infeed.
- For 4-way stretch fabrics, a special fabric transfer/conveyor system can be installed on the laminating machine.
- The parallel centering device ensures that the materials are fed in order.
- The specially designed gluing system controls the amount of gluing well and ensures the precision.
- The temperature control of the hot melt glue machine is accurate and stable.
- The final laminate can be rewound into small or large rolls.
- Low maintenance cost and quiet operation.
- Advanced technology, safe quality control and satisfactory after-sales service make our compound machines the first choice of domestic and foreign customers.

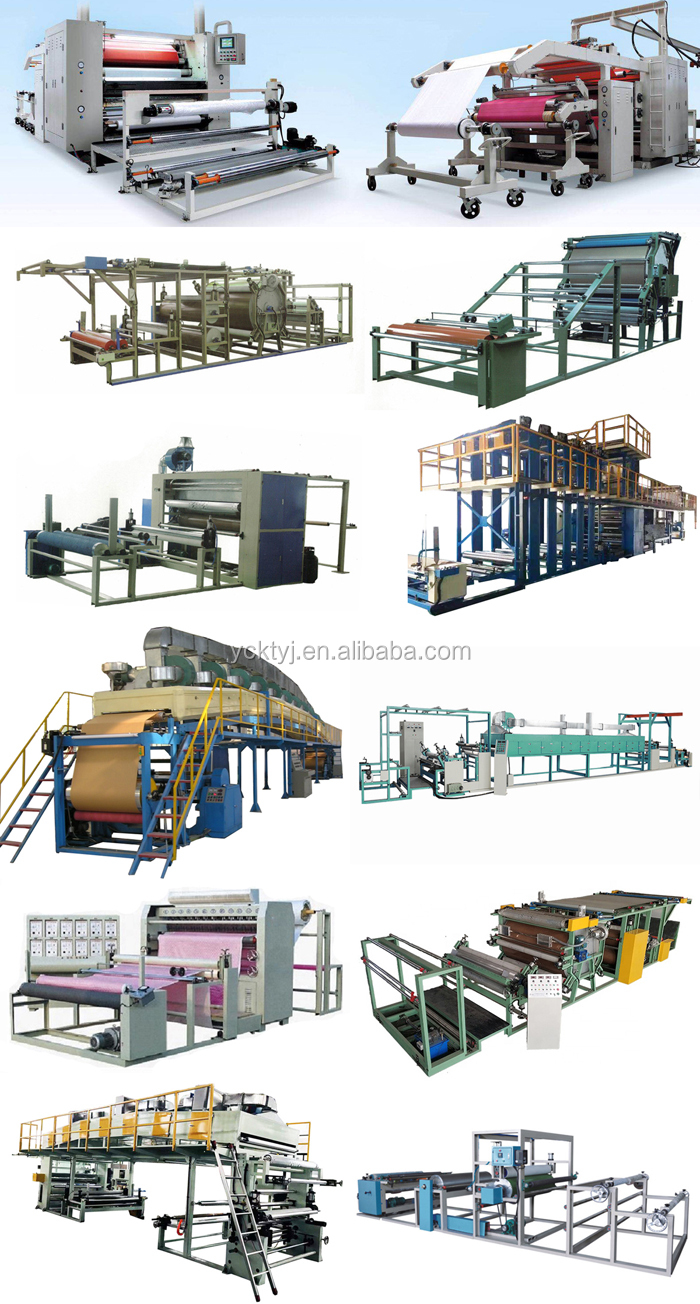

More Kuntai machines:
