Factory direct sales of high quality 1209 self-aligning ball bearings

PRODUCT DETAIL
Seal Type:Openbrand:TFL or OEM
sample:availablepayment terms:L/C,Western Union,T/T,MoneyGram
Related models:1209model:1209
market:GlobalAccuracy class:P0 P6 P5, P0 P6 P5 P4 P2
Material:bearing steelpack:standard
size:45*85*19mmOperating Characteristics (OC):high speed
type:ballstructure:self-alignment
place of origin; place of origin:China, Shandong, ChinaApplicable industries:Building Materials Stores, Manufacturing Plants, Mechanical Repair Stores, Retail, Printing Stores, Construction Works, Energy and Mining
Serve:OEM customized serviceRows:double row
Packaging Details:Standard Packing 1. Industrial Packing: Plastic Tube/Outer Carton/Pallet 2. Single Carton Packing: Single Carton/Outer Carton/Pallet 3. According to Your Requirements
Product Description

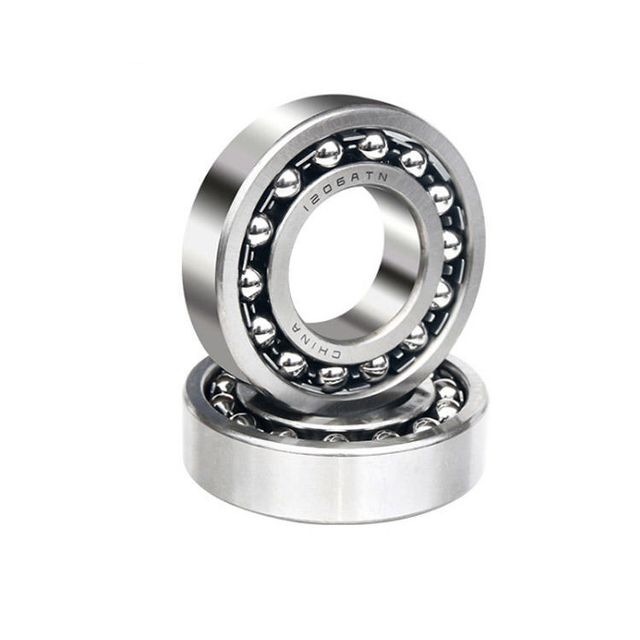

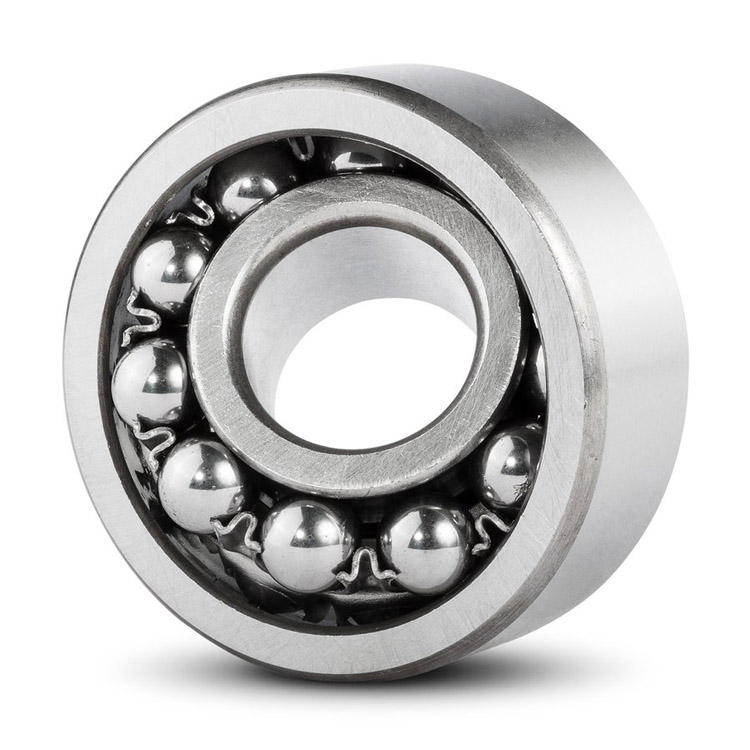

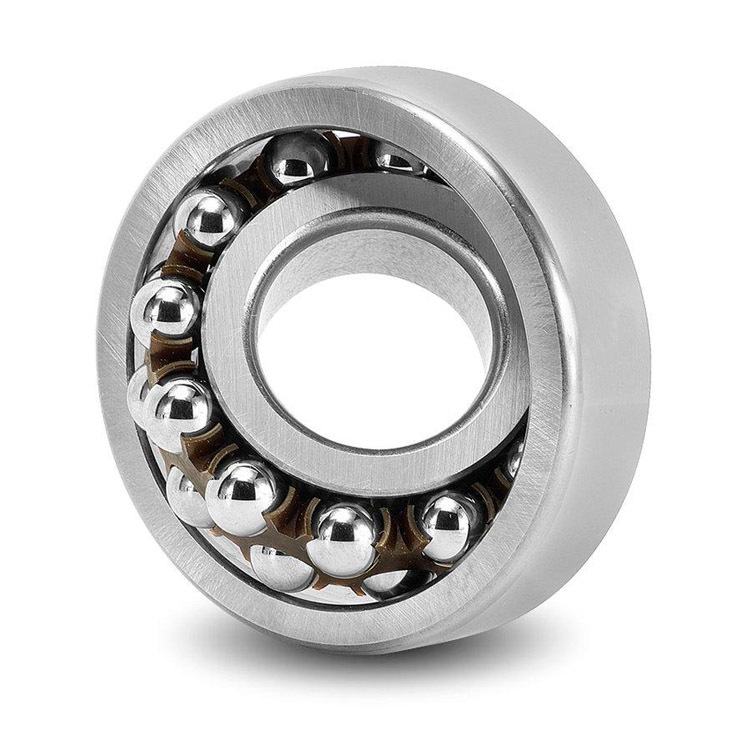

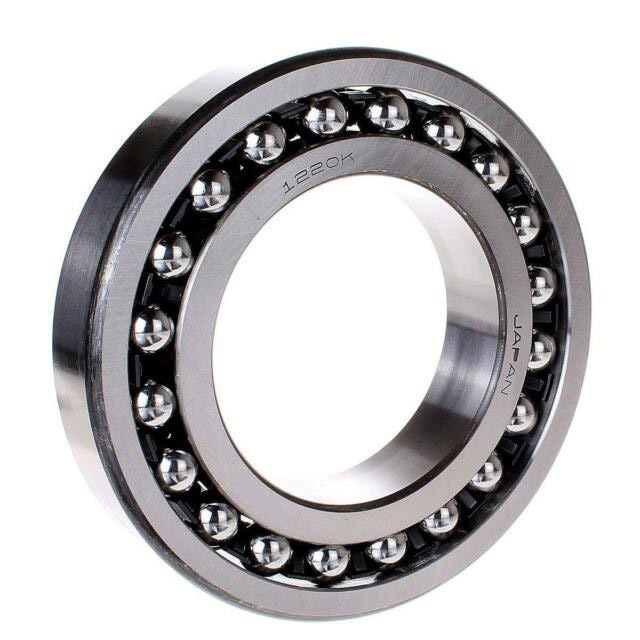

Self-aligning ball bearings are bearings with spherical balls installed between the inner ring of two raceways and the outer ring of which the raceways are spherical.
The center of curvature of the outer ring raceway surface is consistent with the center of the bearing, so it has the same self-aligning function as the self-aligning ball bearing. When the shaft or housing is deflected, it can be automatically adjusted without increasing the bearing burden. Spherical roller bearings can withstand radial loads and axial loads in both directions. Large radial bearing capacity, suitable for heavy and shock loads. Bearings with a tapered bore bore can be mounted directly. Alternatively, it can be mounted on a cylindrical shaft using an adapter sleeve or a dismantling tube. The cage adopts steel stamping cage, polyamide forming cage and copper alloy automobile cage.
Model
1209
Lots of
0.47
Kilogram
aspect
SD
45
mm
D
85
mm
Second
19
mm
