High performance 1310 self-aligning ball bearing size 50*110*27mm

PRODUCT DETAIL
place of origin; place of origin:ChinaSales unit:single product
Gross weight per piece:2.000 kgbrand:ZYSL
Single package size:6X12X3 cmquality:wear high
model:1310type:ball
Rows:double rowmain market:middle
Accuracy class:P0 P6 P5 P4 P2Certificate:ISO9001:2008
Package:Single box packagingweight:1.21kg
payment terms:wire transferSeal Type:Open
Applicable industries:Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Home, Retail, Printing Stores, Construction, Energy and Mining, Advertising AgenciesPackaging Details:Single box or according to buyer's request
Material:chrome steelServe:OEM customized service
structure:self-alignmentin stock:finished product
feature:Stable performance: Bass

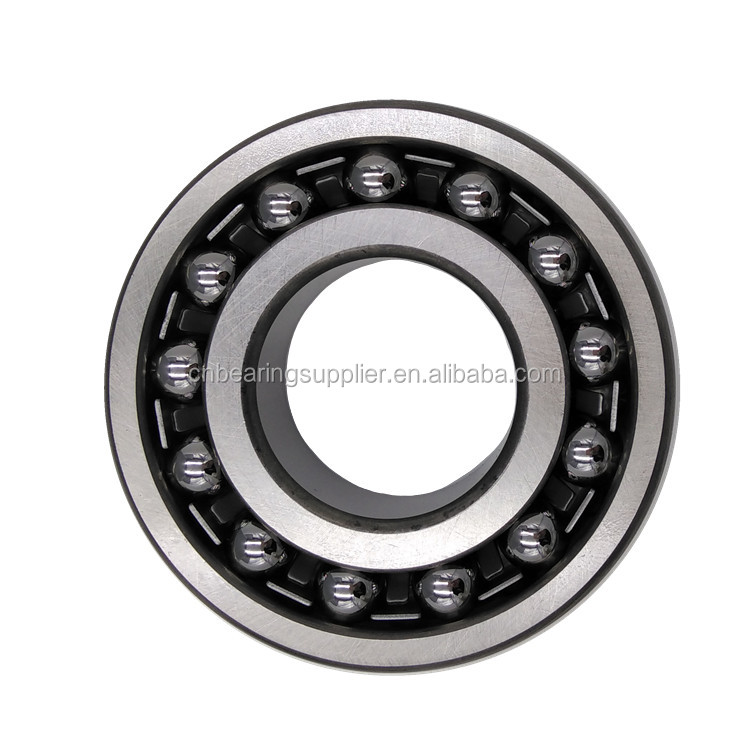

High performance 1310 self-aligning ball bearing size 50*110*27mm
Product Description

brief introduction:
The assembly of a self-aligning ball bearing consists of two rows of balls, a cage, an inner ring and an outer ring with a common concave spherical raceway. Bearings of this type are self-aligning and insensitive to angular misalignment of the shaft relative to the housing. Bearings are available in a variety of designs: basic design open bearings, sealed bearings, open bearings with extended inner rings. Self-aligning ball bearings have the lowest friction of all rolling bearings. Bearings have cylindrical bores or tapered bores within a certain size range. Self-aligning ball bearings have two rows of balls, and the outer ring has a common concave spherical raceway. Therefore, the bearings are self-aligning and insensitive to angular misalignment of the shaft relative to the housing. It is especially useful in applications where considerable shaft deflection or misalignment is expected. In addition, self-aligning ball bearings have the lowest friction of all rolling bearings and operate at lower temperatures even at high speeds.

feature:

When the shaft shell is deflected, it can be adjusted automatically without increasing the bearing burden. They can withstand both high radial loads and certain axial loads. The outer ring raceway of this type of bearing is spherical, which is aligned with the performance. When the bending or inclined axial force is less than 1° to 2.5° from the center line of the inner and outer rings relative to the center line of the slope, the bearing adopts a cylindrical or a conical structure to keep the The frame is made of steel plate or synthetic resin, and the spherical outer ring raceway allows misalignment between the inner and outer rings within a deflection range of 3 degrees to compensate for concentricity and deflection errors.

production line:


Mini Series: 10x, 12x, 13x

Universal Series: 12xx, 13xx, 22xx 23xx

typical application:


Self-aligning ball bearings are widely used in heavy and shock loads, precision instruments, low-noise motors, automobiles, motorcycles, metallurgy, rolling mills, mining, petroleum, paper, cement, sugar industry and general machinery.



Suffix definition of self-aligning ball bearing:

C3: Radial clearance is larger than ordinary clearance

K: 1/12 taper taper hole

K30: 1/30 taper taper hole

M: Ball Guide Machined Brass Cage

2RS: closed at both ends

TV: Ball Rail Glass Fiber Reinforced Polyamide (Nylon) Solid Cage

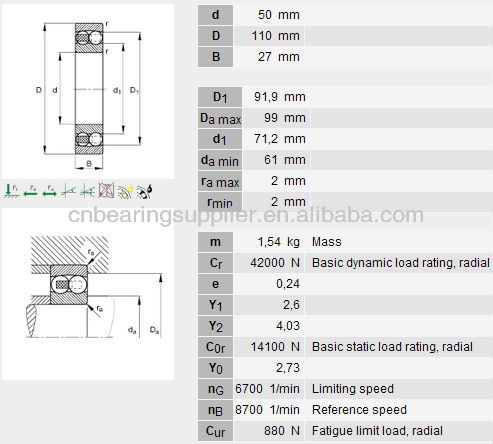

Self-aligning ball bearing 1310 parameters



Card
ZYSL or OEM
Name
Bearings (self-aligning ball bearings)
All models
12***13***22***23***
Material
GCr15SiMn, GCr15, G20Cr2Ni4A, 9Cr18
Certificate
ISO9001:2008
accurate
P0, P6, P5, P4, P2
ID size:
10mm-110mm
clear
C0, C1, C2, C3, C4, C5, etc.
seal type
RS, 2RS, R2, Z, 2Z, 2RZ, etc.
Basic load rating (KN)
A. Dynamic:
5.48-87.2
B. Static:
1.2-37.5
Limit speed (r/min)
A. Grease
24000-2800
B. Oil
28000-3400
feature
Low price, fast speed, long life
application
Widely used in automobiles, electrical equipment, instrumentation, construction machinery, rolling stock agricultural machinery and various special machinery, machine tool spindle applications, used in cold rolling mills and hot rolling mills.
delivery time
2-5 days
pack
Cardboard packaging, pallets, wooden cases or according to customer requirements
price
FOB, CIF

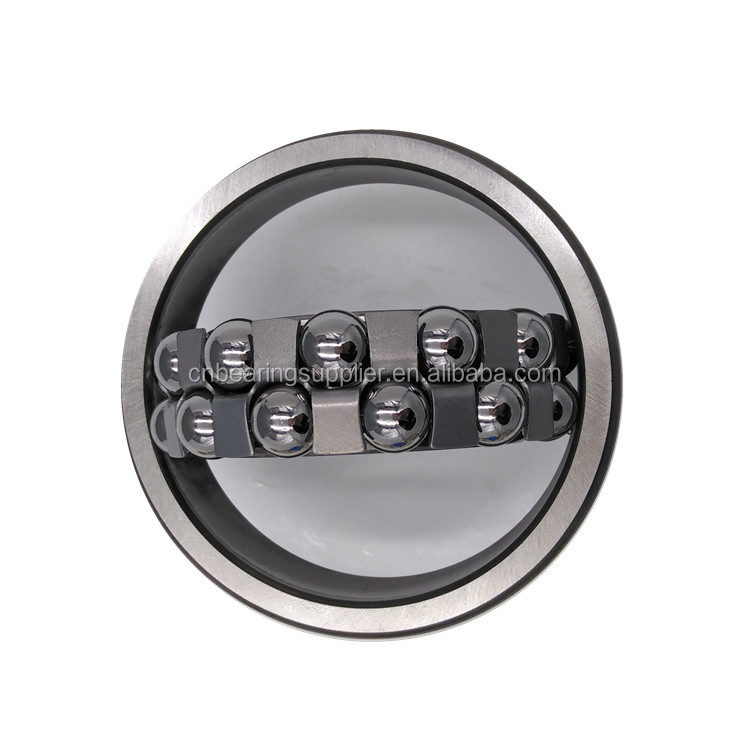

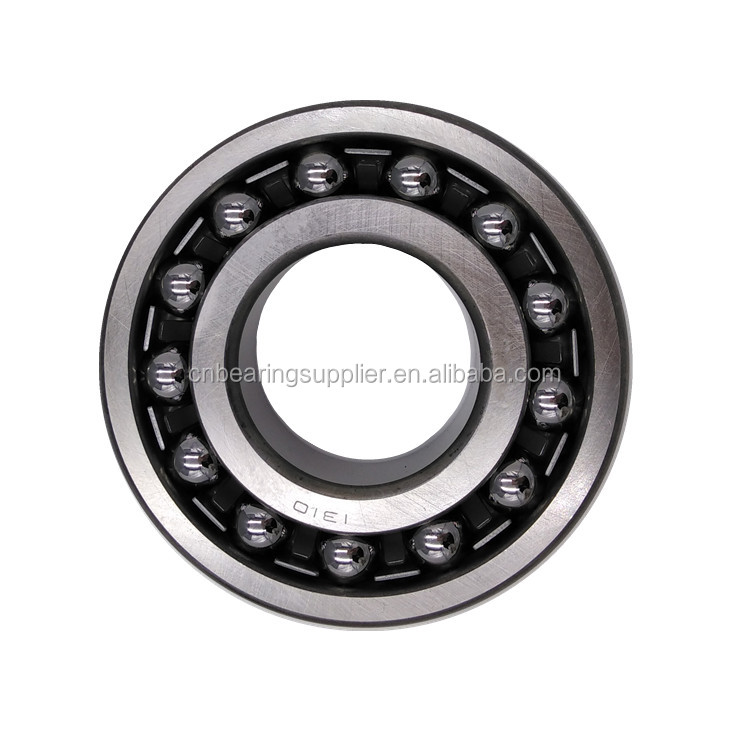

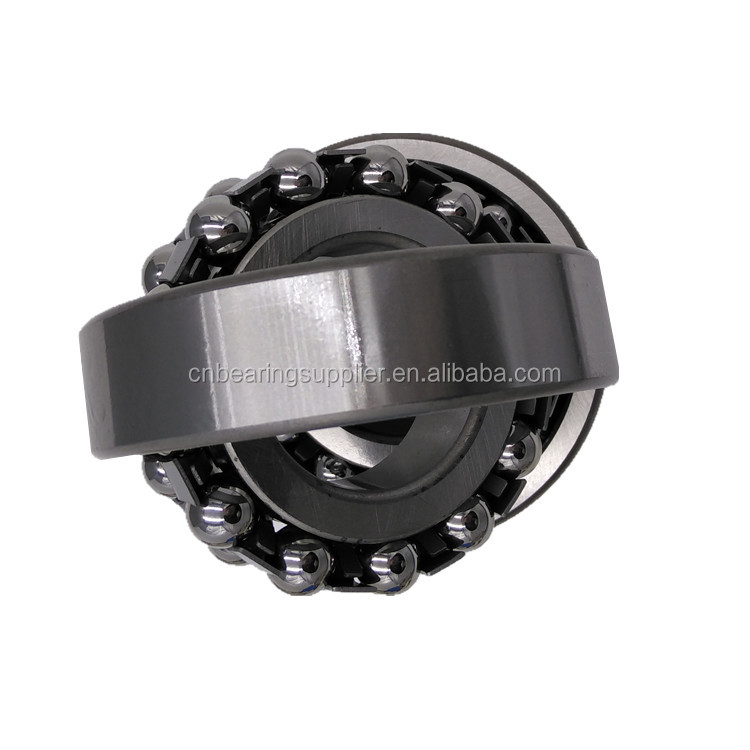

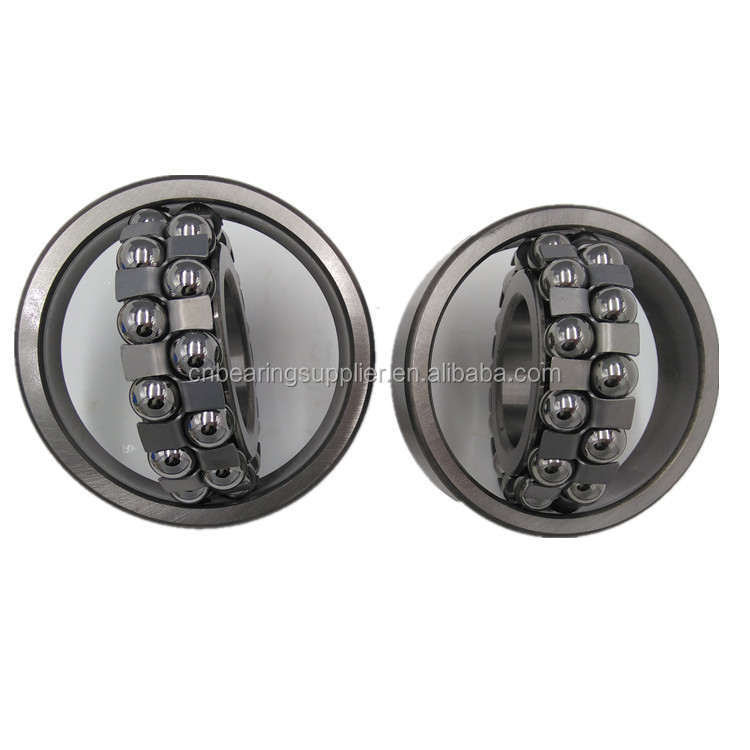

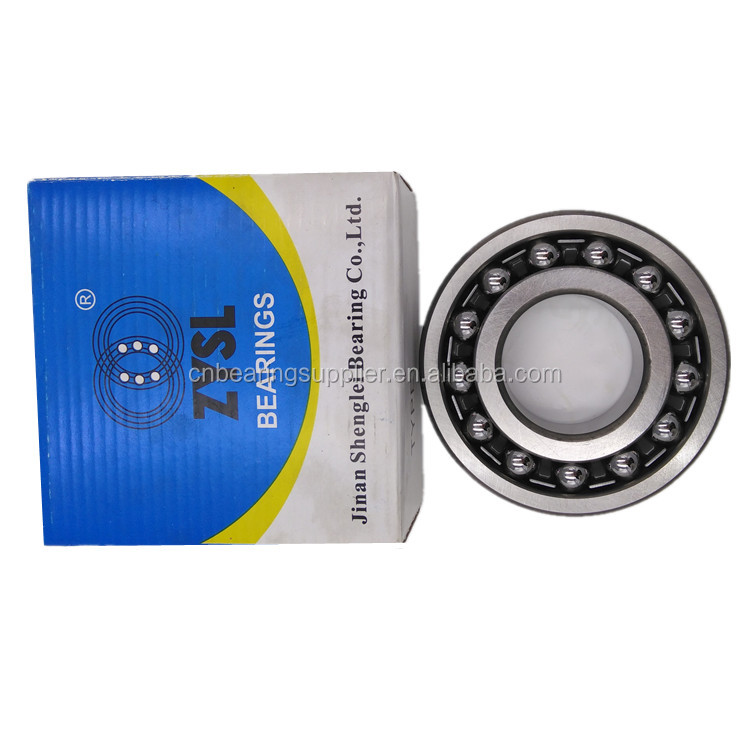

Product display:

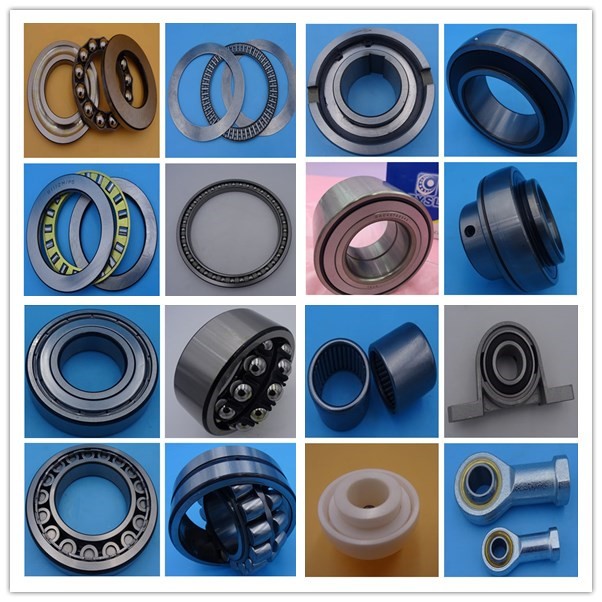

Main bearing products

Deep groove ball bearings: 6000 series, 6100 series, 6200 series, 6300 series, 6400 series, 6800 series, 6900 series, etc.

Angular contact ball bearings: 7100 series, 7200 series, 7300 series, 7400 series, etc.

Tapered roller bearings: 30000 series, 31000 series, 32000 series, 33000 series.

Spherical roller bearings: 20000 series, 21000 series, 22000 series, 23000 series.

Cylindrical roller bearings: N series, NU series, NJ series, etc.

Bearings with block: UC series, UCP series, UCF series, UCFL series.

Self-aligning ball bearings: 1200 series, 1300 series, 2200 series, 2300 series.

Needle Roller Bearings

Plain bearing

Slewing ring

Rod ends

Ceramic Bearings

Bearing accessories



payment terms



We accept T/T, PAYPAL or Western Union, credit card.



deliver goods



By express, such as TNT, FEDEX, UPS, DHL or by air/sea.


advantage



Why choose us?



1.World Class Bearings: We provide our customers with all types of indigenous



Bearings are of world-class quality.



2.OEM or non-standard bearings: Any requirement for non-standard bearings is



Due to its extensive knowledge and connections in the industry, it is easy for us to achieve. it



Specialize in.



3.Genuine, good quality: the company has always proven



It delivers 100% quality products with real intent.





company information:

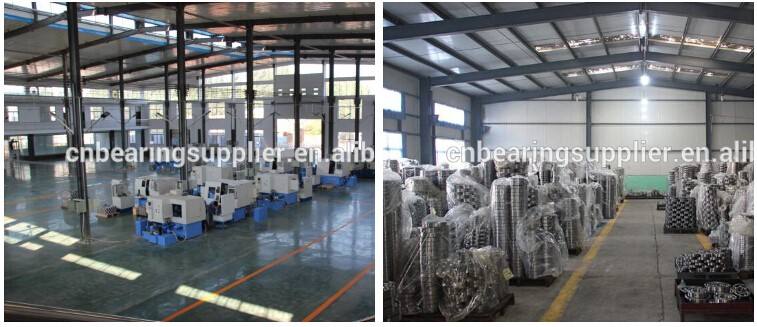

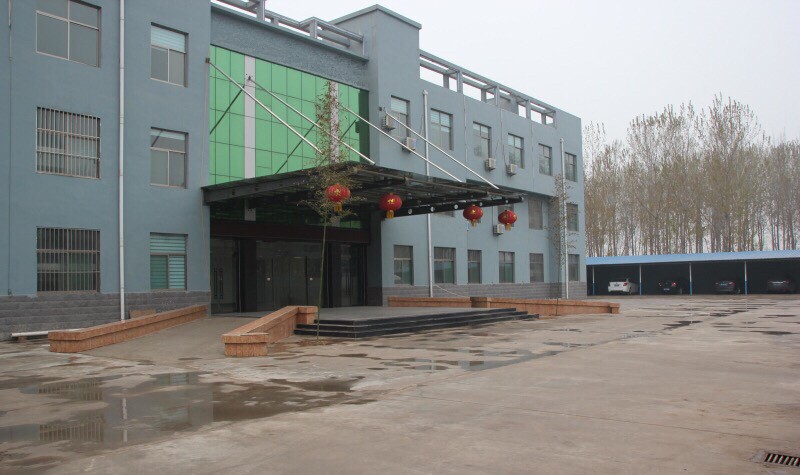

Jinan Shenglei Bearing Co., Ltd. is a comprehensive company specializing in bearing products and trade. We have over twenty years of experience in providing technical support and service for bearings in the industrial sector. We have our own factory, located in China's bearing production base - Shandong Province. The factory covers an area of ​​more than 3,000 square meters and has a number of advanced production equipment. We have about 300 employees, 20 technicians and 20 quality controllers. Therefore, one of our biggest advantages compared to other companies is that we can offer the best ex-factory price on the basis of the same quality.

The company has passed the ISO9001 quality management system, and carries out production management in strict accordance with international and domestic standards. "ZYSL" is a registered trademark of our company. The main products include tapered roller bearings, spherical roller bearings, cylindrical roller bearings, deep groove ball bearings, self-aligning ball bearings, angular contact ball bearings, thrust ball bearings, housing bearings, spherical plain bearings, needle roller bearings, linear Bearings, automobile bearings, etc. Our bearings are mainly used in major manufacturers in industry, machinery, rolling mills, textiles, railways, metallurgy, mining, etc., which is convenient for dealers to support and assist services at any time. In addition, our technical team has also developed ceramic bearings, plastic bearings, stainless steel bearings, etc. The products are mainly exported to the Middle East, Southeast Asia, South America, India, Pakistan, Canada, Singapore, South Korea and other countries and regions.

Since the establishment of the company, we have been serving every customer with excellent pre-sales technical support and after-sales tracking service. We are committed to the proposition of "quality assurance, complete varieties, preferential prices, and timely supply", and follow the business philosophy of "integrity, pragmatism, and win-win" to provide us with the best quality services and products. customer. We will also provide customers with the most complete services in the selection of imported bearings, application directions, performance testing, technical exchanges, etc., so that every customer has full confidence in all aspects of our products. We sincerely look forward to cooperating with more customers and friends to promote the prosperity of the business. We warmly welcome people of insight from all walks of life in the bearing industry to visit and discuss cooperation.

Packaging and Delivery

pack:

A.tube packaging+carton+pallet
B. Single box + outer box + pallet
C.tube packaging + middle box + outer box + tray
D. According to your request.

payment terms:
A.100%T/T

B. 30% T/T in advance, 70% against duplicate bill of lading (large order)
C. Western Union
