Ball bearings ZYSL 10x24x9mm Thrust 51100
- $1.25 /set
- 1 set
- Jinan Shenglei Bearing Co., Ltd.
- Shandong, China
- Mr leon Han
PRODUCT DETAIL
Rows: | single row | Packaging Details: | A: barrel + outer box + pallet B: single box + outer box + pallet C: tube bag + medium |
cage: | iron cage | place of origin; place of origin: | Shandong China |
Applicable industries: | Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Retail, Construction Engineering, Energy and Mining, Others | Accuracy class: | P4 |
Certificate: | ISO9001:2008 | thickness: | 9mm |
payment terms: | L/C,Western Union,T/T,Official Bank Account/Paypal | brand: | ZYSL |
type: | ball | Serve: | OEM customized service |
in stock: | big | model: | 51100 |
Quality Standard: | ISO9001:2000 standard | Material: | Chrome Steel/GCr15/Stainless Steel |
lubricating: | grease | application: | machine |
feature: | Long life and low noise | Supply capacity: | 100,000 sets per month |
port: | Shanghai, Guangzhou, Shenzhen, Ningbo, Tianjin, Hong Kong | structure: | thrust |
Product Description

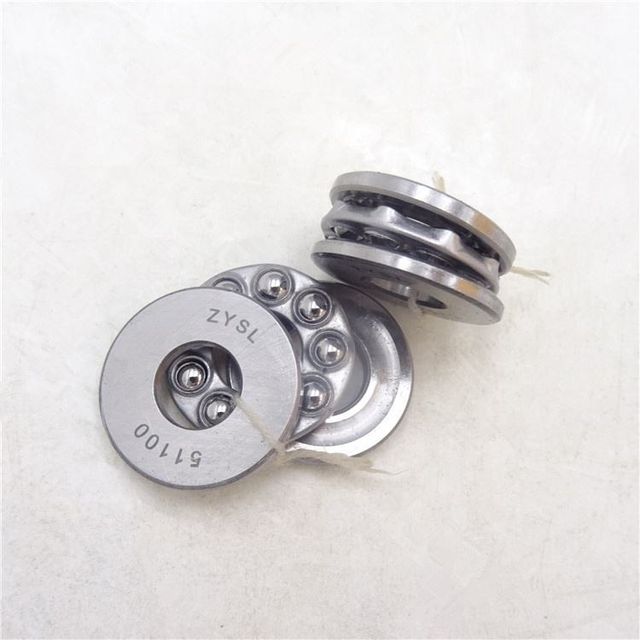

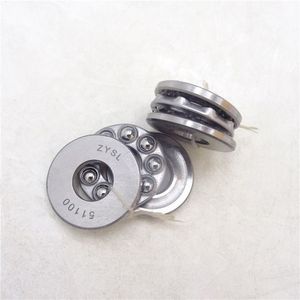

ZYSL 10x24x9mm thrust ball bearing 51100
picture display:
painting
Related models and specifications
Model |
d (mm) |
D1 (mm) |
Ton (mm) |
51100 | 10 | twenty four | 9 |
51200 | 10 | 26 | 11 |
51101 | 12 | 26 | 9 |
51201 | 12 | 28 | 11 |
51102 | 15 | 28 | 9 |
51202 | 15 | 32 | 12 |
51103 | 17 | 30 | 9 |
51203 | 17 | 35 | 12 |
51104 | 20 | 35 | 10 |
51204 | 20 | 40 | 14 |
51105 | 25 | 42 | 11 |
51205 | 25 | 47 | 15 |
51305 | 25 | 52 | 18 |
51405 | 25 | 60 | twenty four |
51106 | 30 | 47 | 11 |
51206 | 30 | 52 | 16 |
51306 | 30 | 60 | twenty one |
51406 | 30 | 70 | 28 |
51107 | 35 | 52 | 12 |
51207 | 35 | 62 | 18 |
51307 | 35 | 68 | twenty four |
51407 | 35 | 80 | 32 |
51108 | 40 | 60 | 13 |
51208 | 40 | 68 | 19 |
51308 | 40 | 78 | 26 |
51408 | 40 | 90 | 36 |
51109 | 45 | 65 | 14 |
51209 | 45 | 73 | 20 |
51309 | 45 | 85 | 28 |
51409 | 45 | 100 | 39 |
51110 | 50 | 70 | 14 |
51210 | 50 | 78 | twenty two |
51310 | 50 | 95 | 31 |
51410 | 50 | 110 | 43 |
51111 | 55 | 78 | 16 |
51211 | 55 | 90 | 25 |
51311 | 55 | 105 | 35 |
51411 | 55 | 120 | 48 |
51112 | 60 | 85 | 17 |
51212 | 60 | 95 | 26 |
51312 | 60 | 110 | 35 |
51113 | 65 | 90 | 18 |
51213 | 65 | 100 | 27 |
51313 | 65 | 115 | 36 |
51114 | 70 | 95 | 18 |
51214 | 70 | 105 | 27 |
51314 | 70 | 125 | 40 |
51115 | 75 | 100 | 19 |
51215 | 75 | 110 | 27 |
51315 | 75 | 135 | 44 |
51116 | 80 | 105 | 19 |
51216 | 80 | 115 | 28 |
51316 | 80 | 140 | 44 |
51117 | 85 | 110 | 19 |
51217 | 85 | 125 | 31 |
51317 | 85 | 150 | 49 |
51118 | 90 | 120 | twenty two |
51218 | 90 | 135 | 35 |
51318 | 90 | 155 | 50 |
51120 | 100 | 135 | 25 |
51220 | 100 | 150 | 38 |
51320 | 100 | 170 | 55 |
51122 | 110 | 145 | 25 |
51222 | 110 | 160 | 38 |
51124 | 120 | 155 | 25 |
51126 | 130 | 170 | 30 |
51226 | 130 | 187 | 45 |
51128 | 140 | 178 | 31 |
51228 | 140 | 197 |
46 |
introduce:
ZYSL thrust ball bearings are produced as unidirectional or bidirectional thrust ball bearings. They are only designed to carry axial loads and must not carry any radial loads.
ZYSL thrust ball bearings are separable, i.e. the shaft washer, seat washer, ball and cage assemblies can be mounted separately. The shaft washer has a grounding hole for an interference fit. The hole of the seat ring is always larger than the hole of the shaft ring after rotation.
ZYSL thrust ball bearings are separable, i.e. the shaft washer, seat washer, ball and cage assemblies can be mounted separately. The shaft washer has a grounding hole for an interference fit. The hole of the seat ring is always larger than the hole of the shaft ring after rotation.
One-way thrust ball bearing
One-way thrust ball bearing
ZYSL one-way thrust ball bearings consist of a shaft washer, a seat washer and a ball and cage assembly (fig. 1). As the name suggests, one-way thrust ball bearings can accommodate axial loads and axially locate the shaft in only one direction.
aspect
The dimensions of ZYSL thrust ball bearings conform to DIN 711:1988 and DIN 715:1987. Dimensions of bearings with flat washers conform to ISO 104:2002.
The height H1 values given for bearings with spherical housing washers apply only to ZYSL bearings with ZYSL washers.
tolerance
ZYSL thrust ball bearings are manufactured to normal tolerances. Some one-way bearings with flat races are also available with increased accuracy to tolerance class P6 or tolerance class P5. Please contact ZYSL for availability before ordering.
Normal, P6 and P5 tolerances in accordance with ISO 199:1997.
dislocation
Axial ball bearings with flat seat washers cannot accommodate any misalignment between the shaft and the housing or angular misalignment between the housing and the support surface on the shaft.
Bearings with spherical races are usually used with spherical races to compensate for the initial misalignment of the bearing surface inside the housing and on the shaft
Features of Thrust Ball Bearings
1. One-way deep groove thrust ball bearings, suitable for applications with heavy axial loads
in one direction
2. Open bearings lubricated in place
3. Solid hardened chrome steel for durability and resistance to deformation under heavy loads
4. Pressed steel plate cages evenly space the rollers to reduce friction, vibration and noise
5. Grooved raceways have higher speed and thrust capacity than flat washers
