motorcycle Thrust Ball Bearing price list

PRODUCT DETAIL
Certification:ISO9001:2000;Structure:Thrust;
Number of Row:Single row;Clearance:C1,C2,C3;
Vibration:Z1V1,Z2V2,Z3V3;Place of Origin:Shandong, China;
Single package size:10X10X5 cm;Packaging Detail:1.standard export package 2.according to your inquirement;
Model Number:52202-52220;Type:BALL;
Seals Type:OPEN ZZ RS RZ Z;Cage:steel brass nylon;
Selling Units:Single item;Precision Rating:ABEC-1 ABEC-3 ABEC-5,P0 P6 P5 P4 P2;
Applicable Industries:Building Material Shops,Manufacturing Plant,Restaurant,Printing Shops,Construction works ;Brand Name:OEM;
Material:bearing steel;Service:OEM;
Single gross weight:0.200 KG;

motorcycle Thrust Ball Bearing price list

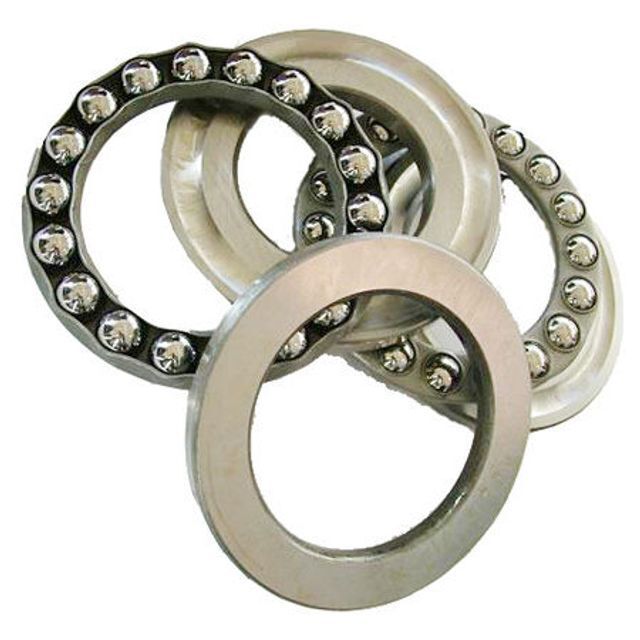

Thrust Ball Bearing
1.High quality steel
2.High precision
3.low friction and low limit
4.Competitive price



Product Description



Physical  Characteristics:



1) Thrust Ball Bearing  is a type of separate bearing,shaft ring, seat ring can separate from the cage and the component of the steel ball.

2) The shaft ring is a ring that compatible with the axle,the seat ring is a ferrule that compatible with the bearing saddle bore,have a gap with the axle.

3) The structure of import thrust ball bearings have a lot of variants.

4) Single direction thrust ball bearings,are composed of washer-shaped rings with a ball raceway and cages that composition of the ball.The ring that installed in the axis is called the axis ring,the ferrule that installed in the ring is called the seat ring,two-way bearings are used with the centre circle installed in the shaft.

 5) Two-way thrust ball bearings can withstand axial load from two directioons,   however the one-way

thrust ball bearings can only afford the axial load from one direction.




Product types:



ball bearing

deep groove ball bearing angular contact ball bearing thrust ball bearing self-aligning ball bearing



roller bearing

cylindrical roller bearing taper roller bearing spherical roller bearing thrust roller bearing needle roller bearing



other bearing

pillow block bearing insert bearing joint bearing linear bearing







Packing:



Bearing packing divided into inner packing and outer packing.

According to rust phase inner packing to be divided inte three classes:

(1)short of rust phase inner packing:rust phase 3-6 months,apply to in the short term and put into use bearing.

(2)general antirust packing period:rust phase one year,apply to general purpose bearing.

(3)long term of rust phase inner packing:rust phase two years,apply to special and precision bearing.







Series thrust ball bearings



Item old Item d d h
(mm)		 Cr Cor Grease oil weight
(mm) (mm) (kN) (kN) (r/min) (r/min) (kg)
52202X 38202X 15 32 22 - - - - -
52222 38222 110 160 67 148 431 1200 1800 -
52226 38226 130 190 80 203 622 970 1500 -
52230 38230 150 215 89 244 768 840 1300 -
52234 38234 170 240 97 269 874 750 1150 -
52240 38240 200 280 109 314 1110 620 950 -
52244 38244 220 300 110 342 1310 580 900 -
52202 38202 15 32 22 16.5 24.8 4800 6700 0.082
52203 - 17 35 13.2 — — — — 0.0506
52204 38204 20 40 26 22.3 37.7 3900 6000 0.144
52205 38205 25 47 28 27.7 50.4 3600 5500 0.23
52206 38206 30 52 29 28.1 54.3 3400 5200 0.27
52207 38207 35 62 34 40.7 83.8 2900 4500 0.42
52208 38208 40 68 36 46.9 98.3 2700 4200 0.54
52209 38209 45 73 37 47.7 105 2600 4000 0.64
52210 38210 50 78 39 48.5 111 2300 3600 0.71
52211 38211 55 90 45 69.4 159 2100 3200 1.12
52212 38212 60 95 46 73.6 179 1900 3000 1.15
52213 38213 65 100 47 74.8 189 1900 2900 1.36
52214 38214 70 105 47 73.6 189 1800 2800 1.52

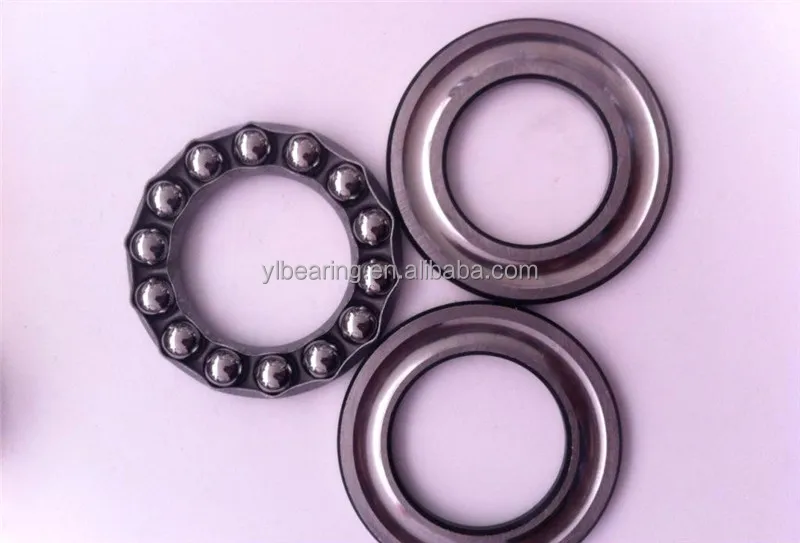

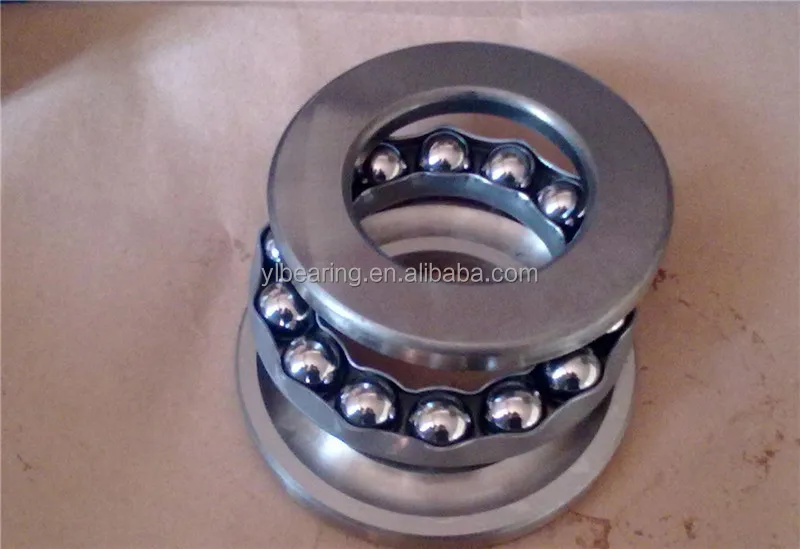

Detailed Images

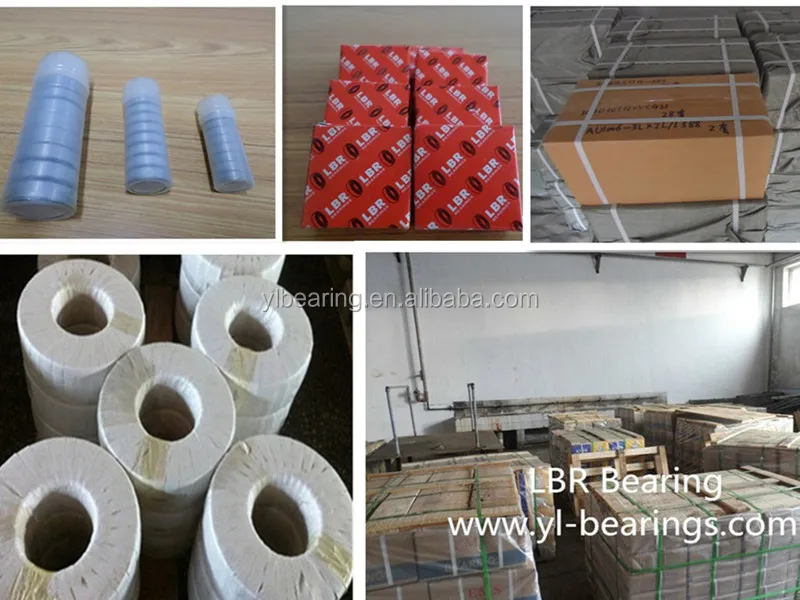

Production show:
