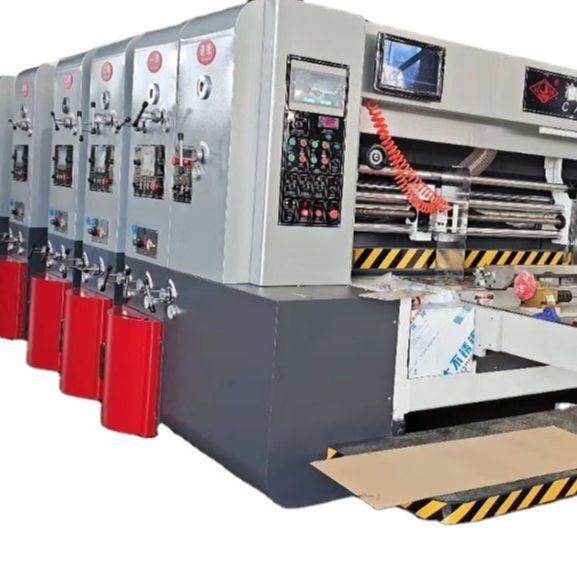

Fully automatic three-color slotting die-cutting machine
- $60000.00 / 1 - 1 sets
$58000.00 / >=2 sets - 1 set
- Dongguang Canghai Packing Machine Co., Ltd.
- Hebei, China
- Mr Binghai
Name: | Flexo Printing Slotting Die Cutting Machine | Health status: | new |
Warranty: | 1.5 years | Video shipment inspection: | if |
Main selling points: | automatic | Core component warranty: | 1 year |
Applicable industries: | manufacturing plant | Showroom location: | Italy, Brazil, Peru, Pakistan, India, Mexico, Thailand, Chile, Algeria, Sri Lanka, Romania |
port: | Tianjin | Core components: | Gearboxes, gears, bearings, motors |
payment terms: | L/C, T/T | Function: | Corrugated box printing slotting die cutting |
Mechanical test report: | if | Marketing Type: | 2019 Hot Products |
Packaging Details: | airworthy package | Weight (kg): | 100000 kg |
brand: | sea |
Canghai fully automatic high-speed 4-color 1200*2400 water-based printing slotting die-cutting machine
Model |
Drum diameter |
paper printing |
Effective printing area |
speed |
ZKYM1020 |
320mm |
2000mm |
1000*2000mm |
220 pieces/minute |
ZKYM1224 |
405mm |
2400mm |
1200*2400mm |
200pcs/min |
ZKYM1628 |
500mm |
2800mm |
1600*2800mm |
120 pcs/min |
ZKYM1830 |
600mm |
3000mm |
1800*3000mm |
100 pieces/min |
ZKYM2234 |
720mm |
3400mm |
2200*3400mm |
80 pieces/min |
ZKYM2536 |
820mm |
3600mm |
2500*3600mm |
80 pieces/min |
Machine Features
1. This machine is designed and produced with the aim of high quality, high speed, high efficiency, reliability and safety. It has the advantages of quick order change and easy operation.
2. Adopt imported PLC touch screen control. It can save orders and speed up order exchange.
3. Adopt high-quality materials and assembly parts.
4. All cylinders and rollers are chrome-plated, ideal without hardness.
5. The transmission gear is made of precision ground alloy steel and has a spray-type circulating lubrication system.
6. The expansion sleeve is used to tighten the connecting rod to reduce the wear of the shaft and maintain the high precision of the machine for a long time.
7. Adopt hanging structure, automatic reset, quick order change.
8. Each unit is equipped with an emergency stop switch to ensure safe operation.
9. Self-locking gap adjustment device is adopted, which is easy to operate.
10. The electrical components, bearings and pneumatic components are all of international famous brands.
Stacker
1. Automatic or manual stacker system control.
2. The tightness of the connecting arm transmission belt can be adjusted independently, and the number of connecting arms can be selected arbitrarily.
3. The platform lift adopts powerful screw drive.
4. Height up to tp 1600mm.
5. Platform lift with brake control device, keep it stable and non-slip.
6. Pneumatic cardboard auxiliary loop collection device.
7. Manually adjust the position of the rear stopper.
8. Flat wrinkle belt to prevent the cardboard from slipping off.
Feida
1. Front edge feeding system, frequency conversion to adjust air volume, accurate and stable feeding.
2. Double paper feeding roller model, the first paper feeding rubber roller quick change mechanism, with spring adjustment function to prevent deformation and ensure accurate paper feeding.
3. Brushes and vacuum devices remove dust from the board surface.
4. The touch screen displays the production speed and quantity.
5. Manually adjust the feeding interval.
printer
1. Both the printing cylinder and the embossing cylinder are made of high-quality steel, the surface is polished and chrome-plated. Dynamic and static balance correction ensures stable operation.
2. The suspension structure is adopted, which is convenient and quick to build.
3. To load and unload the printing plate, use the foot switch or the operation panel to control the positive and negative rotation.
4. It is matched with the paper feeding device. The machine is equipped with an automatic lifting anilox roller. When the paper feeding device is running, the anilox roller descends and contacts the printing plate, and shrinks away from the printing plate at the same time.
5. The phase adopts an electromagnetic clutch locking device, which has an intelligent zero return function, and can be reset both dynamically and statically.
6. The printing phase adopts PLC touch screen, 360-degree electric adjustment.
7. Pull roller rapid lateral movement mechanism, self-locking gap adjustment device.

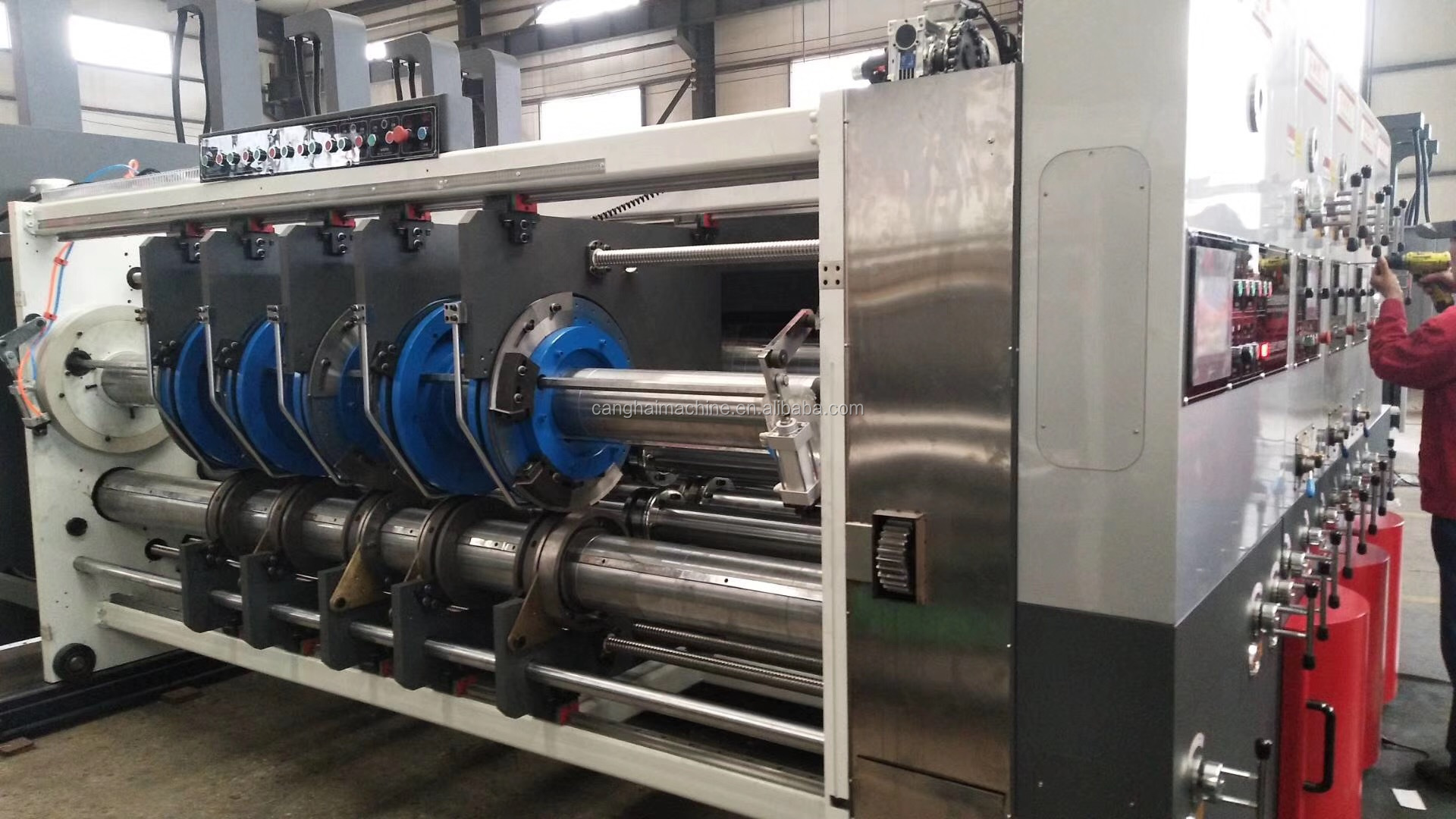

Slotting machine
1. The thickness of the groove knife is 7-8 mm, made of high-quality alloy, with sharp cutting, high tooth profile and wear resistance.
2. The groove knife is equipped with a phase and box height adjustment device, and the frequency converter controls dynamic 360-degree adjustment.
3. Precise linear guide rail, accurate lateral movement and smooth slotting.
4. According to the needs of users, it can be equipped with a punching device.
5. Pre-crimping, crimping machine, slotting knife holder, self-locking gap adjustment device.
6. Spring-type single-slitting knife, the slitting effect is smooth and cost-saving.
7. The electric moving device of the middle knife is suitable for various productions.

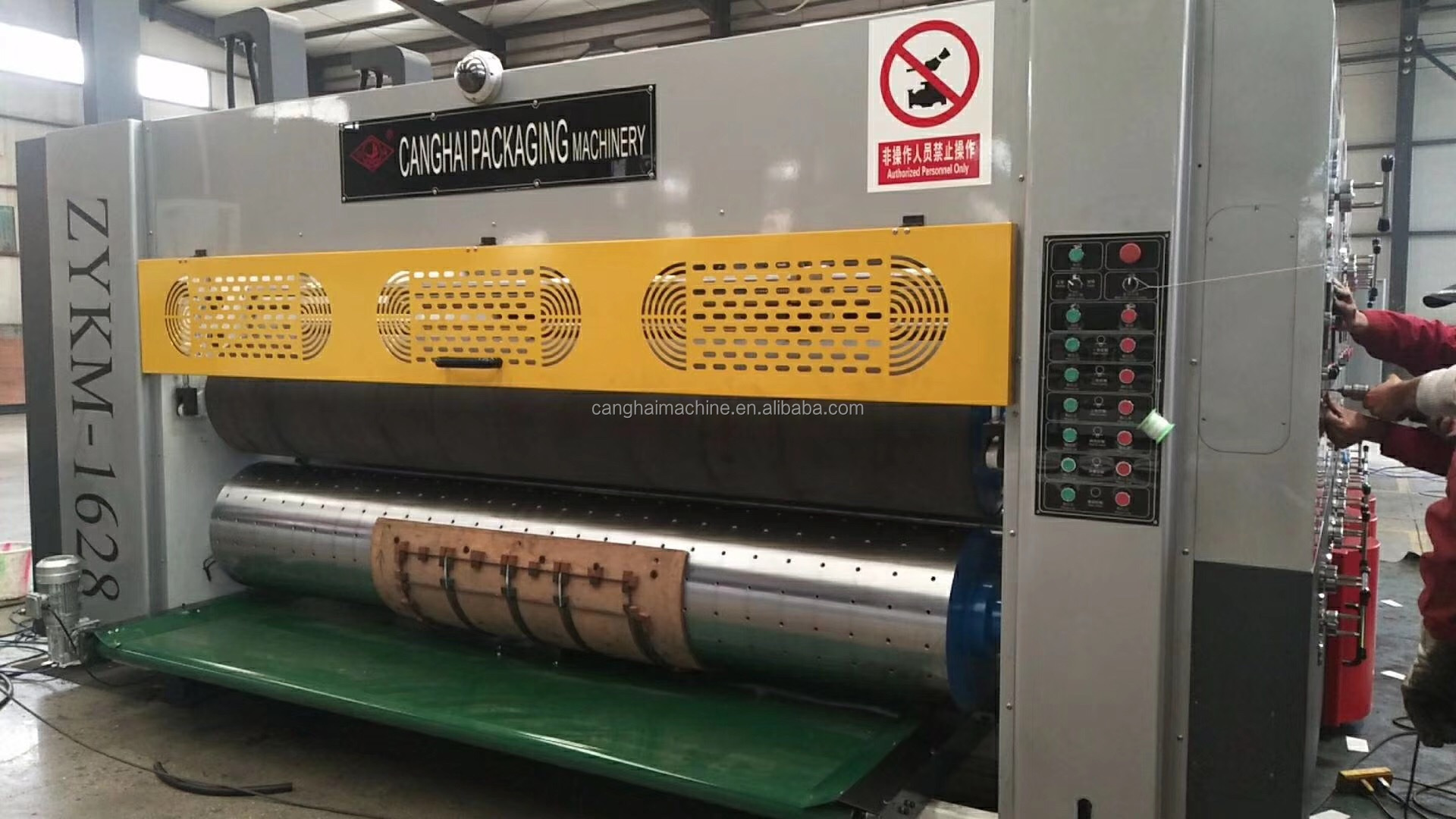

Rotary Die Cutting Machine
1. Die-cutting unit rollers are made of high-quality steel, plated with hard chrome. High-precision dynamic and static balance increases running stability.
2. When the machine is not die-cutting, the die roller and the rubber roller are automatically separated by the eccentric device of the cylinder, which reduces the load on the machine and increases the life of the rubber roller and die knife.
3. Matched with the paper feeding system, it has an automatic lifting device, and the rubber roller will drop when feeding the paper. The rubber rollers will rise when paper feeding stops. Make sure each sheet is die cut correctly.
4. The mechanical transmission rubber roller moves 40mm left and right. It also has regular wear, which can increase the life of the rubber roller
5. The die-cutting phase adopts PLC touch screen, 360-degree electric digital adjustment.
6. The machine is equipped with a rubber correction device, and the rubber roller can be used after multiple corrections.
7. No mold opening and slotting device, no need to make molds when making ordinary cabinets, saving costs and improving efficiency. (optional)
