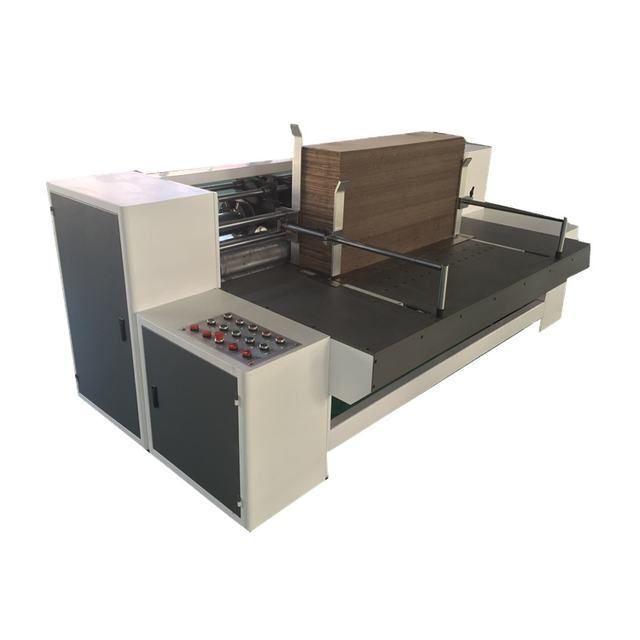

ZL Corrugated Paperboard Small Slotter Machine / Slotter for cardboard making machine
- $5500.00 / 1 - 1 sets
$4500.00 / >=2 sets - 1 set
- Cangzhou Zhaoli Carton Machinery Co., Ltd.
- Hebei, China
- Ms Lily Su
PRODUCT DETAIL
| Video outgoing-inspection: | Provided; | Showroom Location: | None; |
| Place of origin: | Hebei China; | Machinery Test Report: | Provided; |
| Packaging Detail: | plastic film packaging and fixed in the container, Semi automatic corrugated board double pieces folder gluer machine Cangzhou Automatic Carton Box Mini Slotter Machine / Corrugated Slotter Machine /Cardboard Slotter Machine; | Port: | Tianjin port; |
| Weight (KG): | 10000 KG; | Application: | Corrugated Paperboard slotting; |
| Condition: | New; | Core Components: | Gearbox,Pressure vessel,Pump,Gear,Bearing,Engine,Motor,PLC; |
| Brand Name: | Zhaoli; | Supply Ability: | 10 Sets per Month; |
| Key Selling Points: | Long Service Life; | Other Name: | Corrugated Slotter Machine /Cardboard Slotter Machine; |
| Payment Terms: | L/C,Western Union,D/P,T/T,MoneyGram; | Brand: | Zhaoli; |
| Type: | Automactic Carton Box Printing; | Keyword: | carton slotting machine; |
| Power: | 7.5kw; | Marketing Type: | New Product 2020; |
| Product name: | ZL 2000 Type Automatic Corrugated Paperboard Slotting Machine; | Voltage: | 220V/380V/440V; |
| Package Preview: | ; | Warranty: | 1 Year; |
| Speed: | 60-100; | Applicable Industries: | Corrugated cardboard manufacturing; |
| Plate Type: | Flexo Ink Printing; | Warranty of core components: | 1 Year; |
Product Description
I. Introduction
This machine is manual operation and vacuum absorption auxiliary feeding system.(The wind strength can be adjusted). It can slot, cut corner, cut the extra side and press the lines of the corrugated cardboard. The slotting width is electric adjustment, and it attached a ruler that the scale can be read easily. The phase adjustment of slotting part is planetary gear structure. The machine adopts 360°electric adjustment. The up and down slotting knives and creasing knives can move synchronously (use exclusive tool to adjust left and right). This small machine is easy to operate and repair easily which is specialized for slotting small boxes.
II. Main structure and features
1. Feeding paper roller adopt patterned roller, feeding paper roller pressure adjustment adopt eccentric wheel adjust and
left-right eccentric wheel, adjust the pressure synchronous
2. Pushing paperboard department adopt both sides baffle and latter baffle to fasten paperboard, to avoid the slotting error when pushing paperboard which make upper paperboard misplace, can fit to every kinds paperboard, and sending paper stable and accurate.
3. Slotting plate adopt full steel processed accessories, slotting knives adopt zigzag arc-shaped semicircle knives to slot and remove the scrap, paperboard get into slitting roller after slotting, slitting knives slit both sides of the paperboard
(note:pressing wheel and slitting knives in one roller)
4. Paperboard is send out by six transmit shaft after slotting, corner-cutting, slitting, pressing, this machine power equipped with the frequency conversion speed regulator (speed adjustable freely), adopt Jintiao frequency converter.
5. This machine adopt electric planetary gear phase to adjust paperboard size, can adjust without stopping.
left-right eccentric wheel, adjust the pressure synchronous
2. Pushing paperboard department adopt both sides baffle and latter baffle to fasten paperboard, to avoid the slotting error when pushing paperboard which make upper paperboard misplace, can fit to every kinds paperboard, and sending paper stable and accurate.
3. Slotting plate adopt full steel processed accessories, slotting knives adopt zigzag arc-shaped semicircle knives to slot and remove the scrap, paperboard get into slitting roller after slotting, slitting knives slit both sides of the paperboard
(note:pressing wheel and slitting knives in one roller)
4. Paperboard is send out by six transmit shaft after slotting, corner-cutting, slitting, pressing, this machine power equipped with the frequency conversion speed regulator (speed adjustable freely), adopt Jintiao frequency converter.
5. This machine adopt electric planetary gear phase to adjust paperboard size, can adjust without stopping.
Specification
item | value |
Model | 2000 Type |
Max Machine speed | 60-100 pieces/min |
Max feeding speed(L*W) | 800mm*600mm |
Min feeding speed(L*W) | 450mm*170mm |
Min slotting interval(Negative knife) | 150mm*50mm |
Min slotting interval(Positive knife) | 80mm*80mm |
Min height of box(H) | 70mm |
Dimension(Lenghth*Width*Height） | 2900*1500*1400mm |
Weight | 1500KG |
Packing & Delivery
plastic film packaging and fixed in the container, Semi automatic corrugated board double pieces folder gluer machine

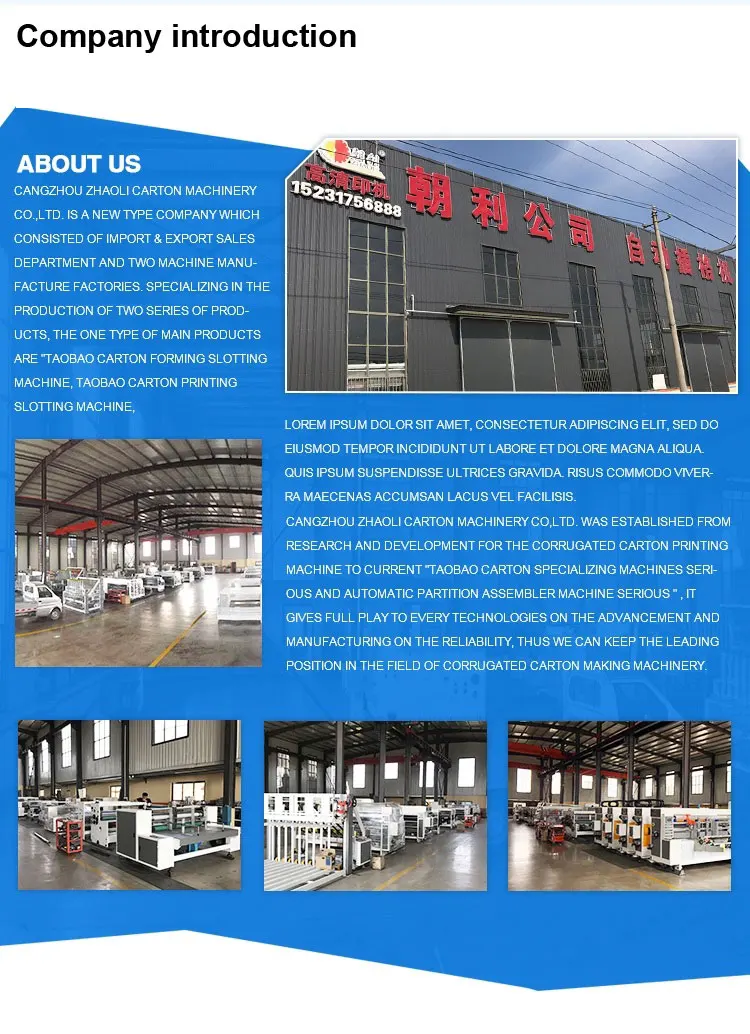

Company Profile
Cangzhou Zhaoli Import & Export Trade Co.,Ltd. is a new type company which consisted of import & export sales department and two machine manufacture factories . Specializing in the production of two series of products, the one type of main products are "Taobao carton forming slotting machine, Taobao carton printing slotting machine, automatic multi knives slitting machine, automatic partition board assembler machine, automatic partition board machine" etc. for small carton packing ; the other type of main products are like the tranditional carton machines , like flexo printer slotter die cutter machine , folder gluer mahine , laminator machine , corrugated cardboard production line etc. At present, our
products not only sale in the domestic but also sale to Europe, North-America, South America, Middle East, South-east Asia, Russia, South Africa and other countries and areas.
Cangzhou Zhaoli Carton Machinery Co,Ltd. was established from research and development for the corrugated carton printing machine to current "Taobao carton specializing machines serious and automatic partition board assembler machine serious " , it gives full play to every technologies on the advancement and manufacturing on the reliability, thus we can keep the leading position in the field of corrugated carton making machinery. All of our machines adopt advanced laser cutting technique in processing center to finish every structure units, our machines can use our unique technology to realize even if the cartons are difficult to make.
Our company will do our best to meet customer's requirements, and bring abundant retribution to new and old customers
with new innovation, development and perfect after-sale service.
