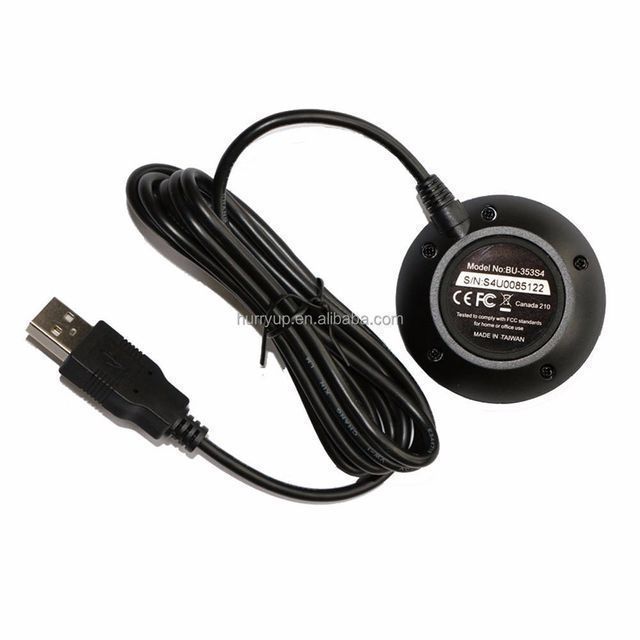

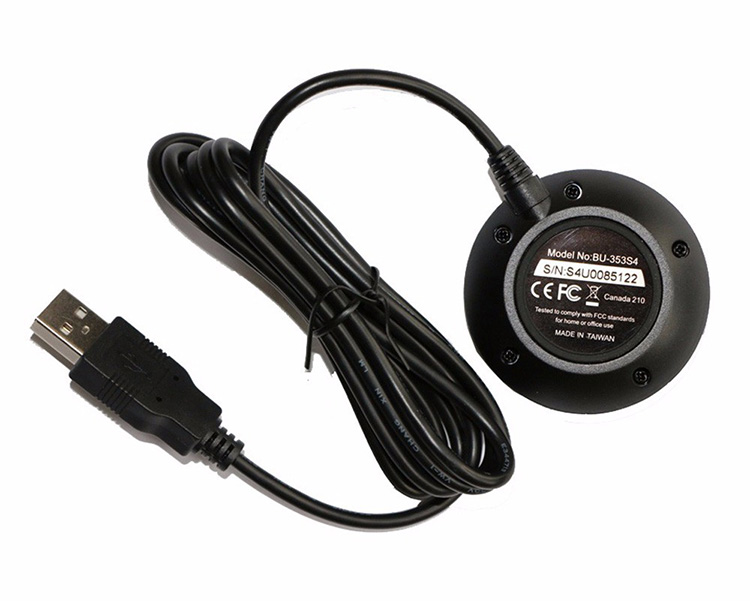

G Star IV BU 353 S4 USB GPS Receiver

PRODUCT DETAIL
Supply capacity:1000 pieces per weekTracking Sensitivity:-163 dB
channel:48 channel trackingchipset:SiRF Star IV
speed:0.1m/sConnection port:USB or PS2
payment terms:Western Union, T/T, PaypalPlace:10 meters, 2D RMS; 5 meters, 2D RMS, WAAS enabled
brand:global satellitecountry of origin:Taiwan, China
Types of:GPS receiverC/A code:1.023 MHz chip rate
time:1 microsecond geosynchronous satelliteapplication:PND, Timing
Packaging Details:standard safe packagingmodel:BU-353S4
Types of:GPS receiverfrequency:L1, 1575.42 MHz
describe
GlobalSat GPS Receivers: BU-353S4 and BR-355S4

* High performance SiRF STAR IV GPS chipset
* L1 1575.42MHz
*Channel: 48


BU-353S4is a USB GPS receiver with a high sensitivity, low power chipset in an ultra-compact form factor. Powered by a SiRF Star IV GPS chipset, the BU-353-S4 gives you exceptional performance in urban canyons and lush foliage. With SiRF CGEE (Client Generated Extended Ephemeris) technology, satellite positions can be predicted up to 3 days in advance, providing CGEE startup time of less than 15 seconds in most cases without any network assistance. The micropower mode of the bu-353-S4 allows the receiver to remain in a warm-start-like state almost continuously while consuming very little power.

feature:
*SiRF Star IV High Performance GPS Chipset
* High sensitivity (tracking sensitivity: -163 dBm)
*Extremely fast TTFF (Time to First Fix) at low signal levels
*Support NMEA 0183 data protocol
*Built-in SuperCap to retain system data for quick access to satellites
*Built-in patch antenna and magnetic pad
*Ultra sticky magnetic for car mount
*The bottom is waterproof and non-slip
*GPS LED indicator

Specification:
Chipset: SiRF Star IV
Frequency: L1 1575.42MHz
C/A code: 1.023 MHz chip rate
Number of channels: 48 channels
Tracking Sensitivity: -163 dBm

accuracy:
Position: 10 meters, 2D RMS 5 meters, 2D RMS, WAAS enabled
Speed: 0.1 m/s
Time: 1 microsecond to synchronize satellites
Coordinate information:
Default: WGS-84

Get Time:
Readmission: 0.1 seconds on average
Hot start: average 1 second
Hot start: 38 seconds average
Hot and cold start: 42 seconds average
Relevant restrictions:
Altitude: up to 18,000 m (60,000 ft)
Speed: 515 m/s (10,000 knots)
Maximum gravity: less than 4G

strength:
Main power input: 4.5V~6.5V
DC input power consumption: 80mA

protocol:
Operating level: TTL level
Output voltage: 0V ~ 2.85V
Transmission rate: 4,800 bps
Output format: NMEA 0183 GGA, GSA, GSV, RMC, VTG, GLL
Physical properties:
Dimensions: Diameter 53mm, Height 19.2mm
Cable length: 1.5 m Operating temperature: -40°C to +85°C

Package Included:
1. USB GPS Receiver
2. Suction cup
3. CD Driver with user manual
