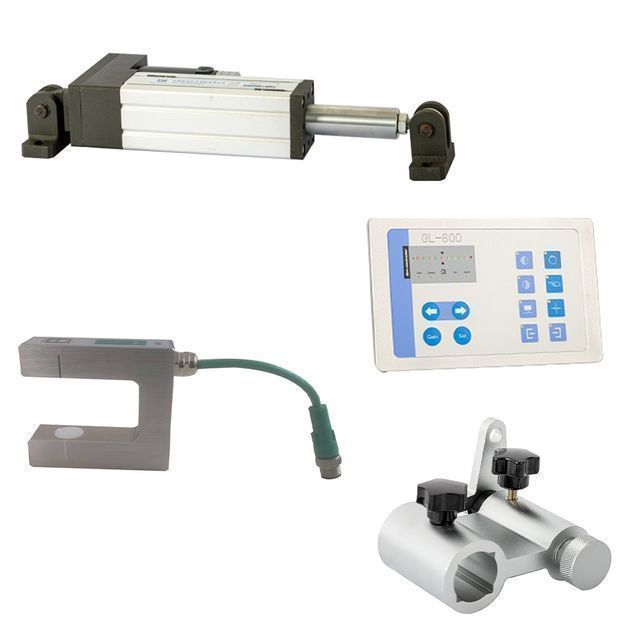

GL Series EPC Edge Position Control System Packaging Machine Web Guide Control System GL-800 + SL-150R + SG-500 + SG-1

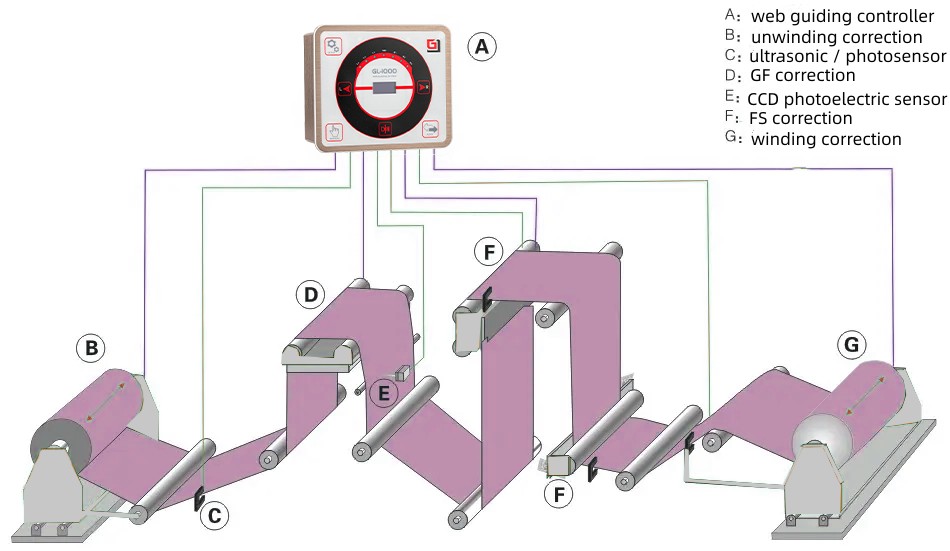

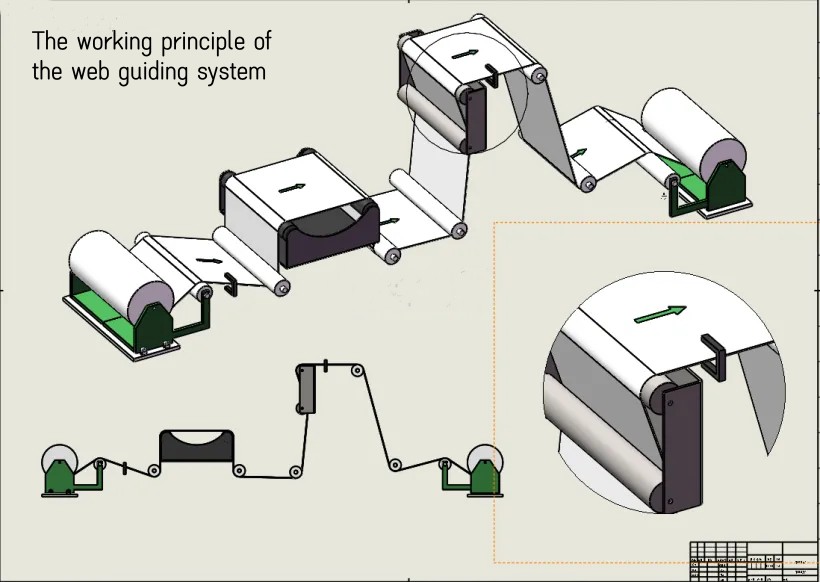

How the deviation correction system works
coil
Ultrasound
photoelectric sensor
transparent film
OK
Transparency less than 90%
opaque film
OK
OK
Paper
OK
OK
bran
OK
OK
Metal plate
OK
OK
cloth

OK
Cloth/Breathable Material

OK

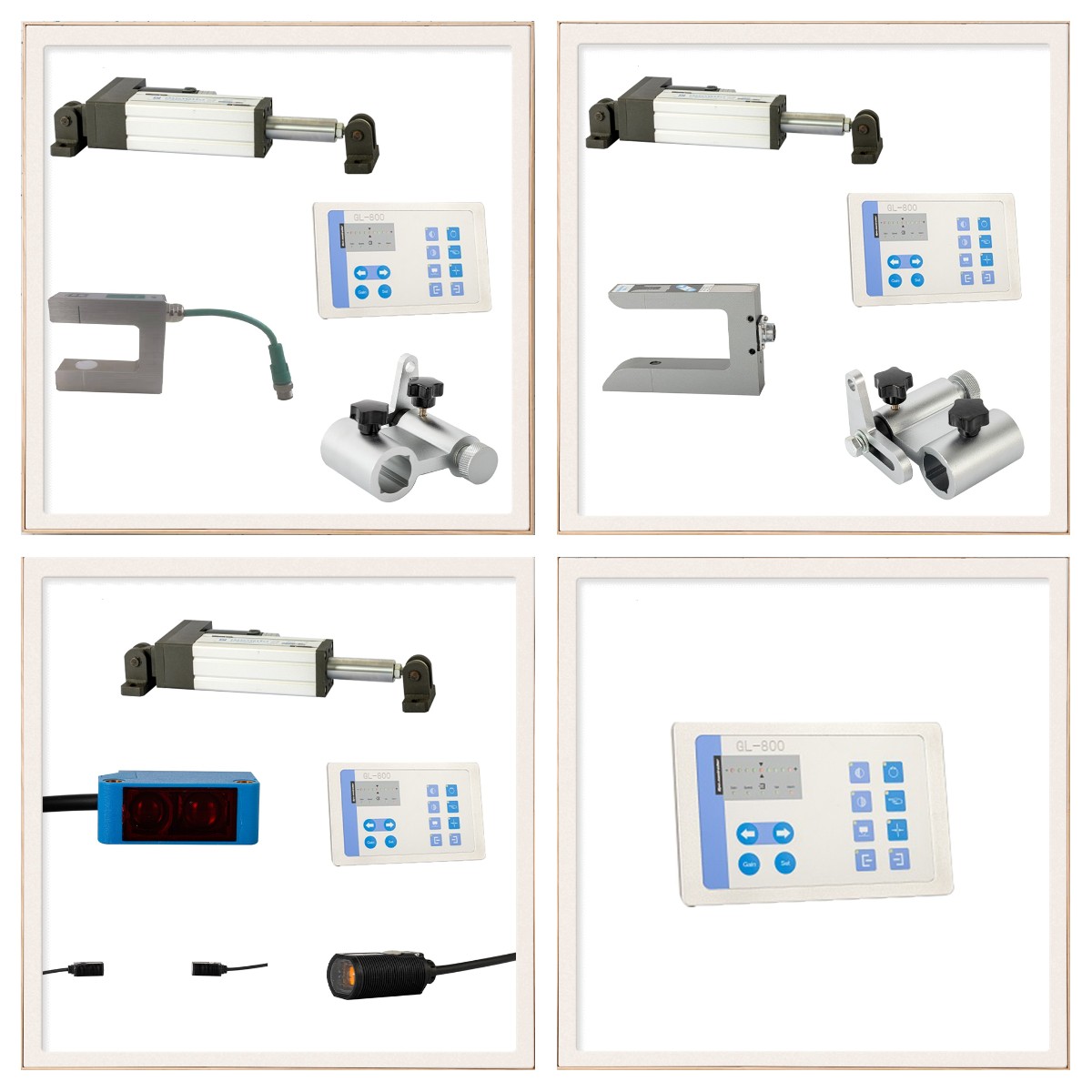

Product details:
GL-600 Networkguidecontroller
Features:
1. Beautiful and compact appearance, high technology level, strong anti-interference ability and strong anti-corrosion ability
Powerful and easy to install.
2. Modular design, high stability, no wearing parts, maintenance-free.
3. The operation interface has no operation knob, and the operation is simple and intuitive with the touch of a button, which can prevent misoperation.
4. The system is highly integrated, and the set parameters are automatically saved. control precision
up to 0.02mm.
5. Single/dual channel (itlcoms) signal input.
6 remote manual/automatic mode control, limit alarm relay output, drive current overload protection
Parameter configuration:
input power
Single-phase AC 220V fluctuation ≤5%
Input Current
2 A or higher
The output voltage
PWM-24V
Output current
5 A max
control method
closed loop
sensor signal input
1 channel analog 0-5V
Use environment
0℃-40℃ (humidity below 80%RH)
Install
Embedded and Freestanding
Dimensions
Length 200×width 125×depth 150mm
weight
About 4.5 kg

SL - 150R Web Guide Actuator
Drive parameter configuration
drive
allowable thrust
allowable load
The maximum stroke of the screw
Driving speed
Drive power
motor
Drive model
(kg.f)
(Kilogram)
(mm)
(mm/sec)
200
2000
80
20
DC24V
DC Servo
SL-100R
200
2000
100
20
DC24V
SL-150R
200
2000
150
20
DC24V
Correction stroke size can be customized according to customer requirements

SG-500 paper guide sensor
Parameter configuration:
Model
SG-500
CR-1
SG-30B
SG-50B
SG18DR
waterproof
Detection method
opposite
opposite
Background suppression diffuse reflection
opposite shot
opposite shot
Detection distance
(mm)
51mm
30mm
300mm
10m
20m
Check for accuracy
(mm)
0.01
0.01
0.5
0.5
0.5
Detection element
Ultrasound
Imported silicon photovoltaic cells
LED red light
LED red light
infrared
Operating Voltage
DC10-30V
DC10-30V
DC12-24V
DC12-24V
DC12-24V
Application Features
Ultra-high transparent film
Ordinary transparent film, translucent film, mesh
Black non-reflective and reflective material
opaque material
Underwater clarity 80%
Narrow sheet
Product features: 1. Aluminum alloy shell design, durable, high technology level, strong anti-interference ability 2. Simple operation, no need for any debugging, 0-5V analog voltage output, control accuracy up to 001mm. 3. Modular design, high stability, no wearing parts, maintenance-free.

Fine-tuning support for SG-1
Features 1. Built-in insulating rod, strong anti-interference ability 2. Large adjustable range, no blind area 3. With fine-tuning function, high precision 4. After the position is determined, it is easy to fix

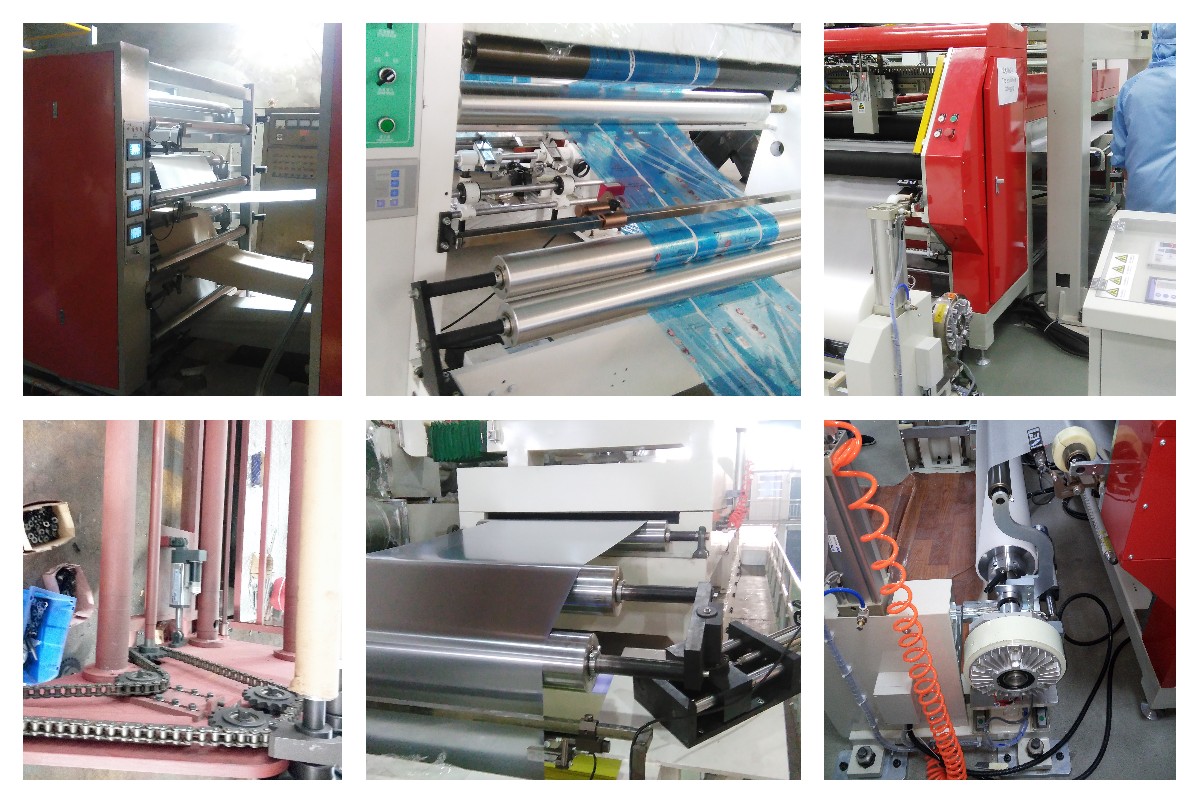

application
