High Quality Screen Printing Frame / Screen Frame for Textile Printing 20"x24" / Sandblasted and Polished

PRODUCT DETAIL
glue:Chiwo 2800place of origin; place of origin:China Shanghai
brand:Gold UP, Gold UPPackaging Details:All aluminum frames will be wrapped in plastic film and carried on pallets. Small frames can be placed in large frames to save space.
type:screen printing framenervous:15-22N/cm
Delivery Details:7 days after paymentsize:20'x24"
payment terms:Wire Transfer, Western Union, Paypal, Credit CardMaterial:Aluminum 6063
Supply capacity:40,200 pieces per weekTerms of trade:FOB, CIF, DDU
model:Gold-up09,20"X24", 23"X31", 18"X20"Printing Type:screen printing machine
port:Shanghai silk screen photo frameAlloy part:35x35mm
network:24T-140TMesh Color:White (mesh ≤180) Yellow (mesh ≥200)
use:other
Product Description

Features and Benefits:

  • Environmentally friendly aluminum alloy complies with European ROHS standards.
  • German KIWO adhesive, 100% monofilament polyester DPP mesh, ensures high quality and consistent printing process.
  • Typical tensions for T-shirt printing applications range from 17N to 26N.
  • Each frame is rigorously inspected before being sent to our clients. The external dimension tolerance can be controlled within +/-0.5mm, and the flatness can be controlled within 0.15mm.

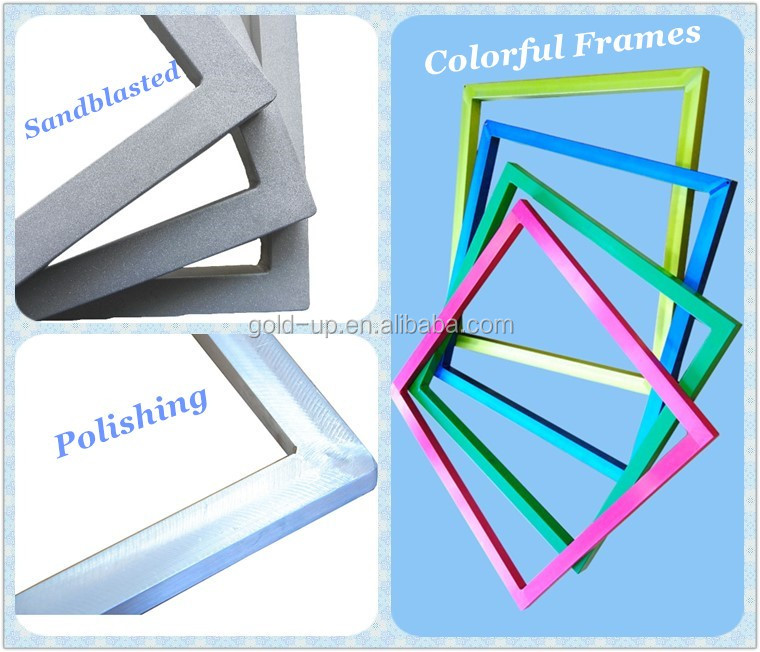

  • Frame Features:High pressure printing, corrosion resistance, no deformation, high recycling value. Different frame sizes depend on the accuracy of overprinting and printed graphics. Usually we sandblast and polish the frame for our t-shirt printing clients.
  • Grid Features:The mesh has high strength, low elongation and good tension stability.
  • those roles:Printing durability, corrosion resistance, no deformation, high recycling value. We can also customize frames or screens of various specifications according to customer requirements.

application:

High tension polyester screen printing mesh is woven from heated polyester extruded into a single strand of yarn. Widely used in textile printing, plate printing, electronic printing, ceramics, glass, color paper printing, label boards, advertising, etc.


product detailsSpecification:

Product Size

Material Specifications

grid specification

Comment


18"x20"
(457x508mm)

35x35x1.2x1.4mm




43T-80UM
51T-71UM
64T-55UM
72T-55UM
80T-55UM
90T-48UM
100T-40UM
110T-40UM
120T-34UM
140T-34UM

Raw materials:
AL6063 and T5 aluminum alloys comply with European RoHS standards.

Adhesive:
German solvent resistant Kiwo glue.

network:
Tension stable and low elongation polyester mesh.

nervous:
18-22N/cm (measured by TETKO MAT 7-50N/cm Tensiometer)


20"x24"
(500x600mm)

35x35x1.2x1.4mm


23"x31"
(584x787mm)

38x38x1.4x1.6mm


25"x36"
(635x914mm)

38x38x1.6x1.8mm

Other custom sizes and specifications are also available!
Please only communicate your request to the following:
Email: [email protected]

Whatsapp/Mobile: +86 13812887623

It can be customized to your:

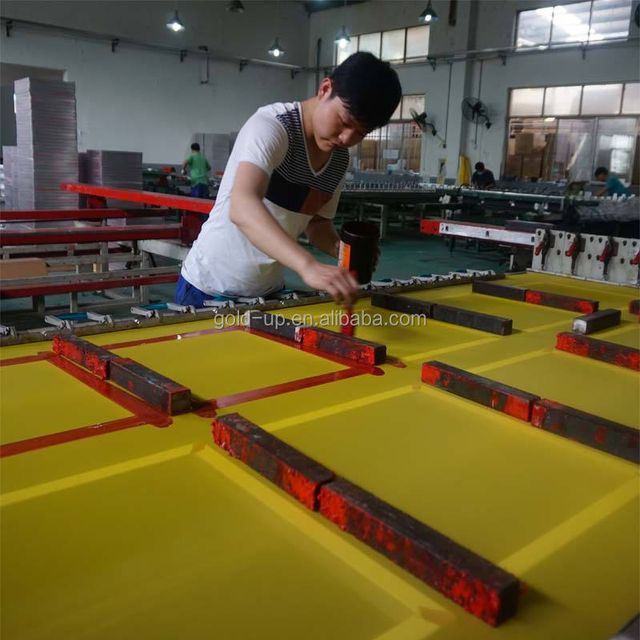

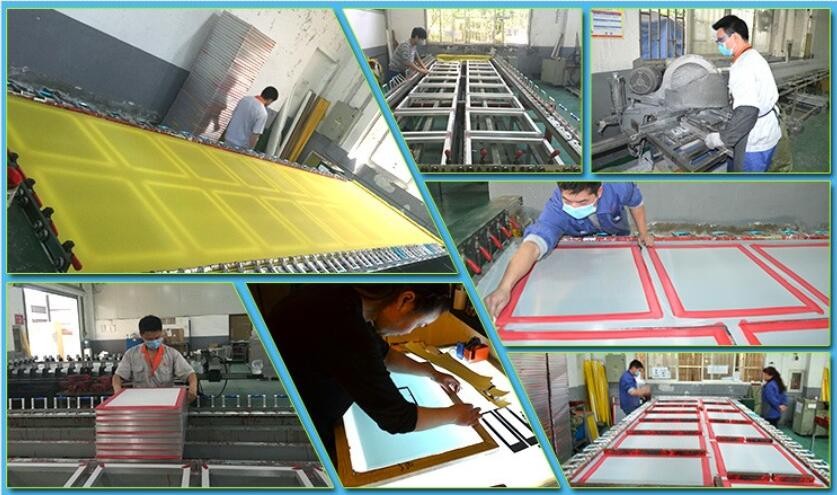

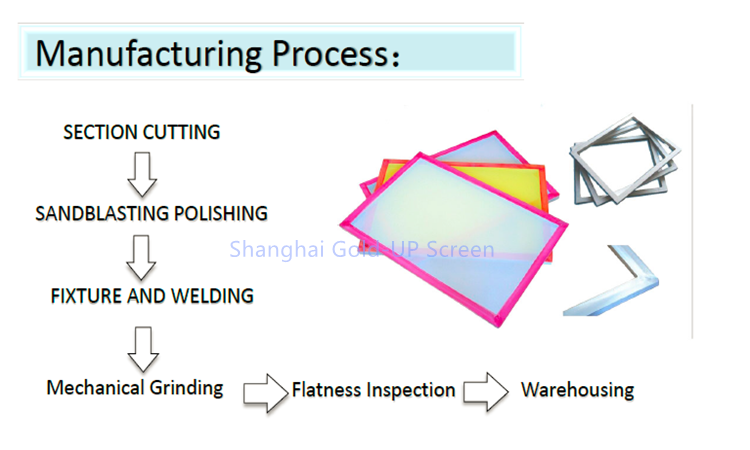

Production Process
