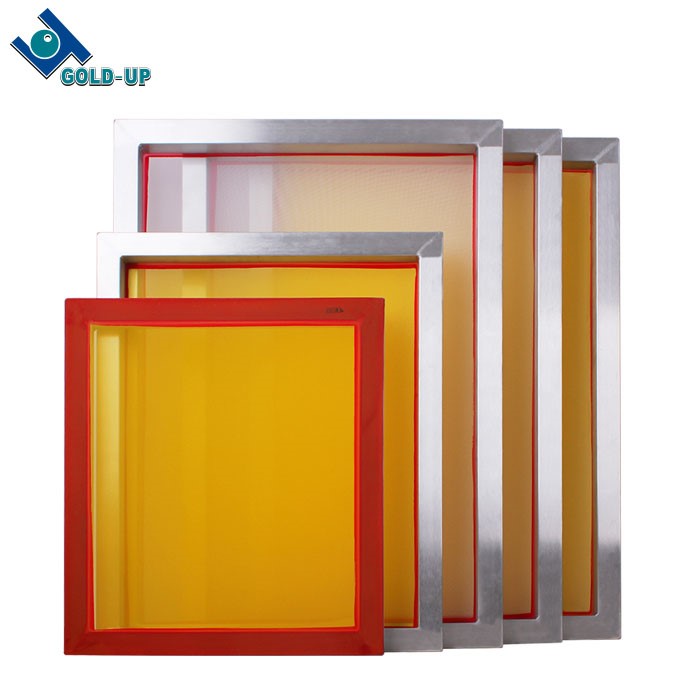

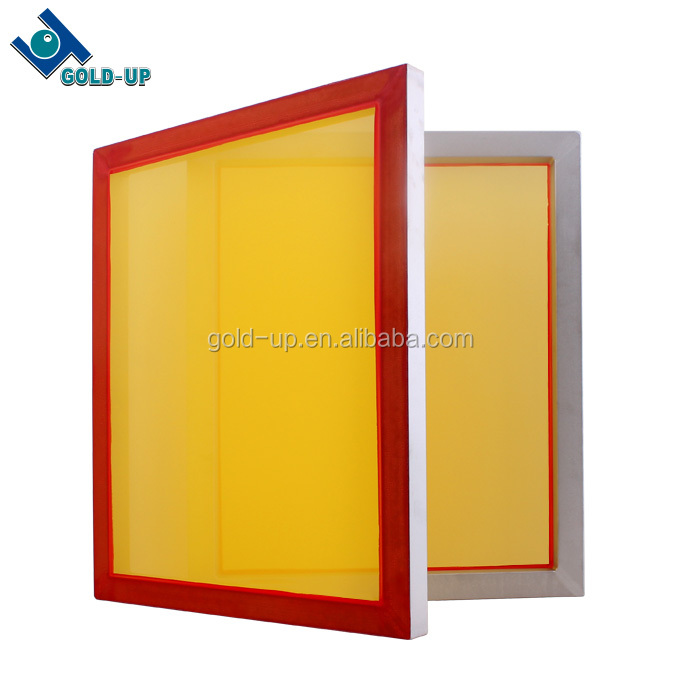

Screen printing pre-stretched screen frame/screen printing aluminum screen frame

PRODUCT DETAIL
MOQ:1 itemOrigin:China
usage:screen printing processMain selling points:long lasting
type:Aluminum screen printing framesurface:sandblasting
Colors and Pages:Polychromaticsize:20"x24", 23"x31", size can be customized
Applicable industries:Manufacturing plants, printing shops, othersPlate type:screen printing machine
Automatic level:semi-automaticpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal
Supply capacity:1000 pre-stretched screen printed frames per dayport:Shanghai
weight:1.1 kg/piece 20"x24", 1 kgcolor:silver
Warranty:unavailableproduct name:Pre-stretched screen printing frame
feature:standard sizeMaterial:aluminum alloy
Packaging Details:1. Wrapped in polybag, then put into wooden box 2. Waterproof canvas for carton 3. Your brand and meter number can be printed on the grid 4. Your shipping mark can be printed on the carton

Screen printing pre-stretched screen frame/screen printing aluminum screen frame

Product Description

Feathers and Pros:

The environmentally friendly aluminum alloy complies with European ROHS standards.

German KIWO adhesive, 100% monofilament polyester DPP mesh, ensures high quality and consistent printing process.

The normal tension in the application field of T-shirt printing is between 17N and 26N.

Each frame is strictly inspected before being sent to our clients. Dimension tolerance

The precision can be controlled within +/-0.5mm, and the flatness can be controlled within 0.15mm.

frame feature:High tension printing resistance, corrosion resistance, no deformation, high recycling value. Different frame specifications depend on the accuracy of overprinting and printed graphics. Usually we sandblast and polish the frame for t-shirt printing customers.

Grid Features:The net has the characteristics of high strength, low elongation and good tension stability.

Those roles:Strong printing resistance, corrosion resistance, no deformation, high recycling value. We can also customize frames or screens of various specifications according to customers' requirements.

application:

High Tension Polyester Screen Printing Mesh is woven from heated extruded yarnPolyester in single strands. Widely used in textile printing, plate printing, electronic printing, ceramics, glass, colored paper printing, labels, advertising, etc..

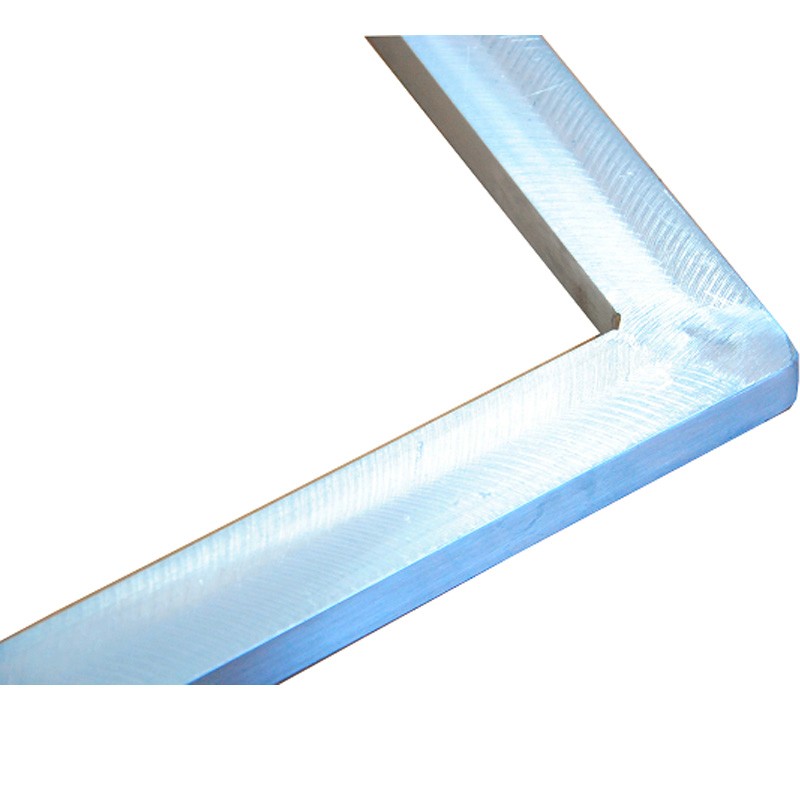

Polishing and grinding:

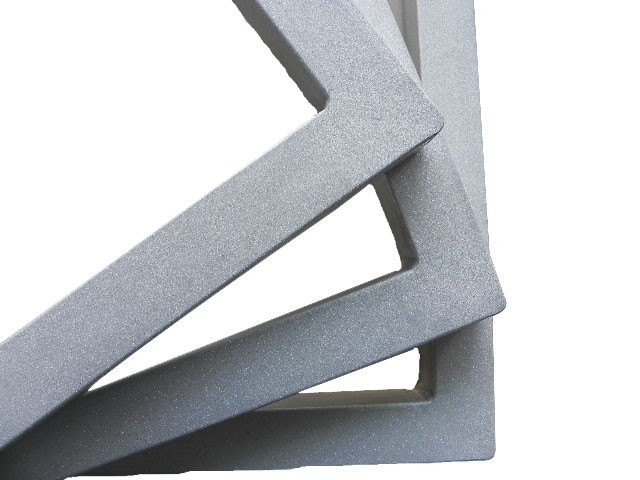

Sandblasting:



Detailed product specifications:



Product Size Material specification grid specification Comment

18"x20"
(457x508mm)
35x35x1.2x1.4mm
43T-80UM
51T-71UM
64T-55UM
72T-55UM
80T-55UM
90T-48UM
100T-40UM
110T-40UM
120T-34UM
140T-34UM
raw material:
AL6063 and T5 aluminum alloys comply with European RoHS standards.

Adhesive:
German solvent-resistant Kiwo glue.

net:
Stable tension and low elongation polyester mesh.

nervous:
18-22N/cm (measured with TETKO MAT 7-50N/cm tensiometer)

20"x24"
(500x600mm)
35x35x1.2x1.4mm

23"x31"
(584x787mm)
38x38x1.4x1.6 mm

25"x36"
(635x914mm)
38x38x1.6x1.8 mm
Other sizes and specifications are also available on request!
