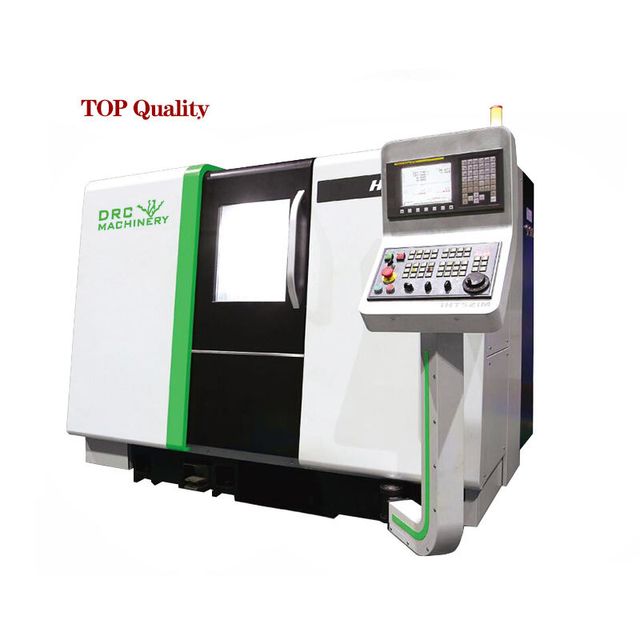

German 5-axis 6-axis inclined bed CNC lathe
- $51307.00 / 1 - 7 sets
$44850.00 / >=8 sets - 1 set
- Dalian R&C Machinery Co., Ltd.
- Liaoning, China
- Ms Alice Liu
| Type of machine: | German inclined bed CNC lathe | Bed width (mm): | 390 mm |
| Number of spindles: | twin | year: | 2018 |
| accurate: | High precision lathe | structure: | Inclined bed lathe |
| Speed range: | 1-6000 Lathe | Applicable industries: | Manufacturing, Construction, Energy & Mining |
| model: | IHT521 lathe | Machining diameter: | 390mm lathe |
| Spindle diameter: | 74mm CNC lathe | Spindle Bore (mm): | 74 meters |
| type: | horizontal | place of origin; place of origin: | Liaoning, China |
| Main selling point: | competitive price | Packaging Details: | Suitable for shipping international standard high-rigidity and high-precision CNC lathe IHT521 large inclined bed CNC lathe price |
| Core components: | Bearings, Motors, Pumps, Gears, PLCs, Pressure Vessels, Engines, Gearboxes | CNC control system: | Fanuc |
| Showroom location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka , Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia, none | maximum. Spindle speed (rpm): | 5000 rpm |
| Number of axes: | 2 | Weight (kg): | 3200 |
| Bed diameter: | 500mm lathe | port: | Qingdao |
| Spindle motor power (kW): | 7.5/11 | Positioning accuracy (mm): | ±0.008 |
| Packaging Preview: | Control System: | Fanuc Lathe CNC | |
| Marketing Type: | Hot Products of 2019 | Health status: | new |
| maximum. Workpiece length (mm): | 674 mm | Function: | Turning, milling and other machining |
| Tool station: | 8 | Warranty: | 1 year |
| brand: | Democratic Republic of Congo | Core Components Warranty: | 1 year |
| Dimensions (L*W*H): | 3260/1850/1700 | Supply capacity: | 500 sets per month |
| Processing capacity: | medium | Video external inspection: | if |
| maximum. Rotation diameter: | 500MM CNC lathe | Mechanical test report: | if |
| Tool rack brand: | Hedex | maximum. Turning length (mm): | 390 |
| payment terms: | letter of credit, wire transfer | Stroke (X-axis) (mm): | 225 mm |
| Repeatability (X/Y/Z) (mm): | ±0.005 | Voltage: | 380V50HZ |
| Stroke (Z axis) (mm): | 525 mm | Spindle motor/FANUC: | engraving and milling machine |

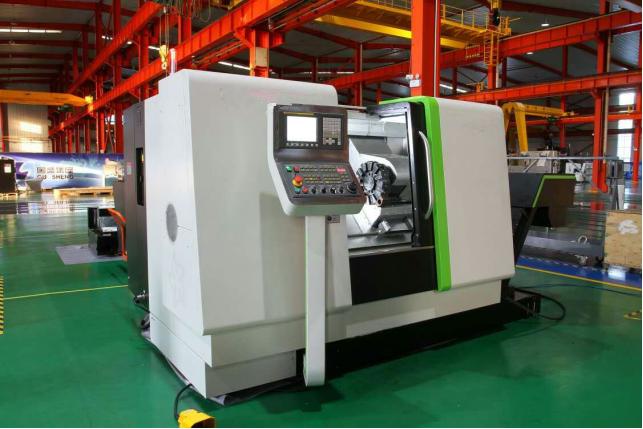

German inclined bed CNC lathe
DRC Brand High Efficiency IHT516 Fanuc CNC China Mini Metal Lathe

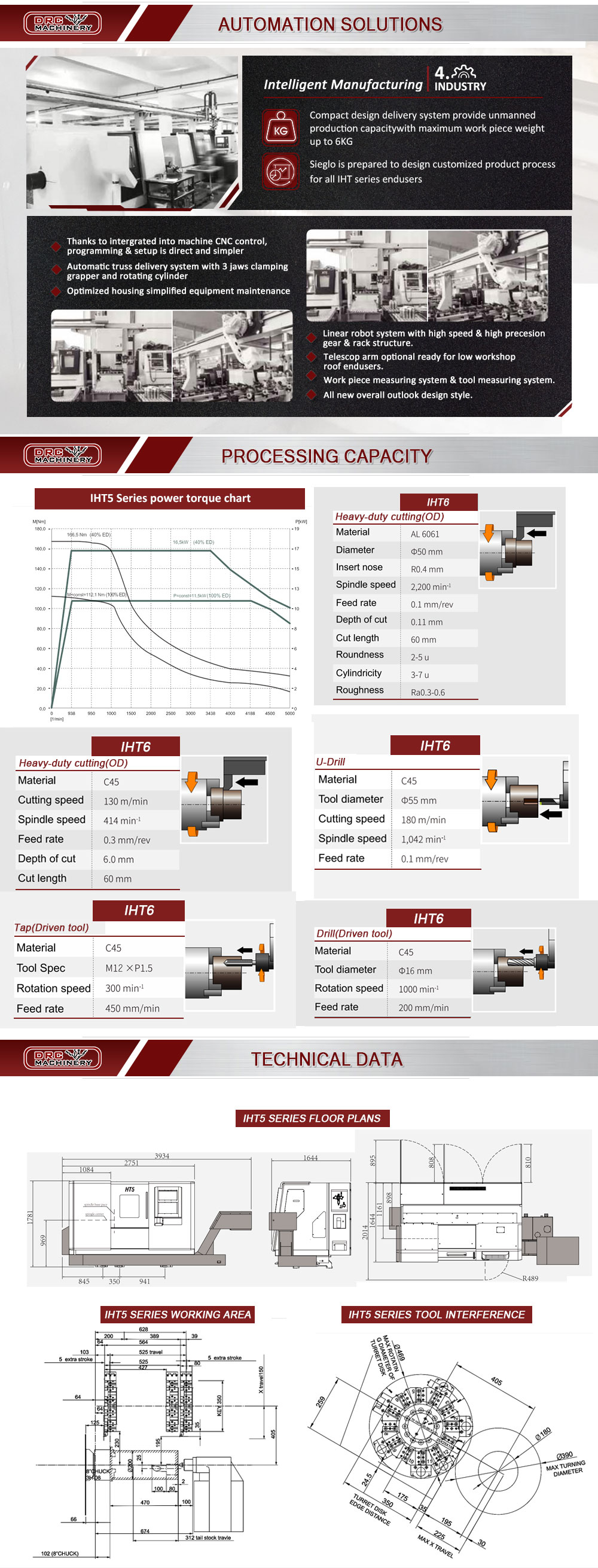

iHT series lathe product application
IHT series has excellent rigid structure and modern control system. IHT has excellent cost performance, user-friendly design and rich configuration. This series adopts the self-developed spindle structure with better performance. The fuselage structure is optimized and integrated, with high rigidity, high efficiency and high cutting capacity.
Tuned lathe with FANUC control system, including standard equipment and standard control system functions. One-piece cast bed with low center of gravity, optimized design of 30° saddle, large impact damping and small deformation, headstock and turret. Provides a highly rigid structural foundation. The 30° inclined bed design is convenient for the upper and lower parts of the operator, and it is also guaranteed. Smooth chip evacuation.

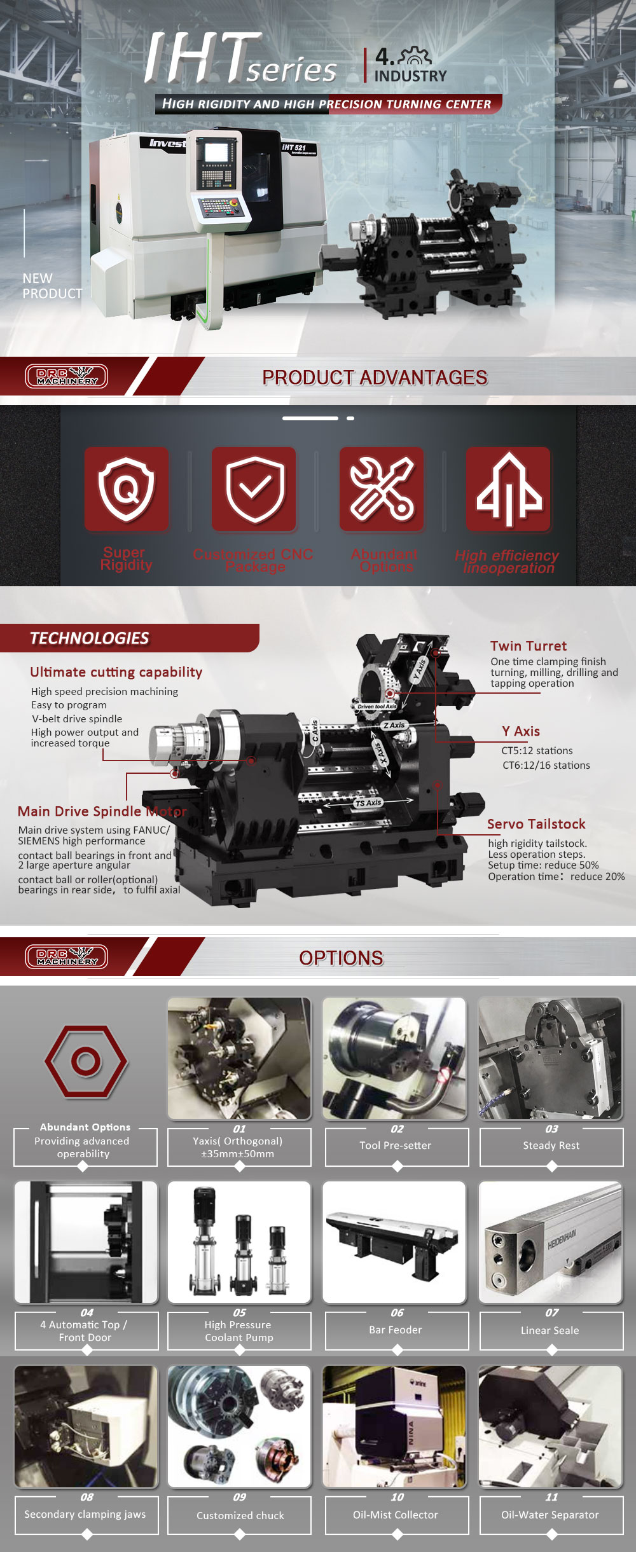

Main features of iHT series CNC lathes
Compact design, HT300 grey cast iron bed
Optimum proximity and operational depth
The ideal training tool with a footprint of only 3.5m2 and a spindle operating depth of only 350mm
Higher productivity with up to 12 drive tools (optional)

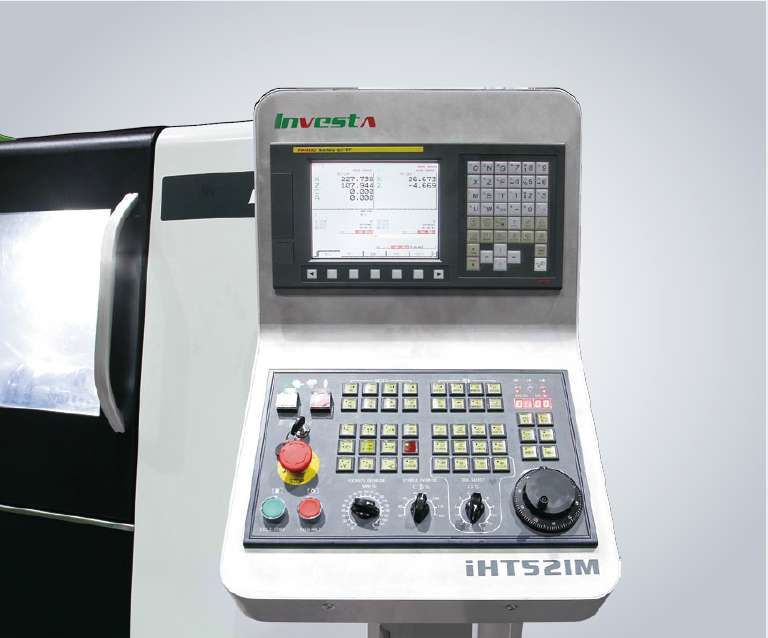

The latest CNC technology: FANUC 0i-TF produces the latest operating system, 10.4 inch control panel (optional) or
Siemens 828D CNC system (840D optional)

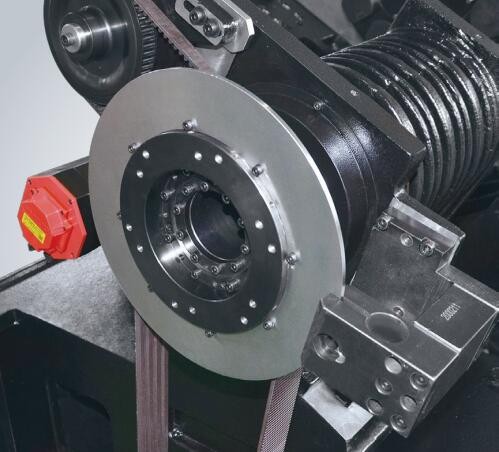

Adopt self-developed spindle structure
get better performance
iHT 516 / iHT 521 / iHT 1025
cnc turning and milling machining center
iHT series technical lathes
Realized by rail HT300 with four solid material grey cast iron bed
Maximum stability and perfect machining results
During this process, Φ32 mm x 360mm and ball screw drive
Widely spaced rails for maximum stability
(IHT 1025: 400mm and Φ40mm)
Spindle bearings up to 100mm inner diameter
(Φ140 mm for IHT 1025), and optional linear encoders, these ligands
Settings for maximum accuracy and stability of the aircraft

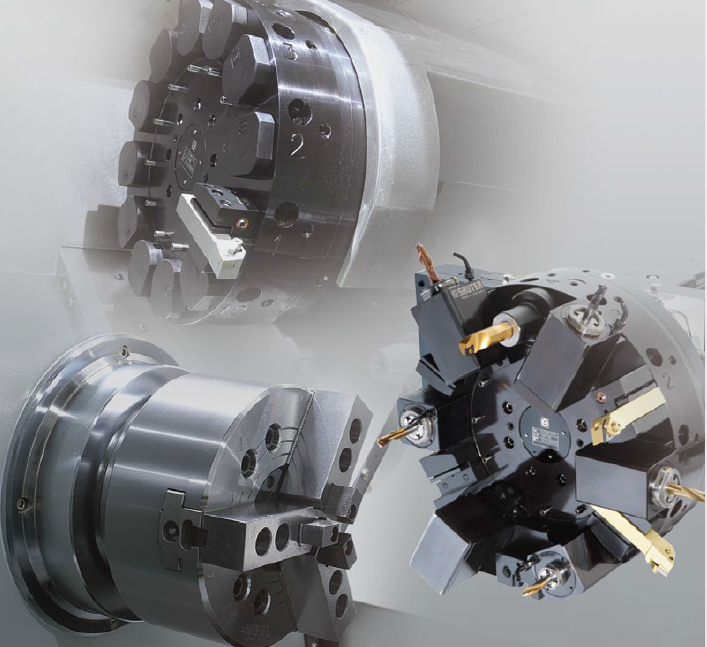

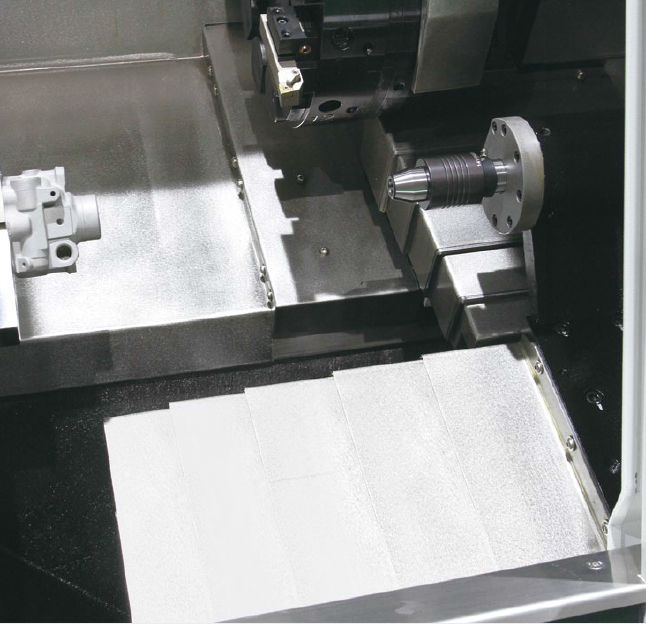

12 Turrets VDI 30 or VDI 40 (BMT optional), standard hydraulic control
System tailstock
Standard hollow hydraulic clamping system (solid optional)
Moving Steady Rest (Optional) and Servo Driven Tailstock (Optional)
technical date | ||||
Spindle head | type | Florida 140 H5 | ||
Spindle maximum speed | number of revolutions | 5000 | ||
maximum. torque | N×m | 112 | ||
Spindle power | kilowatt | 7.5-11 / (11) | ||
Chuck diameter | mm | 210 | ||
Spindle hole | mm | 74 | ||
Front bearing diameter | mm | 100 | ||
Spindle bearing lubrication | type | grease | ||
Linear motion lubrication | type | Oil | ||
speed range | number of revolutions | 1-5000 | ||
work is | ||||
Center distance | mm | 674 | ||
Maximum swing on the bed | mm | 500 | ||
Maximum cutting diameter | mm | 390 | ||
Maximum swing on the runner | mm | 240 | ||
Recommended cutting diameter | mm | 200 | ||
Maximum bar capacity | mm | 51(65) | ||
Stroke Z/X | mm | 525/225 | ||
Ball screw | ||||
X/Z axis ball screw DxP | mm | 32×10 | ||
feed | ||||
Quick move Z/X | m/min | 30/30 | ||
feed force | ||||
Feed force X/Z | New Zealand rice | 4500 | ||
number of axes | 2 | |||
measuring system | ||||
X/Z axis measurement system | absolute rotation | |||
(X/Z); VDI/DGQ 3441 positioning | mm | 0.008/0.010 | ||
(X/Z); VDI/DGQ 3441 Repeatability | mm | 0.004/0.005 | ||
Tailstock (optional) | ||||
stroke | mm | 312 | ||
Tailstock movement | hydraulic | CNC | ||
pressure | n | 4000 | ||
Central location | type | MK4 | ||
Tool accessories | ||||
Electric Turret | type | Pragatti BTP-100 | ||
Number of tool stations to drive tools | - | 12 | ||
Tool accessories | - | trencher | ||
Outer diameter tool size | mm | 25 | ||
Electrical Specifications | ||||
Voltage | five | 380±10% | ||
frequency | hertz | 50±1% | ||
maximum. Installed power | kVA | 20 | ||
400v polygraph fuse | One | 50 | ||
400v line automatic circuit breaker | One | 33 | ||
connecting cable section | square millimeter | 4×10 | ||
hydraulic device | ||||
maximum. work pressure | bar | 55 | ||
reservoir capacity | l | 30 | ||
Pump flow | Count me in | twenty four | ||
Oil based cooling system | ||||
with fuel tank capacity | l | 120 | ||
pump delivery | L/min | 30 | ||
pump pressure | bar | 5 | ||
noise level | ||||
less than | dB(A) | ≤80 | ||
Control System | ||||
FAUNC | 0iTF | |||
net weight | Kilogram | 3200 | ||
bevel, material | ° | 30°, HT300 | ||
Siemens, HEIDENHAIN, Bosch Rexroth, Balluff Sot.
Use high-quality components from Germany
Such as control systems, measuring systems, hydraulic systems, proximity switches and turrets from: SIEMENS
1. High stability, solid cast iron frame, compact design - 30°/45° inclined bed
2. Self-developed spindle structure
3. With programmable hydraulic tailstock iHT 516 / iHT 521 machining space
4. Shaft machining on a single power tool with iHT 1025
5. Integrated finished parts picking device
6. For iHT 1025, on vertical rail centering hydraulic steady rest
7. Tool measurement
8. Japan NACHI hydraulic system
High-precision CNC turning and milling machine with inclined bed
Rich configurationn
Electric turret, servo turret, power turret; high-power motor, high-torque motor; large-diameter hollow cylinder; chuck; drawer-type water tank; on the knife;
Oil mist separators and other options are available.
Inclined bed lathe
CNC automatic lathe
Excellent rigid structure:
One-piece cast bed with low center of gravity, optimized design of 30° saddle,
It has large shock damping and small deformation, headstock, turret
Provides a highly rigid structural foundation.
The 30° inclined bed design is convenient for the upper and lower parts of the operator, and also ensures
Smooth chip evacuation.
Modernization of the control system:
CNC lathe
Cost-effective
German origin i HT series has the best parts like turret
SAUTER, NSK bearings, etc. ensure high
precision parts, and appropriate
There should be a high cost for the price.
Humanized design:
Not only the minimum space requirement, but also the maximum work area
Processing conditions, fully surrounded by humanized aesthetic design, stainless steel cover plate to provide you with security
Adequate clean space also ensures the durability of the lathe.
Super cutting ability
Powerful headstock with radiator designed as a one-piece casting. Rigid tapping as standard eliminates the need for a floating tap collet, enabling high-speed precision tapping. Easier programming depth and more precise tapping provide the highest productivity tapping operations. A dedicated high-performance V-belt drive spindle makes maintenance easier while reducing the thermal impact of the spindle motor on accuracy. Precise adjustment through the pulley reduction ratio enables the motor to reach the highest speed and the highest spindle speed at the same time, thereby reducing the speed and increasing the full power output of the torque, charging the motor
Unleash their potential for maximum turning ability.
