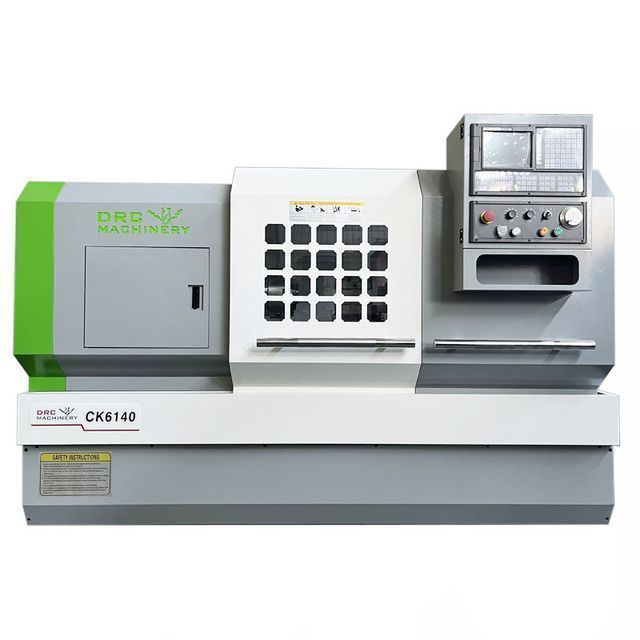

Precision Metal Turning CNC Lathe CK6140 Horizontal Flatbed Lathe CNC Lathe

PRODUCT DETAIL
CNC control system:SiemensVoltage:380V, 50HZ
Warranty:1.5 yearsyear:2021
CNC lathe spindle diameter:82mm (optional: 130mm) CNC lathemaximum. Workpiece weight (kg):300
Automatic turning CNC lathes:CK6140 Siemens Flatbed CNC Lathe Pricemaximum. Spindle speed (rpm):2000 rpm
Packaging Details:Precision Ck6140 Metal CNC Lathe Horizontal Flatbed Lathe CNC Lathe Packaged in Seaworthy Wooden CasePositioning accuracy (mm):±0.005
port:DalianApplicable industries:Manufacturing, Construction, Energy & Mining
Stroke (Z axis) (mm):750 mmCore Components Warranty:1.5 years
payment terms:letter of credit, wire transferShowroom location:Canada, United Kingdom, United States, France, Germany, Vietnam, Saudi Arabia, Indonesia, Russia, Morocco, Kenya, Argentina, South Korea, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia
Supply capacity:500 sets of metal CNC lathes per monthtype:horizontal
brand:Democratic Republic of CongoBed width (mm):400 mm
maximum. Turning length (mm):750Stroke (X-axis) (mm):280 mm
Material:high quality cast ironmaximum. Swing on the bed:400mm CNC lathe flat bed
Automatic lathe grade:Automatic CNC lathemaximum. Processing length:750mm (Optional: 500/1000)
Main selling point:high accuracystructure:Flatbed Lathe
CNC lathe product type:Horizontal CNC LatheCore components:Bearings, Motors, Pumps, Gears, PLCs, Pressure Vessels, Engines, Gearboxes
Dimensions (L*W*H):2200*1160*1620Processing capacity:medium
Tool rack brand:HedexFunction:Machining Metal
Tool station:4Marketing Type:New Products 2021
Spindle Bore (mm):82Health status:new
Mechanical test report:ifPackaging Preview:
Spindle motor power (kW):5.5/7.5X/Z axis travel:280/750mm
place of origin; place of origin:Liaoning, ChinaNumber of spindles:single
maximum. Workpiece length (mm):750CNC lathe machine type:Metal CNC Lathe
Number of axes:2Video external inspection:if
Weight (kg):1800Repeatability (X/Y/Z) (mm):±0.005
model:CK6140 CNC lathe
Siemens Flatbed CNC Lathe Price CK6140 Horizontal Automatic Lathe CNC Lathe
◆This series of machine tools are mature products mainly exported by Dalian Derek Machine Tool Co., Ltd. The whole machine has compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and good precision retention. ◆Optimized design of headstock, suitable for turning of disc and shaft parts. It can process straight, circular, metric and inch threads as well as multiple threads. It is suitable for processing discs and shafts with complex shapes and high precision requirements. Parts Processing. ◆The machine tool guide rail and the saddle guide rail are made of special material hard guide rail, which is super-hard and wear-resistant, durable, and has good machining accuracy after high-frequency quenching. ◆Adopt domestic famous brand ball screw and high precision screw bearing. ◆Each lubricating point adopts forced automatic lubricating device to carry out fixed-point quantitative lubrication to the lead screw and guide rail. When an abnormal state occurs or the oil volume is insufficient, a warning signal is automatically generated. ◆The guide rail is equipped with a scraping device to prevent the guide rail from being corroded by iron filings and coolant, and facilitate the cleaning of the iron filings.
Model
CK6140*750mm (GSK980TC3 system)
processing power
Unit (mm)
maximum. swinging on the bed
400
maximum. slide over the slide
240
maximum. Processing length
750mm (optional: 500/1000/1500)
travel
X/Z axis travel
280/750
Spindle nose
A2-6
Spindle
Spindle diameter
82
Draw tube diameter
65
Spindle bore taper
40°
Spindle series
Stepless
maximum. Spindle speed
150-2000 rpm
Workholding method
Manual chuck K8-200
main motor power
5.5/7.5 kW
feed tower
X/Z axis torque
5/7.5 Nm
X/Z axis fast speed
6/8 m/min
turret
Electricity
Shank size
20×20
Turret Repeatability
≤0.004
tailstock
Tailstock diameter
60
Tailstock travel
100
Tailstock center taper
Morse 4#
other
Machine net weight
1800kg
Machine size (length × width × height)
2200×1160×1620
Power (power/current)
11kW/20A
The standard configuration
Chuck
Ф200 Manual chuck
tailstock
Manual tailstock
X-axis ball screw
Domestic (Qishan) FD3210-889-1035
Z-axis ball screw
Domestic (Qishan) FD2506-407-530
Electric Turret
4
X, Z axis screw bearing
Domestic (Derun)
Spindle bearing
Domestic P5
machine casting
High-quality resin sand castings
Spindle assembly
Assembly Spindle
paint
Customizable colors
lubricating
domestic
