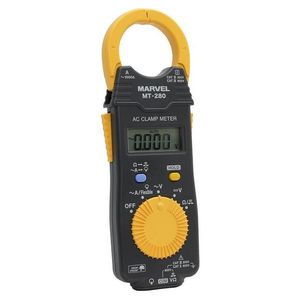

Good Quality, Rugged Tester Digital Clamp Multimeter
- $56.00 / >=10 pieces
- 10 pieces
- MARVEL CORPORATION
- Osaka, China
- Mr Fujioka
PRODUCT DETAIL
payment terms: | L/C, D/P, T/T | Operating temperature: | -25°C to 65°C |
brand: | Miracle | Display type: | numbers only |
port: | Osaka Port, Kansai Airport | weight: | 100 g |
model: | product_49 07 | Packaging Details: | Packed safely and securely in a double-layer cardboard box. 10pcs/box |
aspect: | W57xH175xT16mm | Origin: | Japan |

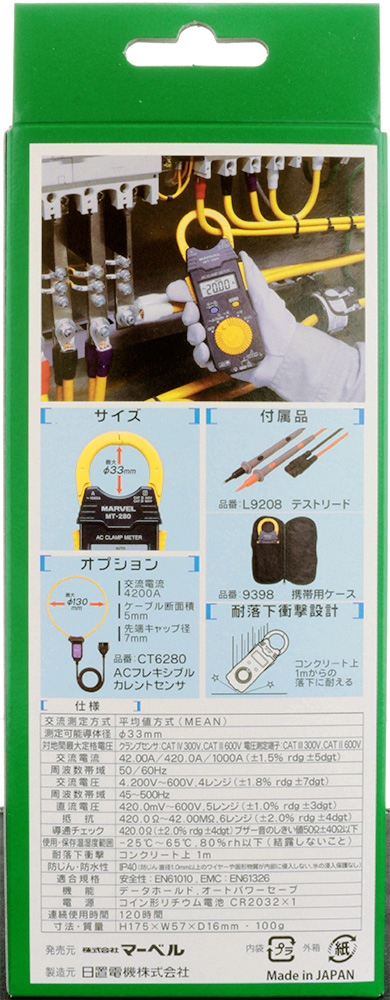

thing | MT-280 | ||||||

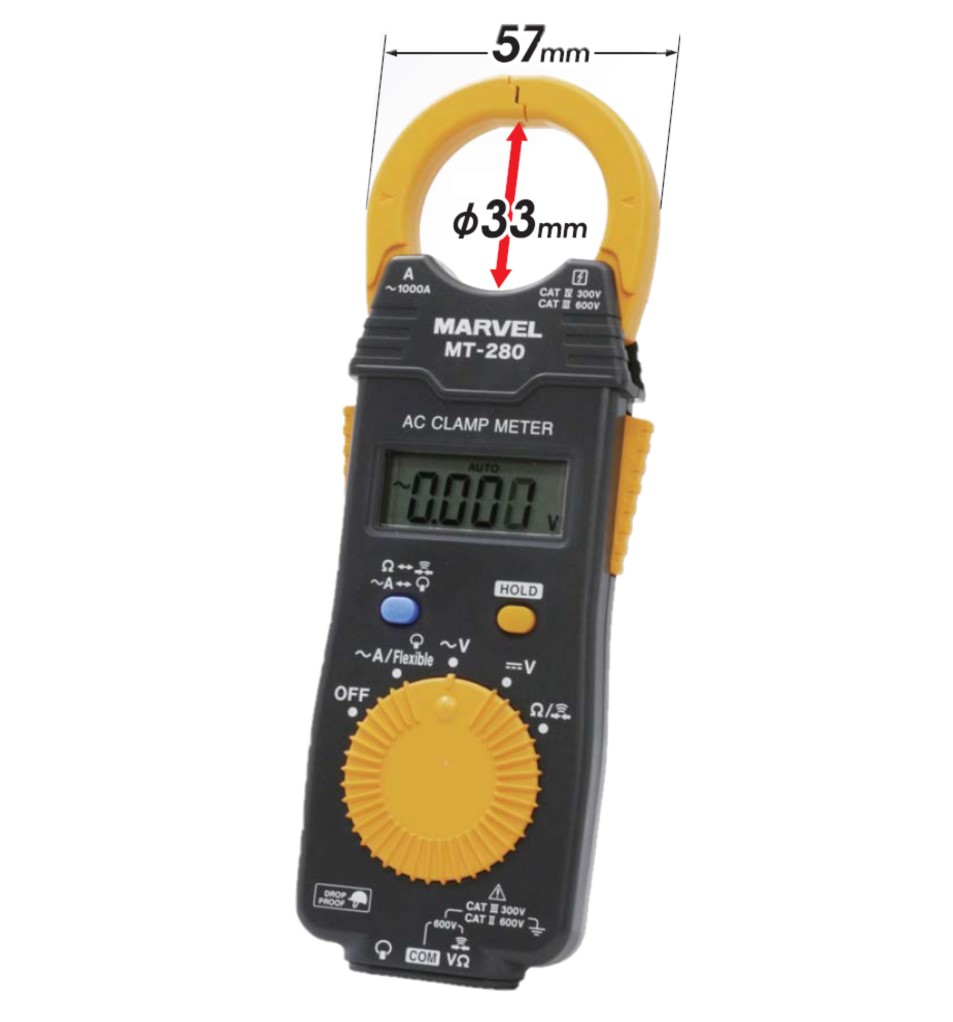

size | W57xH175xT16 mm | ||||||
weight | 100 g | ||||||
AC measurement method | average method | ||||||
Measurable Conductor Diameter | Φ33mm | ||||||
Maximum rated voltage to ground | Clamp sensor: CAT IV 300V, CAT III 600V Voltage measurement terminals: CAT III 300V, CAT II 600V | ||||||
alternating current | 42.00A/ 420.00A /1000A (±1.5% of reading ±5dgt) | ||||||
frequency band | 50/60 Hz | ||||||
AC voltage | 4.200V-600V, 4 ranges (±1.8%rdg, ±7dgt) | ||||||
frequency band | 45-500 Hz | ||||||
DC voltage | 420.0mV-600V, 5 ranges (±1.0%rdg, ±3dgt) | ||||||
resist | 420.0Ω-42.00MΩ, 6 ranges (±2.0%rdg, ±4dgt) | ||||||
continuity check | 420.0Ω (±2.0%rdg, ±4dgt), buzzer sound threshold below 50Ω±40Ω | ||||||
Use/storage temperature range | -25°C to 65°C, below 80%rh (no condensation) | ||||||
drop impact resistance | 1m on concrete | ||||||
Dustproof/waterproof | IP40 (dust-proof wires and solids with a diameter of 1.0mm or more do not enter the interior, no water ingress protection) | ||||||
Standards compliant | Safety: EN61010, EMC: EN61326 | ||||||
Function | Data retention, automatic power saving | ||||||
power supply | Coin type lithium battery CR2032 x 1 | ||||||
continuous use time | 120 hours |

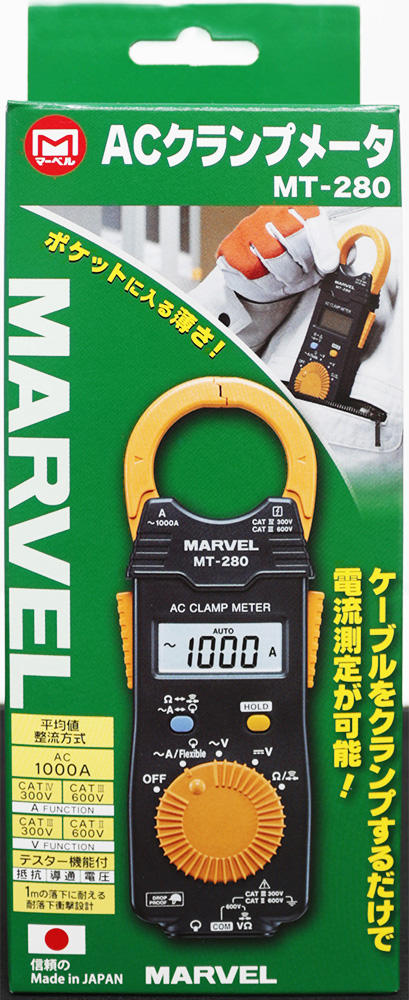

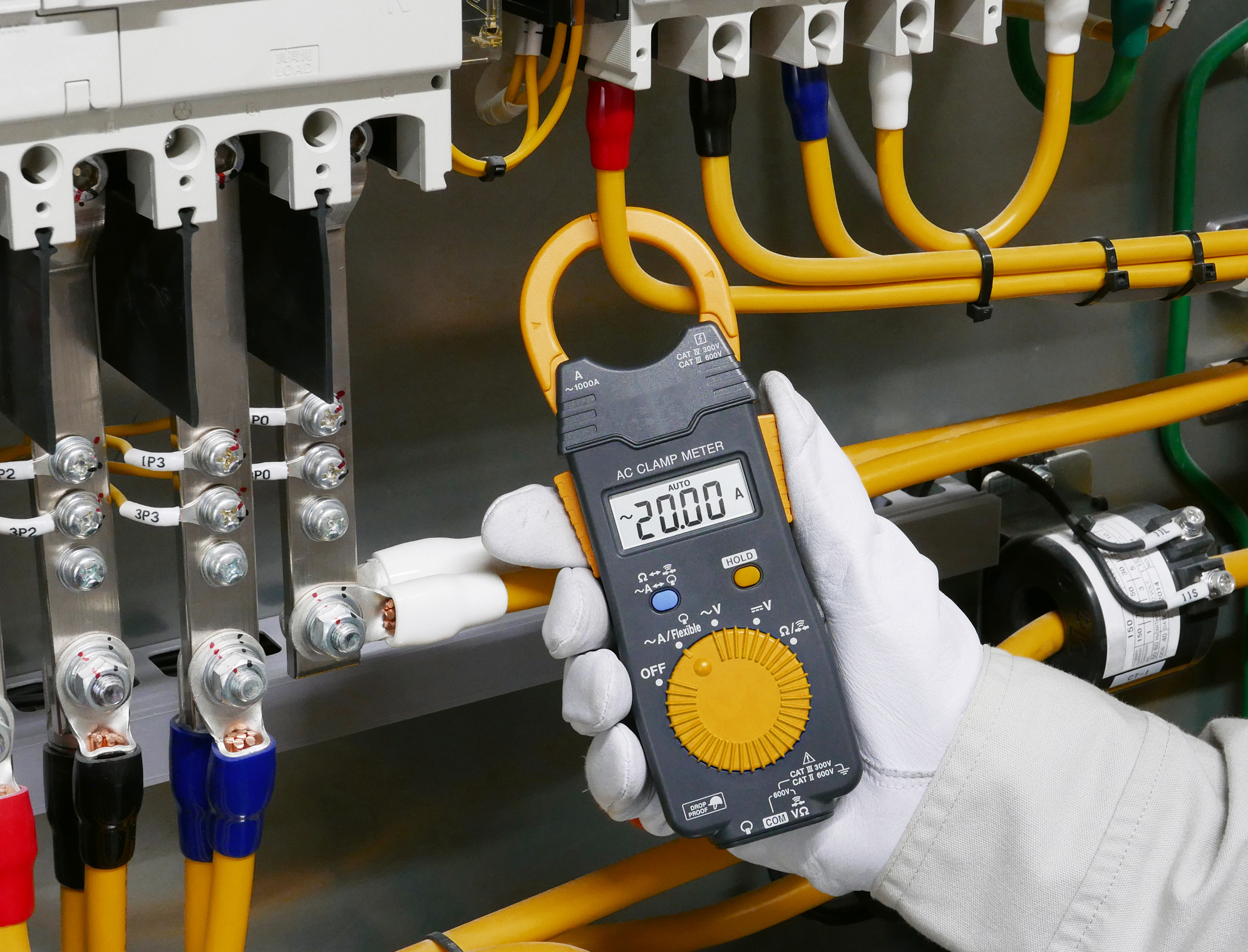

Our MT-280 AC Clamp Meter is a multifunctional electroscope. It gives you current (A), voltage (V), resistance (Ω) measurements and continuity checks. It's a compact body that weighs only 100g and is 16mm thick, so you can carry it in your pocket. Wide temperature range, -25℃~65℃. The body is extremely durable even after being dropped on concrete from a height of 1m. ●Measuring locations in categories larger than the measurement category value displayed on the product may result in serious accidents such as electric shock. ●To prevent electric shock, do not touch the partition when using it. ●Do not input voltage to the resistance measurement and continuity check functions. Failure to do so could damage the product and cause personal injury. To prevent electric shock accidents, please turn off the power of the measurement circuit before measurement. ●To avoid electric shock, short-circuit accident or product damage, please remove the test leads from the object to be measured when switching the rotary switch. ●To prevent electric shock accidents, use test leads that meet the following conditions when measuring the voltage of the power line. - Complies with IEC61010 or EN61010 safety standard - Measurement category III or IV - Rated voltage higher than the measurement voltage ●The optional test lead of this product complies with safety standard EN61010. Please use it according to the measurement category and rated voltage marked on the test leads. ●Do not install in the following places, otherwise it may cause product failure or accident. - Where it becomes hot under direct sunlight, where corrosive gas or explosive gas is generated, near a charged object that generates strong electromagnetic waves. - Near induction heating equipment (high-frequency induction heating equipment, IH cooker, etc.) - A lot of mechanical vibration - Places exposed to water, oil, chemicals, solvents, etc. - Places with high humidity, where condensation occurs - Dusty places Because there is There is a risk of electric shock, check the test leads and flexible sensor (optional) for tears or exposed metal before use. If damaged, please replace with our specified product. ●To prevent short-circuit accidents, be sure to put the cover on when measuring in measurement category CAT III. ●If the cover is accidentally removed during measurement, please stop the measurement. ●Electrical shock, heat, fire, arc discharge and other dangers caused by short circuit. If you are new to electrical measuring instruments, please use them under the guidance of personnel with electrical testing experience. ●This instrument uses live wire for measurement. To prevent electric shock, please wear insulating protective equipment according to laws and regulations. ●Dispose of batteries according to local regulations.
