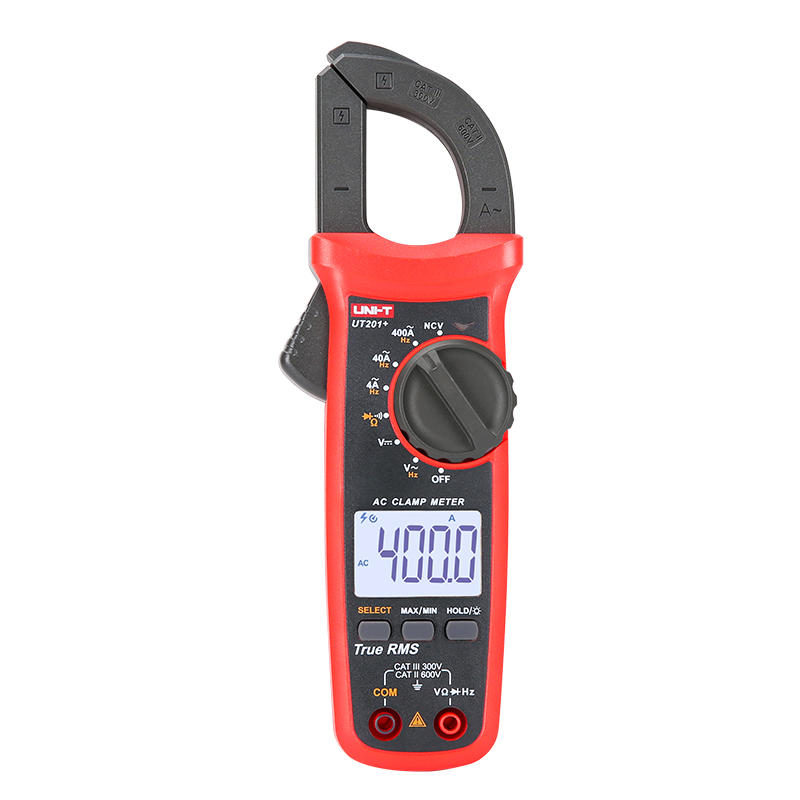

UT201+ Manual r digital clamp meter
- $1.00 / >=10 units
- 10 units
- Chongqing Huakong Technology Co., Ltd.
- Guangdong, China
- Ms elena he
PRODUCT DETAIL
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | place of origin; place of origin: | China |
| brand: | urinary tract infection | port: | Shenzhen |
| Supply capacity: | 10,000 units per month | product name: | UT201+ digital clamp meter |
| model: | UT201+ |
Product Description
Specification
Specification | scope | UT201+ | UT202+ | UT202A+ | UT203+ | UT204+ | ||||||
AC current (A) | 400A | ±(2%+10) | ±(2%+10) | ±(2.5%+5) | ||||||||
600A | ±(2%+10) | ±(2.5%+5) | ||||||||||
AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) | ±(1%+5) | ±(1%+5) | ||||||||
DC current (A) | 400A | ±(2.5%+5) | ||||||||||
600A | ±(2.5%+5) | |||||||||||
AC voltage (V) | 600V | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ±(0.8%+5) | ||||||
AC voltage frequency (Hz) | 10Hz~10kHz | ±(1%+5) | ±(1%+5) | ±(1%+5) | ||||||||
10Hz~60kHz | ±(0.5%+2) | ±(0.5%+2) | ||||||||||
DC voltage (A) | 600V | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ±(0.5%+2) | ||||||
Resistance (Ω) | 40MΩ | ±(0.8%+2) | ±(0.8%+2) | ±(0.8%+2) | ||||||||
60MΩ | ±(0.8%+2) | ±(0.8%+2) | ||||||||||
Capacitance (F) | 4mF | ±(4%+5) | ||||||||||
40mF | ±(4%+5) | |||||||||||
60mF | ±(4%+5) | ±(4%+5) | ||||||||||
Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) | ±(1.5%+5) | |||||||||
Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | ||||||||
feature | ||||||||||||
show count | 4000 | 4000 | 6000 | 4000 | 6000 | |||||||
Autoranging | √ | √ | √ | √ | √ | |||||||
jaw open | 28mm | 28mm | 28mm | 28mm | 28mm | |||||||
True RMS | √ | √ | √ | √ | √ | |||||||
novel coronavirus | √ | √ | √ | √ | √ | |||||||
FireWire test | √ | √ | ||||||||||
Continuity test | √ | √ | √ | √ | √ | |||||||
diode | √ | √ | √ | √ | √ | |||||||
maximum value minimum value | √ | √ | √ | √ | √ | |||||||
Relative mode | √ | √ | √ | √ | ||||||||
zero mode | √ | √ | ||||||||||
data retention | √ | √ | √ | √ | √ | |||||||
low battery indicator | √ | √ | √ | √ | √ | |||||||
Automatic shut-down | √ | √ | √ | √ | √ | |||||||
General characteristics | ||
strength | 1.5V battery (R03) × 2 | |
exhibit | 37mm x 25mm | |
Product color | red and grey | |
Product Weight | UT201+/UT202+/UT202A+: 248g; UT203+/UT204+: 235g | |
Product Size | 215mm x 63mm x 36mm | |

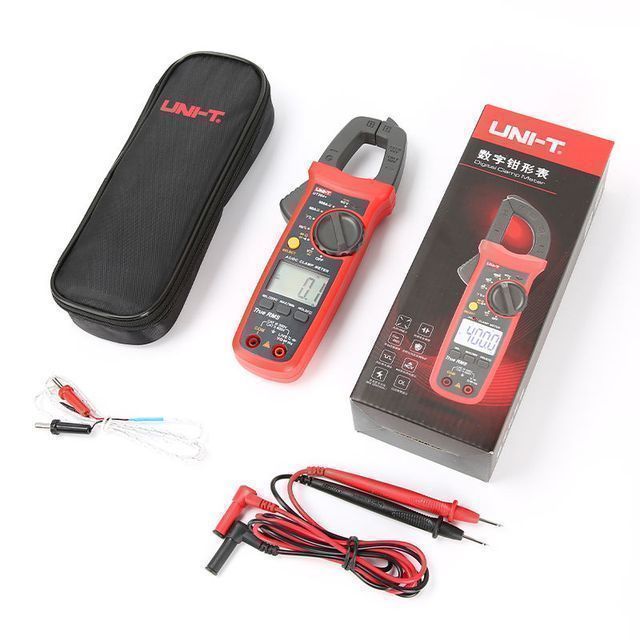

Standard accessories | Batteries, test leads, thermocouples (UT202+/UT204+) | |
Standard individual packaging | Gift box, tote bag, English manual | |
Standard quantity per carton | 40 | |
Standard carton measurement | 485mm x 295mm x 385mm | |
Standard carton gross weight | UT202A+: 17.8kg; UT203+: 16.8kg; UT201+/202+/204+: 17.3kg | |
