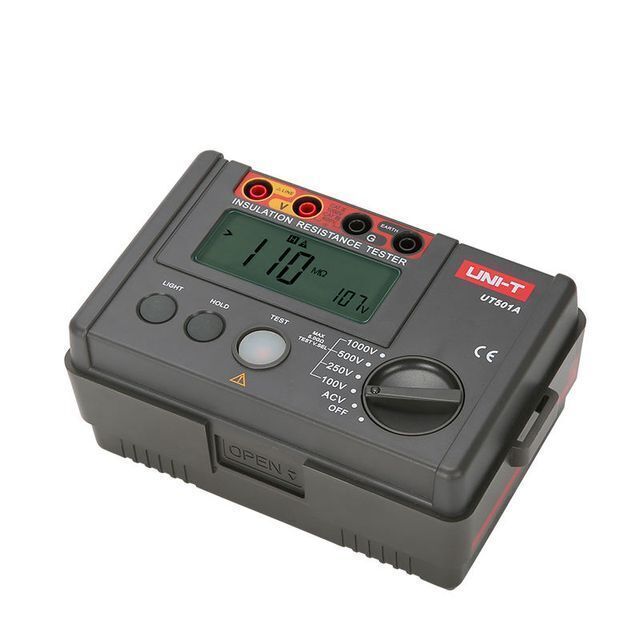

UT501A High-voltage insulation resistance tester

PRODUCT DETAIL
Place of Origin:China;Model Number:UT501A;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Brand Name:UNI-T;
Supply Ability:10000 Units per Month fingerprint reader;Product name:Insulation Resistance Tester;
Product Description
Specification
Specifications
Range
UT501A
UT501B
Insulation resistance (Ω)
Test voltages
100V/250V/500V/1000V
0%~10%
250V/500V/1000V
0%~10%
500V/1000V/2500V
100V
0MΩ~100MΩ
±(3%+5)
250V
0MΩ~99.9MΩ
±(3%+5)
±(3%+5)
100MΩ~5GΩ
±(5%+5)
±(5%+5)
500V
0MΩ~99.9MΩ
±(3%+5)
±(3%+5)
100MΩ~5GΩ
±(5%+5)
±(5%+5)
1000V
0MΩ~99.9MΩ
±(3%+5)
±(3%+5)
100MΩ~5GΩ
±(5%+5)
±(5%+5)
2500V
0MΩ~99.9MΩ
100MΩ~9.9GΩ
10GΩ~20GΩ
Load current
50V (R=50kΩ) 1mA
0%~10%
0%~10%
100V (R=100kΩ) 1mA
0%~10%
0%~10%
250V (R=250kΩ) 1mA
0%~10%
0%~10%
500V (R=500kΩ) 1mA
0%~10%
0%~10%
1000V (R=1MΩ) 1mA
0%~10%
0%~10%
2500V (R=1MΩ) 1mA
Short-circuit current
<2mA
<2mA
Low resistance (Ω)
0.01Ω~200Ω (about 5.0V/>200mA）
±(2%+3)
AC voltage (V)
30V~750V
±(2%+3)
30V~600V
±(2%+3)
Features
Display count
2000
2000
2000
DAR
60s/15s and 60s/30s
√
√
PI
√
√
Auto range/Low battery indication
√
√
√
LCD backlight/Light alarm
√
√
√
Buzzer alarm/High voltage indication
√
√
√
Over load indication/Auto discharge
√
√
√
Test voltage secondary display
√
√
√
10MΩ internal resistance test
√
√
√
Meets IEC 61557
61557-1:2007; 61557-2:2007; 61557-4:2007 (UT502A only)
General Characterisitics
Power
1.5V battery (LR6) x 6
Display
70.6mm x 34mm
Product color
Red and grey
Product net weight
500g
Product size
150mm x 100mm x 71mm
Standard accessories
Batteries, test leads, alligator clips, gallus, test probes (UT502A)
Standard individual packing
Gift box, carrying bag, English manual
Standard quantity per carton
20pcs
Standard carton measurement
500mm x 380mm x 330mm (0.063 CBM per standard carton)
Standard carton gross weight
UT501A: 17.7kg; UT501B: 20.9kg; UT502A: 18.9kg
