Guangzhou factory 2200-3900mm Painted Pipe Support Shoring Props Jack Adjustable Steel push pull props
- $4.50 / >=500 pieces
- 500 pieces
- Jet Scaffold Material Co., Ltd.
- Guangdong, China
- Ms Shirley Li
| Outer tube diameter: | 48/56/60mm; | Design Style: | Industrial; |
| Project Solution Capability: | graphic design,Others; | Port: | Tianjin port; |
| Inspection and sertificate: | BV/ISO 9001:2008; | Model Number: | STEEL PROPS; |
| Surface treatment: | HDG/powder coated/dip painted; | Technique: | CO2 arc welded; |
| Package Preview: | ; | Supply Ability: | 100000 Pieces per Day; |
| Place of Origin: | Tianjin, China; | Packaging Detail: | 1.In bulk 2.In bundles with steel strip; |
| After-sale Service: | Online technical support,Other; | Application: | Building Construction,Apartment; |
| Warranty: | 5 years; | Inner tube diameter: | 40/48mm; |
| Payment Terms: | L/C,Western Union,T/T; | Material: | Q235, Q345 ASTM A36 steel,ss400; |
| Life Span: | About 5 years; | Brand Name: | ADTO; |
| Tube thickness: | 1.8/2.0/2.2/2.5/3.0mm; | Load-bearing: | 2-3ton; |

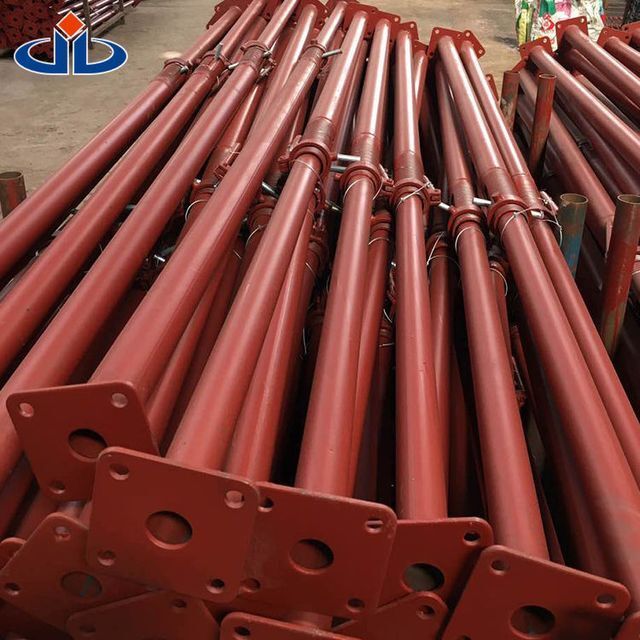

light duty painted adjustable steel prop for formwork system

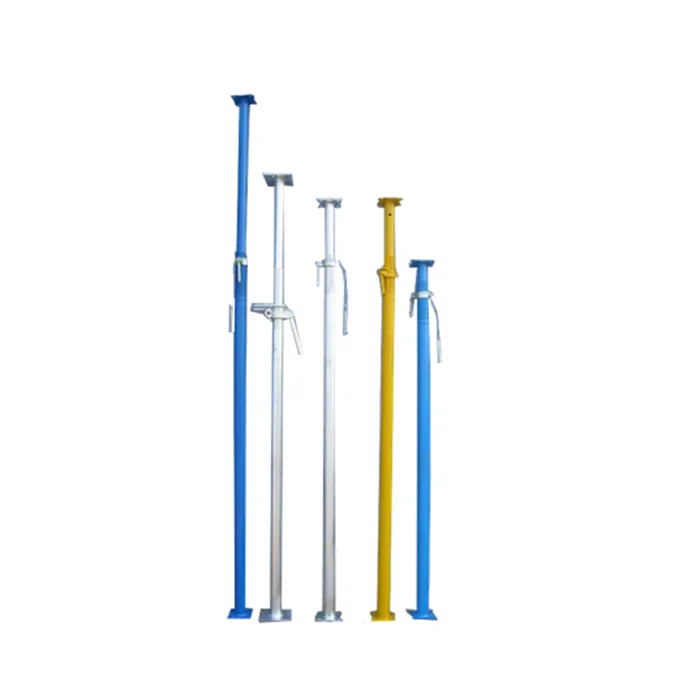

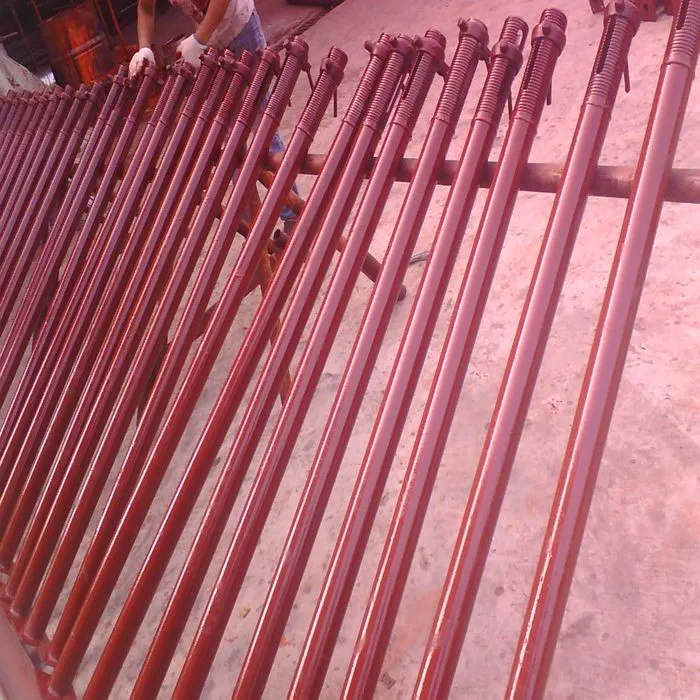

Details of adjustable shoring props
1.Common height range(closed-extended): 1.6 -2.9m ; 1.7 -3.0m ; 1.8-3.2m ; 2.0-3.6m ; 2.2-4.0m ; 2.4-3.9m ; 2.5-4.5m ; 2.6-5.0m ; 3.0-5.0m ; 3.2-6.0m
2.Diameter range on tube ( inner /outer): 40/48mm ; 48/56mm ; 48/60mm
3.Thickness range on tube: 1.6mm; 1.85mm; 2.0mm; 2.5mm; 3.0mm
4.Type: Heavy duty scaffolding prop/light duty scaffolding prop
5.Surface finish: painted, pre-galvanized, hot dip galvanized
6.We can provide all kinds of scaffolding props with high quality at low price
7.Material: Q235 for welded pipe and 20# for seamless pipe
8.Produced in our own factory,can control the quality much better
9.Samples are available
10.ISO 9001-2000 approved.
11.Performance:good bearing capacity,durable & stable
12.Test: SGS, BV or as per your request
13.OEM service is available.
Advantages of adjustable shoring props
1. Simple structures, simple erection
2. High efficiency with strong loading capacity
3. With galvanized surface(endurable)
4. Widely application in proping system such as construction, plants
Heavy duty steel shoring props
| MIN | MAX | INTERNAL TUBE | EXTERNAL TUBE |
| 1.8m | 3.2m | 48mmx2.0mm | 60mmx2.0mm |
| 2.1m | 3.4m | 48mmx2.0mm | 60mmx2.0mm |
| 2.2m | 4.0m | 48mmx2.0mm | 60mmx2.0mm |
| 2.4m | 3.9m | 48mmx2.0mm | 60mmx2.0mm |
| 3.5m | 4.0m | 48mmx2.0mm | 60mmx2.0mm |
| 3.0m | 4.5m | 48mmx3.5mm | 60mmx3.5mm |
Light duty steel shoring prop
| MIN | MAX | INTERNAL TUBE | EXTERNAL TUBE |
| 1.6m | 3.0m | 40mmx2.0mm | 48mmx2.0mm |
| 48mmx2.0mm | 56mmx2.0mm | ||
| 1.8m | 3.5m | 40mmx2.0mm | 48mmx2.0mm |
| 48mmx2.0mm | 60mmx2.0mm | ||
| 2.0m | 3.5m | 40mmx2.0mm | 48mmx2.0mm |
| 48mmx2.0mm | 60mmx3.5mm |
FAQ:
1. Q: What's your MOQ(minimum order quantity)?
A: One full container.

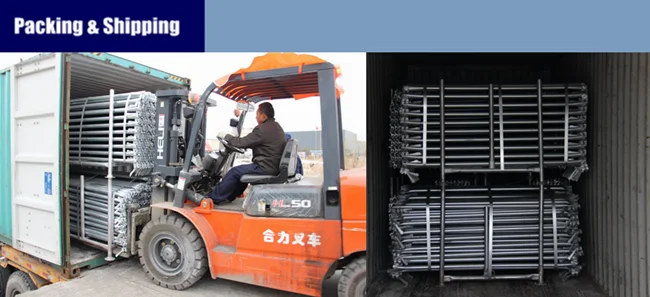

2. Q: What's your packing methods?
A: Packed into bundle, and rest in bulk.
3. Q: What's your payment terms?
.A: T/T 30% in advance & T/T 70% upon sending the copy of Bill of Lading, L/ C 100%, or negotiate according to the order status
4. Q: What's your delivery time?
A: 10-20 days after received the advance payment or L/C.
5. Q: Are you manufacturer or trader?
A: We are the munafacturer of SCAFFOLDINGS MATERIALS for decade years. Our group company has 8 subsidiaries and 4 factories, coveraged every scaffolding systems.

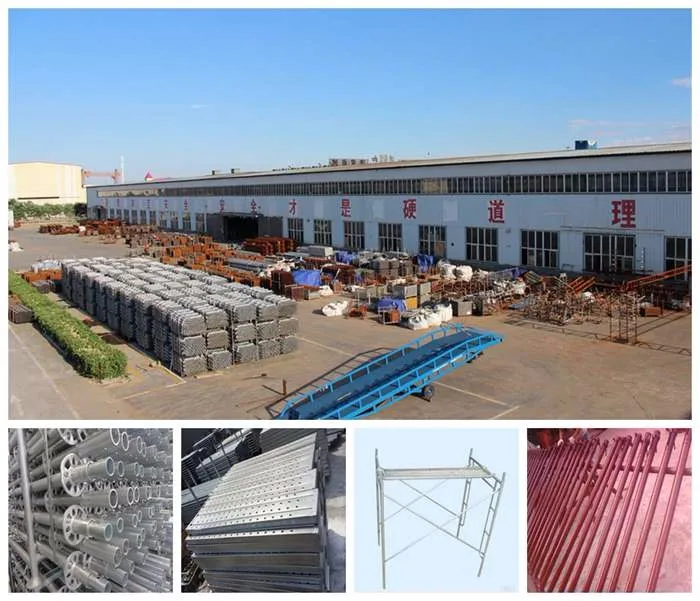

6. Q: Where's your factory?
A: Our factory is in Tianjin city (near Beijing) and Jiayu city, Hubei Province, afforded enough production ability and earlier delivery time.
7. Q: Can we visit your factory?
A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
8. Q: Can you supply other scaffolding materials?
A: Yes. All related scaffolding materials.
(1) scaffolding system (cup-lock system, ring lock system, frame, pipe&coupler system)
(2) scaffolding pipes (1.5'-2.0')x(0.3-12m), hop dipped galvanized/ black. BS1139, STK500
(3) steel pipes (ERW BS1387, SSAW PIPE, Sqaure/ Rectangular tube GB/T6728)
(4) steel coupler (preesed / drop forged coupler)
(5) steel plank with hooks or without hooks
(6) steel stair case
(7) screw adjustable base jack
(8) Adjustable props
