Guihe ATG automatic tank metering system TCM-1 tank metering intelligent console/gas station remote fuel monitoring system

PRODUCT DETAIL
Automatic level gauge:Fuel tank level monitorSupply capacity:1000 sets of fuel level consoles per month
output signal:4~20mAplace of origin; place of origin:Shandong China
Measuring range:300-15000mmaccuracy:0.3
brand:river kwaiVolume measurement sensor:Fuel tank level measurement
Magnetostrictive sensor:fuel controllerpayment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram
application:Diesel Fuel Tank Level Sensorproduct name:Automatic fuel tank level measurement
type:Magnetostrictive Liquid Level Sensormodel:SYW-A
Packaging Details:Oil level console packed in wooden caseport:Qinggao
Level measurement:volume measurement sensor
Product Details

Gas station underground storage tank fuel monitoring fuel tank level gauge diesel measurement system

Automatic Fuel Tank Gauging System ATG

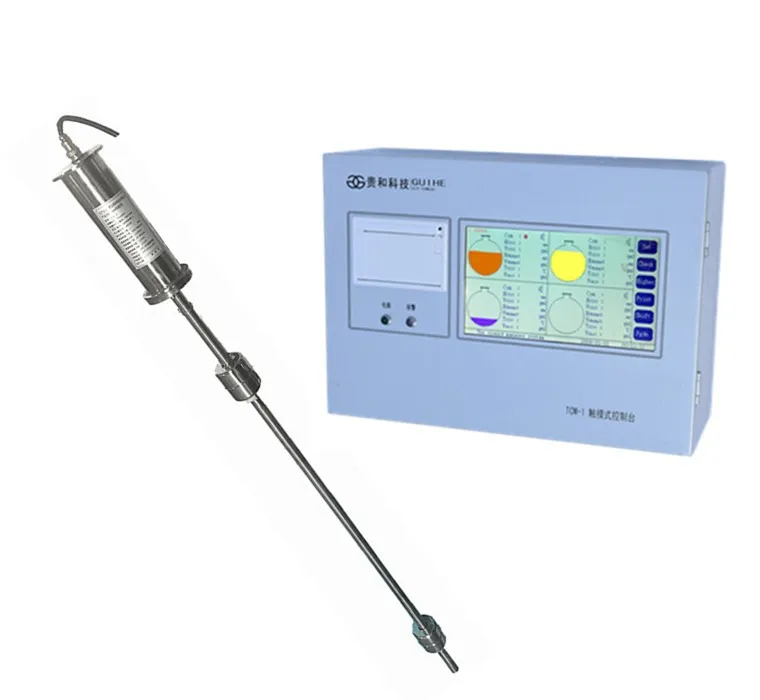

The fuel tank level gauge consists of magnetostrictive probes (models: SYW-A, SYW-A1) and touch screen consoles (models: TCM-1, TCC-3).

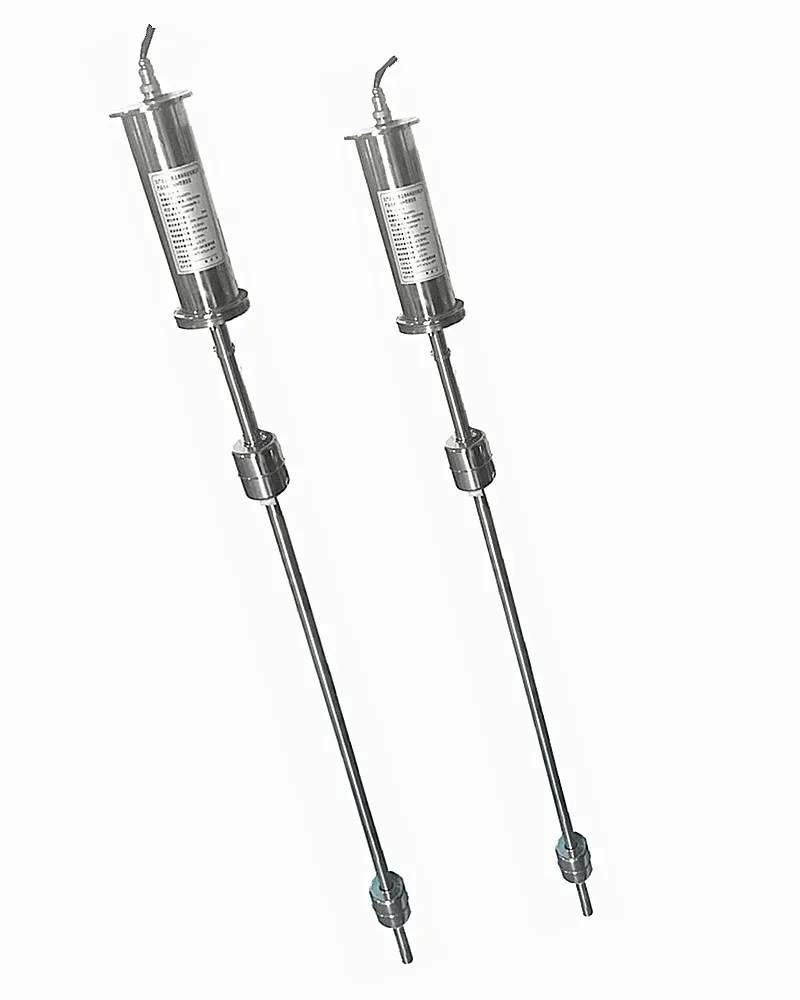

The SYW-A magnetostrictive probe is installed in the fuel tank and adopts magnetostrictive technology, which can accurately measure the oil level, water level, water shortage and various temperatures.

The touch console is installed in the control room of the gas station, automatically detects data collection and processing, displays storage tank information in real time, realizes storage tank leakage detection, automatic oil unloading, record query, control multi-channel submersible pumps, oil level alarm, data upload and other functions .

product description

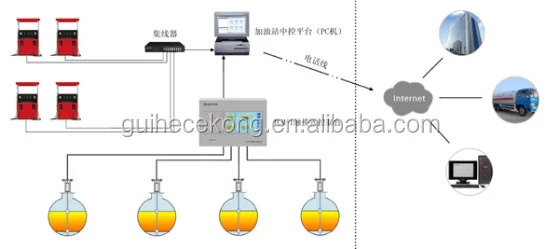

SYW-A probe+TCM-1 touch console+central control system+Internet

●Industrial design, long service life and fast running speed.
●It has good compatibility with the central control system of different brands.
●Integrated design of safety barrier and console, easy installation and low cost.
● Information is stored in memory for future queries.
●With fuel tank tilt compensation function
●External explosion-proof ringer can be connected to avoid product overflow

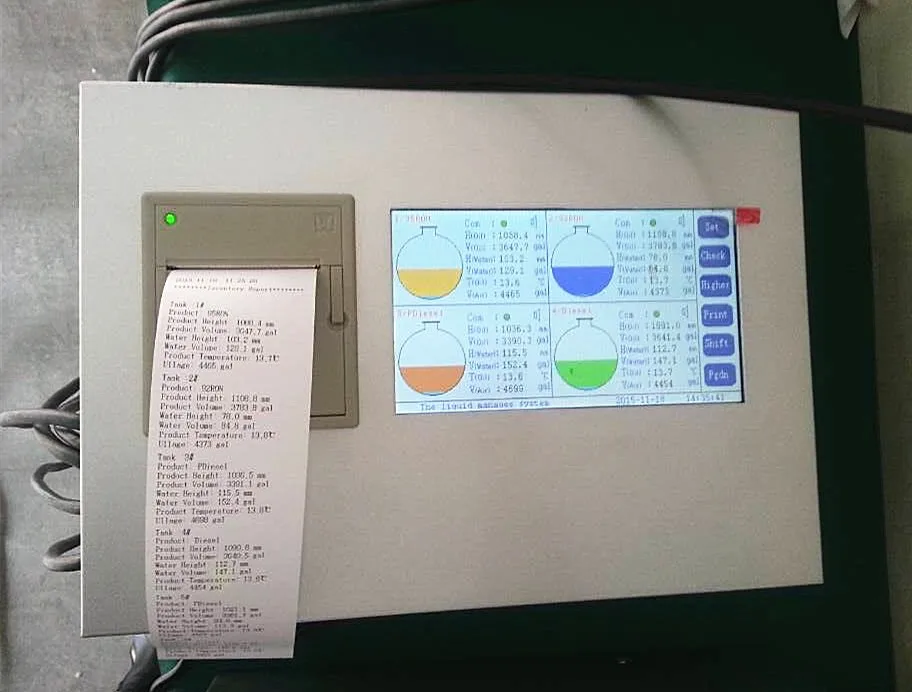

●Built-in printer to print inventory reports, delivery reports, leak reports and shift reports
●Up to 12 water tanks can be monitored, and the product level and water level can be dynamically displayed in proportion to color graphics.
●After connecting with the central control system through the Internet, it can provide information for managers to manage product inventory, delivery, and sales.

Product parameters
Do not.
thing
Specification
1
usage
Measure product level, water level and temperature
2
Measuring medium
Gasoline, diesel, kerosene, ethanol, water, etc.
3
Explosion-proof
ExiaIIBT4 (Intrinsically Safe)
4
temperature
-40℃~70℃
5
Oil level accuracy
±0.3mm
6
temperature accuracy
±0.2℃
7
height resolution
0.023mm
8
Minimum Product Inactive Area
2.5'' Float-180mm
9
Minimum water inactivity
2.5'' Float - 25mm
10
measure variable
Product level, interface level and temperature and average temperature for 5 sensors
11
Measuring range
600~4000mm
12
communicate
RS-485
13
power supply
+24~26VDC
14
Probe cartridge protection class
IP67
15
Probe material
1Cr18Ni9Ti
16
Maximum communication distance
1200 meters

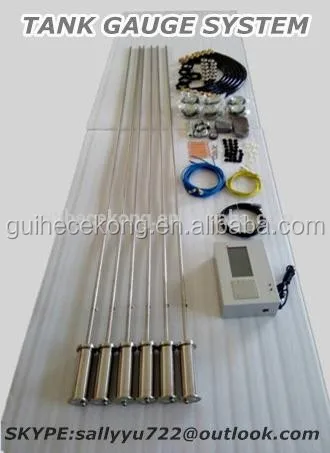

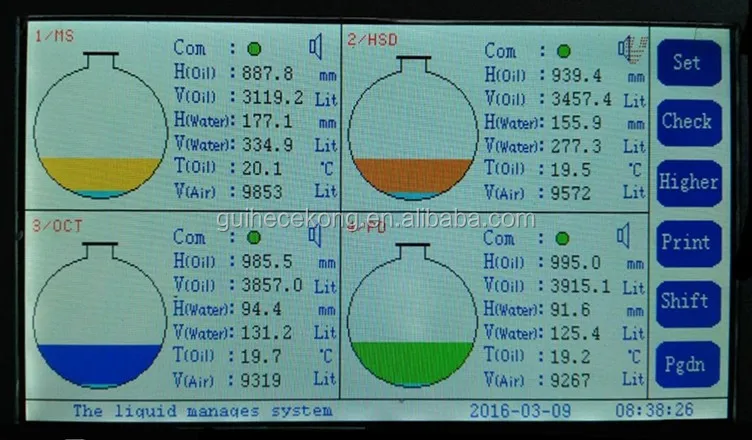

Product details display

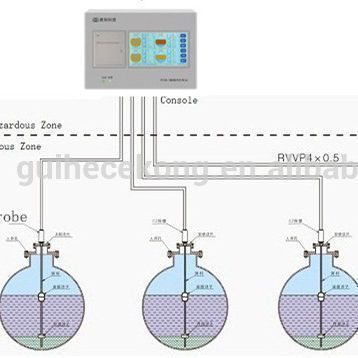

Installation display

Manufactured according to tank size

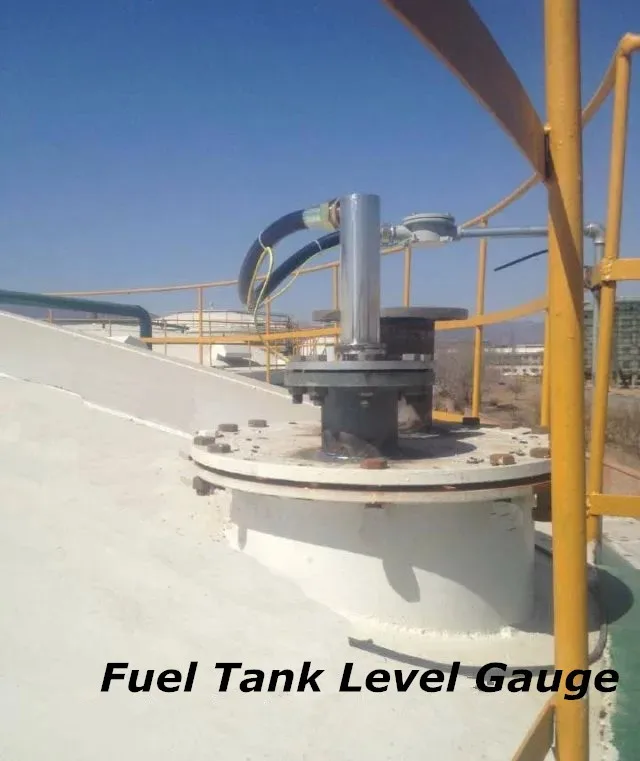

probe in tank

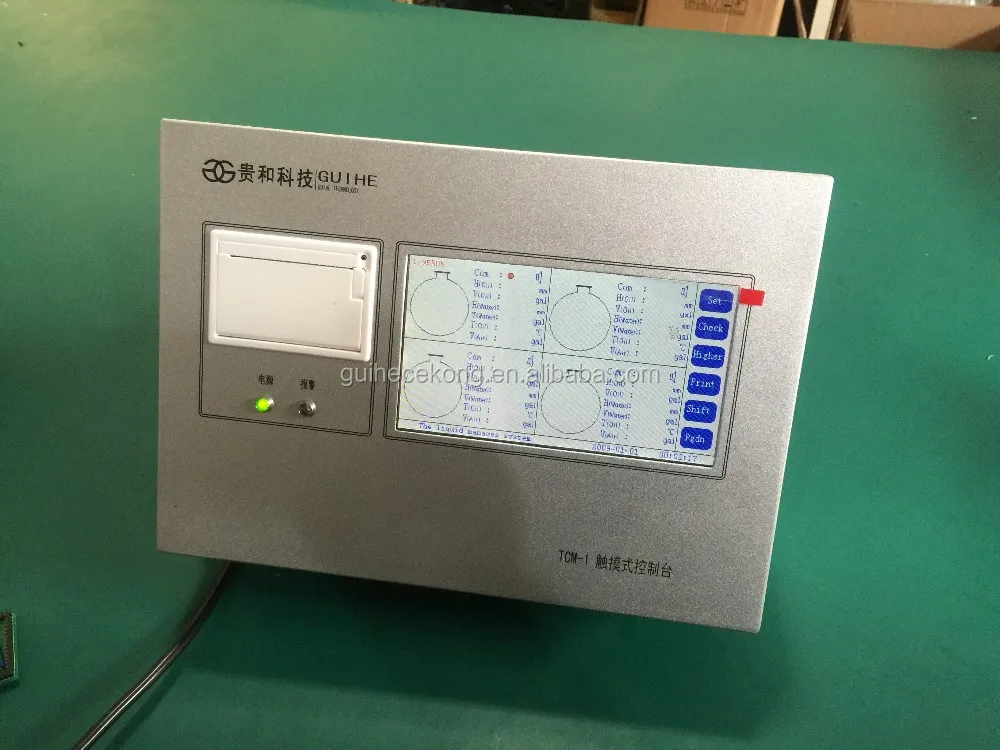

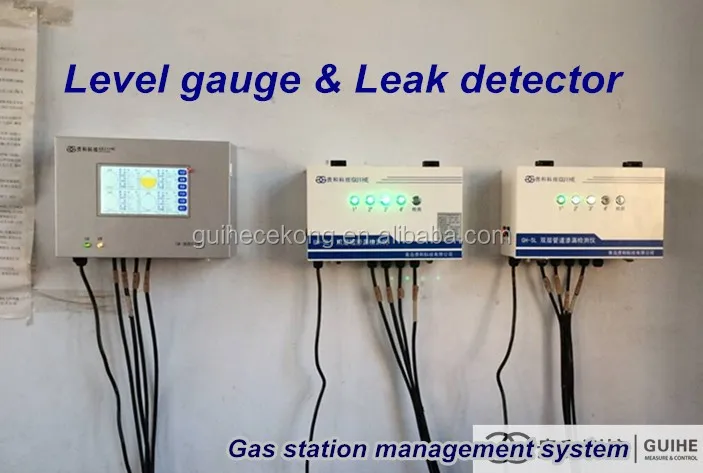

         Control the console in the office


Product packaging
main products

Automatic Tank Gauging System

middle. Order: 1

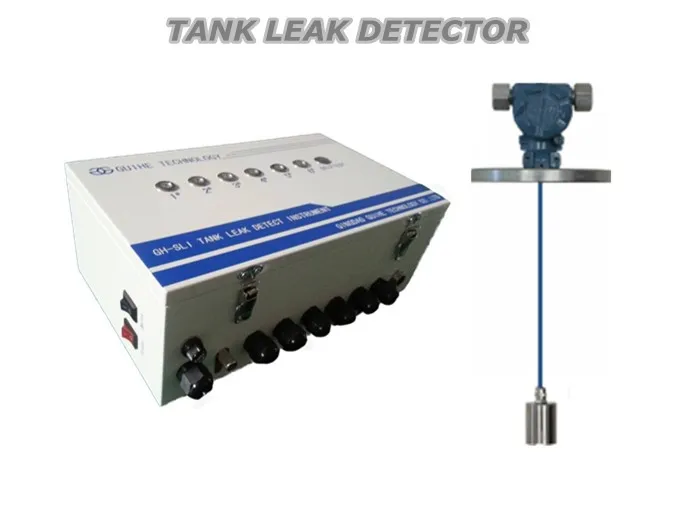

Fuel Pipe Leak Detector
