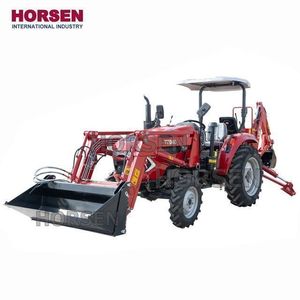

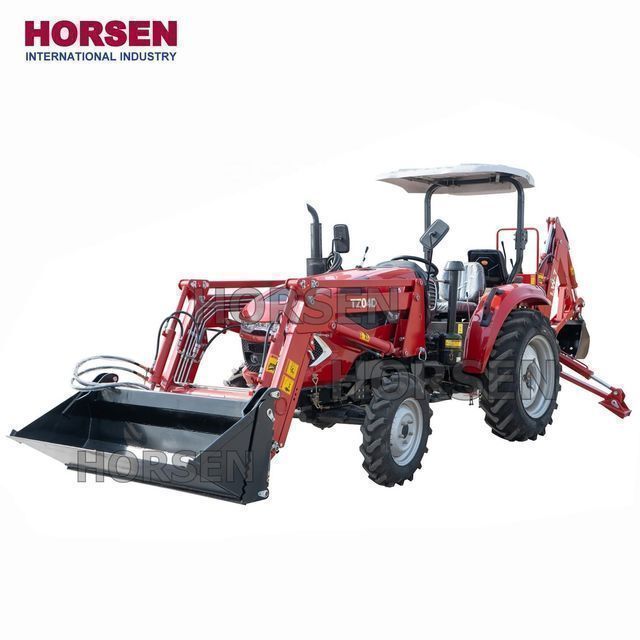

HORSEN CHINA 40hp 45hp 454 compact 4wd farm tractor with 4 in 1 front loader and shovel for sale.

PRODUCT DETAIL
options:cabinCore component warranty:1 year
clutch:Optional dual-stage clutchKey words:4*4 rounds
engine:4 cylinder diesel engineVideo shipment inspection:if
Applicable industries:Farms, construction works, wheeled tractorsTypes of:wheeled tractor
Core components:Motors, gearboxes, enginesWarranty:1.5 years
Supply capacity:1500 sets per monthLocal service location:not any
spread:8F+2R shiftplace of origin; place of origin:Shandong China
Marketing Type:New Products 2020port:Qingdao
Mechanical test report:ifShowroom location:not any
product name:farm tractorEngine brand:Leton
Rated power (HP):45HPState of health:new
Drive type:gear driveAfter-sales service provided:Free spare parts, video technical support, online support
PTO speed:540/760rpmTractor price:horsen
payment terms:L/C, T/Tusage:farm tractor
Steering type:Full hydraulic steeringMain selling points:multifunctional
Advertisement price:front loaderCertificate:ce
brand:horsenAfter warranty service:Video technical support, online support, spare parts
By wheel:four-wheel drivePackage preview:
Packaging Details:Iron frame or no packaging

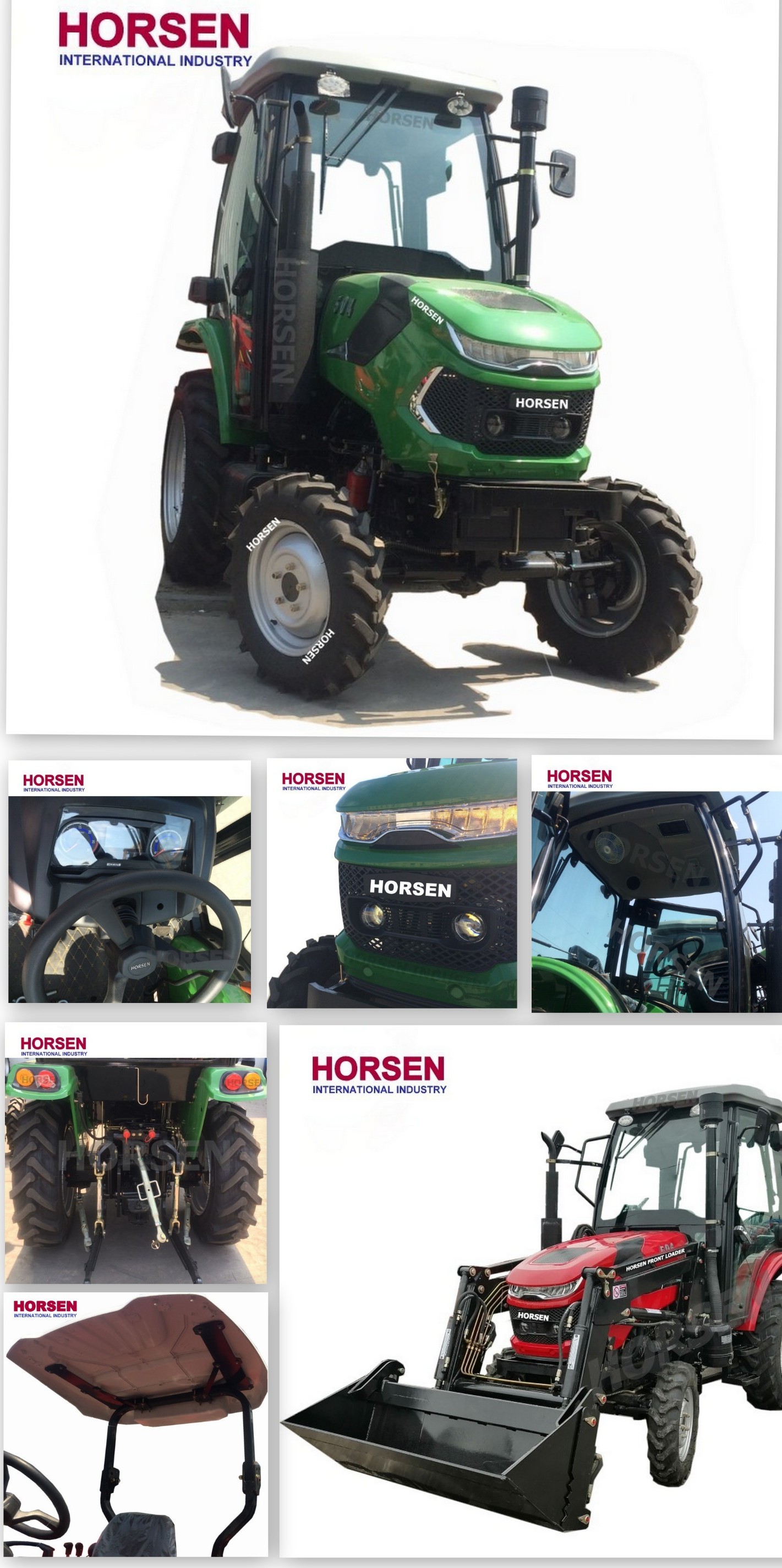

Horsen 454

Tiger 35-55 series
Hot technical features:

  1. Adopt famous brand 4-cylinder DIESEL ENGINE, strong power, fuel-efficient and energy-saving;
  2. The 8+8 gearbox can realize multi-gear switching to meet the requirements of different operating speeds;
  3. The position hybrid control hydraulic system can be selected to increase the lifting force of the tractor to meet the travel requirements of large implements;
  4. An air-conditioned cabin is optional to increase the operating comfort.



The main parameters
Types of 454
drive type 4×4 four-wheel drive
engine
engine brand LD
engine type

490

4 cylinders, water cooling, in-line, direct injection

Tank volume L 35
Rated engine power KW/RPM 33.1/2400
Fuel consumption@nominal power (g/kw.h) Contact Huo Sen
Air intake type inhale naturally
Displacement L Contact Mason-
Air Filter Type/Size oil bath or dry
torque reserve Contact Huo Sen
transmission system
Clutch Type/Size piece,dry,Double acting
Number of gears (F+R) 8F+2R/8F+8R
Shift mode mechanical slide
maximum. speed Contact Huo Sen
gear central/lateral
Hydraulic system
Hydraulic output flow(L/MIN) Contact Huo Sen
Hydraulic output valve 1/2
Hydraulic Filter Types and Capacities Contact Huo Sen
working equipment
three-point linkage

Three-point suspension 1

PTO speed 540/760
Lifting weight(kn)

Maximum lifting force at 610mm (KN)

≥8

Plowing depth adjustment position, float, draft, draft mix control
scope
Machine size (dimensions) mm 3350×1500×2130
quality of operation per minute 1600
Wheel base (mm) 1800
Minimum turning radius (m)

Unilateral braking 2.3 m

Unable to brake 3m on one side

Rated traction force(KN)

≥9

Minimum ground clearance (mm) 360
air-conditioned cab Elective
front/rear tread Ordinary 1200
tire size

6.0-16/9.5-24

6.5-16/11.2-24

braking and steering
Brake system hydrostatic pedal control, disc brakes,
steering type hydraulic steering
Steering Angle (4x4) The maximum steering angle of the front axle is 45°

(Options: All these types can be equipped with swing rods, front/rear ballasts, more contact HORSEN)

This parameter table is for reference only, everything is subject to the actual product







About Hansoh International

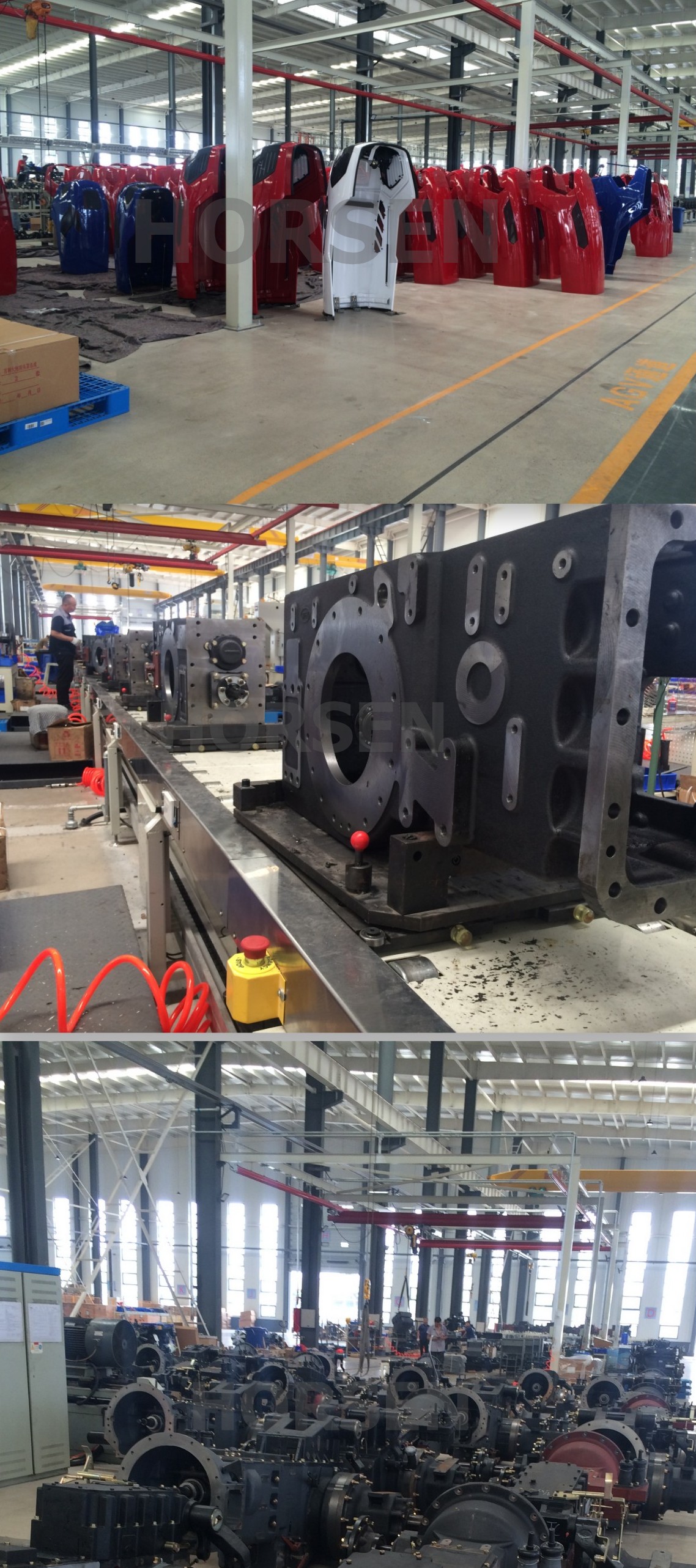

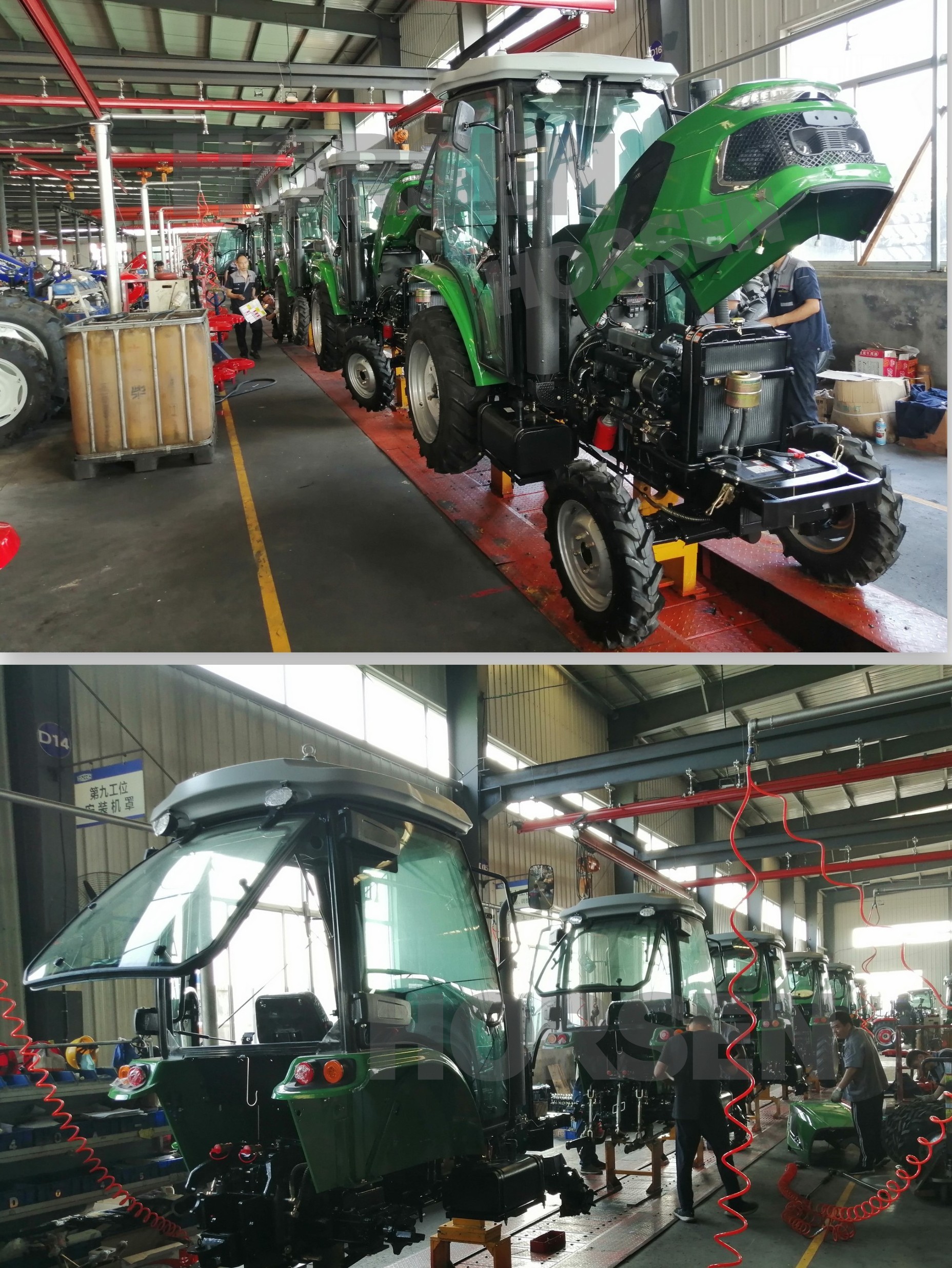

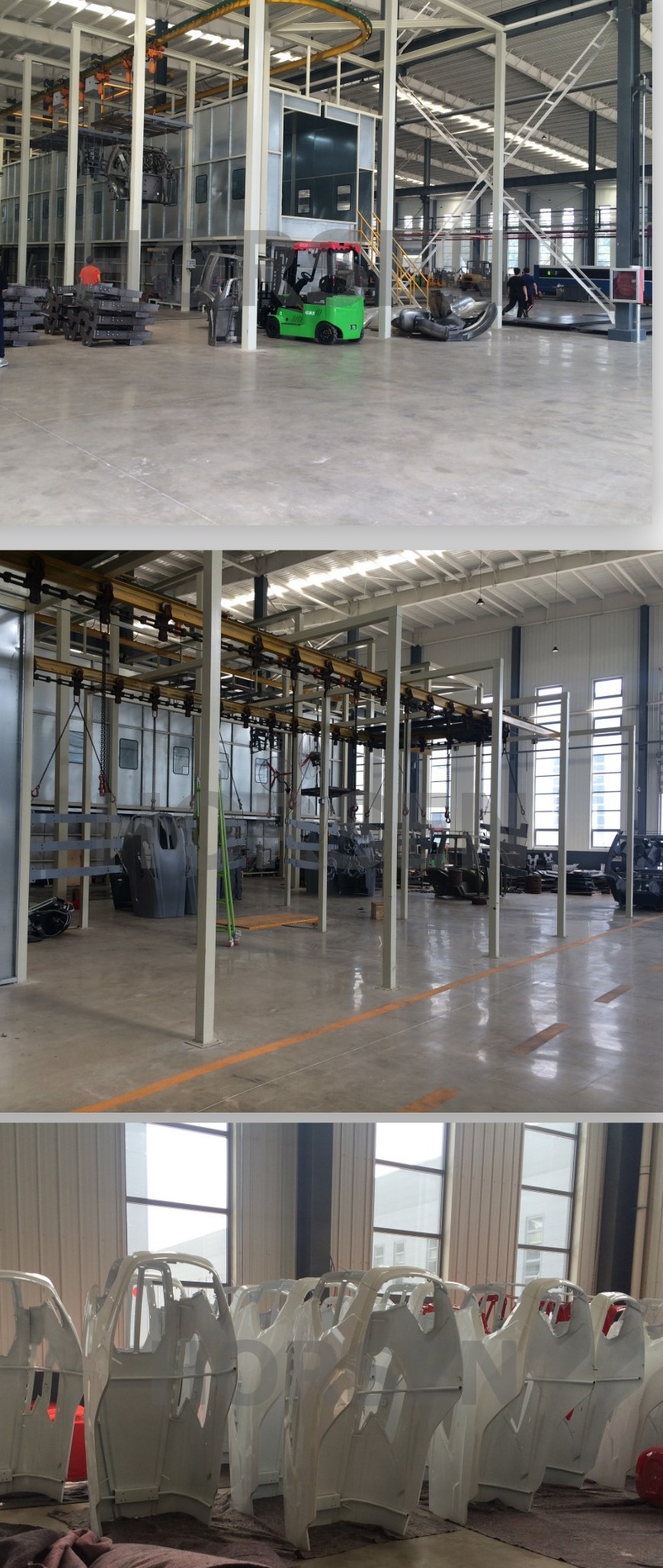

Shandong Huosen International Industrial Co., Ltd. is a professional tractor and other agricultural machinery manufacturer integrating design, manufacture, sales and service. Huo Sen's products cover 25 horsepower to 300 horse power tractors, tractor implements, combine harvesters, agricultural machinery, agricultural machinery, forestry machinery, garden machinery Huo Sen, as a professional machinery and equipment manufacturer in China, is committed to providing a full range of global modern agricultural mechanization Solution. Huo Sen integrates global high-end products and technical resources, and gradually improves Huo Sen's global popularity and market share through technology upgrades, quality upgrades, service upgrades, and creative and innovative product innovations.



After-sales service policy:

  1. HORSEN Tractors offer a 14-month tractor warranty, commencing 3 months from the ship date.
  2. HORSEN provides repair parts free of charge during the warranty period, and does not charge related working hours and overhead costs.
  3. Service Training

More than 70 dealers and service channels cover all market areas. With the goal of "customer satisfaction", we provide "three complete" (Full course, Full time, Full hearted) services.
