HTP DIN 43650 Hirschmann Connector
- $1.60 /piece
- 1 piece
- Shanghai Benxu Electronics Technology Co., Ltd.
- Shanghai, China
- Ms Mandy Li
PRODUCT DETAIL
| Application: | for Pressure Transmitter; | Selling Units: | Multiple of 50; |
| Place of Origin: | Shanghai, China; | Model Number: | China,BX-PA06D-HTP; |
| Brand: | BENXU; | Type: | DIN Connector; |
| Packaging Detail: | Plastic bag and then into solid carton; | Gross weight per batch: | 3.500 KG; |
| Interface Type: | DIN connector; | Package size per batch: | 25X15X12 cm; |
| Packaging: | Bulk; |
Product Description

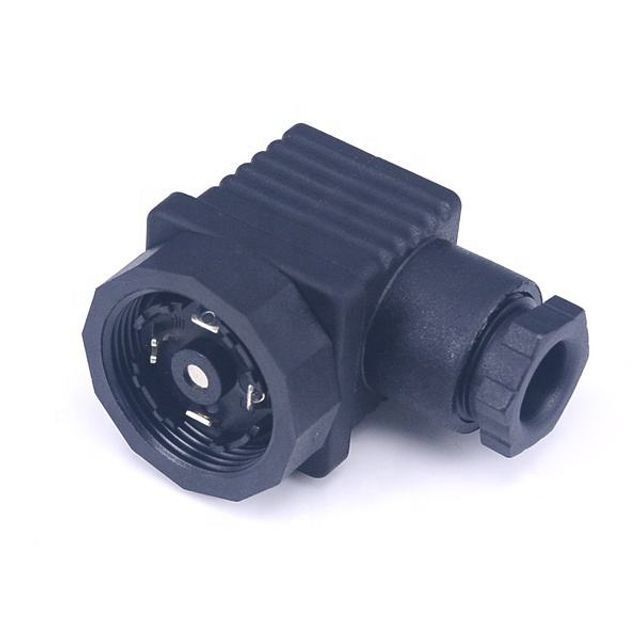

Product Description | Square connector DIN 43650-A/ ISO 4400 |
Size | 27.5x27.5mm |
Housing color | black |
Type of contact | Screw with conductor protection |
Contact spacing | 18mm |
Number of poles | 2 poles+earth/ 3 poles+earth |
Standard earth position | 12 hours |
Cable entry | PG9/PG11 |
Maximum conductor size | 1.5mm2 |
Fixing screw | M3X32.5 |
Profile gasket material | NBR |
Protection class | IP67 |
Company Information
BENXU—a technical corporation with own research and development team,focus on production and sales for quality products of pressure/level/weighing/temperature measurement all the time.
