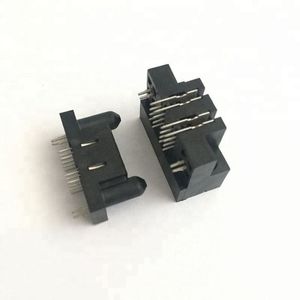

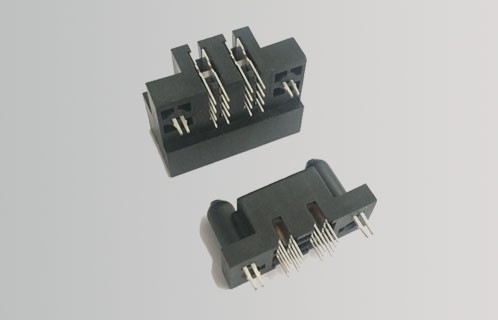

MSD (MISA) Four 7.62mm Power connector 2 pin black with UAV power blade
- $3.50 / 1 - 19 pieces
$3.28 / 20 - 49 pieces
$3.00 / >=50 pieces - 1 piece
- Qianhai Misa (Shenzhen) Technology Co., Ltd.
- Guangdong, China
- Mr
| Brand Name: | MSD or OEM; | Connection system: | Wire to Board; |
| PCB installation direction: | vertical; | Center line (square) (mm): | 7.62; |
| Power supply pin number: | 2; | Gender: | Containers; |
| Model number: | MSD-F0003D-VL01R; | Application: | PCB; |
| Working voltage (VAC): | 300; | Color: | Black; |
| Type: | Connectors; | Country of origin: | Guangdong, China; |
| Packaging Details: | Packaging details: standard packaging: Vacuum pack with sulfur-free paper; Cardboard size: 37 * 26.5 * 24.5 (mm) OEM package available. according to the buyer option; |
Name | Business | Relevant type |
Plug 02P 90 ° straight | MSD-F0002D-VZ01R | MSD-F0002D-RT01R |
Application
MSD Power Blade Connector Series products are mainly used in power distribution system for UPS, servers, storage closures, communication devices, etc.
Materials:
Housing: PPA, fiberglass reinforcement, UL94V-0, Black
Contact:
Power contact: High conductivity copper alloy, partial or all-gold coating
Signal contact: Phosphor bronze, partial or all-gold coating
PCB blocking: phosphor bronze, tin
attribute | Value |
Component type | Power supply connectors |
gender | DISHES |
Head pin model (from left to right) | Power |
Number of contacts (Power) | 2 |
Number of rows (Power) | 1 |
orientation | Right angle |
Finishing style | Wire on board |
Pitch (power) | 7.62 mm (0.300 in) |
Current rating | Maximum 40 A. for a contact with energy |
Resistance (contact) | The maximum for the paired pair is 2mΩ |
Dielectric resistive voltage | 2500V DC for signal |
Voltage Assessment | 300 V |
Color - Housing | Black |
Operating temperature range | -40 ° C to + 125 ° C |
Material housing | PPA, fiberglass reinforcement, UL94V-0 |
Stability (pairing cycles) | 250 Pairing cycles |
Welding process | High temperature welding process |
Plating Contact area | 0.76μm (29,921μin) Ar |
Tail clothing (power) | 1.98μm (78μin) tin |
Guiding features | Guide pin pocket |
packing | Carton or tray |
Welcome to visit:MSD CONNECTOR
A company you can trust

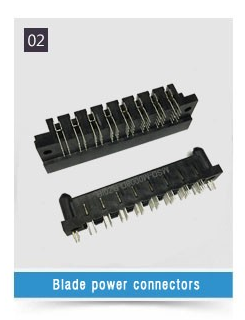

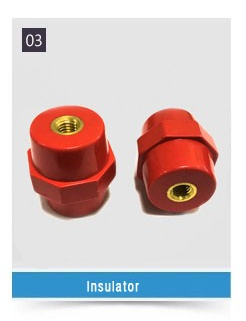

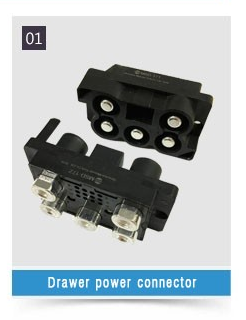

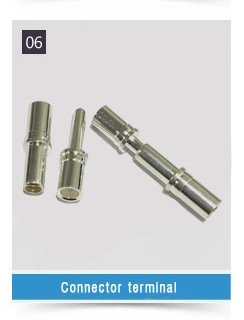

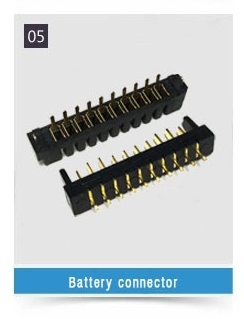

Shenzhen Misa Technology Co., Ltd. are one of the largest suppliers of power connectors in Shenzhen, China. Drawer power connector, blade power connectors, battery connector, connector terminal and all kinds of insulators are our main competencies.
Features and advantages of our products
1. High temperature resistant polyester, glass fiber reinforced and flame resistant polyester are used as insulation materials.
2. A high-conductivity copper-gold alloy is used as the conductor and gold-plated is used in the contact area of the conductor.
3. The central distance of the power contact parts is 5.08 mm, 6.35 mm and 7.62 mm Three sizes are available
4.Contracted current with power 45A. Rated signal current 2.5A
5. Use shrapnel structure contacts, with integrated features, small size.
6. This product range may be interchangeable with POWERBLADE FCI, TYCO MULTI-BEAM product line.

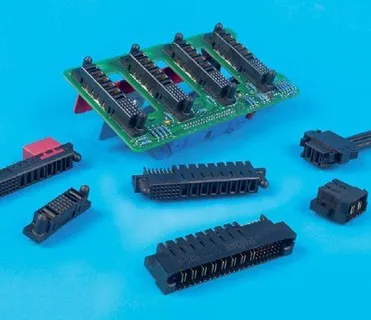

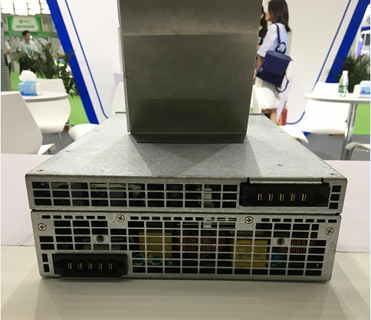

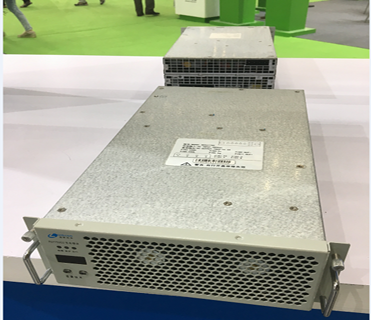

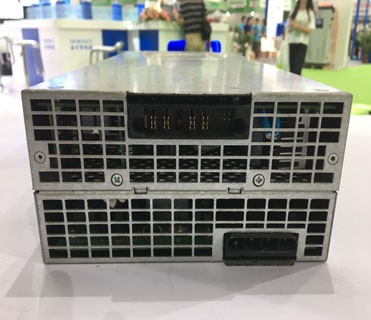

Application and display of our product
1. High frequency switching power supply of intelligence, power supply for communication, electricity, railway power supply, LED energy, solar photovoltaic energy, electrical equipment and charging, industrial energy, beauty medical equipment.
2.UPS
3. Power supply of the charging batch module
4. Contravariant power
5. Low voltage drawer cabinet, etc.

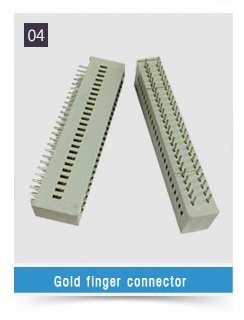

Our product series
>>> Click here to get the catalogs now
MSIA CONNECTOR is also quite experienced in ODM & OEM collaboration with customers for personalized products, all new ideas are welcome here.
Who we are?
Shenzhen Misa Technology Co., Ltd. is a Chinese factory that produces power connectors for global customers. We also offer laser service with logo, personalized product service and catalog production (OEM) service.

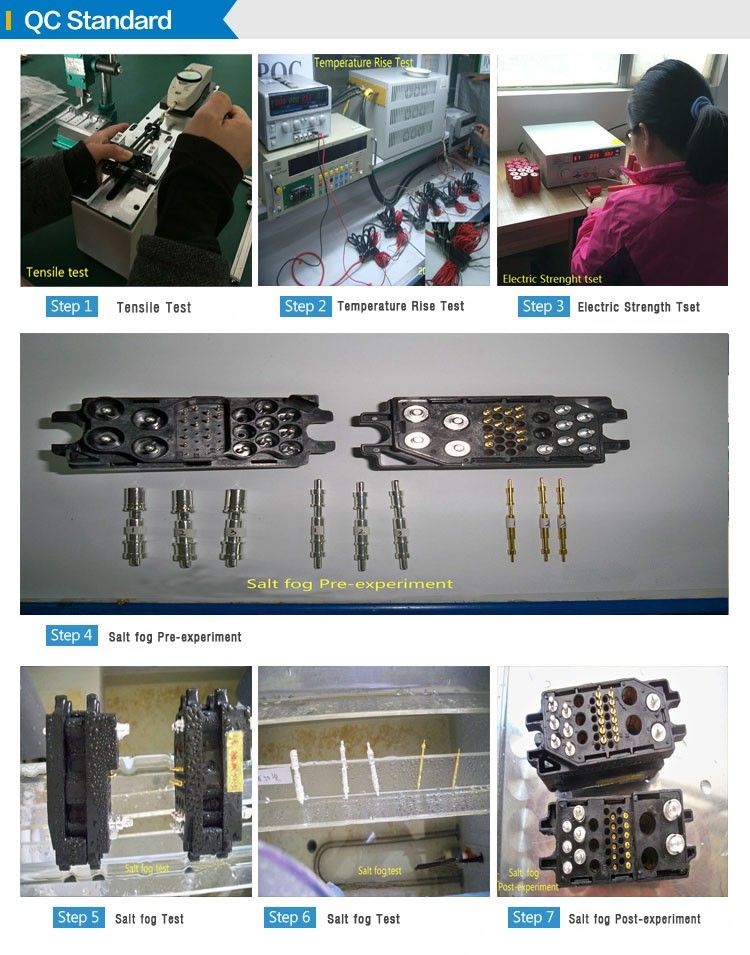

How to ensure quality?
