Health USA Made Used Cat 420F Backhoe Loaders for Sale in China
- $2000.00 /set
- 1 set
- Shandong Yeejoa Sicence & Technology Co., Ltd.
- Shandong, China
- Mr kevin lyu
PRODUCT DETAIL
| Video outbound inspection: | if | type: | Backhoe loaders, front loaders, compact loaders |
| Engine brand: | Yuchai | Dimensions (L*W*H): | 6100*2365*3752 mm |
| Marketing Type: | 2020 New Products | Package preview: | |
| driving type: | four-wheel drive | Ground clearance: | 300 mm |
| After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services | strength: | 75 kW |
| Certification: | CE ISO TUV | Local service locations: | not any |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | maximum. Discharge height (L): | 2742 mm |
| Machine weight: | 8200 kg | Dimensions (L*W*H): | 6100*2365*3752mm |
| Movement type: | Wheel loaders | Applicable industries: | construction project |
| After-sales service provided: | On-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support, free spare parts | Unique selling point: | long lasting |
| Bucket capacity: | 1 cubic meter | Rated load capacity (L): | 2500 kg |
| Excavator bucket capacity (E): | 0.3 cubic meters | Core components: | Pressure vessels, engines, gears, motors, pumps, bearings, gearboxes |
| Supply capacity: | 100 sets per month | Showroom location: | not any |
| Packaging Details: | Two sets in 40HQ container | Origin: | Shandong Province, China |
| Overall Operating Weight: | 8200 kg | maximum. Discharge height (E): | 3792mm |
| Loader bucket capacity (L): | 1.0 cubic meters | maximum. Digging depth (E): | 4082mm |
| Mechanical test report: | if | port: | Qingdao |
| brand: | Yi Qiao | Health status: | new |
| Core component warranty: | 1 year | Hydraulic pump brand: | Quancheng |
| Warranty: | 1 year |
Recommended Products
product description

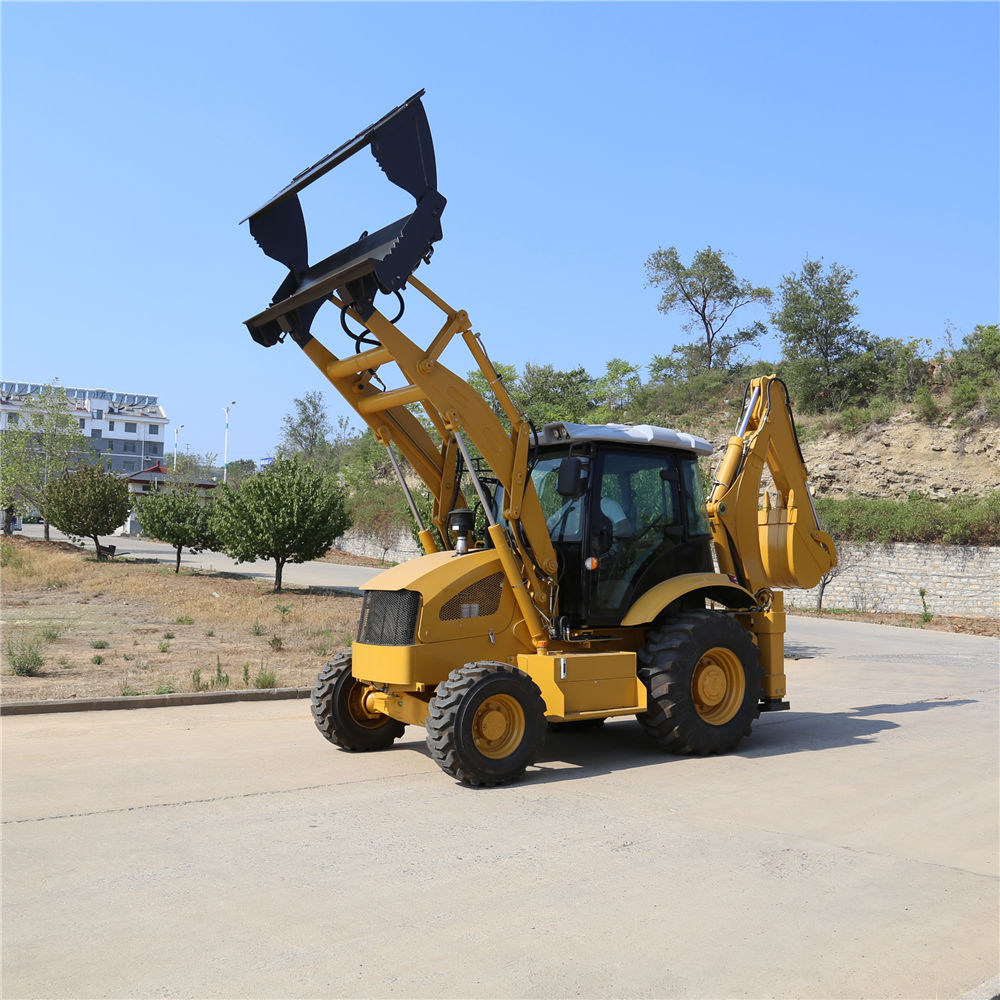

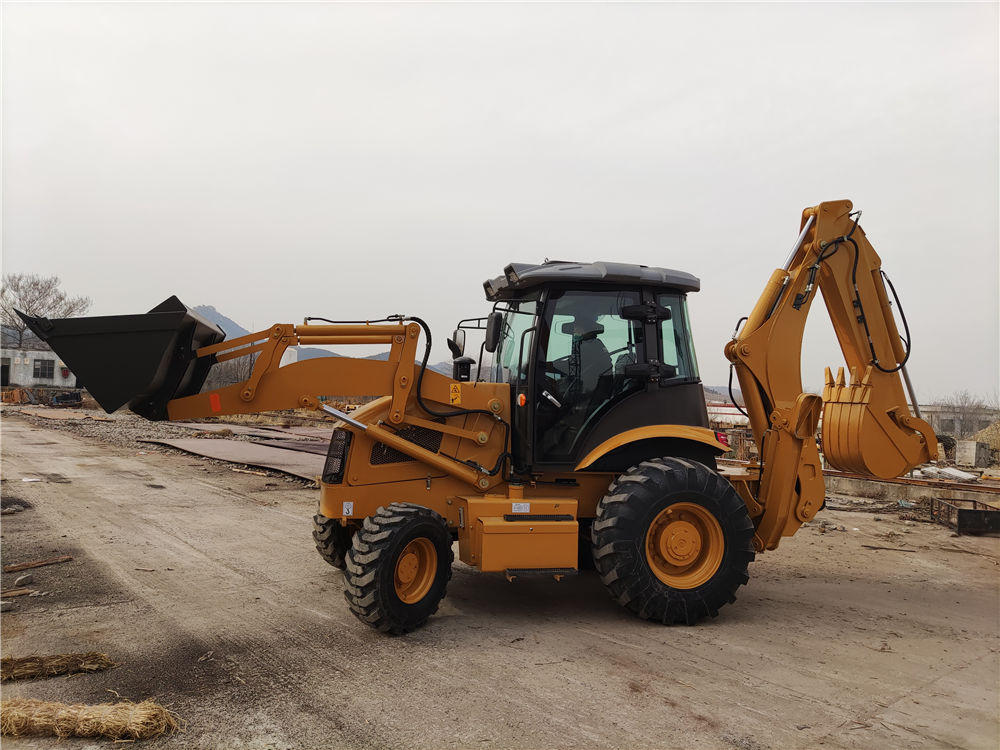

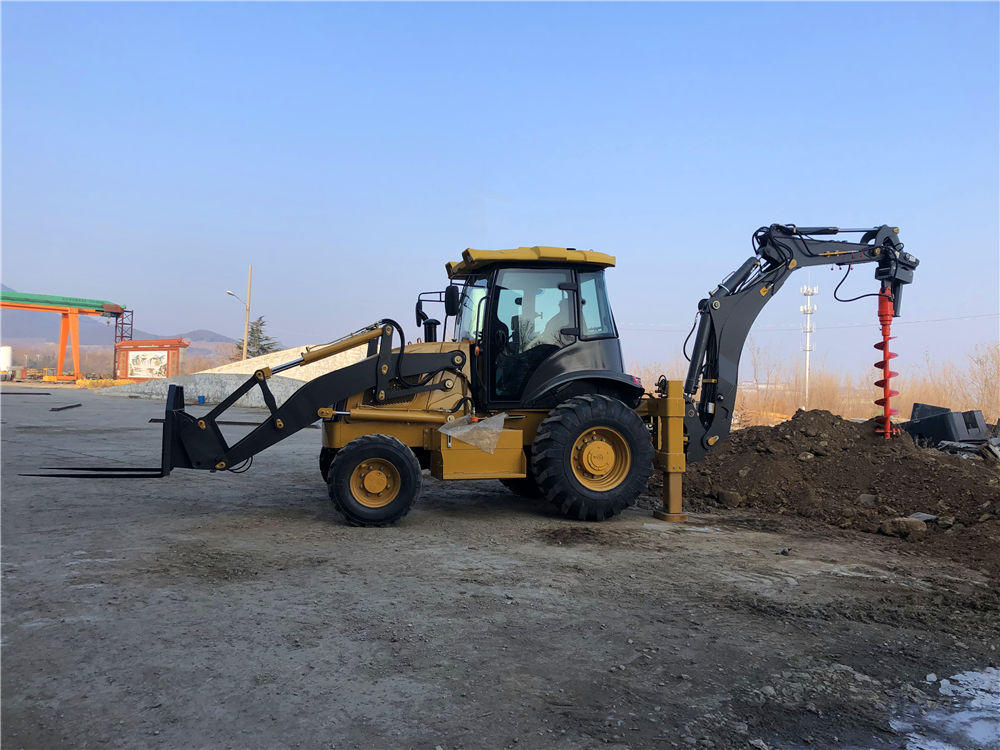

Backhoe Loader
The backhoe excavator has become a very popular machine in the world. Through different accessories, one machine can be used for multiple purposes. It is widely used in fields such as farmland water conservancy, road maintenance, and municipal maintenance.
About YQ388
1. The Q345-C high-strength steel overall frame is used to make the whole machine stronger
Stable and good for digging.
2.Split instrument design, more convenient maintenance;
Stable and good for digging.
2.Split instrument design, more convenient maintenance;

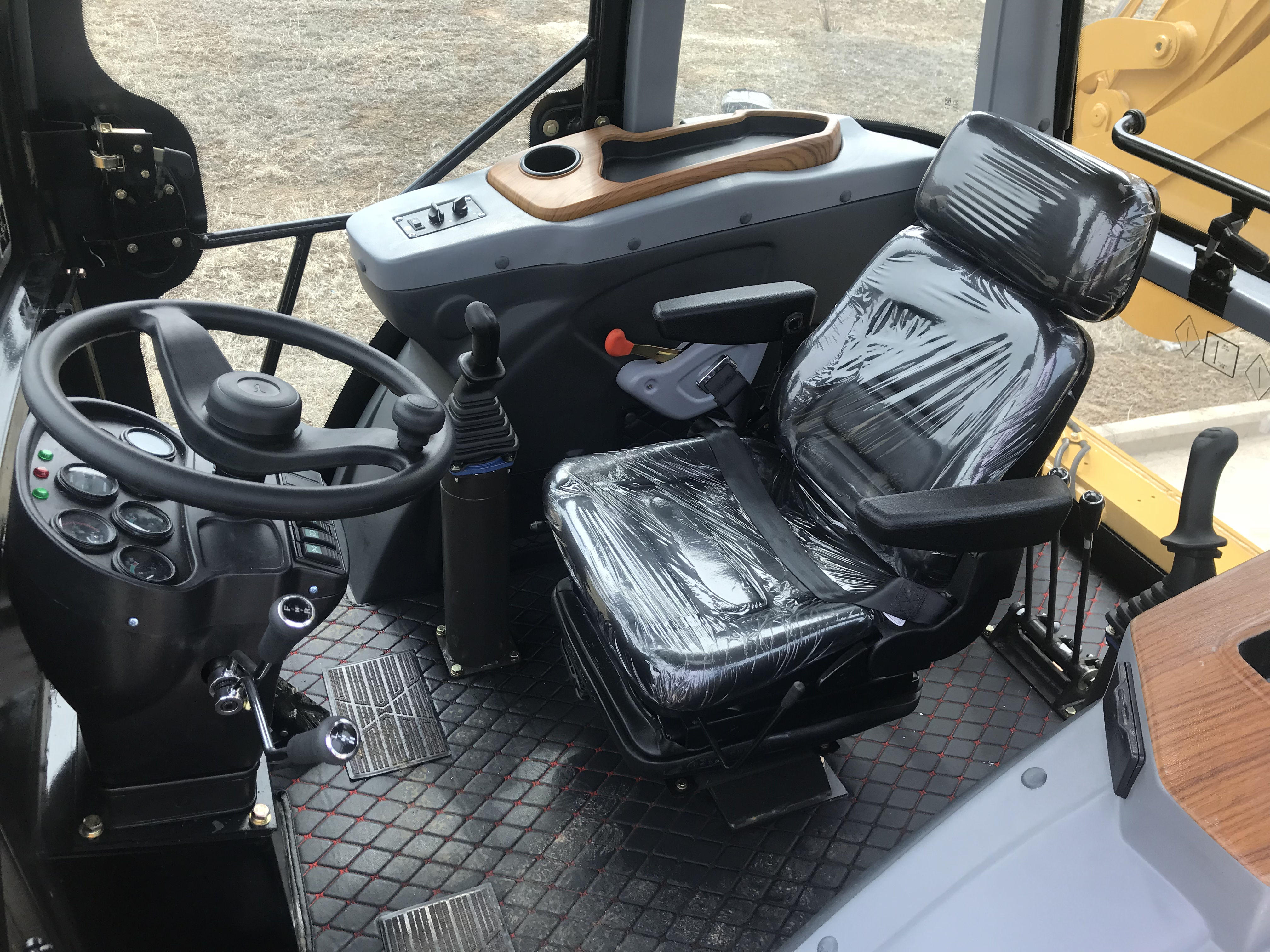

3.Wide visibility, ROPS and FOPS cab, luxury interior and adjustable suspension seat
4.pilot control
Outriggers: side shift
Outrigger: Pivot Center
pilot control
Product parameters
main specifications | Shipping Dimensions (L*W*H) | 6100×2365×3752 mm |
overall working weight | 8200 kg | |
Ground clearance | 300 mm | |
driving type | Four-wheel drive (4X4) | |
loader performance | Loader Bucket Capacity | 1.0 cubic meters |
maximum. Discharge height | 2742mm | |
Rated load capacity | 2500 kg | |
digging force | 38kN | |
total ride time | 11.9 seconds | |
Backhoe performance | Excavator bucket capacity | 0.3 cubic meters |
maximum. digging depth | 4082mm | |
maximum. Discharge height | 3795mm | |
Boom swing angle | 190° | |
engine | Model | YC4A105Z-T20 |
Air inlet type | turbocharged | |
cylinder | In-line, direct injection, 4x108x132mm | |
rated power | 75 kW | |
rated speed | 2200 rpm | |
torque converter | type | Single Stage Three Elements |
maximum. efficiency | 84.40% | |
inlet pressure | 1.3－1.5Mpa | |
Outlet pressure | 0.25－0.3Mpa | |
cooling method | oil cooling pressure cycle | |
gearbox type | type | fixed shaft power transmission |
gear | Two forward gears, two reverse gears | |
Maximum speed | 28km/h | |
Drive axle | manufacturer | Yunyu |
main drive type | double reduction | |
final reducer | Single stage final reducer | |
shaft load rating | 8/18.5 tons | |
tire | Model | 14-17.5/19.5L-24 |
front wheel pressure | 0.55Mpa | |
rear wheel pressure | 0.223Mpa | |
Brake system | service brake | Air top oil caliper brake, external, self-adjusting, self-balancing |
Operate the power supply to execute the brake | ||
Manually Operated Power End Brake | ||
steering system | type | Articulated hydraulic steering |
steering angle | Left or Right 36±1° | |
minute. Turning radius | 6581mm |
