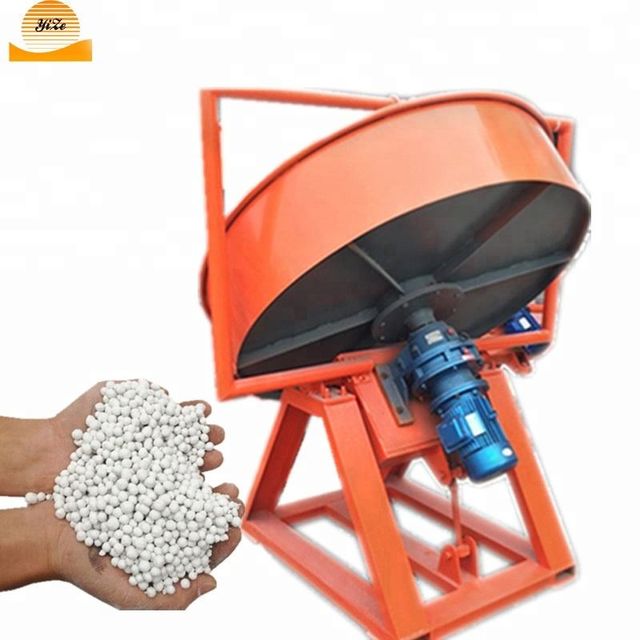

High Efficiency Disc Organic Fertilizer Granulator Equipment Drum Granulator

PRODUCT DETAIL
Warranty:1 yearDimensions (L*W*H):650*600*800mm
Power (kW):4manufactures:3-6mm
Voltage:220V/380VMarketing Type:Hot Products of 2019
Showroom location:not anyplace of origin; place of origin:Henan, China
Output (kg/hour):5000Rotating speed:32 rpm
port:Qingdao or as your requestMechanical test report:if
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramVideo external inspection:if
Type of machine:GranulatorSupply capacity:500 sets of industrial laboratory disc fertilizer granulator price per month
Main selling point:competitive priceApplicable industries:Disc granulator
Key words:Organic fertilizer equipmentproduct name:Organic Fertilizer Disc Granulator
Name:Disc Organic Fertilizer Granulator Equipment Granulatorbrand:Yize
Health status:newPower (W):0.75KW-4KW
Product Category:fertilizercapacity:0.02-6t/h
Packaging Details:High Efficiency Disc Organic Fertilizer Granulator Equipment Rotary drum granulator will be packaged in standard export wooden boxes.Packaging Preview:
Disc diameter:500mmCore Components Warranty:1 year
Weight (kg):300Core components:gear
Edge Height:200mmapplication:Disc granulator
Product Description

As a feeding device for fine-grained materials, the disc granulator is suitable for conveying various non-stick materials such as powder, material or small lumps of coal powder, cement, clinker, limestone, shale, coal gangue, etc. Clay, etc., can be widely used in continuous and uniform dosing and batching equipment in gold processing plants, coal mines, chemicals, infrastructure and mechanized foundry workshops.

detailed image

The pre-watering disc type ball forming machine is the first machine in China that uses an electric scraper type ball forming machine to form balls. It is the main equipment in the pre-watering ball system. The machine has uniform spherical particle size, convenient operation and stable operation. Features such as long service life.
The disc granulator is composed of a large plate, a large gear, a transmission part, a frame, a base, a scraper frame, and an unpowered scraper.
1. The main body of the disc granulator, the main body includes a frame, a regulating part and a granulating disc.
2. One main reducer, input shaft with pulley, output shaft with pinion.
3. Point power, with a pulley.
4. The supporting granulation disc device includes a main shaft, two roller bearings, and two bearing seats.

Model
Disc diameter (mm)
side height
(mm)
Speed ​​(r/min)
Motor power (kw)
Capacity (tons/hour)
Dimensions (mm)
YZYP-500
500
200
32
0.55
0.02-0.05
650*600*800
YZYP-600
600
200
33.5
0.75
0.05-0.1
800*700*950
YZYP-800
800
200
twenty one
1.5
0.1-0.2
900*1000*1000
YZYP-1000
1000
250
twenty one
1.5
0.2-0.3
1200*950*1300
YZYP-1200
1200
250
twenty one
1.5
0.3-0.5
1200*1470*1700
YZYP-1500
1500
300
twenty one
3
0.5-0.8
1760*1500*1950
YZYP-1800
1800
300
twenty one
3
0.8-1.2
2060*1700*2130
YZYP-2000
2000
350
twenty one
4
1.2-1.5
2260*1650*2250

We can customize machine size according to your requirements.
