High Quality Custom Lathe Chuck Hydraulic High Speed ​​Hollow Power Chuck for CNC Lathe Self Centering Chuck

PRODUCT DETAIL
Name:Precision three-jaw chuckKey words:Hydraulic Power Chuck
pack:cartonusage:chuck
Material:steelCustom Support:OEM, ODM
Packaging Details:cartonNumber of jaws:3
payment terms:wire transferbrand:Schunk
place of origin; place of origin:Zhejiang, Chinaproduct name:6 inch three-jaw hydraulic chuck
diameter:6 inchesstrength:hydraulic
application:CNC lathefeature:high performance

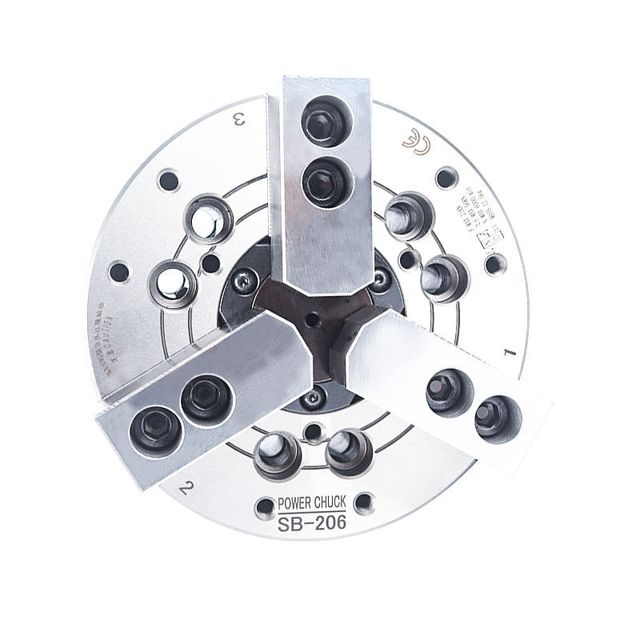

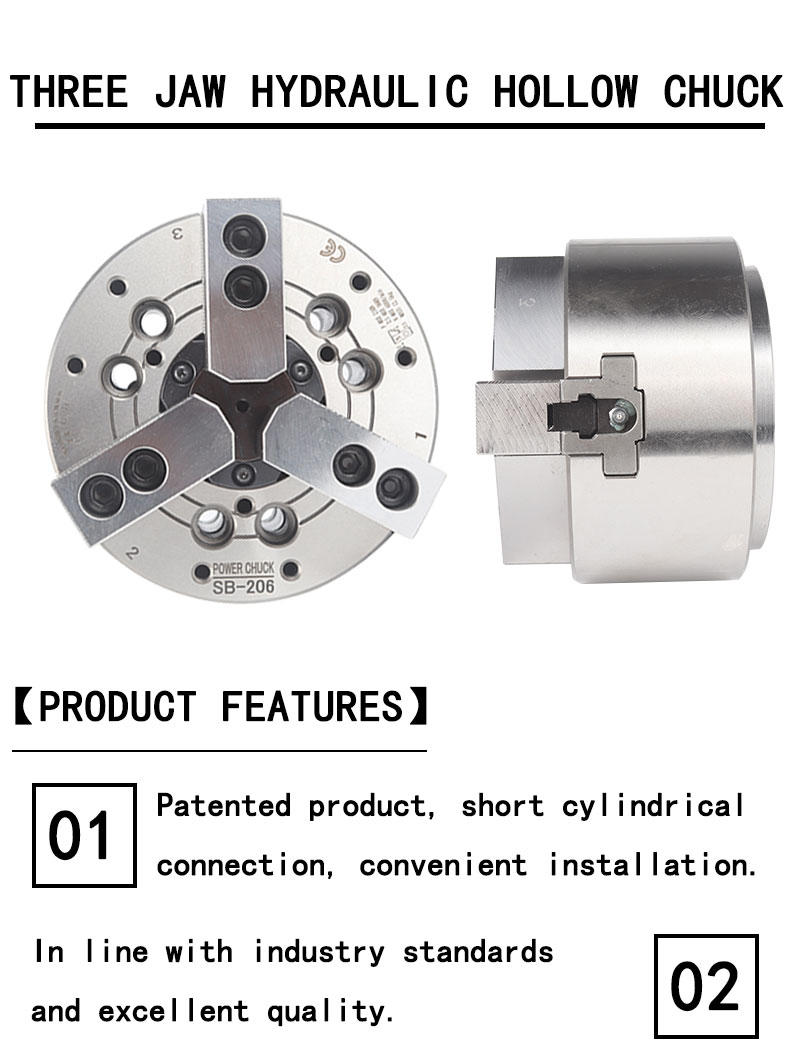

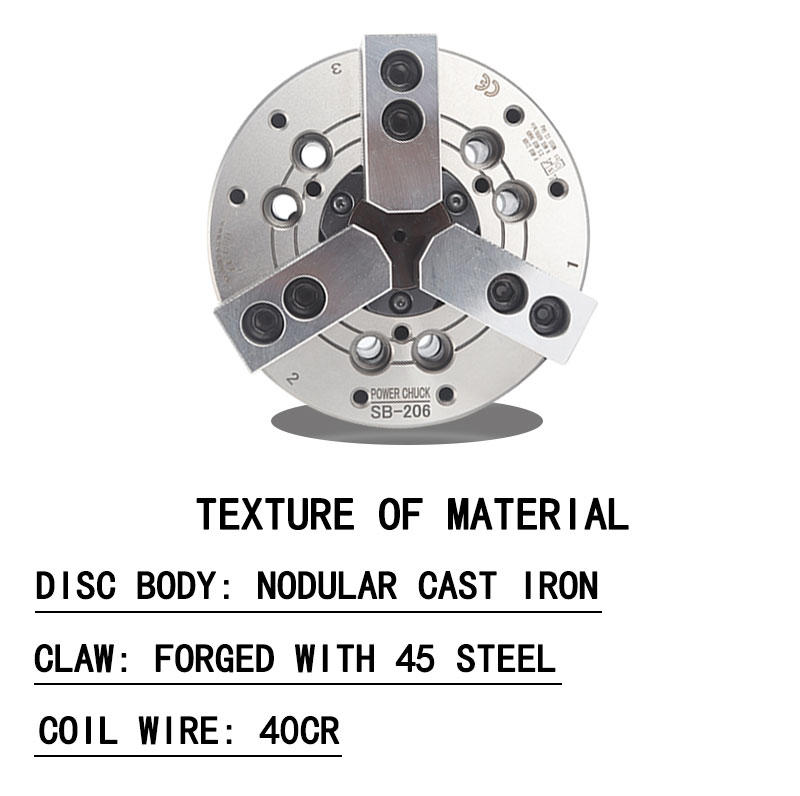

model:SB-206type:Hollow Power Chuck

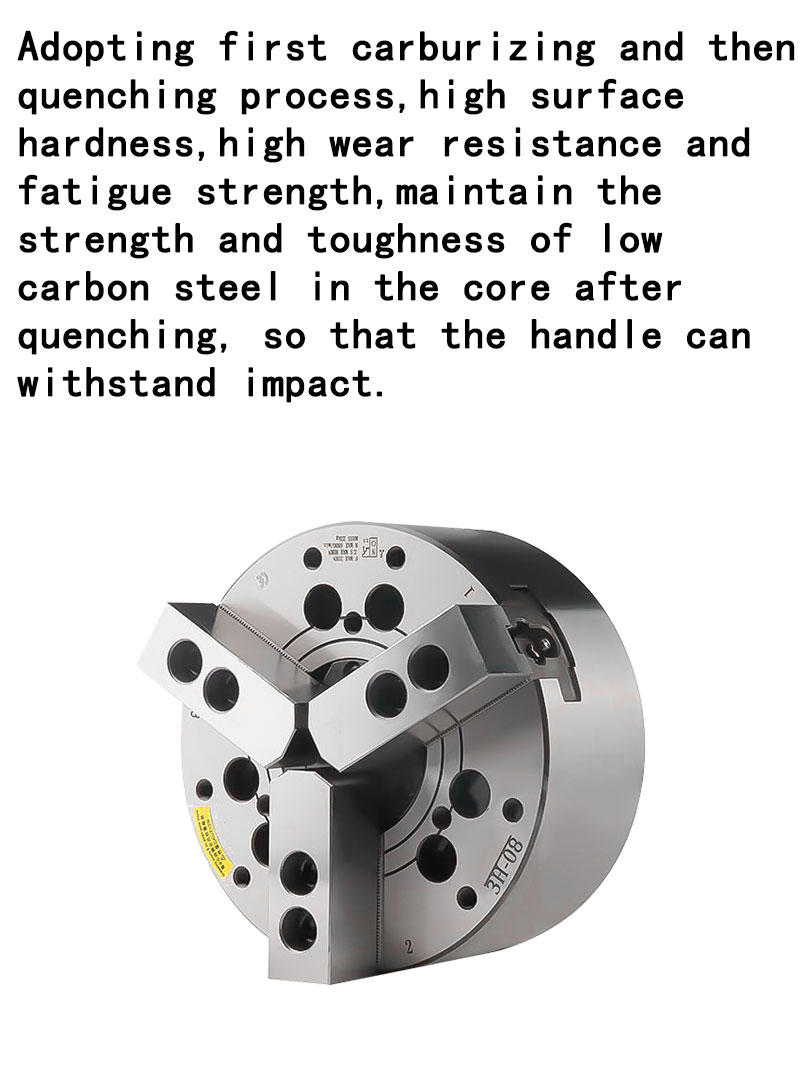

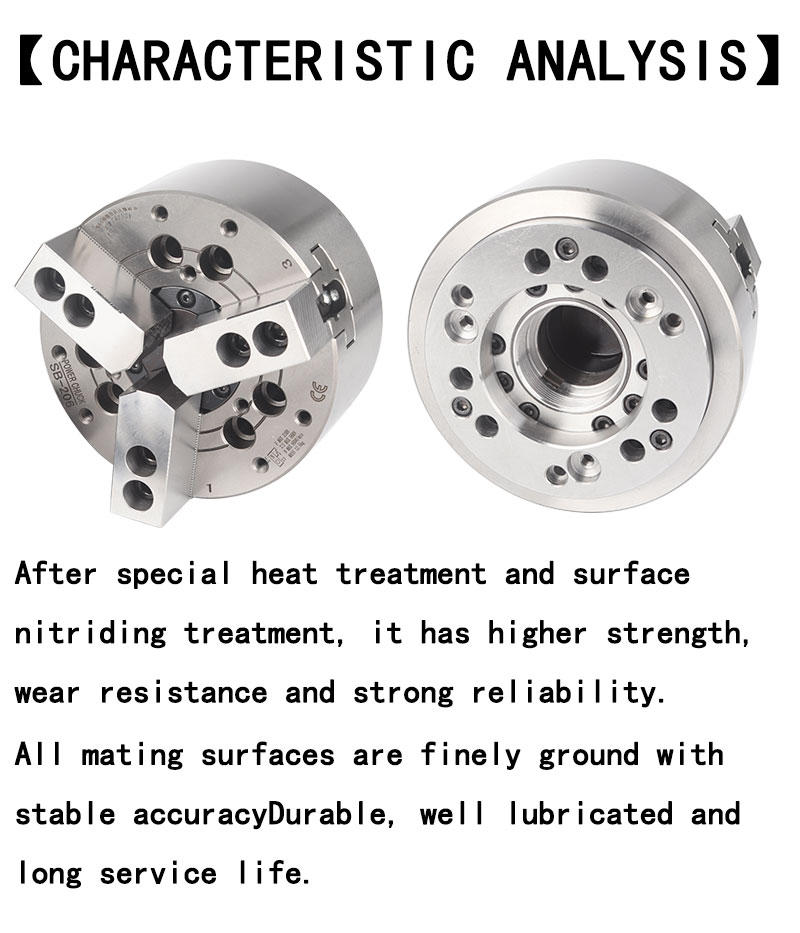

Advantage:High reliability

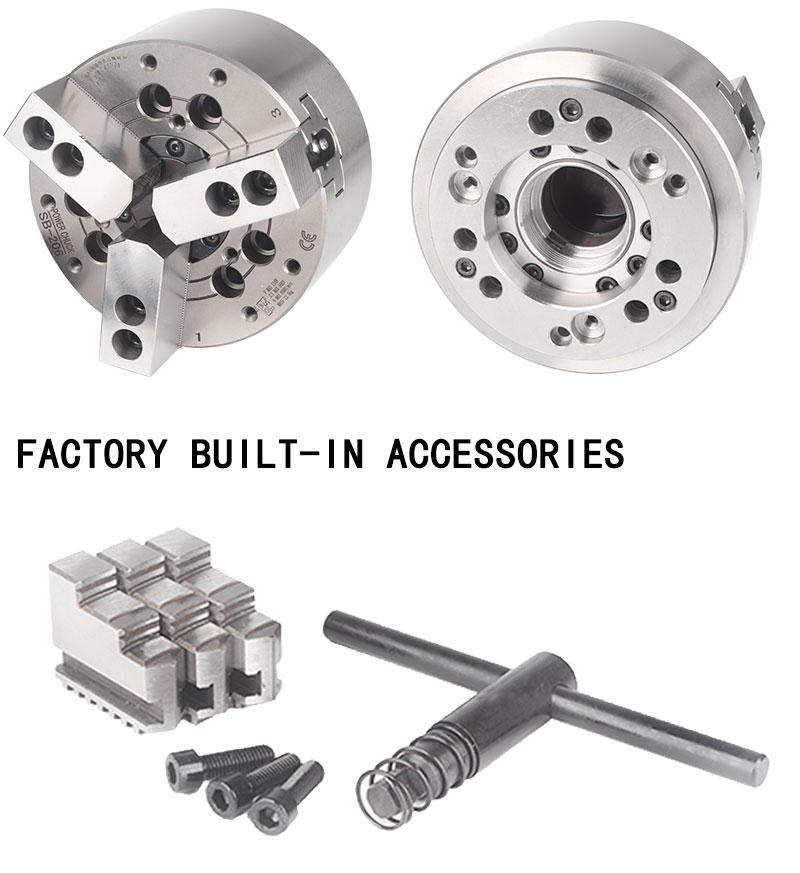

Product display
The following products are existing products, other sizes can be customized.
Model
/size
a (mm)
B (mm)
C(H6) (mm)
F (mm)
grams (mm)
Well)
J
(mm)
K
(mm)
SB-205
135
60
110
4
96
82.6
33
3-M10X1.5P
SB-206
168
81
140
5
116
104.8
45
6-M10X1.5P
SB-208
210
91
170
5
150
133.4
52
6-M12X1.75P
SB-210
254
100
220
5
190
171.4
75
6-M16X2P
SB-212
304
110
220
6
190
171.4
91
6-M16X2P
SB-215
381
133
300
6
260
235.0
117.5
6-M20X2.5P
Model/Size
Length (mm)
m (mm)
N max (mm)
N min (mm)
O max (mm)
Ø Min (mm)
Maximum pressure (mm)
P min (mm)
Q (mm)
SB-205
15
14
26.5
23.8
19
6
1
-9
25
SB-206
16
20
32
29.25
twenty four
7
11
-1
31
SB-208
18
25
38.7
35
30
10
14.5
-1.5
35
SB-210
19
30
51
46.6
34
12
8.5
-10.5
40
SB-212
25
30
61.3
56
46
12
8
-15
50
SB-215
28
43
82.7
77.4
46
13
8
-15
62
Model/Size
(mm)
Small (mm)
tons (mm)
U (mm)
Vertical (mm)
Width (mm)
X (mm)
SB-205
10
19
2
M40X1.5P
12
31.5
62
SB-206
12
19
2
M55X2P
20
37
73
SB-208
14
20
2
M60X2P
30
39
95
SB-210
16
25
2
M85X2P
40
43
110
SB-212
twenty one
28
2
M100X2P
50
51
129
SB-215
twenty two
42.5
5
M130X2P
60
66
165
Model/Size
through hole
(Diameter.mm)
Plunger stroke (mm)
Jaw stroke (DIA.mm)
Maximum speed
Maximum pulling force kgf (KN)
SB-205
33
10
5.4
7000
1730(17)
SB-206
45
12
5.5
6000
2140(21)
SB-208
52
16
7.4
4800
3350(33)
SB-210
75
19
8.8
4200
4280(42)
SB-212
91
twenty three
10.6
3300
5500(55)
SB-215
117.5
twenty three
10.6
2500
7200(71)
Model/Size
Maximum clamping force kgf (KN)
Matching cylinder
Maximum gripping range
Minimum clamping range
Maximum pressure Kgf/cm² (Mpa)
Weight(KG)
SB-205
3550(35)
SH1036
135
10
29(2.8)
6
SB-206
5700(56)
SH1246
168
13
28(2.7)
12.5
SB-208
8350(82)
SH1552
210
16
26(2.5)
twenty two
SB-210
11000(108)
SH1875
254
25
27(2.6)
33.6
SB-212
14300(140)
SH2091
304
twenty three
27(2.6)
55.3
SB-215
18200(178)
SH2511
381
42
25(2.4)
106.8
