Reversible Tap Chuck J467/J4612/J4620

PRODUCT DETAIL
Material:High quality alloy steelTorque:adjustable torque
strength:electricalAdvantage two:Automatic reverse tapping
Customization support:OEM productionPackaging Details:with carton
brand:LoyaltyAdvantage one:With overload protection device
Origin:Shandong Chinaport:Qingdao Xingang
Warranty:6 monthsNumber of claws:3
Supply capacity:200 pieces per monthmodel:J467, J4612, J4620
payment terms:L/C, Western Union, D/P, T/TMaterial:steel

Reversible tapping chuck:



1. Spring collets are available

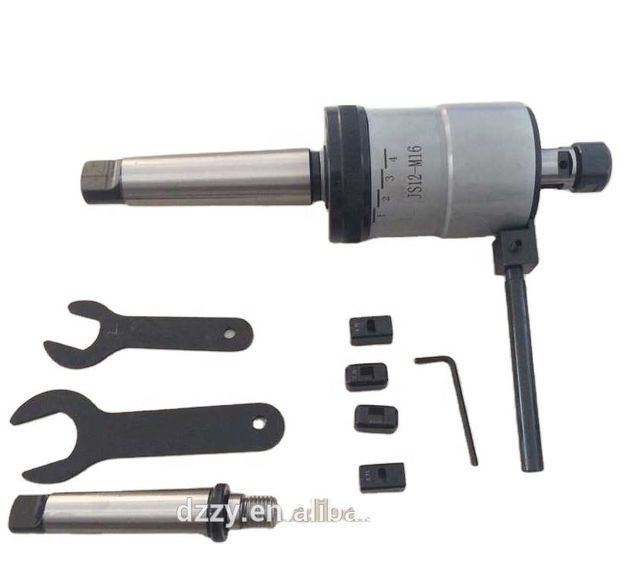

Set includes two handles, two wrenches, three blocks and two flexible collets
Three types:
J467 for M2-M7
J4612 for M5-12
J4620 for M8-M20
Morse taper: 1, 2, 3



2. Advantages:

1) Overload protection

2) Torque adjustable

3) Reverse device: Automatically reverse the spindle without stopping the machine, and return the tool faster

4. Simple operation

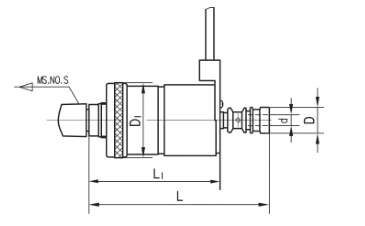

order number. Tapping range d Man D1 large L1 MS number
J467 M2-M7 2.5-6.5 twenty three 55 135 95 MS2-JT33 MS3-JT33
J4612 M5-M12 3.5-10 28 75 164 114.5 MS3-M16 MS4-M16
J4620 M8-M20 6.3-14 38 90.5 205 135 MS3-M20 MS4-M20

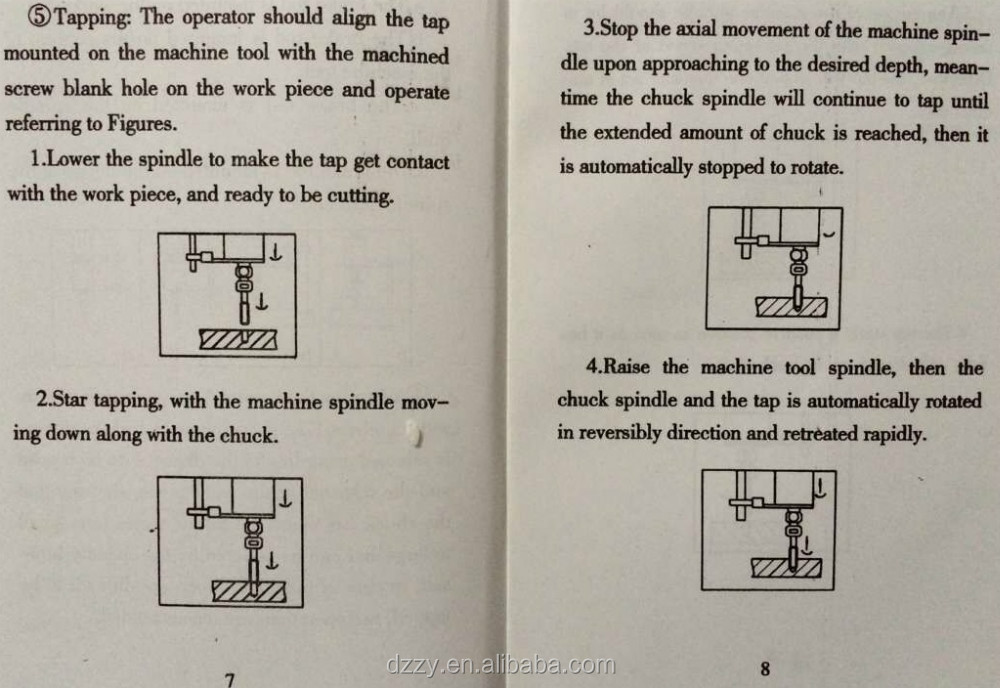

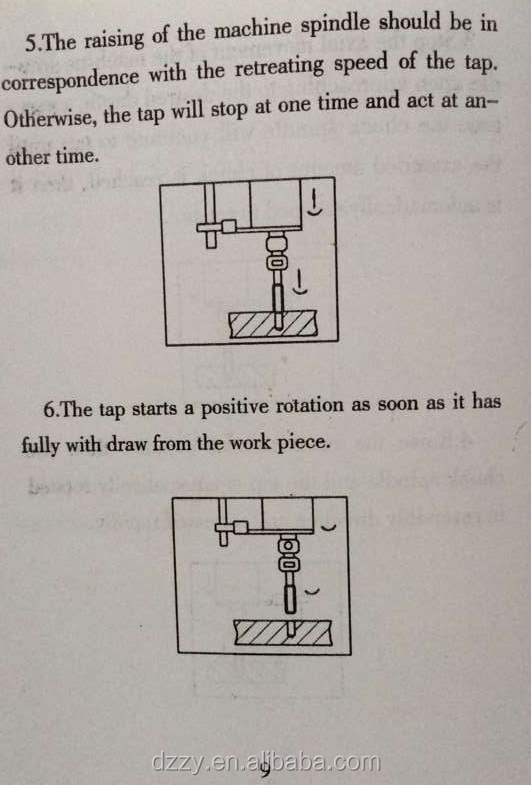

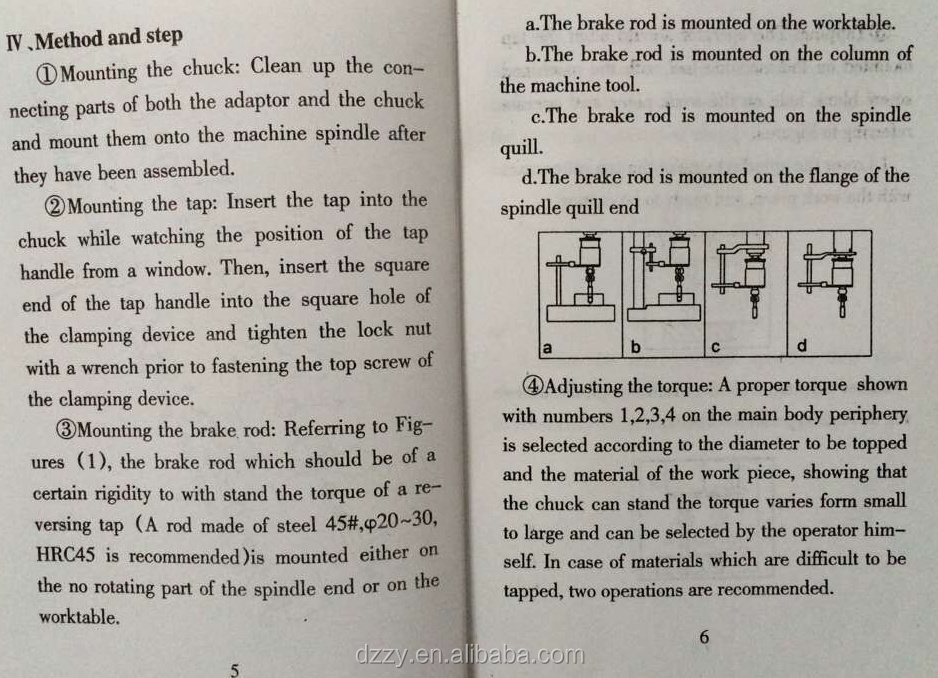

3. Introduction to use:
