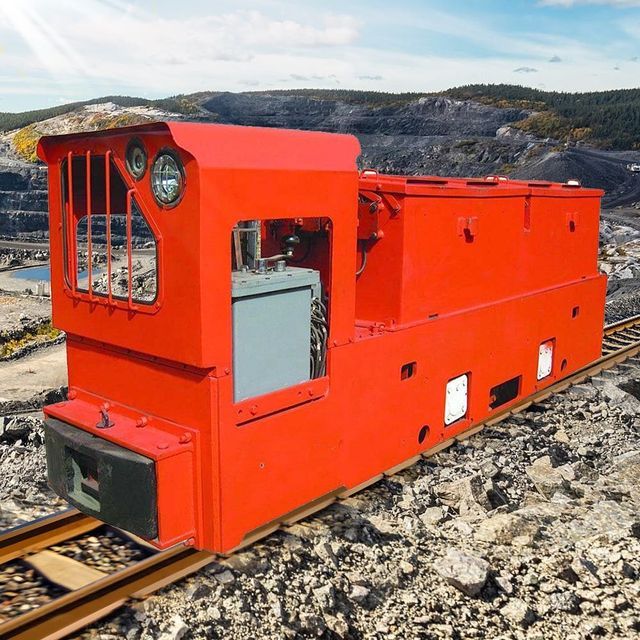

High Quality Underground Coal Mine Battery Locomotive CTY5/6,7,9G Mining Electric Locomotive For Sale
- $19000.00 / 1 - 19 sets
$18000.00 / 20 - 199 sets
$8500.00 / >=200 sets - 1 set
- Yimei Machinery Equipment Manufacturing Co., Ltd.
- Shandong, China
- Ms Coco Sun
PRODUCT DETAIL
| Maximum speed (km/h): | 7 | Traction force (kN): | 7.06 |
| Self-weight (t): | 5 | horsepower: | 7.5kW*2 |
| Gasoline type: | electrical | Voltage(V): | 90 |
| Supply capacity: | 100 electric locomotives battery powered locomotives per week | Key words: | tunnel mining locomotive |
| payment terms: | L/C, T/T, MoneyGram, PayPal, Alibaba Trade Assurance | Speed (km/h): | 7 km/h |
| Place of origin: | Shandong Province, China | Dimensions (length x width x height) (mm): | 2850*920,1082/1220*1550mm |
| brand: | One plum | product name: | CTY5/6,7,9G electric locomotive |
| Capacity (Ah): | Chapter 385 | Packaging details: | Payment terms: *T/T: 30% deposit before production and 70% balance before shipment. * Trade terms: EXW/CNF/CIF/DDU/DDP/FOB Packaging details: * Fumigation-free wooden box, standard export packaging * Film plastic and wooden box with manufacturer's logo on the outside. *All products are carefully inspected by QC before delivery. Electric locomotive battery powered locomotive mining electric locomotive |
| maximum. Traction force (kN): | 12.26 | Wheelbase (mm): | 850 |
| Gauge (mm): | 600, 762 or 900 | port: | Qingdao, Ningbo, Shanghai, Shenzhen |
Company Profile
Product Description
introduceHigh quality coal mine underground battery locomotive CTY5/6,7,9G mining electric locomotive for sale
Drive controller: The control core of battery electric locomotives, including resistance speed regulation, chopper speed regulation, and variable frequency speed regulation. The latter two types are explosion-proof and ordinary. Power supply device: provides energy for battery electric locomotives. There are ordinary lead-acid batteries, maintenance-free batteries, and lithium batteries to choose from. Traction motor: The power source of pure electric vehicles, including DC motors and AC motors, as well as explosion-proof and ordinary types. zmwm02
Product parameters
parameterHigh quality coal mine underground battery locomotive CTY5/6,7,9G mining electric locomotive for sale
Model | CTY2.5/6,7,9G | CTY5/6,7,9G | CTY8/6,7,9G(B) | CTY(L)12/6, 7, 9G | CTY18/6,7,9G(B) | CTY18/6,7,9G(B) | ||||
self weight(t) | 2.5 | 5 | 8 | 12 | 15 | 18 | ||||
Gauge(mm) | 600, 762 or 900 | 600,762 or 900 | 600,762,900 | 600, 762 or 900 | 600,760 or 900 | 600,762 or 900 | ||||
Traction force(kN) | 2.55 | 7.06 | 11.18 | 12.83 | 16.48 | 18.47 | 29.4 | |||
Maximum speed (km/h) | 4.54 | 7 | 6.2 | 7.8 | 8.7 | 9.6 | 9.8 | |||
maximum. Traction force(kN) | 6.13 | 12.26 | 19.62 | 29.43 | 36.18 | 44.15 | ||||
power supply unit | Voltage (five) | 48 | 90 | 110,132 | 140,144 | 192 | 256 | 208 | ||
| capacity (ah) | 308 or 330 | Chapter 385 | Chapter 440 | Chapter 560 | 620 | Chapter 730 | ||||
Power (kW) | 3.5kW*1 | 7.5kW*2 | 11kW*2 | 15kW*2 | 22kW*1 | 30kW*2 | 45kW*2 | |||
size | length (mm) | 2330 | 2850 | 44,704,490 | 5100 | 5200 | 5100 | |||
| width (mm) | 914,1076 or 1212 | 920,1082/1220 | 1062/1190/1212/1350 | 1050, 1212 or 1350 | 1500 | 1500 | ||||
| high (mm) | 1550 | 1550 | 1600 | 1600 | 1920 | 1900 | ||||
| Towing height (mm) | 320 | / | / | / | / | / | / | |||
| Wheelbase (mm) | 650 | 850 | 1100 | 1150 | 1220 | 1400 | 2100 | |||
| wheel diameter (mm) | Φ460 | Φ520 | Φ680 | Φ600, Φ680 | Φ680 | Φ680 | Φ600 | |||
minute. Turning radius (meters) | 5 | 6 | 7 | 10 | 15 | 20 | ||||
controller | Resistor or pulse speed regulation | resistor or chopper | Resistor, IGBT or variable frequency | Resistor, IGBT or AC converter | Resistor, IGBT or AC converter | Frequency conversion or chopper speed regulation | ||||
Braking method | Mechanical | Mechanical or hydraulic | Mechanical | Mechanical and pneumatic brakes | Mechanical and pneumatic brakes | Mechanical, electrical, air brakes | ||||

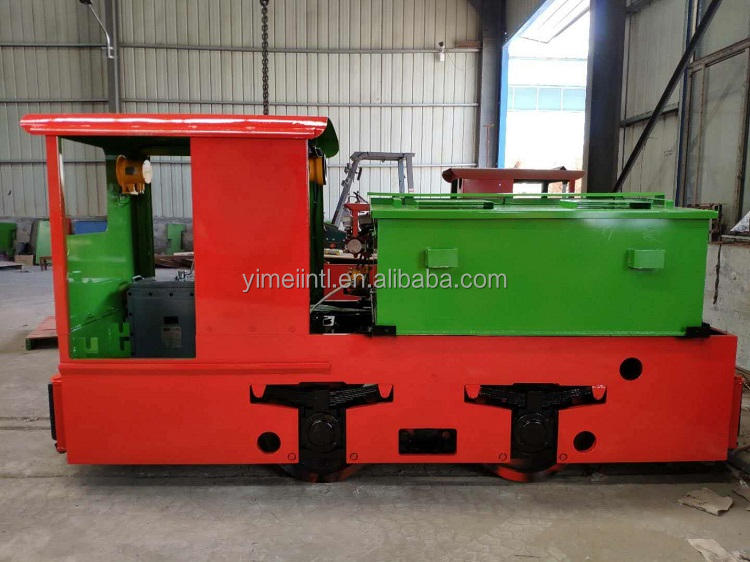

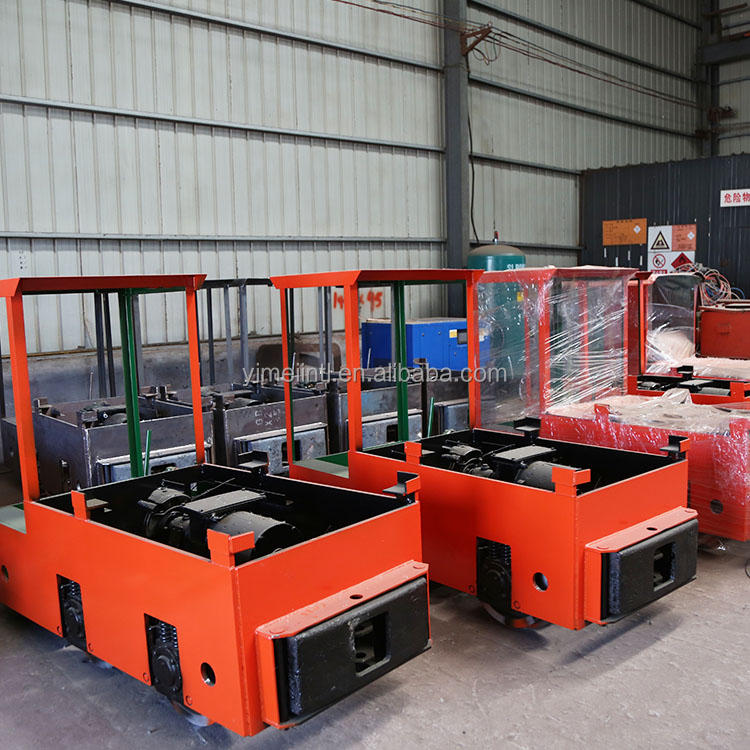

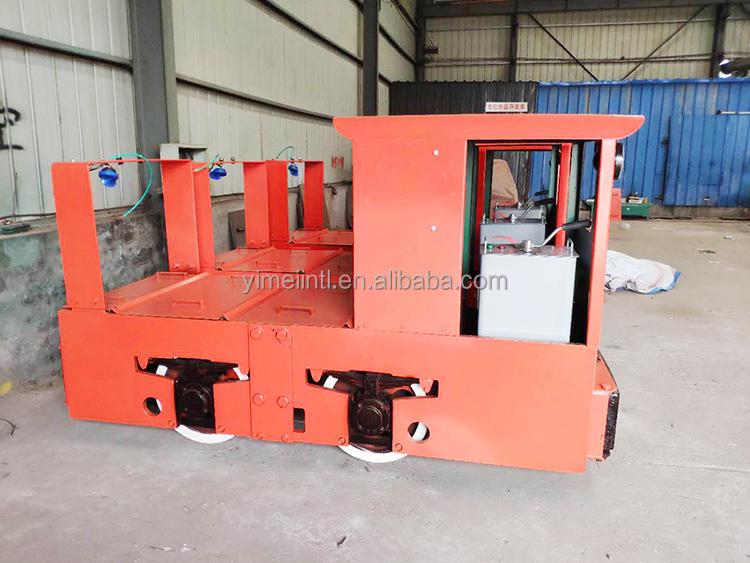

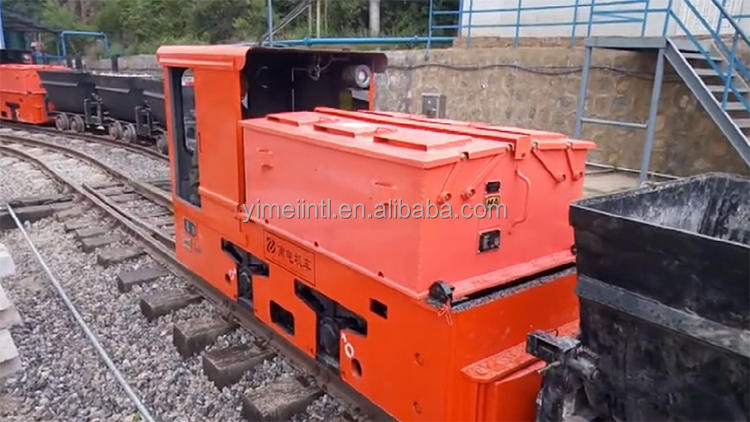

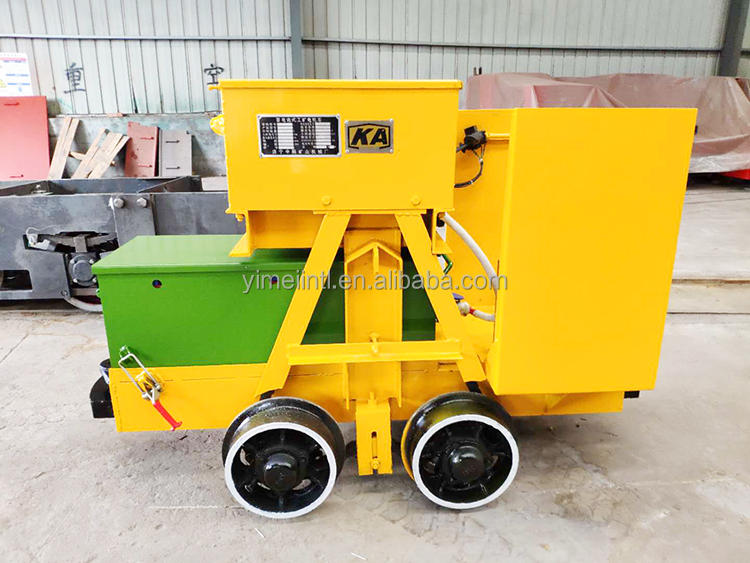

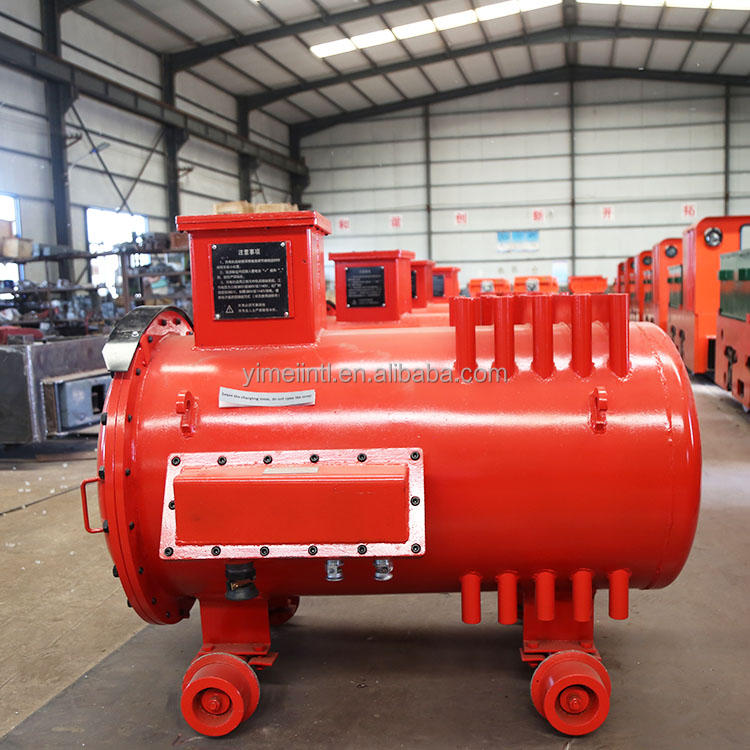

detailed picture
PhotoHigh quality coal mine underground battery locomotive CTY5/6,7,9G mining electric locomotive for sale
