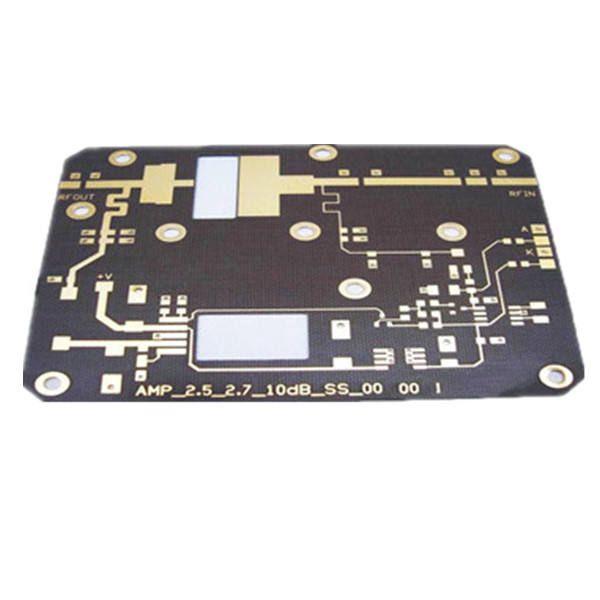

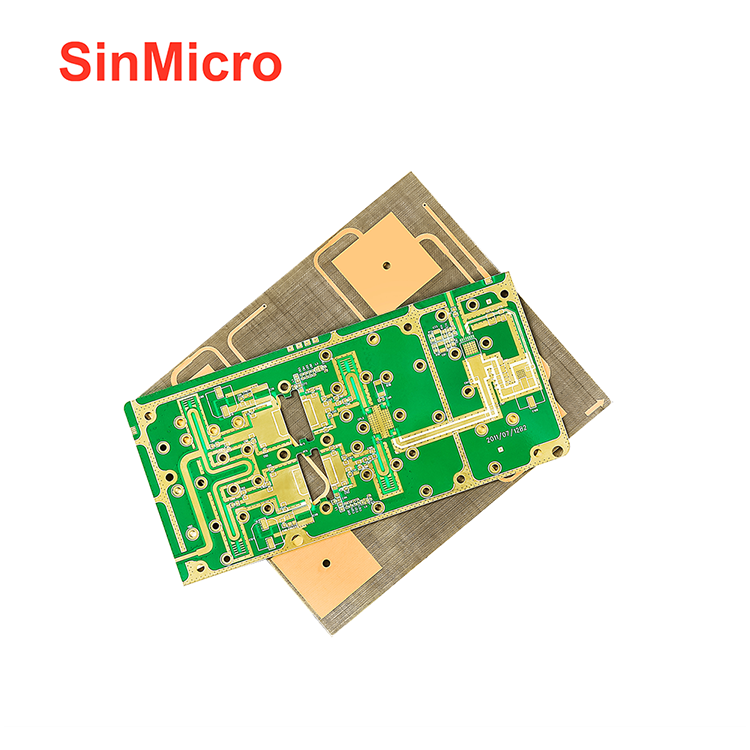

High frequency PCB, pcb rogers and pcb taxon

PRODUCT DETAIL
Silkscreen:whiteMaterial:Rogers
Packaging Details:vacuum packaging;Plate thickness:1.6mm
minute. Line spacing:0.003"place of origin; place of origin:Guangdong, China
transportation:DHL UPS TNT FEDEX EMSSolder mask:green
pack:vacuum packagingpayment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
port:Shenzhenapplication:common
delivery time:3-7 daysmodel:18121934
Substrate:FR4Copper Thickness:1 oz
Surface treatment:tin sprayLayers:1-24 floors
minute. Line width:3000000Supply capacity:30,000 square meters per month
brand:new microMinimum order quantity:1
minute. Hole size:0.25mmTest service:Flying probe test
product information

Our process capabilities

Floor
4~30 floors
Material
FR4, CEM1, CEM3, Hight TG, Rogers, F4B, Taconic, FR1, FR2, 94V0, Aluminum
production capacity
30000㎡/month
plate shape
Rectangles, circles, slots, cuts, complex irregularities
plate type
Rigid, flexible, rigid-flexible combination
Sheet cutting
Cut, V-Score, Tab-Routed, Countersunk
plate thickness
0.2~8.0mm, bending 0.1-0.25mm
copper weight
0.5oZ~12oZ
Solder mask
Double-sided green LPI, red, white, yellow, blue, black, purple, etc.
silk screen
Double-sided or single-sided, such as white, yellow, black, etc.
Minimum line width/spacing
0.08mm/3mil
Maximum board size
25.6 inches*43.3 inches or 650mm*1100mm
Minimum drilling diameter
0.1mm
Minimum laser drill diameter
0.075mm
surface treatment
HASL, ENIG, Immersion Tin, Immersion Silver, OSP, ENEPIG, etc.
Plate Thickness Tolerance
± 10%
Minimum slot width
0.12", 3.0mm or 120 mil
V Fraction Depth
20-25% of plate thickness
Through hole wall thickness
>0.025mm
PTH Bore Tolerance
±0.076mm
Non-PTH Bore Tolerance
±0.05mm
Hole deviation
±0.076mm
Counterbore
Yes
Quality Standard
IPC-A600F/MIL-STD-105D
Design file format
Gerber RS-274X, 274D, DXF, DWG for Eagle and AutoCAD
Product Details

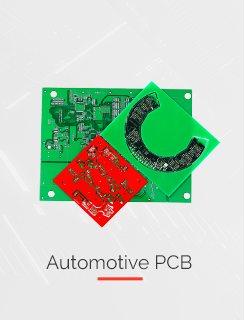

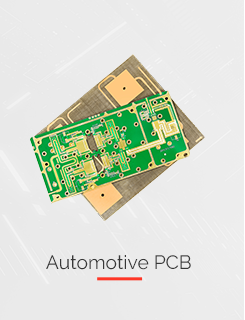

Popular products

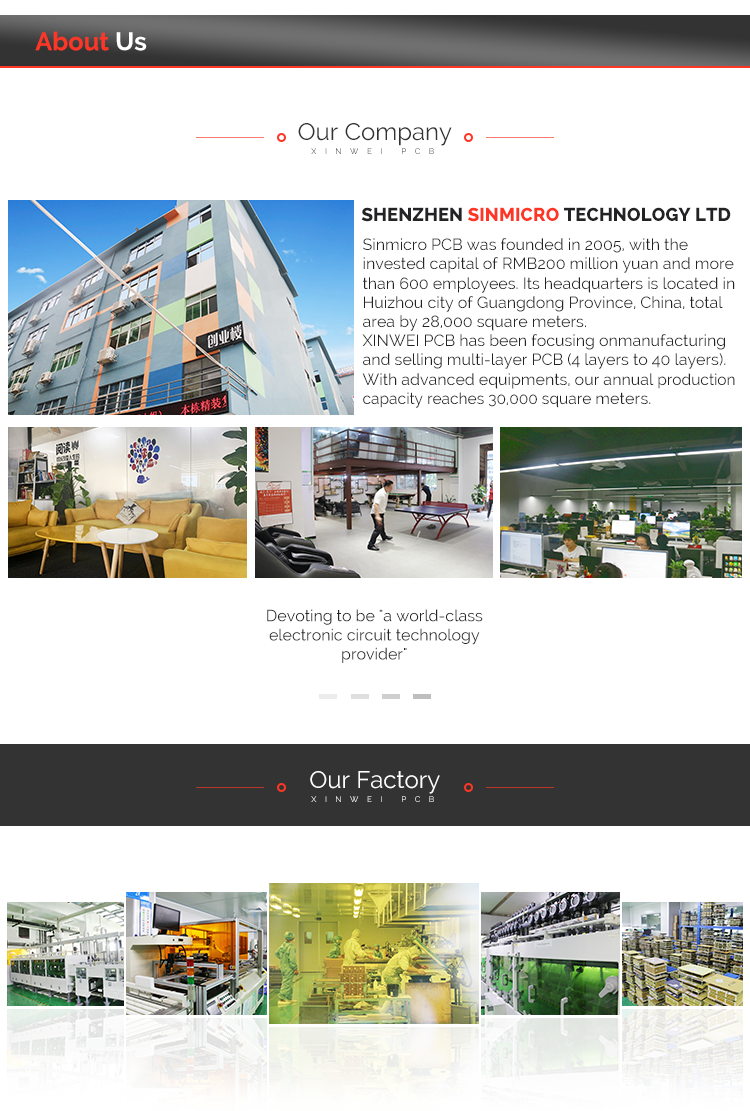

about us

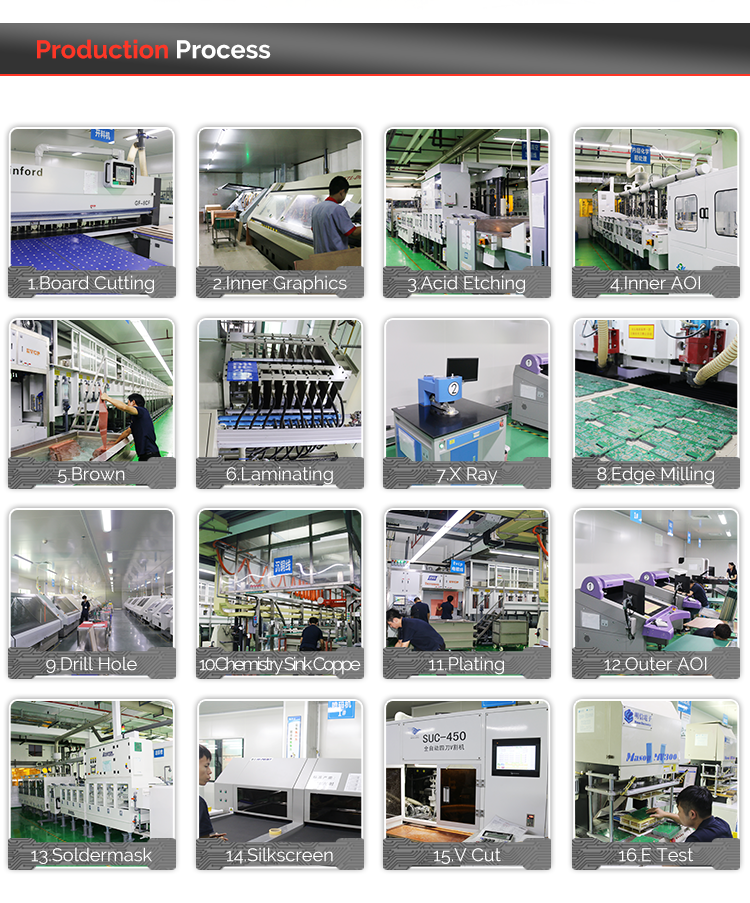

Production Process
our certificate
FAQ

1) What services can you provide?
We provide pcb redesign, document inspection, free samples and pcb manufacturing services.

2) When I send the design files to you, are they secure?
Your files are kept completely safe.

3) Do you have a minimum order quantity?
We accept orders as low as 1 piece (piece or panel).

4) Do you have the ability to manufacture high frequency materials? Rogers?
We can make these materials. Contact us for pricing before placing an order.

5) What file formats does PCB accept?
Gerber and CAM Auto CAD DXF, DWG formats.
