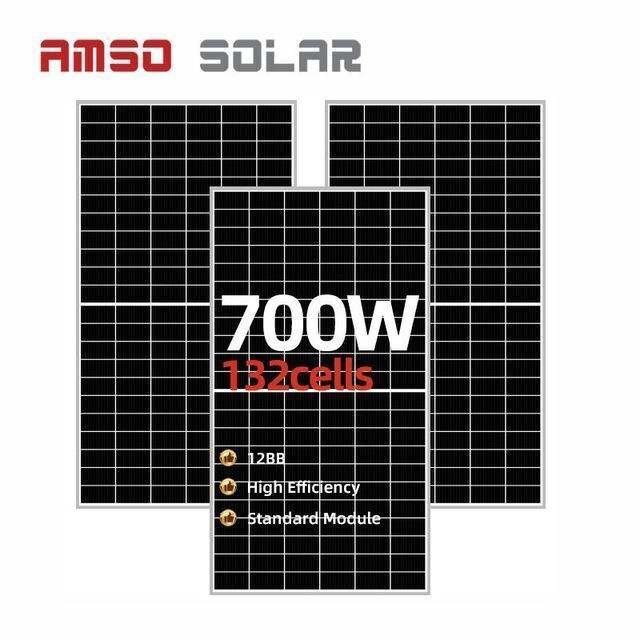

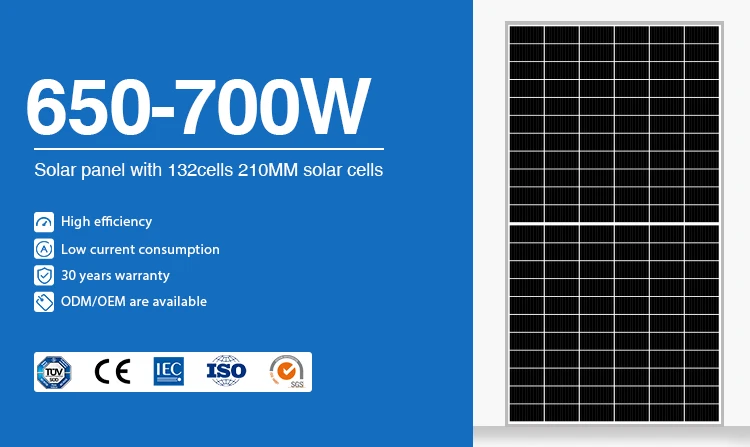

High quality 132 cell 210mm solar cell 650w 660w 670w 680w 690w 700w half cut cell solar panel for sale

  • $0.23 / 700 - 499999 pieces
    $0.19 / >=500000 pieces
  • 700 pieces
  • Amso Solar Technology Co., Ltd.
  • Jiangsu, China
  • Ms Kelly Shen
PRODUCT DETAIL

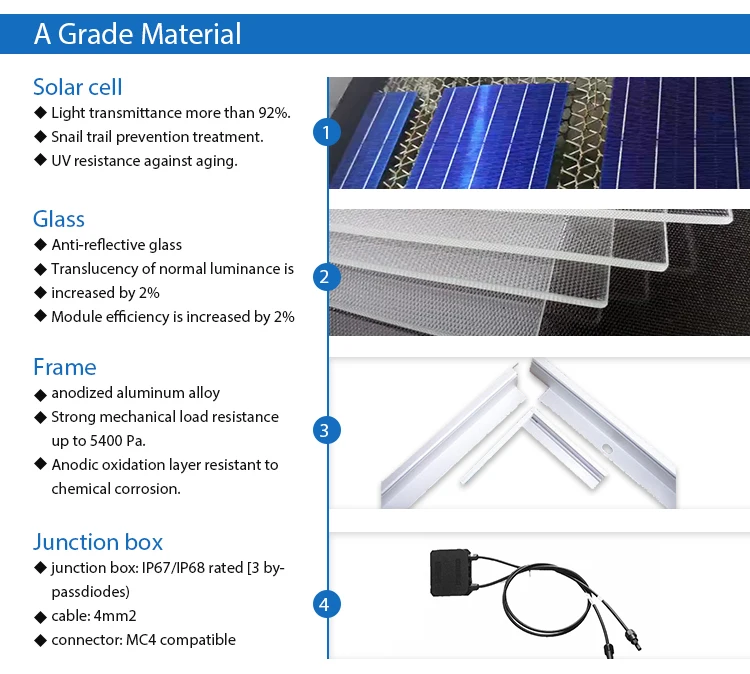

junction box:IP67 Rated Waterproof;Warranty:25 Years,25 years;
Port:shanghai;Panel Dimensions:2411*1303*40mm;
Max. Power:700watt;frame:Anodized Aluminium Alloy;
Brand Name:Amso solar;Model Number:AS700S9;

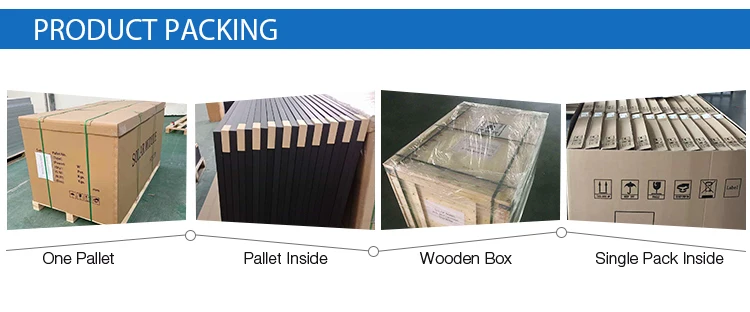

Packaging Detail:well packaged with carton, wood case, pallet or customization.;Type:Half Cell Solar Panel,PERC,Half Cell;
Place of Origin:Jiangsu, China;Keyword:132 cell solar panel;
Payment Terms:L/C,Western Union,T/T;Cell size:210mmx210mm;
Panel Efficiency:700w;weight:34.5kg;
Front Cover:3.2mm Tempered Glass;Keywords:mono solar panel;
Supply Ability:100000 Watts per Week;Package Preview:;
Certificate:CE, TUV, IEC, IOS;Connector:mc 4 Compatible Connector;

Model Type Power(W) Number of Cells Dimensions(MM) Weight(KG) Vmp(V) Imp(A) Voc(V) Isc(A)
AS650S9 650 132 2411*1303*40 34.5 37.9 17.15 45.5 18.32
AS660S9 660 132 2411*1303*40 34.5 38.0 17.37 45.6 18.32
AS670S9 670 132 2411*1303*40 34.5 38.1 17.59 45.7 18.33
AS680S9 680 132 2411*1303*40 34.5 38.2 17.80 45.8 18.56
AS690S9 690 132 2411*1303*40 34.5 38.3 18.02 45.9 18.79
AS700S9 700 132 2411*1303*40 34.5 38.4 18.23 46.0 19.02
Standard test conditions:measured values(atmosphiric mass AM.5,irradiance 1000W/m2,battery temperature 25℃)
Temperature rating
Rated battery operating temperature 45±2℃
Maximum power temperature coefficient -0.4%/℃
Open circuit voltage temperature coefficient -0.29%/℃
Short circuit current temperature coefficient -0.05%/℃
Limit parameter
Operating temperature -40-+85℃
Maximum system voltage 1000/1500VDC
Maximum fuse rated current 25A









Payment Term T/T EXW 30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F) 30% T/T in advance, paid the balance against copy of B/L
CIF
L/C   L/C amount above 50,000 usd, we can accept L/C at sight
West Union Amount lower than 5000usd
Delivery Time 7-10 working days after receiving payment (should be decided according to quantity)
