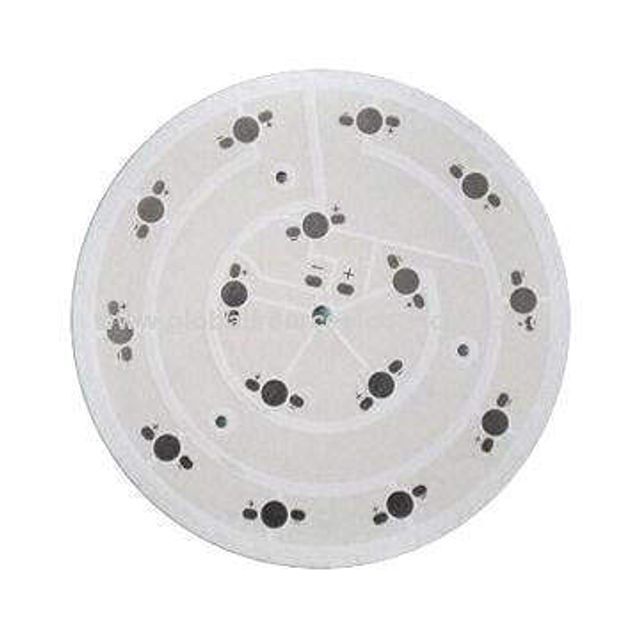

High quality Silk screen sintering process 1-2Layer gold-plated board thin film circuit copper coated ceramic substrate PCB
- $0.70 / 1 - 499 pieces
$0.65 / 500 - 4999 pieces
$0.55 / >=5000 pieces - 1 piece
- Dongguan Jianchuang Electronic Technology Co., Ltd.
- Guangdong, China
- Mr zhengxing he
PRODUCT DETAIL
Transport Package: | Plastic Vacuum Bag; | Surface Finishing: | ENIG/ENEPI/Immerison silver; |
Board Thickness: | 0.25-3mm; | Min. Line Spacing: | 50um/50um; |
Board Size: | Customized; | Certificate: | ISO9001/TS16949; |
Place of Origin: | Guangdong China; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,Paypal; |
production process: | Silk screen sintering process; | Solder mask color: | Red Yellow Blue Green White Black; |
Base Material: | Al2O3 (Alumina)/ALN; | Delivery: | By courier; |
Layer: | 1-2Layer; | Specification: | Customized; |
Resistance range: | Customized; | Min. Line Width: | 50um/50um; |
Port: | GUANGZHOU; | Condutor for Trace: | Copper; |
Model Number: | Thin film ceramic gold-plated circuit board; | Min. Hole Size: | 0.1MM; |
Brand Name: | ChipSimple; | Copper Thickness: | 5-500um; |
Supply Ability: | 10000 Piece/Pieces per Day; | Type: | ceramic pcb; |
Products Description
Product name: | Thin film circuit |
Model Number | Thin film ceramic gold-plated circuit board |
Brand Name | ChipSimple |
Base Material | Al2O3 (Alumina)/ALN |
Board Thickness | 0.25-3mm |
production process | Silk screen sintering process |
Layer | 1-2Layer |
Condutor for Trace | Copper |
Condutor Thikness | 5-500um |
Min. Hole Size | 0.1MM |
Min. Line Spacing | 50um/50um |
Resistance range | Customized |
Solder mask color | Red Yellow Blue Green White Black |
Surface Finishing | ENIG/ENEPI/Immerison silver |
Certificate | ISO9001/TS16949 |
key word | ceramic PCB |
Specification | Customized |
Transport Package: | Plastic Vacuum Bag |
Delivery: | By courier |
Place of Origin: | GuangDong, China |
Company Profile
Dongguan jianchuang Electronic Technology Co., Ltd
Chipsimple Electronic Tech. Technology Co., Ltd. is an innovative high-tech enterprise focusing on thick and thin-film circuit technology, integrating product research and development, manufacturing, and sales services.
As a well-known professional manufacturer of thick and thin film products in the industry, we have complete thick and thin film production and manufacturing lines: independent screen design and preparation center, automatic cleaning equipment, 100,000-level purification workshop, automatic screen printing machine, and drying Dry furnace, UV exposure machine, vacuum sputtering equipment, laser etching machine, developing etching machine, tunnel sintering furnace, laser trimming machine, scribing machine, reliability testing laboratory for thick film products, etc. The production capacity is more than 2 million pieces.
Since its establishment, the company has insisted on scientific and technological innovation as the first innovation. The company’s main products follow the ISO9000 quality management system policy. The products are widely used in communications, electronics, industrial control, automotive electronics, lighting, home appliances, medical care, environmental protection, precision equipment and other industries. Application scenarios.
■Company Vision
Always focus on customer concerns, provide more competitive products and services, and continue to create value for customers through sustainable operations.

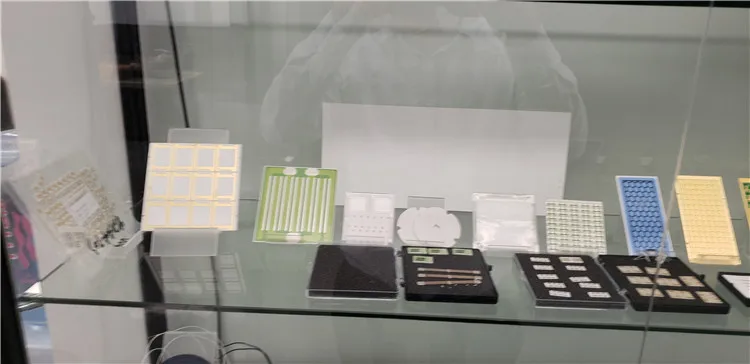

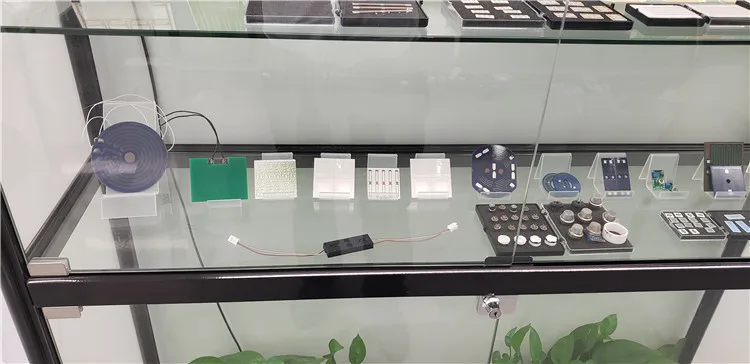

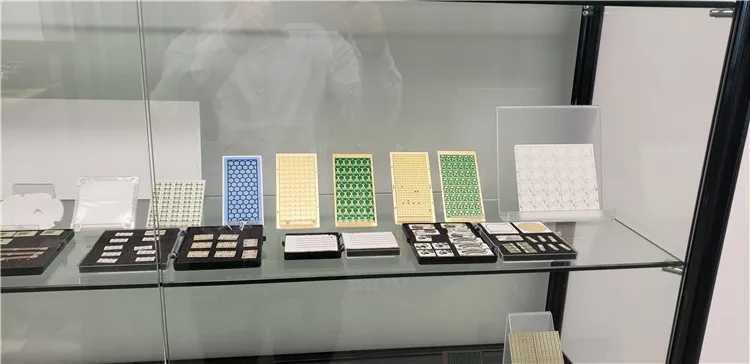

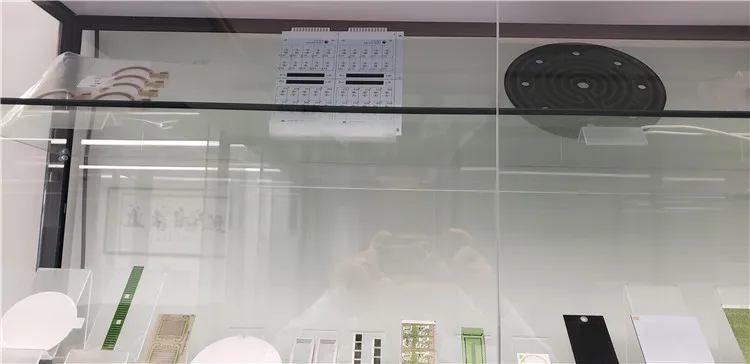

In Our Company

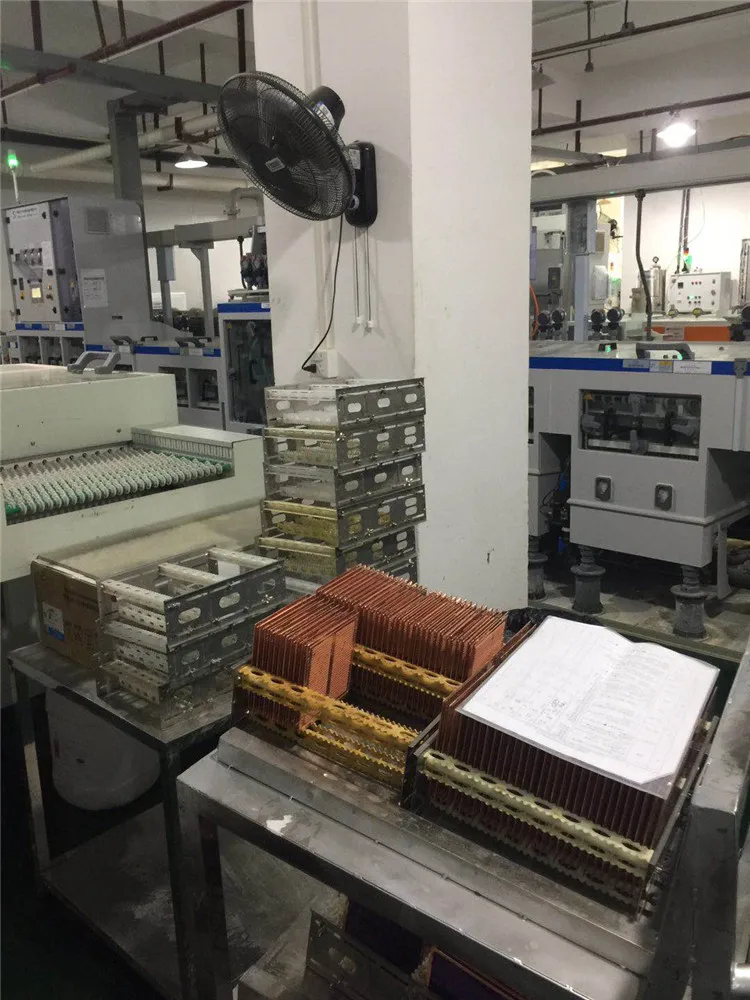

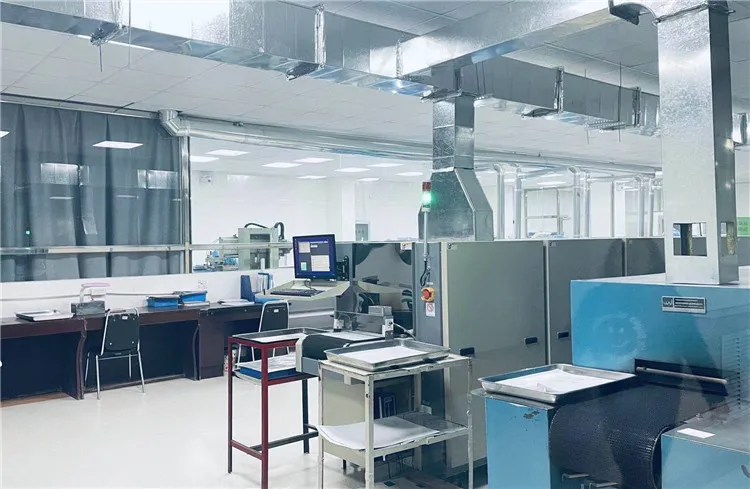

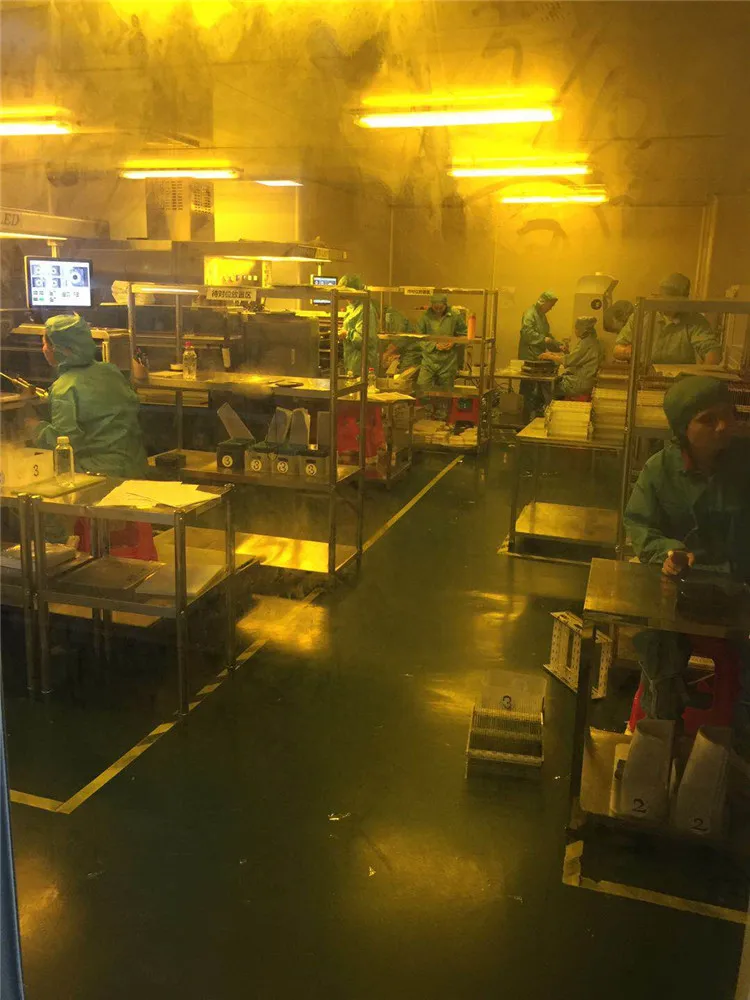

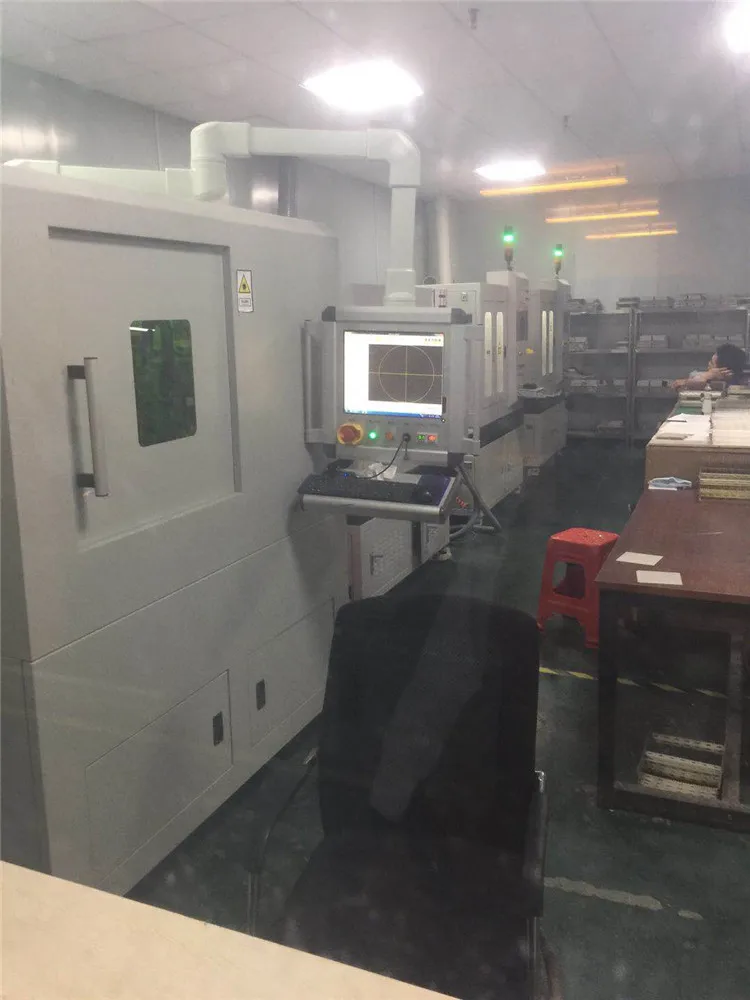

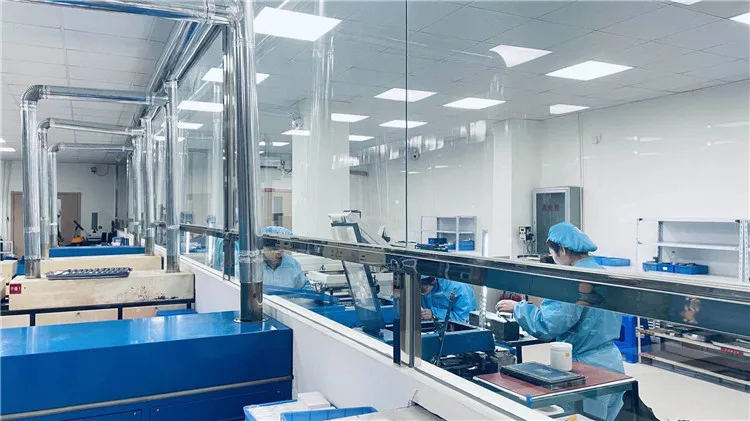

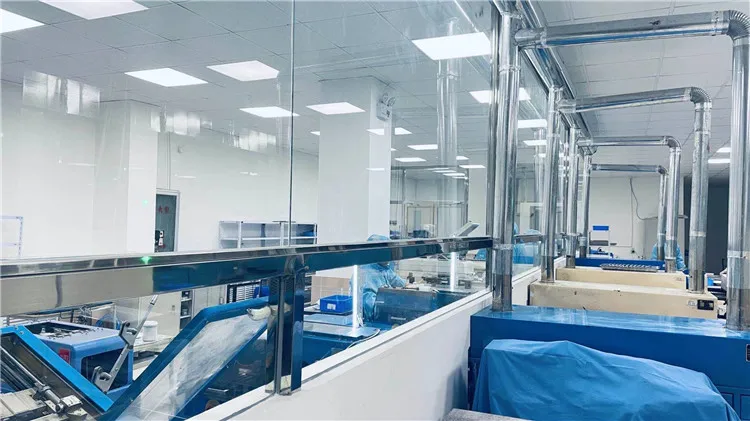

Thin Film production workshop

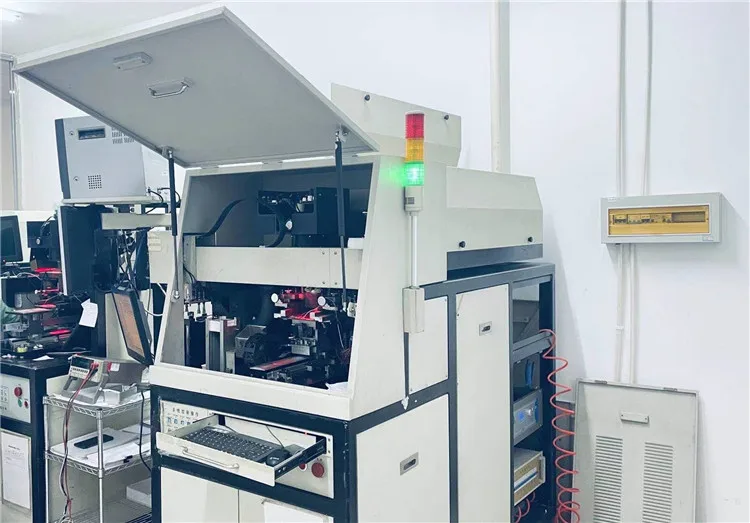

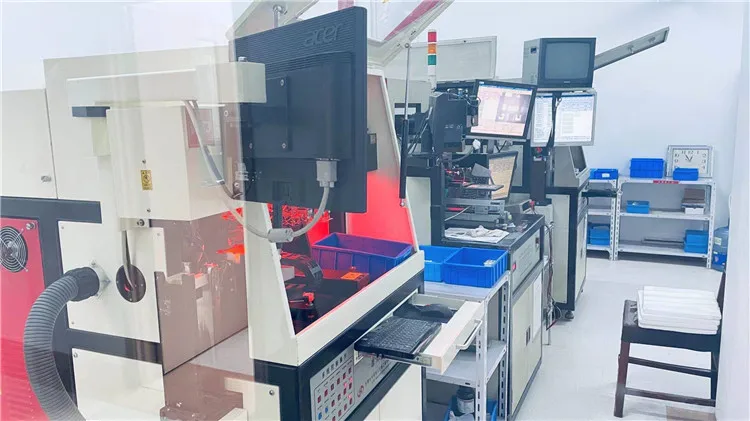

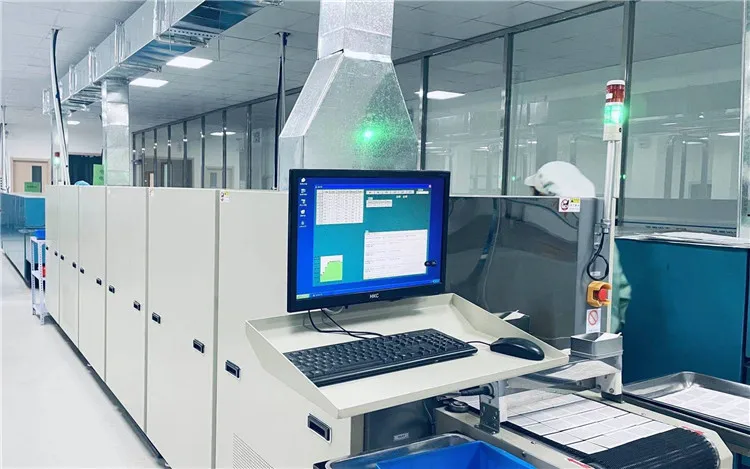

Thick film production workshop

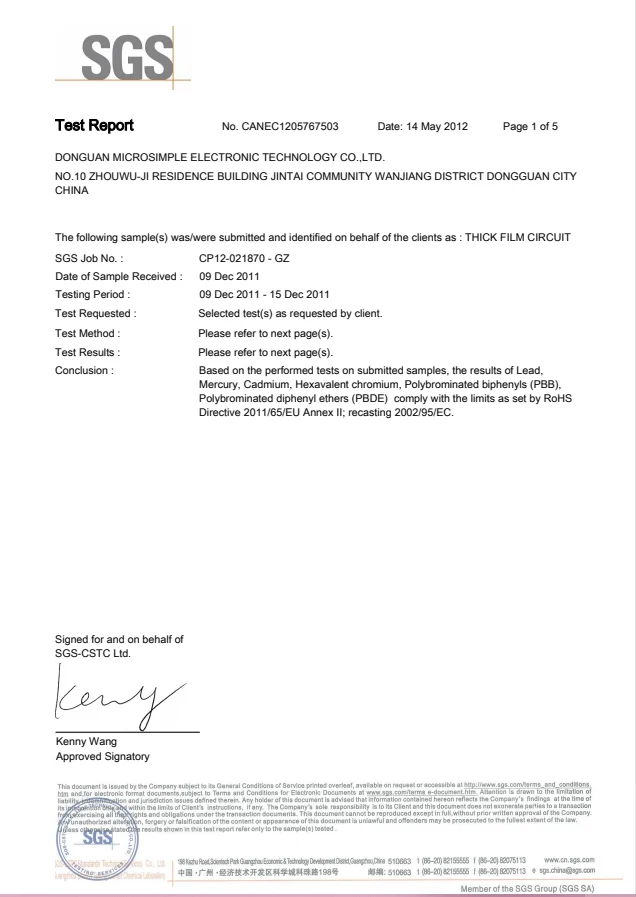

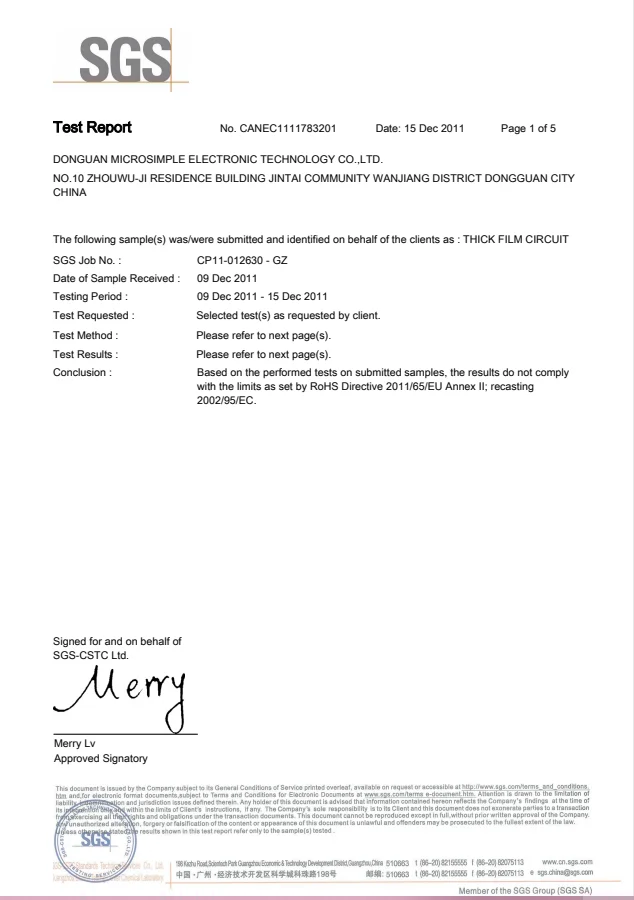

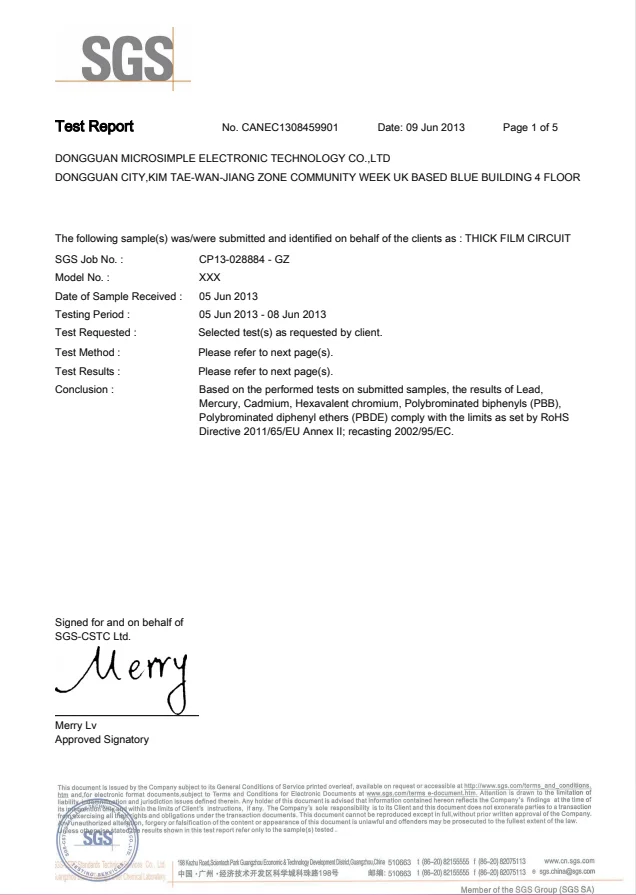

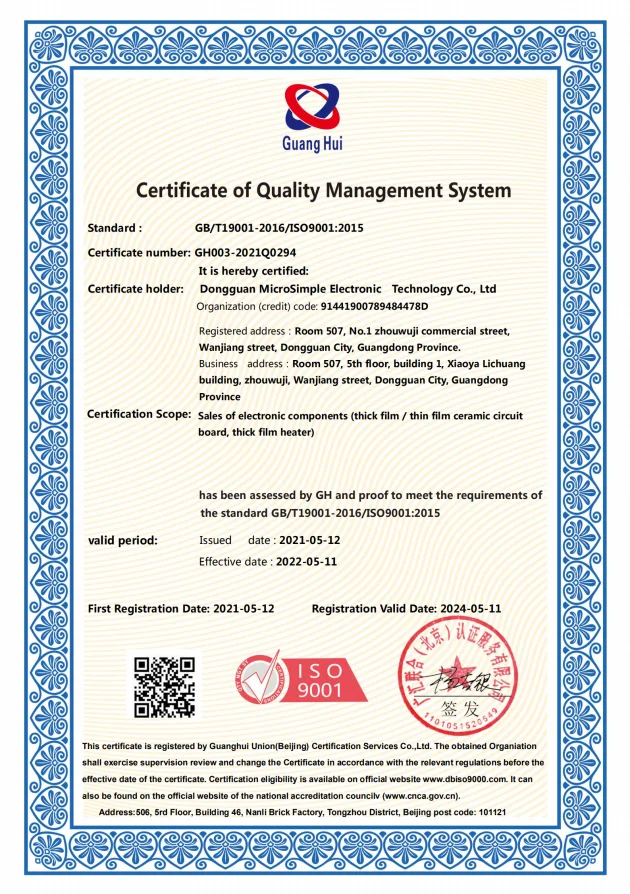

Certifications
Exhibition
FAQ
Q1: How can I get a quotation for Thick Film Circuit?
A: Please send your drawing or the details of your demand to us, then we will quote to you.
Q2: Are you trading company or manufacturer ?
A: We are professional manufacturer in China ,and have in this line for almost 20 years.
Q3: Would it be possible for us to visit your factory?
A: Sure, we welcome you at any time! Seeing is believing.
Q4: How about the delivery time?
A: If we have the same size in stock, we will send out in 3-5 days, if it is customized part, the production will need about 15-25days.
Q5: Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q6:What kind of PCB file format can you accept for production?
A:Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, GCCAM, ODB+(.TGZ)
Q7:No PCB file/Gbr file, only have the PCB sample,can you produce it for me?
A: Yes,we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.
Q8:Can I have a sample for testing?
A: Yes,wen can support sample.
