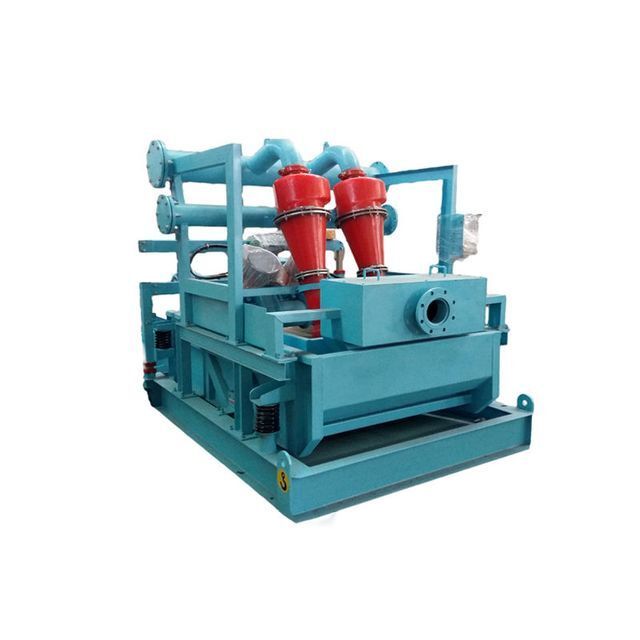

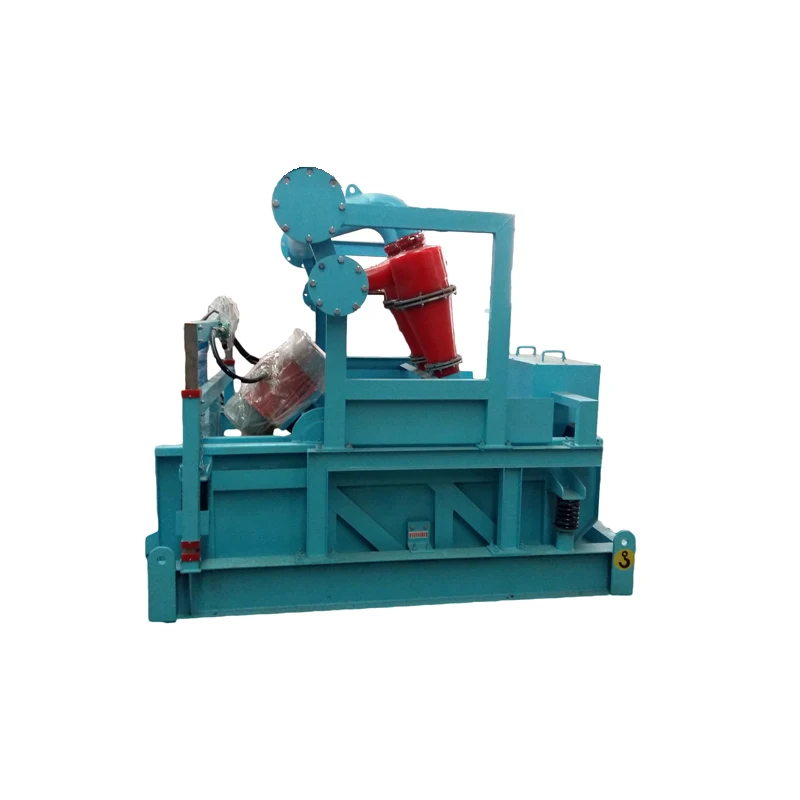

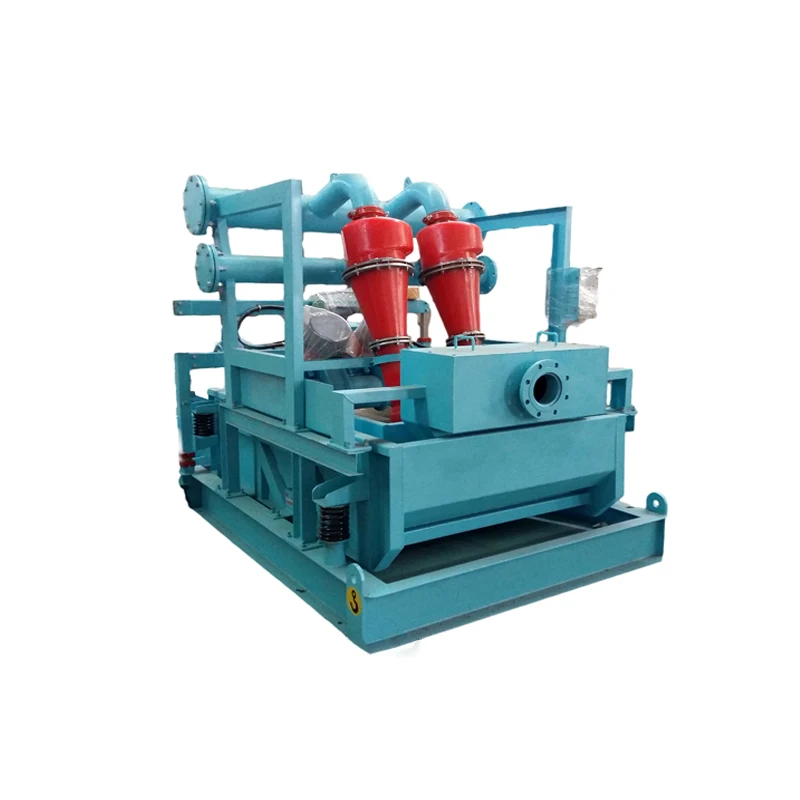

High quality desander for solid control system Hydrocyclone

PRODUCT DETAIL
Power:0.4kw/0.75kw;Material:Carbon steel / 304 stainless steel;
Dimension(L*W*H):1618*1000*1900mm;Application:Drilling mud;
Machinery Test Report:Provided;Payment Terms:T/T;
Model Number:CSQ200/CSQ250/CSQ300;Marketing Type:New Product 2020;
Supply Ability:30 Sets per Month;Brand Name:RuiLin;
Place of Origin:Hebei, China;After-sales Service Provided:Engineers available to service machinery overseas;
Voltage:220V/380V/415V/460V;Applicable Industries:Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Retail,Construction works ,Energy & Mining,Other,oil,drilling,mud;
After Warranty Service:Online support;Color:blue,green;
Packaging Detail:Frame Packaging or Customer Requirements;Condition:New;
Weight (KG):1650;LocalService Location:None;
Warranty:Unavailable;Video outgoing-inspection:Provided;
Warranty of core components:Not Available;Showroom Location:None;
OEM:Supported;Port:Tianjin;
Production Capacity:500 sets / month;Core Components:PLC;







Model

CSQ200

CSQ250

CSQ300

Treating capacity

≤120m³/h       ≤528GPM

≤180m³/h       ≤792GPM

≤240m³/h                 ≤1056GPM

Desander cones size

8"

10"

12"

Working pressure

0.20~0.40Mpa

Inlet diameter

125mm

150mm

150mm

wm Discharge diameter

150mm

200mm

200mm

Separation size

47-76μm

47-76μm

47-76μm

Bottom shaker screen

1.0*2(600x 1600mm)Optional

Dimension

1618x1000x1900mm

Weight

500kg

550kg

680kg
