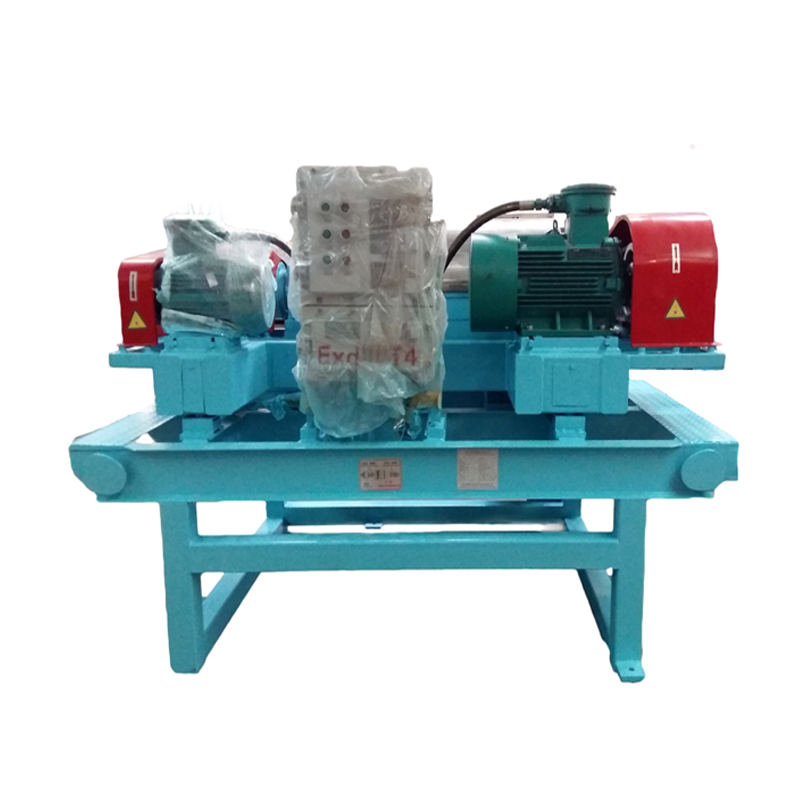

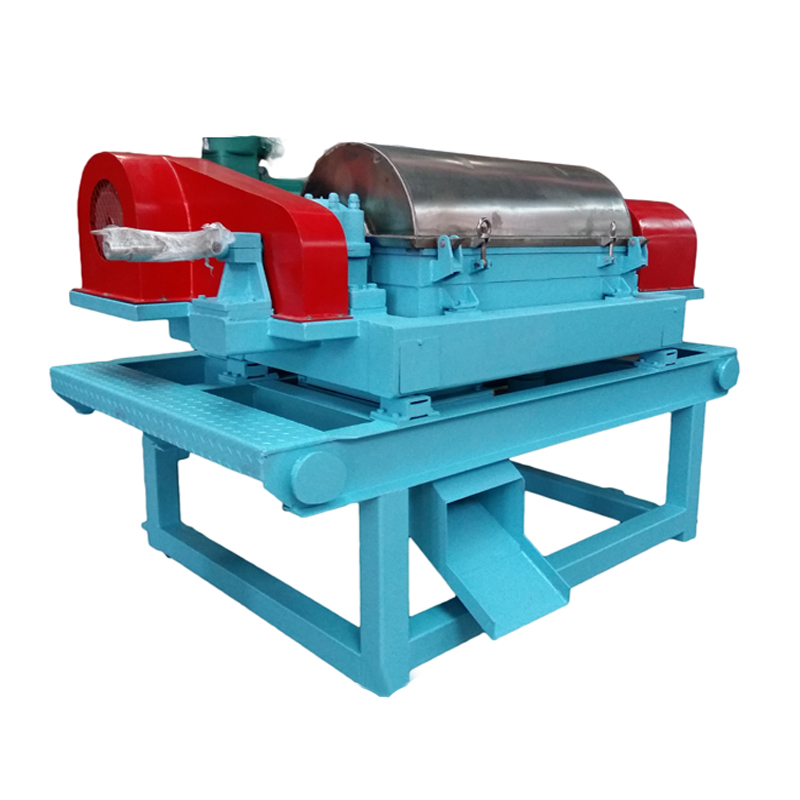

Decanter centrifuge for mud system

PRODUCT DETAIL
Video outgoing-inspection:Provided;Place of Origin:tangshanChina;
Size:2520*1445*870mm;Marketing Type:New Product 2021;
Applicable Industries:Manufacturing Plant,Retail,Energy & Mining,oil,drilling,mud;Warranty of core components:1 Year;
Payment Terms:T/T;Condition:New;
Showroom Location:None;After-sales Service Provided:Video technical support,Online support;
Model Number:LXJ450x1000N;Color:blue,green;
Material:Carbon steel / 304 stainless steel;Type:Oilfield Centrifuge;
Packaging Detail:Frame Packaging or Customer Requirements;Port:Tianjin;
Machinery Test Report:Provided;Keyword:Drilling fluid decanter centrifuge;
Supply Ability:50 Sets per Month;Local Service Location:None;
Core Components:Pump;Brand Name:RuiLin;
Warranty:1 Year;Country of origin:Hebei,China;

Model

LXJ450x1250N

LXJ450x1000N

GLXJ355x1250N

Bowl diameter

450mm

450mm

355mm

Bowl Speed

2800RPM

1800RPM

3200RPM

G-force

2200

810

2876/2932

Separation size

3-5μm

5~7μm

2~4μm

Main drive motor

37KW-2p                   50hp

30KW-4p                     40hp

37KW-2p                     50hp

Back drive motor

5.5 KW-4p                   7.5hp

7.5 KW-4p                    l0hp

11KW-2p                 7.5hp

Treating capacity

≤40m³/h                (176GPM)

≤50m³/h              (264GPM)

≤40m³/h            (176GPM)

Weight

2900kg

2780kg

2450kg

Dimension

2920x1500x1200mm

2520x1445x870mm

3100x1650x1670m
