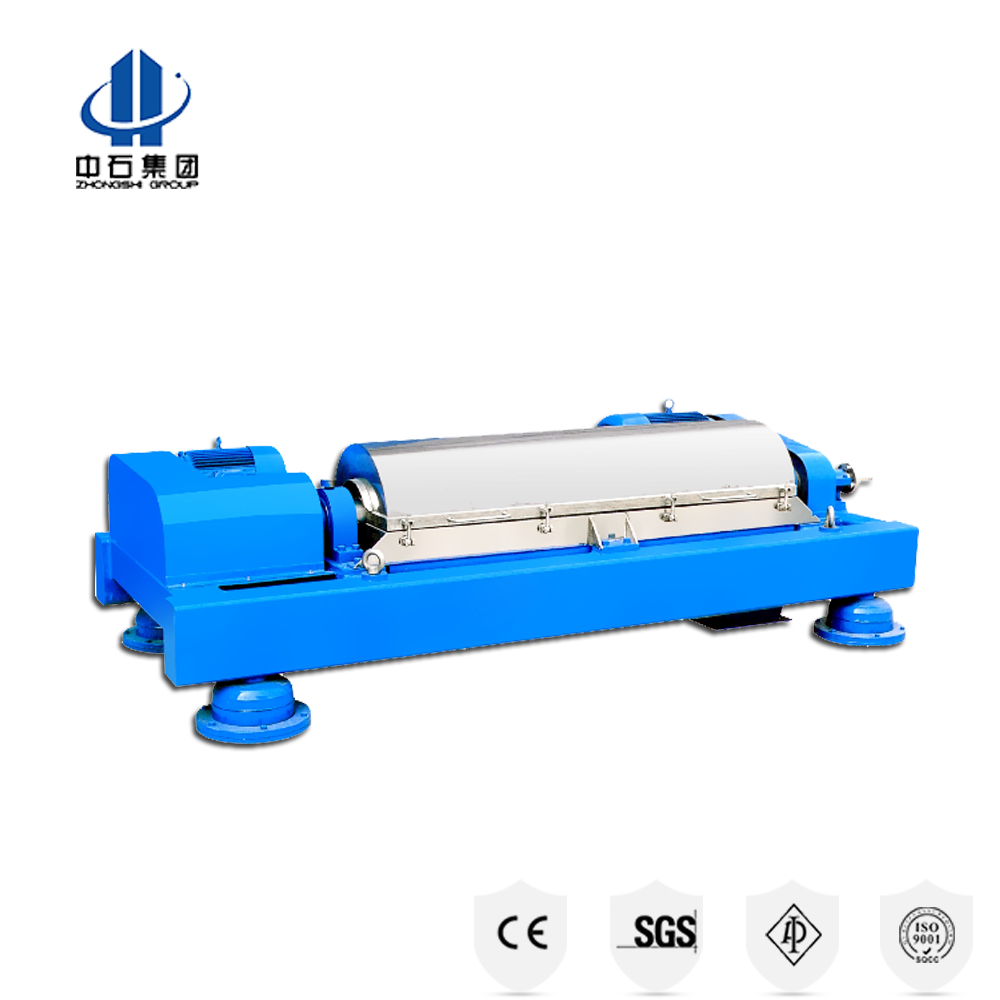

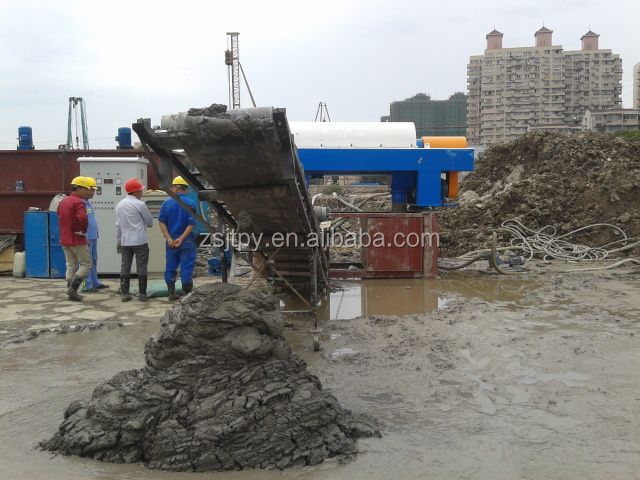

Good Price!!Large Capacity High speed 2 or 3 phase decanter centrifuge price for Mud water separation
- $25000.00 /piece
- 1 piece
- Puyang Zhongshi Group Co., Ltd.
- Henan, China
- Ms Betty w
PRODUCT DETAIL
| Marketing Type: | New Product 2020; | Model Number: | LW; |
| Voltage: | 110 - 415 V; | Supply Ability: | 1000 Acres per Month Decanter Centrifuge; |
| Warranty of core components: | 1 Year; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Construction works ,Energy & Mining; |
| Port: | Qingdao/Tianjin/Shanghai/Guangzhou port; | Warranty: | 1 Year; |
| Certification: | CE/ISO/API; | Name: | Decanter Centrifuge; |
| Showroom Location: | Pakistan,Russia; | After-sales Service Provided: | Free spare parts,Video technical support,Online support; |
| Power: | 7.5 - 132 Kw; | Machinery Test Report: | Provided; |
| Payment Terms: | L/C,T/T; | Place of Origin: | Henan, China; |
| Local Service Location: | Philippines,Pakistan,Russia,Thailand,Malaysia; | Weight: | 400 - 1300 Kg; |
| Core Components: | Pump,Bearing; | Packaging Detail: | Decanter Centrifuge standard export packing with waterproof plywood or iron box or customized as requested; |
| Video outgoing-inspection: | Provided; | Color: | customized; |
| Type: | Oilfield Centrifuge; | Size: | 1600*1100*850; |
| Package Preview: | ; | Condition: | New,New; |
Products Description

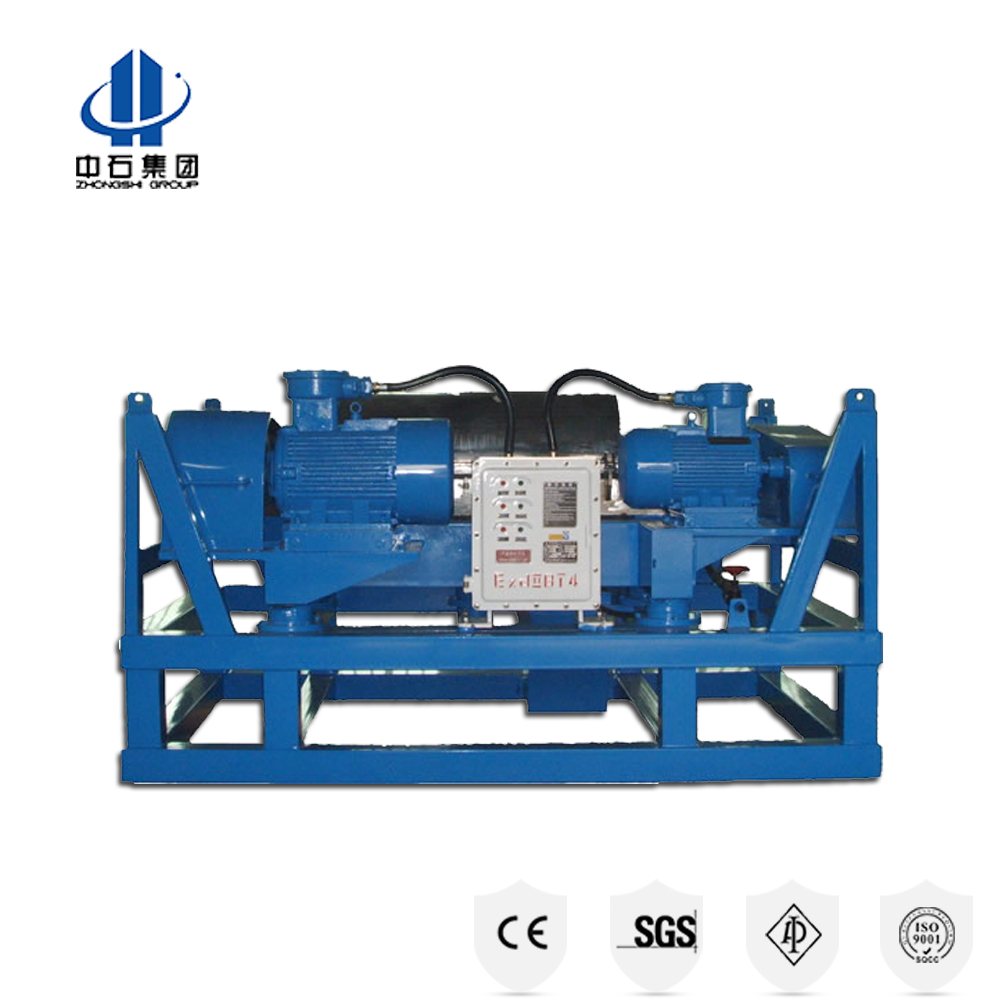

Decanter centrifuge|drilling mud decanter centrifuge|oilfield centrifuge - ZhongShi Solids Control
ZhongShi Decanter Centrifuge is designed for the drilling mud solids control and oilfield waste management.ZhongShi VFD drive decanter centrifuge with variable speed allows drilling contracor or mud service company to do the barite recovery, fine/ ultra fine solids paration,dewatering centrifuge.ZhongShi have the decanter centrifuge from 9 inch bowl to 22 inch bowl available for different applications.ZhongShi decanter centrifuge bowl length and diameter ration is over 3, this gives the best result for the drilling fluids cleaning
Product application
Centrifuge is the key equipment in treatment of harmful superfine solidoid in drilling liquid. It can separate and recycle the solidoid with the particle of bigger than 5µm and recover the density of drilling liquid so as to increase drilling speed. It is ideal drilling liquid purification equipment for drilling a deep well and a horizontal well. This equipment is mainly used to control density, viscosity of drilling liquid, minimize solidoid content in drilling liquid, clear away harmful solidoid and recover barite, and provide secondary recovery to swirler bottom in order to assure of excellent performance of drilling liquid and increase drilling speed.
Economic Configuration Decanter Centrifuge Features:
Patent Design with the highest configuration and best material for long and reliable service.

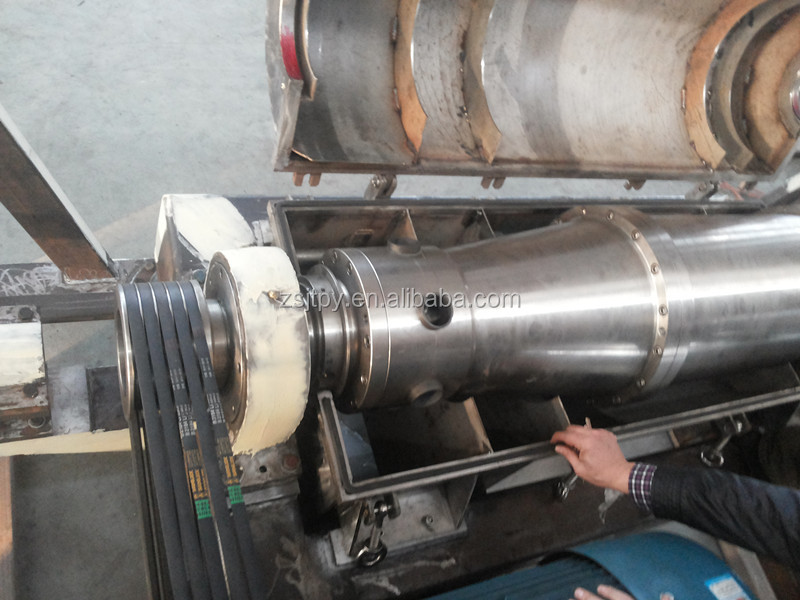

Bowl Cylindrical and Conical section made from Duplex Stainless Steel 2304 by centrifugal casting.
Other Parts of the bowl assembly material: stainless steel SS304.
Screw protection: Tungsten Carbide Tiles for longer life and easier replacement.
Screw flow distribution port and bowl solids discharge port protected by tungsten carbide alloy.
Easily adjustable liquid discharge weir height for flexible application.
Bowl assembly supported by tighten belt for protection of bearing in moving.
Pressurized EX Proof VFD control cabinet with PLC controlled.
Genuine SKF bearing for longer and reliable operation

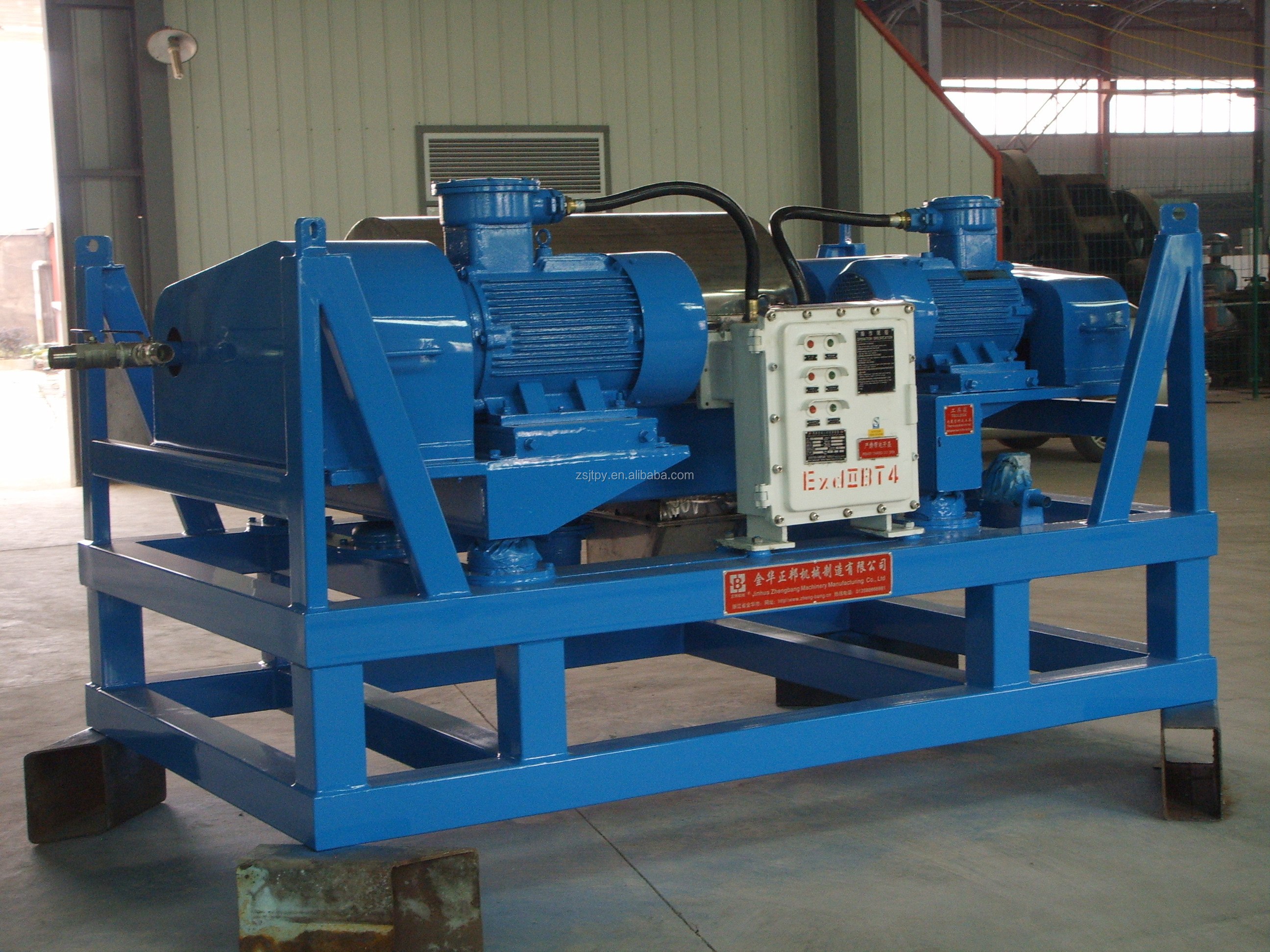

GLW450 Decanter Centrifuge (Barite Recovery)
GLW450 Decanter Centrifuge is the most competitive price centrifuge for barite recovery and high gravity solids separation up to 5microns. With it’s removable legs, the GLW450decanter centrifuge can be used on solids control mud tank or the telescopic skid.The bowl diameter of the GLW450 Decanter Centrifuge is around 18inch (450mm) with bowl length 43inch (1100mm),GLW450 Decanter Centrifuge is driven by a High Torch Sun-Wheel Gear Box with Single motor. This design is to get the right result for customer with lowest production cost. Normally the big size drilling rigs solids control system will install dual centrifuge system, one
GLW450 Middle Speed centrifuge( G force 815 @1800 rpm) for barite recovery or High gravity solids separation, one high speed
GLW355 (G force up to 2062 @3200RPM) centrifuge for low gravity fine solids separation. It is also an economic choice for
underground projects like no dig drilling.
GLW450 Middle Speed centrifuge( G force 815 @1800 rpm) for barite recovery or High gravity solids separation, one high speed
GLW355 (G force up to 2062 @3200RPM) centrifuge for low gravity fine solids separation. It is also an economic choice for
underground projects like no dig drilling.

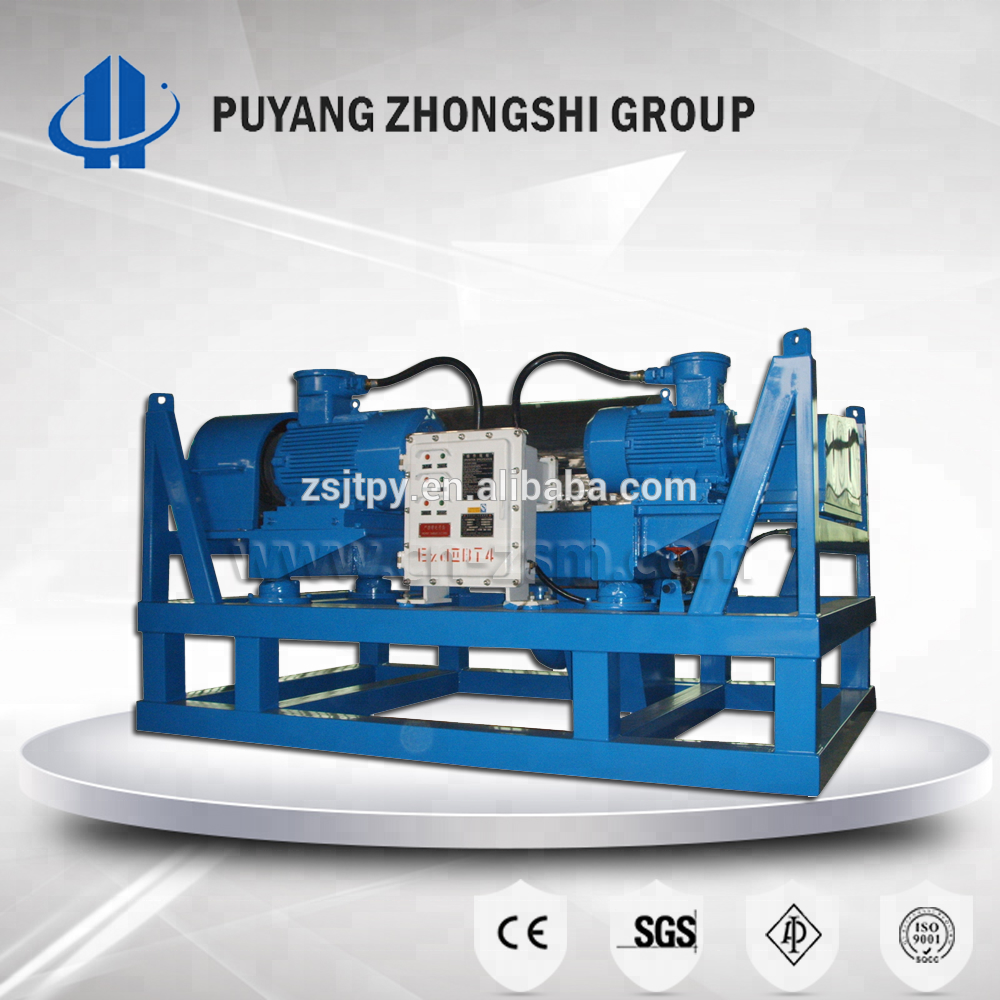

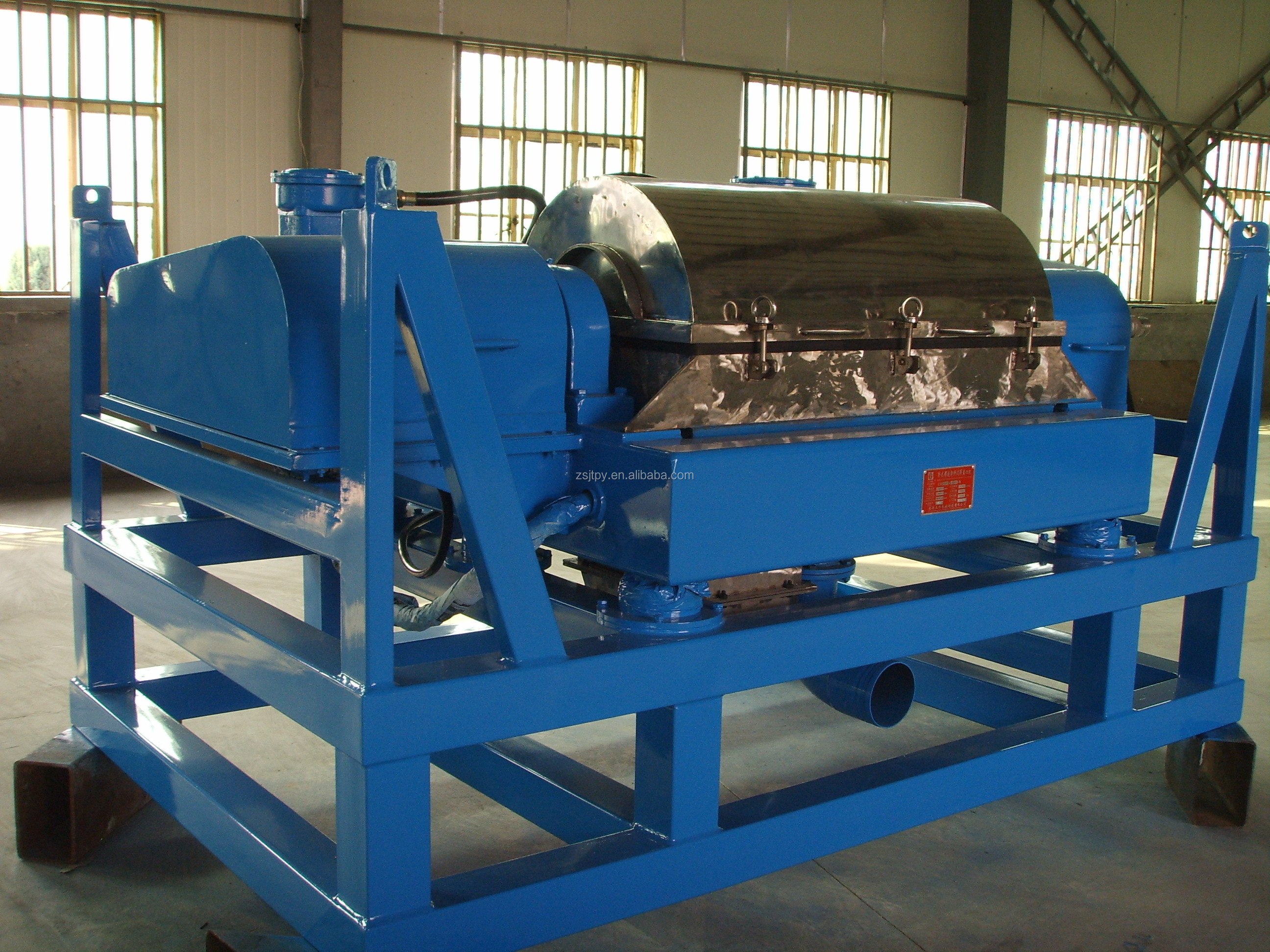

GLW355 Decanter Centrifuge (High Speed)
GLW355 Decanter Centrifuge is the most popular size centrifuge in the oil drilling industry. It can be used for fine/ultra fine solids separation, barite recovery and zero-discharge dewatering. With it’s removable legs, the GLW355 Decanter Centrifuge can be used on solids control mud tank or the telescopic skid for drilling waste management. The bowl diameter of the GLW355 Decanter Centrifuge is around 14inch (360mm) with bowl length 50inch (1270mm), 3.5 is good bowl length/diameter ration for oil drilling mud.GLW355 Decanter Centrifuge is driven by main motor and back derive motor with High Torch Sun-Wheel Gear Box, ZhongShi have the fixed speed available with different pulley for option to change the centrifuge speed, and VFD drive with PLC control available for your different applications.
Product Paramenters

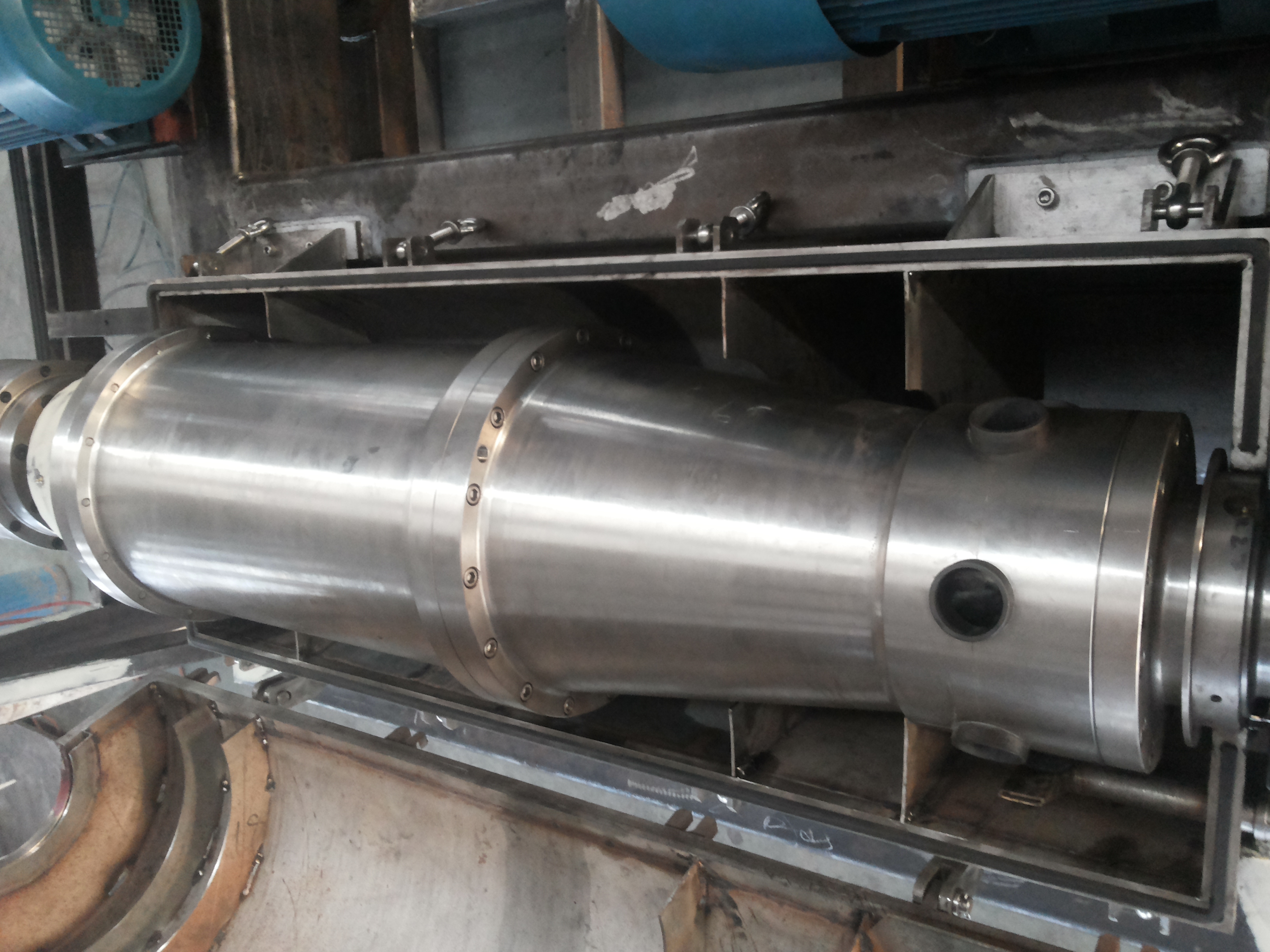

Details Images

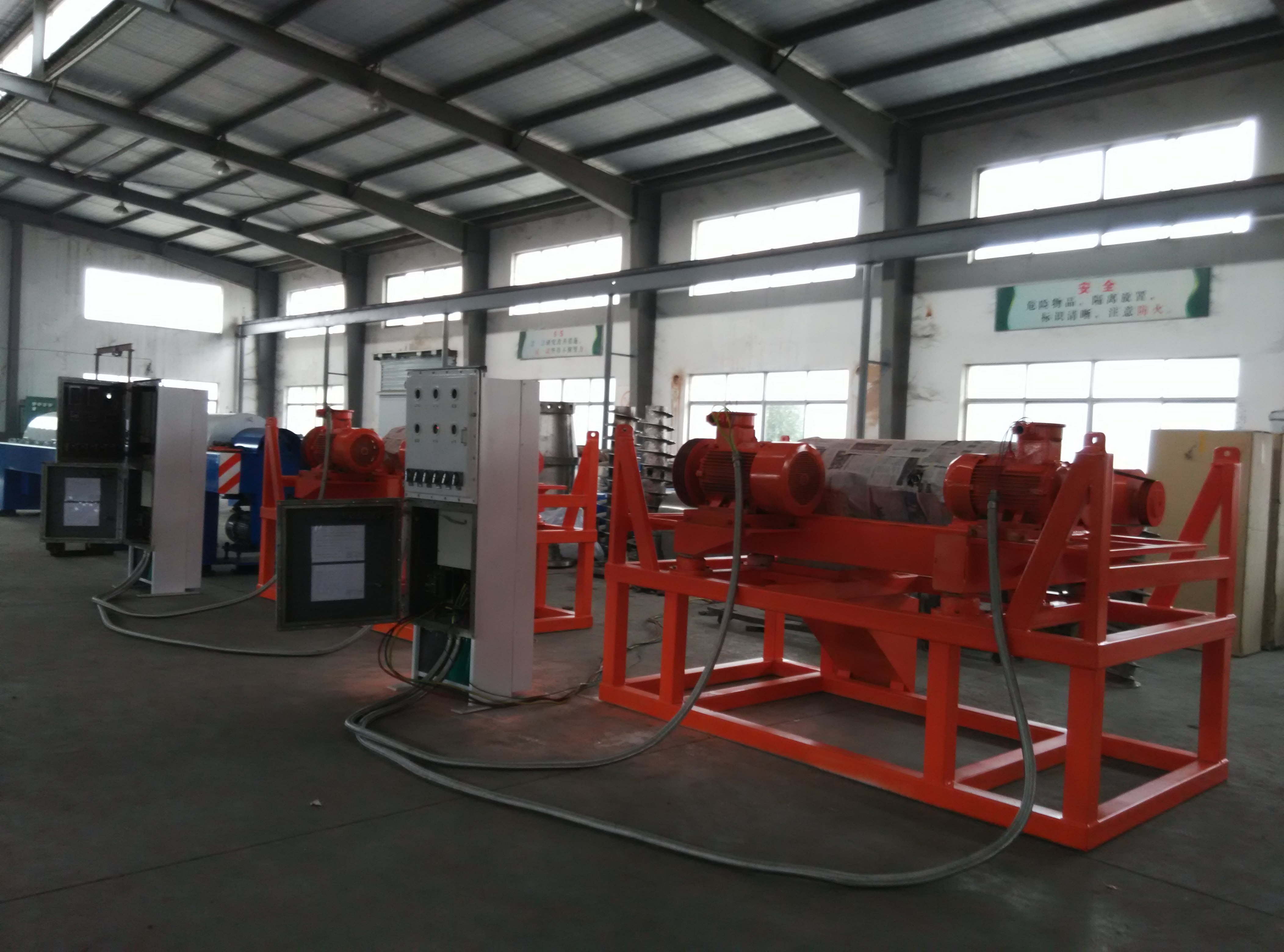

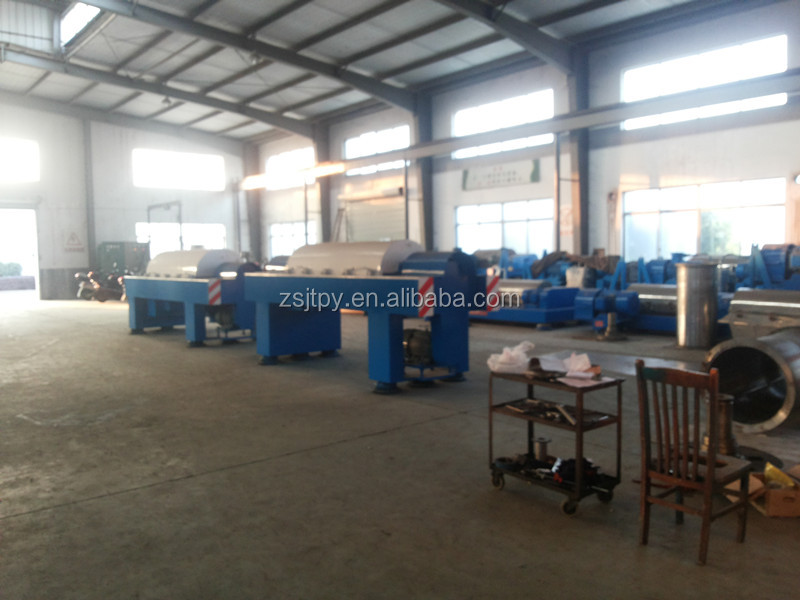

Factory Production

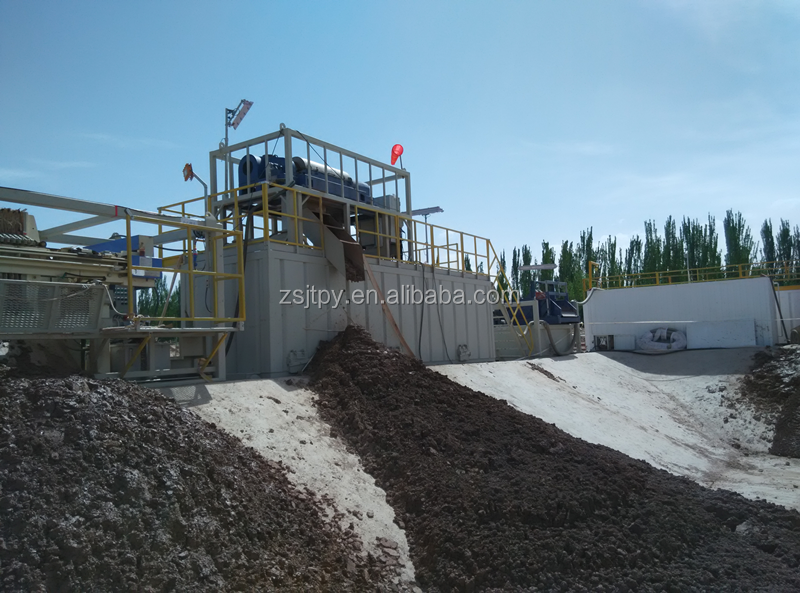

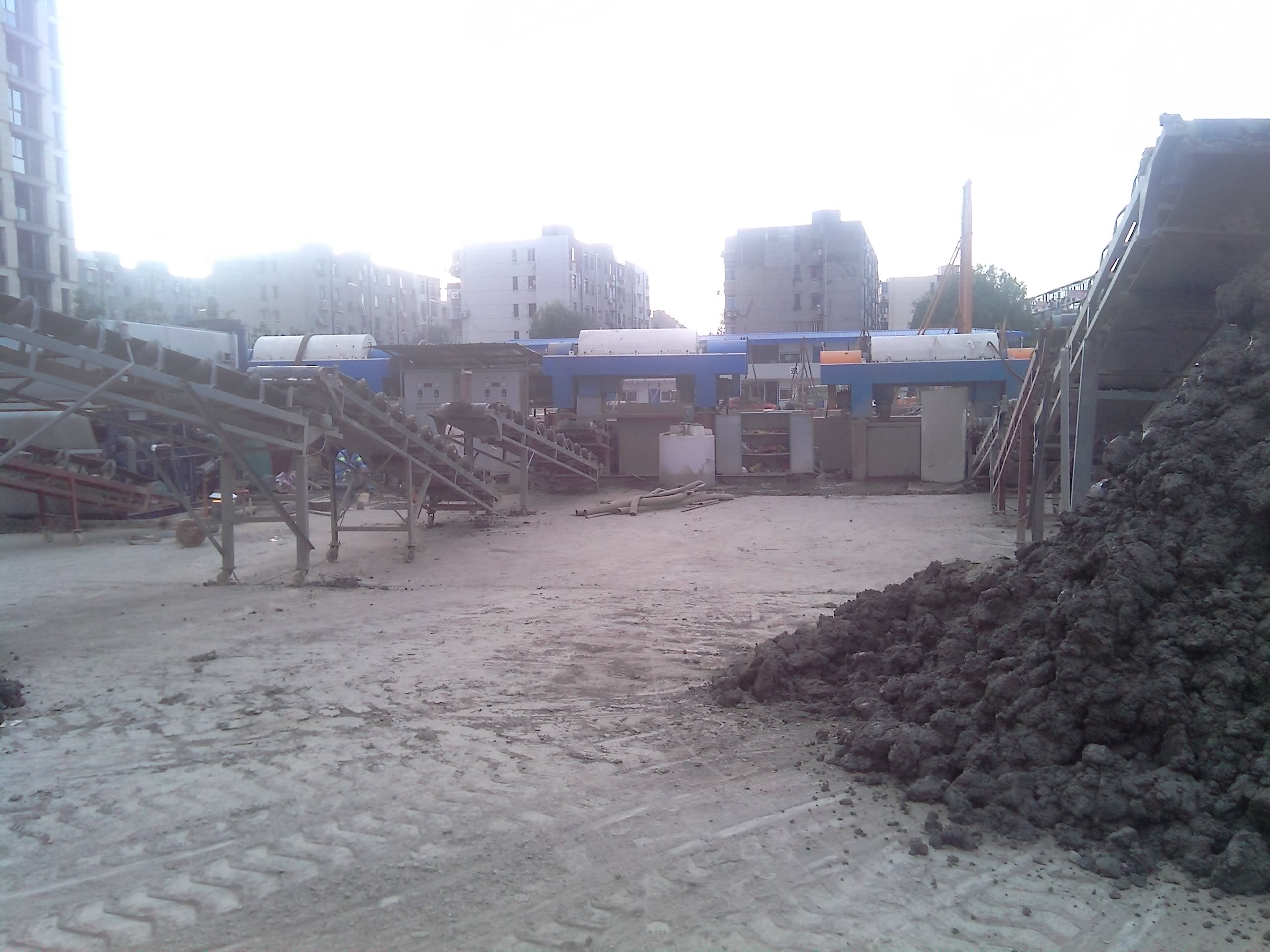

Customer Photos
Certifications

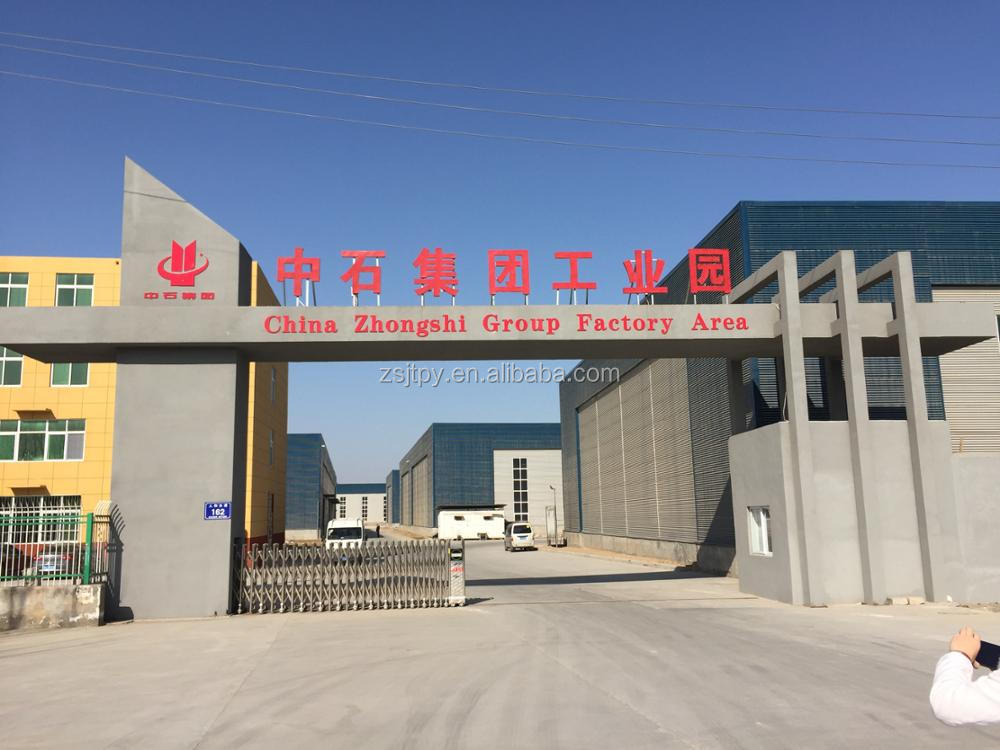

Company Profile
Puyang Zhongshi Group Co.,Ltd
Puyang Zhongshi Group Co.,Ltd. is a professional manufacturer of various oilfield equipment and cementing accessories since 1997,restructured enterprise of SINOPEC. We have the certificatesof API-5CT, API-10D, API-11E, API-6A, API-11AX, ISO9001:2008,ISO14001:2004 etc. and 15 of products have gained national patents .We are the first-class supplier of resources market of SINOPEC and CNPC. Domestic:our products are widely used in power plants,coal mines, cement factories, fertilizer plants, petroleum industry, machinery industry, steel mills and other industries.
Overseas:our main customers come from America,Russia,Vietnam,Middle East,Southeast Asia,Central Asia and Sudan,Yemen, Egypt etc.African countries
Overseas:our main customers come from America,Russia,Vietnam,Middle East,Southeast Asia,Central Asia and Sudan,Yemen, Egypt etc.African countries
