Gamboss Drilling Mud Used Continuous Work Solid Bowl Decanter Centrifuge for drilling rig

PRODUCT DETAIL
Certification:API;Model Number:LW450;
Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Energy & Mining;Driving Mode:Mechanical Pacing/VFD;
Max Capacity (m3/h):40;Product Name:Solid Bowl Decanter Centrifuge;
Condition:New;Marketing Type:New Product 2020;
Dimension (mm):2900*1820*1820;Package Preview:;
Differential Torque (n.m):3500;Single gross weight:51.000 KG;
Machinery Test Report:Provided;Warranty:1.5 years;
Single package size:29X27X28 cm;Type:Oilfield Centrifuge;
Warranty of core components:1.5 years;Showroom Location:None;
Packaging Detail:centrifuge is waterproof cover cloth packaging;Selling Units:Single item;
Back Motor Power (kw):11;Core Components:Gearbox,Pressure vessel,Pump,Gear,Bearing,Engine,Motor,PLC;
Drum Rate Speed rpm):2200;Main Motor (kw:37;
Video outgoing-inspection:Provided;Weight (kg):3300;
Place of Origin:Sichuan, China;Brand Name:GAMBOSS;

Gamboss Drilling Mud Used Continuous Work Solid Bowl Decanter Centrifuge

Company Infomation

GAMBOSS is a professional petroleum equipment company, has right of foreign trade(import and export), mainly engaged in drilling solid-control equipment production including sand pump series, WJQ serial shear pump, LW serial centrifuge, ZS/Z serial shale shaker, CS desander, CN desilter, QJ serial integrated cleaner, ZCQ vacuum deaerator, screen of shale shaker, mixing hopper, cyclone mixer, JB/W serial mud agitator, special screw conveyor and explosion-proof control box of various models etc.We have passed American Petroleum Institute (API), Norwegian DNV and American Bureau of Shipping (ABS) authoritative on-spot inspections.


GAMBOSS exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.

Product Description



Main Characteristics



The superiority of Decanting Centrifuge is embodied in the solids processing size. Decanter Centrifuge could remove the solid particles with size 2-7 microns using the principle of centrifugal action, it is an ideal choice for separating particles in drilling mud. Always there is a screw pump or submersible pump to feed the mud to Decanter Centrifuge. After the drilling fluids being fed into the centrifuge drum, under the function of centrifugal force, solid phase particles are pushed to the internal wall of the drum, then to the solid discharge export of the small end of the drum and excreted. While the fluids is excreted from the overflow hole of the large end. Such cycle is to achieve the purpose of continuous separation. High-speed decanting centrifuge are more effective for separation of fine solids.



Specification



Model

LW355*1250-N

LW450*1200D

LW450*1250BP-N

LW550*1100BP-N

Driving Mode



VFD

Mech fixed speed

VFD

VFD

Drum Size (mm)

355*1250

450*1200

450*1250

550*100

Drum Rate Speed (rpm)

0~3200

2200

0~2950

0~1800

Separation Point (um)

2~5

5~7

2~5

5~7

Max Capacity (m3/h)

40

40

60

60

Max G-Force

2100

1218

2189

996

Main Motor(kw)

30

37

45

45

Differential Torque (N.m)

3500

3500

3500

3500

Differential Speed Ratio

45:1

57:1

39:1

39:1

Major motor power (kw)

30

37

45

45

Auxiliary Motor Power (kw)

7.5

11

11

11

Matching Screw Pump (kw/hp)

7.5/11

7.5/11

15/20

15/20

Dimension (mm)

2900×1820×1820

2900×1820×1820

2900×1785×1835

2900×1850×1835

Weight (kg)

3100

3300

3100

3300

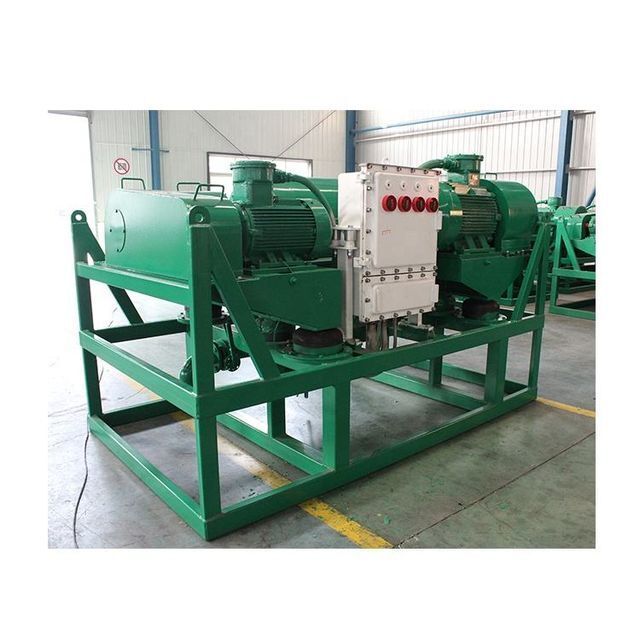

Product pictures





Buying Guides

What buyers need to do?



1.Please provide the original brand, model and drawing number of accessories of the equipment you are using. If you do not know the specific name of the accessories of the wellhead equipment or tools, you can provide the pictures as the supporting evidence, and we will transfer them to the technology department for verification.

2.We will reply within 1 hour after receiving your inquiry for wellhead equipment or tools accessories, and offer you in the next day.

3.Please provide office word format, Not JPG pictures. We need to translate them into
Chinese. If it is JPG format, the quotation time will be extend by 1-2 days. Try to provide
the original bidding document as a reference. If there is any doubt, we will mark it to
facilitate you to check the name and size of the real wellhead tools accessories.

4.If you need accurate weight and size, please indicate them in the mail together, and we will provide CIF price to facilitate your freight calculation.

5.For wellhead equipment accessories, we provide export fumigation free wood packaging, and the cylinder liner is frame packaging. If you need iron box packaging, please inform in advance.



About the seller: what should we do?

1.Before signing the contract, we have determined the product pictures. Once the customized products are confirm, they cannot be return.

2.Before prepaying 70% of the final payment, we provide the pictures of the official goods. Please check carefully, compare the physical objects and parameters repeatedly, or send them to the end user for confirmation, to avoid wrong delivery. If the wellhead tools or parts are not inspected, wrong delivery of bop parts, and reissue, we need to place another new order. Wellhead equipment parts are conventional products, please give us the parts number, if u book rubber, we can provide the drawings for verification. After the review and confirmation, we will Seal case to Shanghai port.

3.A large number of spare parts of all drilling wellhead equipment and drilling wellhead tools are in stock, with a stock of 200 million yuan. All of them are supplied by CNPC (China national Petro Company) products in the stock. When the world orders, they can be send out the next day to support Alibaba online direct orders.

4.The warranty period of rubber parts is one year. Please open the box for use as soon as possible within one year. Other iron accessories can be stored for 2-3 years, but we suggest you use them as soon as possible. The warranty period is one year.

5.If wellhead equipment parts are misbelieved or missed due to our company's reasons, our company will provide free replenishment or replacement, please feel free to purchase.
Check if there is an agent in your location. If there is, we will let our agent contact you to facilitate your after-sales service.



Our Services



1.We can reply within 3 hours after receiving the inquiry.

2.We give 24 hours online, skype: tiger-rig, urgent WeChat: +8618081980882

3. We have professional translators (Russian, Spanish, Arabic, English, etc.)

4. We will complete the quotation within one to two weeks.

5. The product warranty period is one year.

6. We will provide a competitive price according to different bidding requirements.



What you need to do?

1. Provide the original bidding documents for our review and translation (preferably in Excel or word format, the documents in picture format may affect the processing speed)

2. Provide company information including name, address and website for our review.

3. Our industry tends to pay by T / T, and L / C and D/P, T/T is considered first.

4. Please let us know the bid closing time so that we can be well prepared

5. Leave the contact information of communication software such as WeChat, WhatsApp.

FAQ

1.Are you plant or trade company?

We are plant, our address is: No.726, xingcheng road, Xindu Town, Sichuan Province, China,610500.



2.How can I get the quotation?

Please send your machine old brand, model, specification (such as power, rope size), nameplate photo to us, if u have tender document, ples also send to us, usually, we need to work on it for 1-2 days.



3. What are the brands can your machine interchanged with?

Our tiger rig hoisting equipment can be interchanged with American and made in china brand. and so on. If your part number is different, we need to compare the photo or install size.



4.What is our delivery time?

Some of shale shaker, drilling fluid centrifuge, mud cleaner, sand pump, mud agitator is in stock supply, delivery time is 1 days after you make online payment in Alibaba. Book solid control machine delivery time is :7-35 days.



5.what about your work process?

We can confirm the manual and specification first, and then sign sales contract sign the drawing, once confirm the drawing, the before delivery, we will take photo for you to confirm the goods are new and shipping station, before machine leave factory, ples pay remain payment, then we truck machine to shanghai.



6.Once the products have the quality problem how to deal with?

We give 24 hours online service, please call +8618081980882 , if there is agent or branch, please also ask the help from our branch, such as in Russia, America, Dubai, and the manager will come to your site, if technical problem we will give 12 hours online answer from 8:30-12:00, 14:00-18:00.



7. Can I be your tiger agent in our country?

Answer: We are developing agents all over the world; you can sign agency agreement with us.



8. What is the warranty time of your products?

 The warranty time is 12 months from the date of the commissioning. After the warranty, any questions and needs, please contact us.
