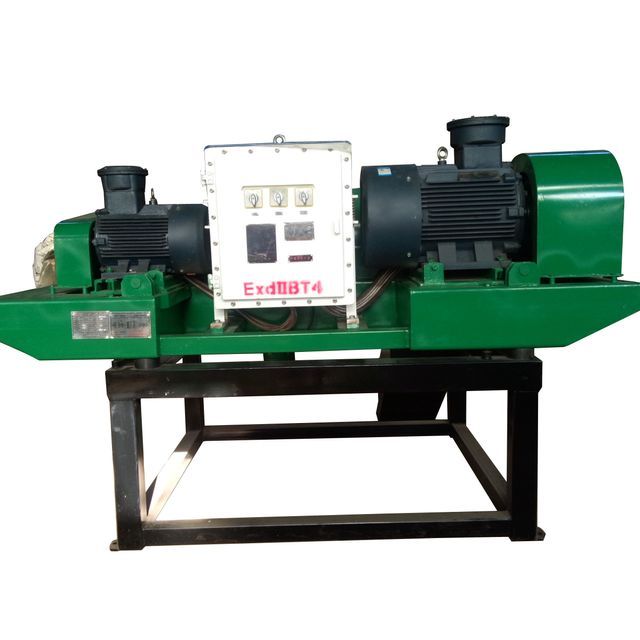

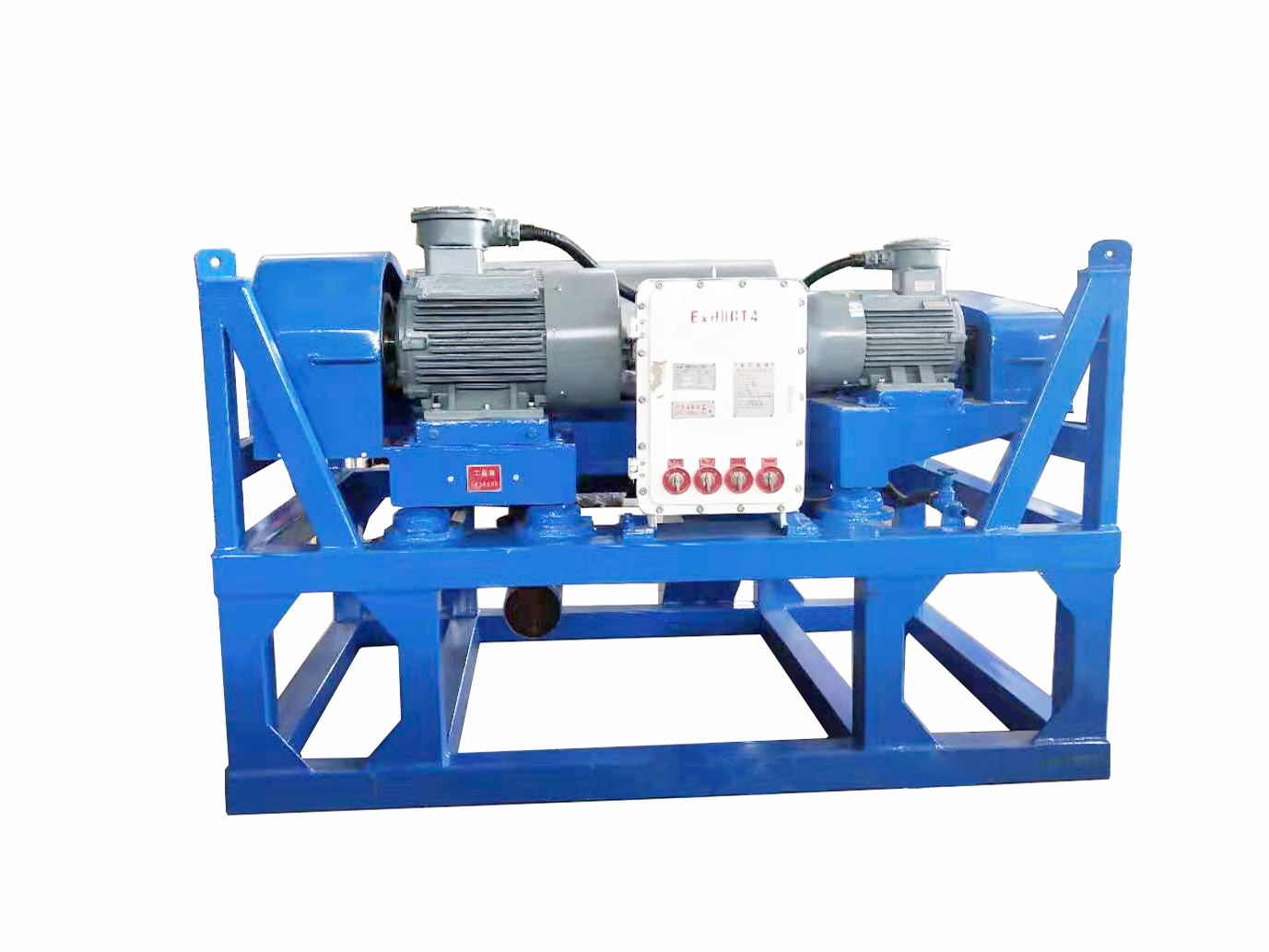

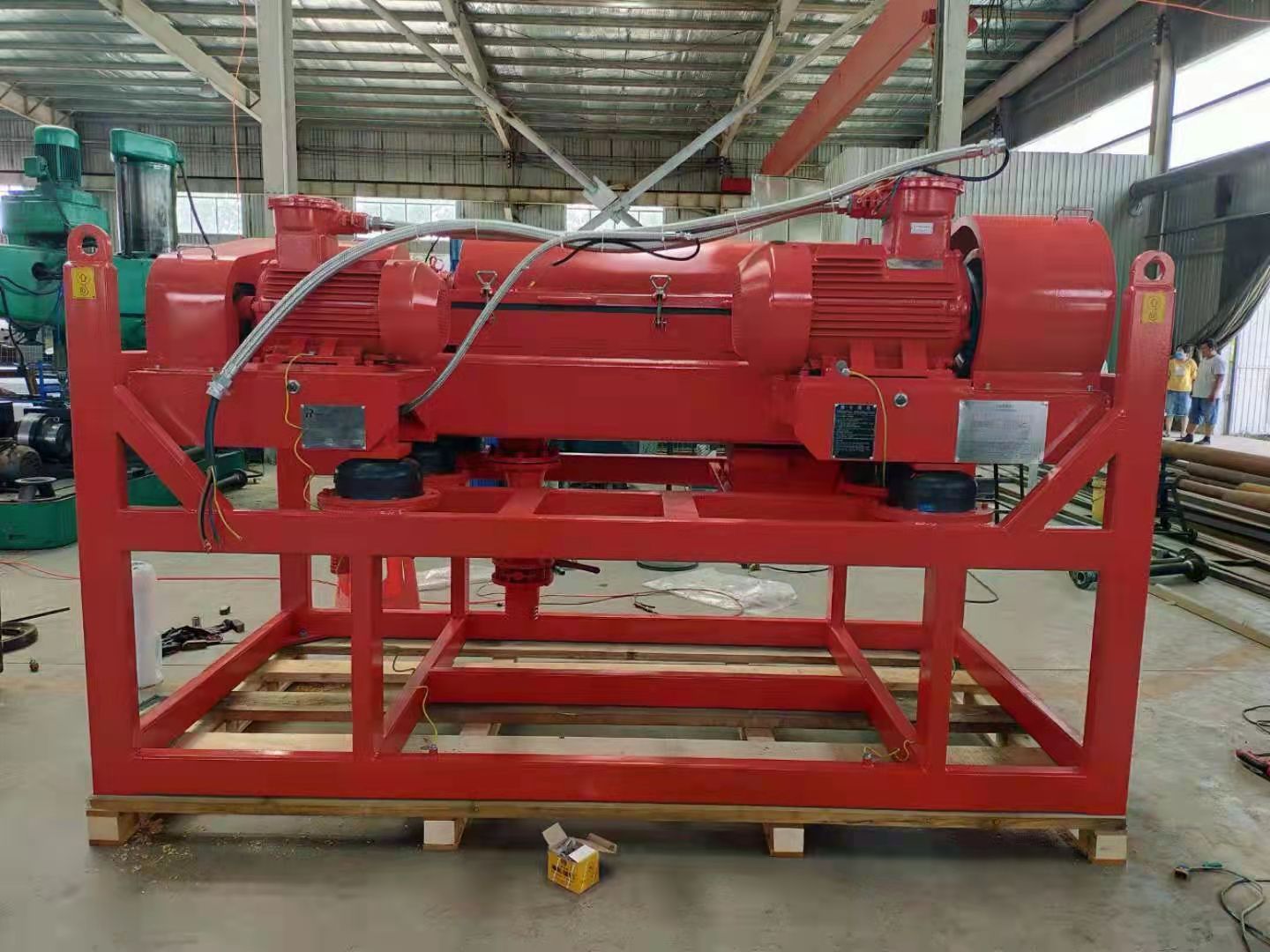

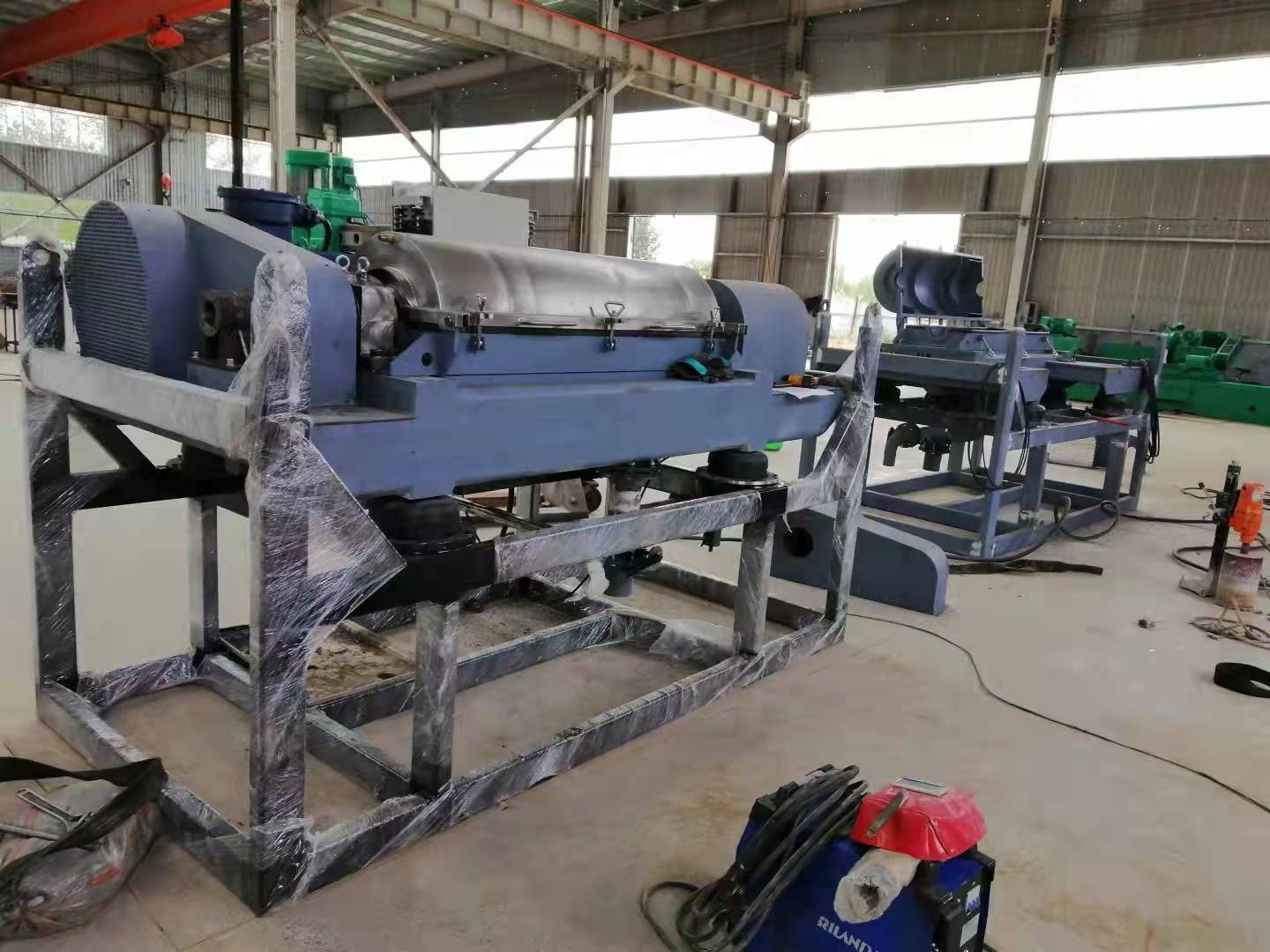

Drilling fluid solid control system industrial centrifuge 37KW decanter centrifuge
- $27550.00 / 1 - 2 sets
$27300.00 / 3 - 4 sets
$27000.00 / >=5 sets - 1 set
- Xi'an HL Petroleum Equipment Co., Ltd.
- Shaanxi, China
- Ms Cici Xiong
PRODUCT DETAIL
| Bowl Length: | 1000 mm | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Origin: | Shaanxi, China | Health status: | new |
| Core components: | Main motor, auxiliary motor, single screw feed pump, vertical/horizontal sand pump | aspect: | 2660*1670*176mm |
| Bowl diameter: | 500mm | Maximum Bowl Speed: | 2500 rpm |
| Showroom location: | not any | Warranty: | 1 year |
| Model: | LW500 | main motor power: | 37 kW |
| Marketing Type: | New products in 2023 | Auxiliary motor power: | 7.5 kW |
| product name: | centrifuge | brand: | oil company |
| Supply capacity: | Annual output of 10000 sets | Separation factor: | ≤1817 |
| Mechanical test report: | if | Video outbound inspection: | if |
| model: | LW500 | type: | Oilfield centrifuge |
| Core component warranty: | 1 year | Applicable industries: | Energy and Mining |
| port: | Tianjin | maximum. capacity: | 50 cubic meters / hour |

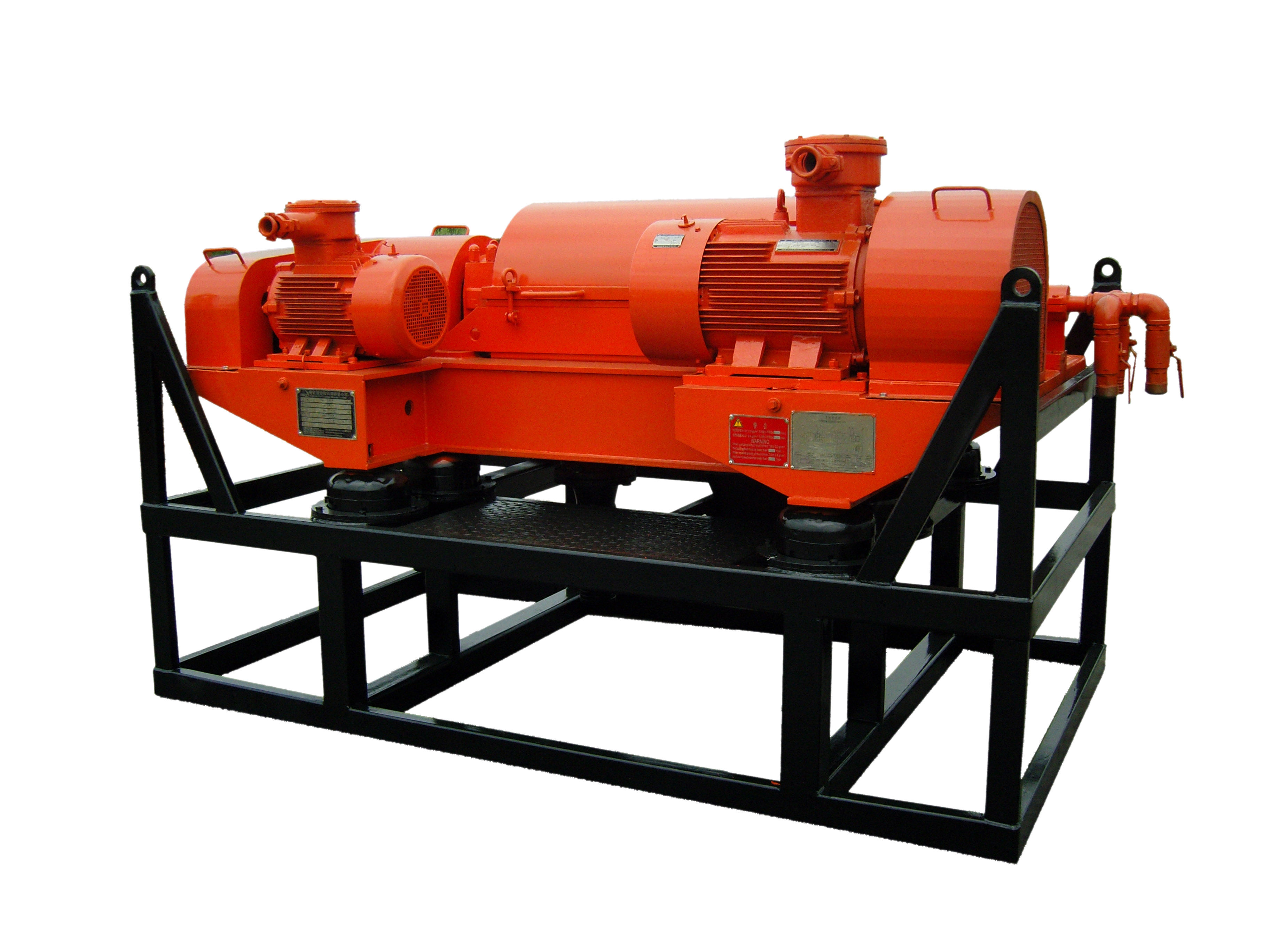

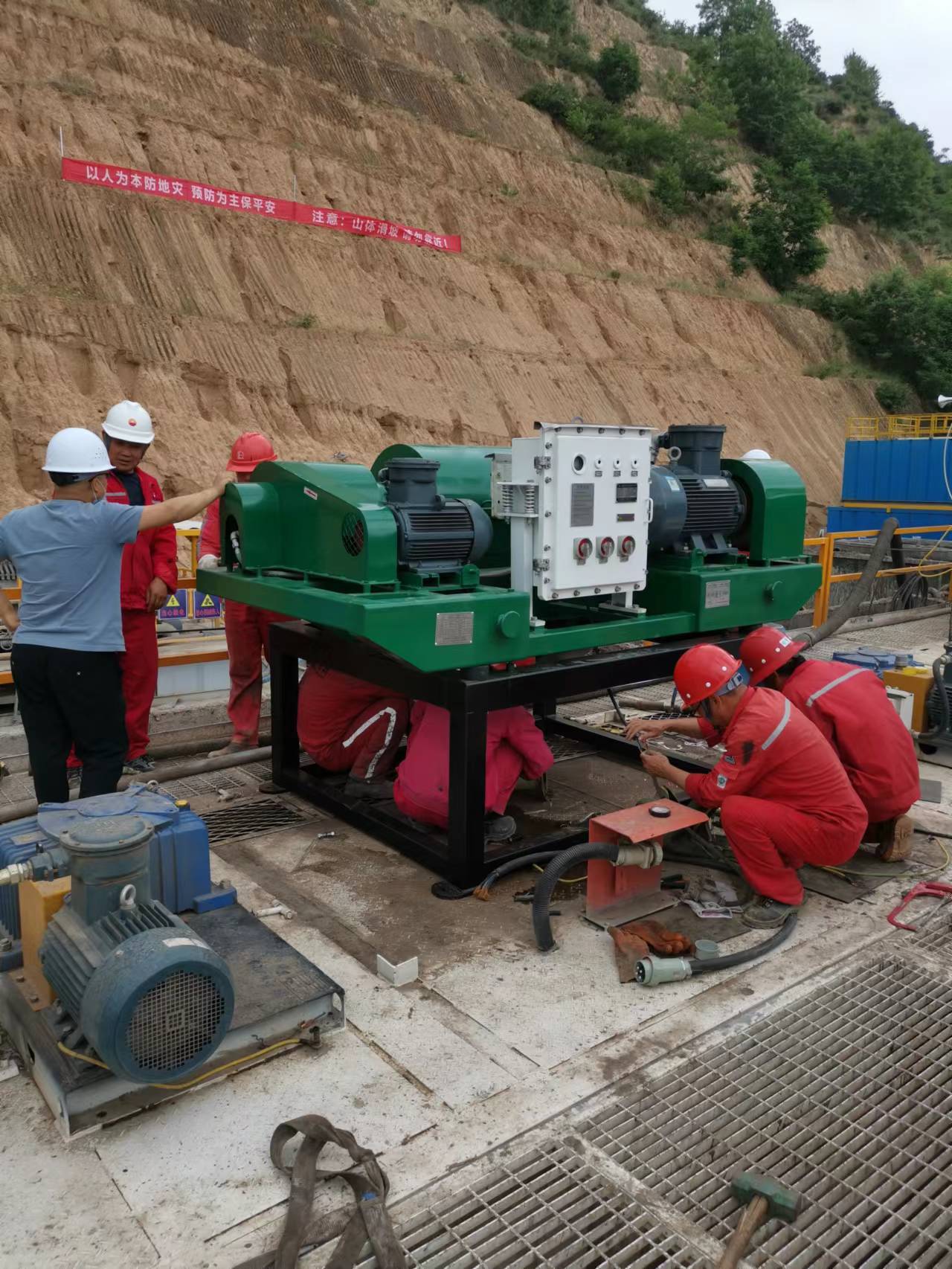

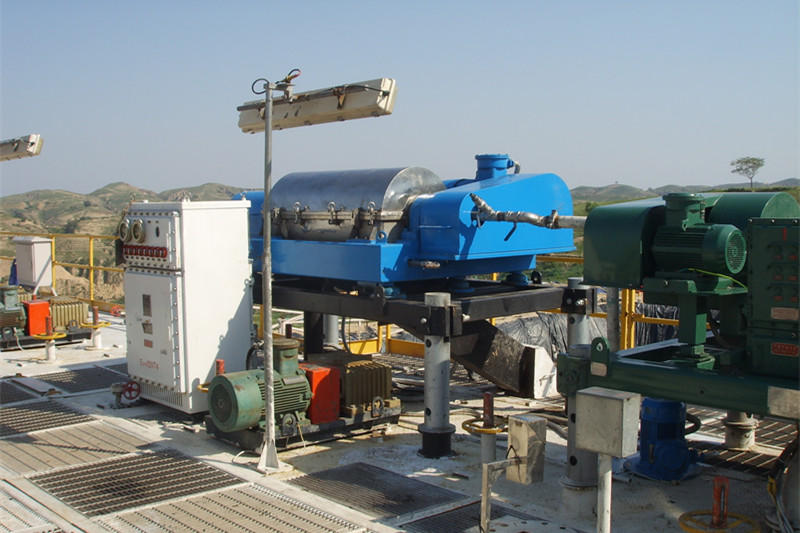

Oilfield decanter centrifuge is one of the important equipment for solid-liquid separation in solid control equipment. It is usually installed in the last stage of the solids control system to remove harmful fine solid particles such as cuttings in the mud to ensure fast and safe drilling, or to recover valuable heavy materials such as cuttings in the mud.
For barite, and save mud cost.
For barite, and save mud cost.
Model | LW355×1257-N | LW450×842-N | LW450×1000-N | LW500×1000-N | LW600×1000-N | |||||
Bowl diameter (mm) | Chapter 355 | 450 | 450 | 500 | 600 | |||||
Bowl length (mm) | Chapter 1257 | Chapter 842 | 1000 | 1000 | 1000 | |||||
maximum. Processing capacity (cubic meter/hour) | 30 | 40 | 50 | 50 | 60 | |||||
drum speed(rpm) | 3200 | 1800 | 2200 | 2500 | 1600 | |||||
separation factor | ≤2296 | ≤820 | ≤1218 | ≤1817 | ≤900 | |||||
Main motor power (kW) | 30 | twenty two | 30 | 37 | 45 | |||||
Auxiliary motor power (kW) | 7.5 | 5.5 | 7.5 | 7.5 | 7.5 | |||||
aspect: LxWxH(mm) | 3000×1500×1650 | 2370×1700×1800 | 2580×1700×1850 | 2660×1670×1760 | 3060×1870×1790 | |||||
Weight (kg) | 3300 | 2950 | 3300 | 3400 | 3500 | |||||
All the above models have medium-high speed and variable frequency models, and customers need to inform when placing an order. | 1900 | 2300 | 3200 | 3800 | ||||||
