High quality heat shrinkable cable end caps for all sizes
- $0.10 / >=10 pieces
- 10 pieces
- Guangzhou Kaiheng K&S Co., Ltd.
- Guangdong, China
- Ms Angel Zhou
| Shrinkage: | 3:1 | port: | Guangzhou |
| brand: | Gao Xiu | application: | wire protection |
| Supply capacity: | 100000 pcs small size mini heat shrinkable cable end caps per week | usage: | cable cover |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal | color: | Black |
| feature: | waterproof | Minimum full shrinkage temperature: | 120°C |
| Packaging Details: | Carton packaging with heat shrinkable end caps | place of origin; place of origin: | Guangdong, China |
| Material: | polyethylene | model: | KHEC |

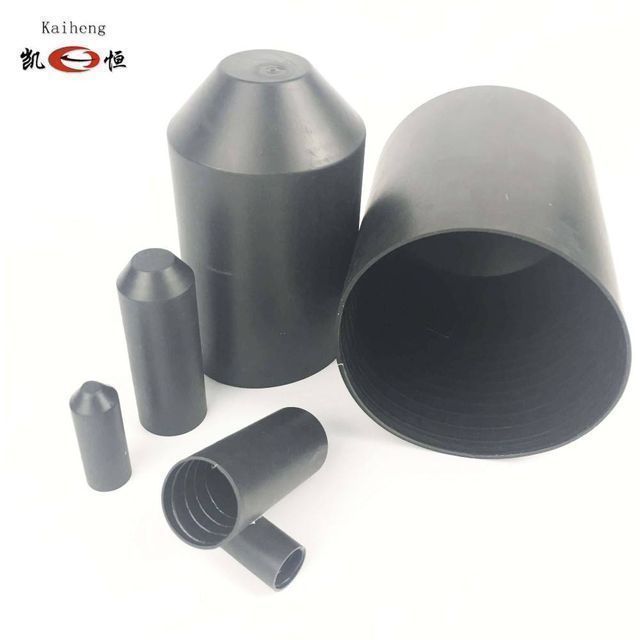

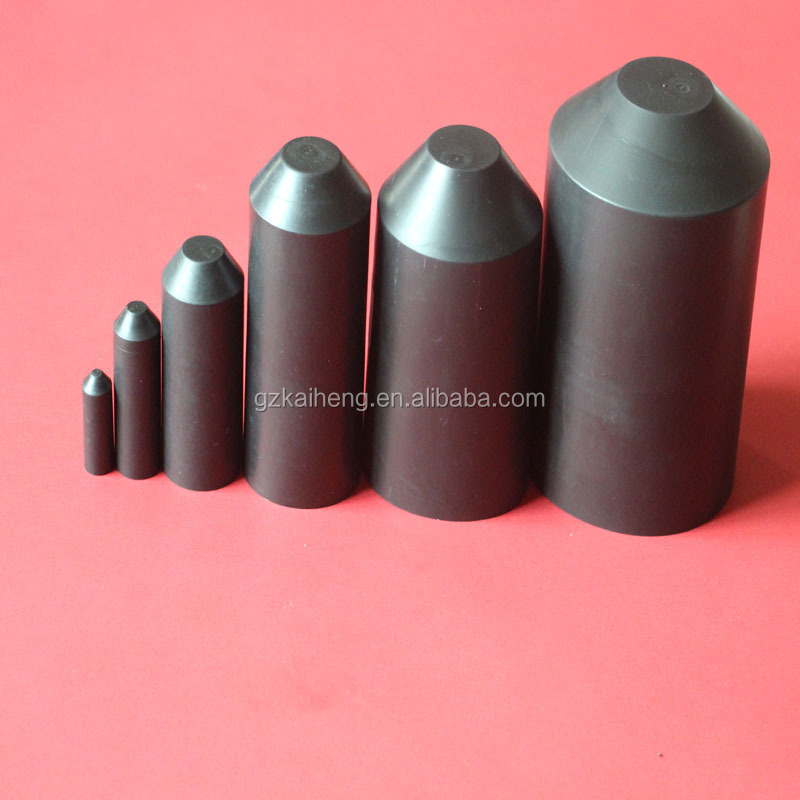

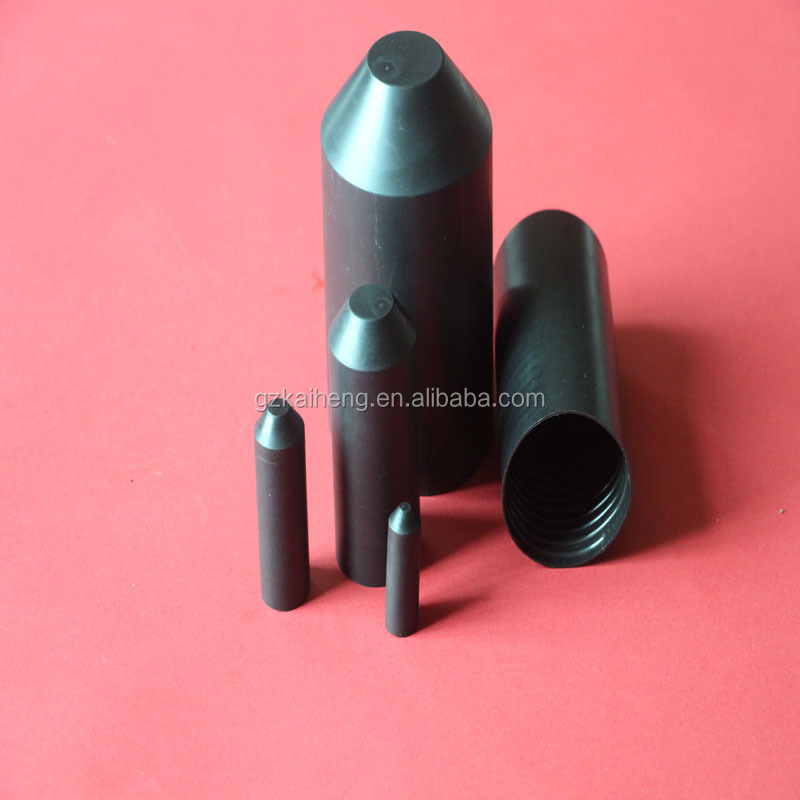

Small Size Mini Shrink Wrap Cable End Caps
Features/Applications
EC provides an economical method of sealing the ends of power cables with a complete watertight seal. The inner surface of the end cap has a layer of spiral-applied hot-melt adhesive that retains its flexibility after restoration. EC is recommended for open air and underground distribution cables with PVC, lead or XLPE sheaths.
- Provides effective antioxidant protection,
Ozone, UV radiation, etc.
Coated with hot melt adhesive to ensure environmental protection
- Easily fits into the cable end
- Minimum fully shrinkable temperature: 120℃

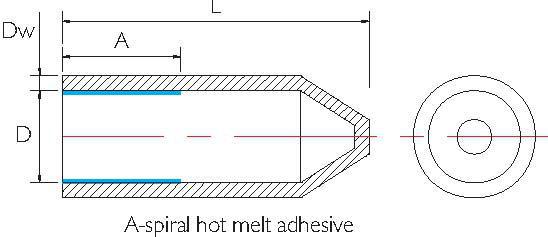

Product Dimensions (Standard Length End Caps)
|
EC-12/4 |
12 |
4.0 |
15 |
40 |
2.6 |
4-10 |
|
|
EC-14/5 |
14 |
5.0 |
18 |
45 |
2.2 |
5-12 |
|
|
EC-20/6 |
20 |
6.0 |
25 |
55 |
2.8 |
6-16 |
|
|
EC-25/8.5 |
25 |
8.5 |
30 |
68 |
2.8 |
10 - 20 |
|
|
EC-35/16 |
35 |
16.0 |
35 |
83 |
3.3 |
17-30 |
|
|
EC-40/15 |
40 |
15.0 |
40 |
83 |
3.3 |
18-32 years old |
|
|
EC-55/26 |
55 |
26.0 |
50 |
103 |
3.5 |
28 48 |
|
|
EC-75/36 |
75 |
36.0 |
55 |
120 |
4.0 |
45-68 |
|
|
EC-100/52 |
100 |
52.0 |
70 |
140 |
4.0 |
55-90 |
|
|
EC-120/60 |
120 |
60.0 |
70 |
150 |
4.0 |
65-110 |
|
|
EC-145/60 |
145 |
60.0 |
70 |
150 |
4.0 |
70-130 |
|
|
EC-160/82 |
160 |
82.0 |
70 |
150 |
4.0 |
90-150 |
|
|
EC-200/90 |
200 |
90.0 |
70 |
160 |
4.2 |
100-180 |
|
|
property |
Test Methods |
typical data |
|
Operating temperature |
International Electrotechnical Commission 216 |
-55 to +110°C |
|
tensile strength |
ASTM D638 |
>14MPa |
|
elongation at break |
ASTM D638 |
>400% |
|
density |
ASTM D 792 |
1.05 |
|
Elongation at break after aging |
150 /168 hours.℃ |
>300% |
|
Dielectric strength |
International Electrotechnical Commission 243 |
>15kV/mm |
|
volume resistance |
International Electrotechnical Commission 93 |
>1014 ohms. cm |
KOSOO small mini shrink wrap cable end cap standard package.
