WCAP- MiNi Heat Shrinkable End Cap / PE Heat shrinkable terminal cap / Heat shrink end cap with glue(adhesive)
- $0.13 / >=50000 pieces
- 50000 pieces
- Dongguan Ke Yu New Material Technology Co., Ltd.
- Guangdong, China
- Ms KEYUACE INSULATION MATERIALS
| Shrink ratio: | 4:1; | Standard color: | Black and transparent; |
| Application: | Insulation; | First Shrink Temp.: | 100 ℃; |
| Working Temp.: | -40 ℃ to 105 ℃; | Brand Name: | KEYUACE; |
| Usage: | Insulation Protect; | Selling Units: | Single item; |
| Single gross weight: | 16.000 KG; | Material: | PVC; |
| Place of Origin: | Guangdong, China; | Inner adhesive: | water-proof, damp-proof, sealing; |
| Single package size: | 40X35X30 cm; | Surface Finishing: | Cross-linked Polyolefin; |
| Final Shrink Temp.: | 135℃; | Certificate: | REACH/RoHS/UL94V-0; |
| Model Number: | WACP Mini; | Packaging Detail: | Standard & according to customers' requests.; |

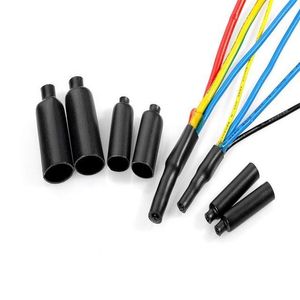

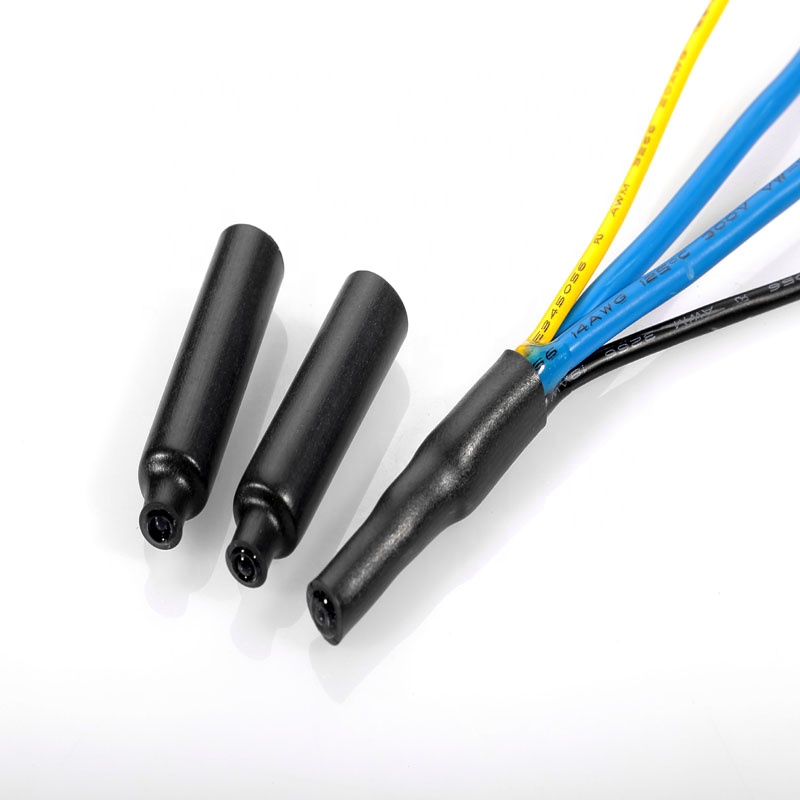

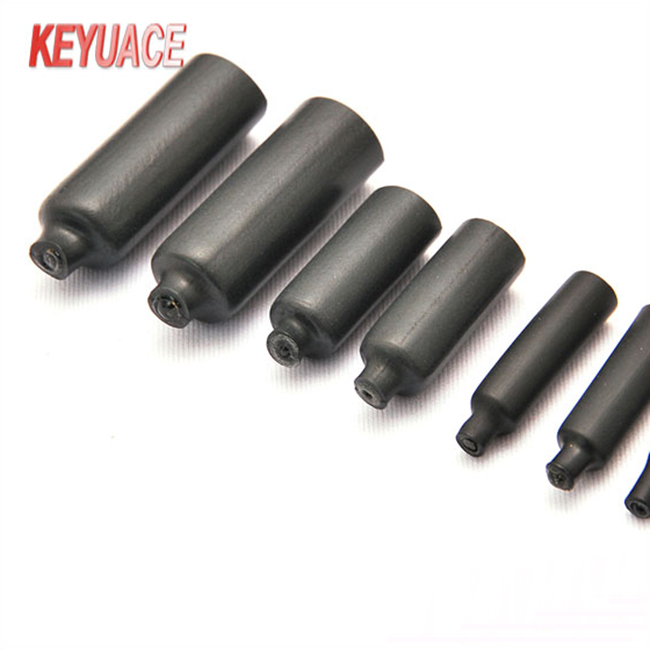

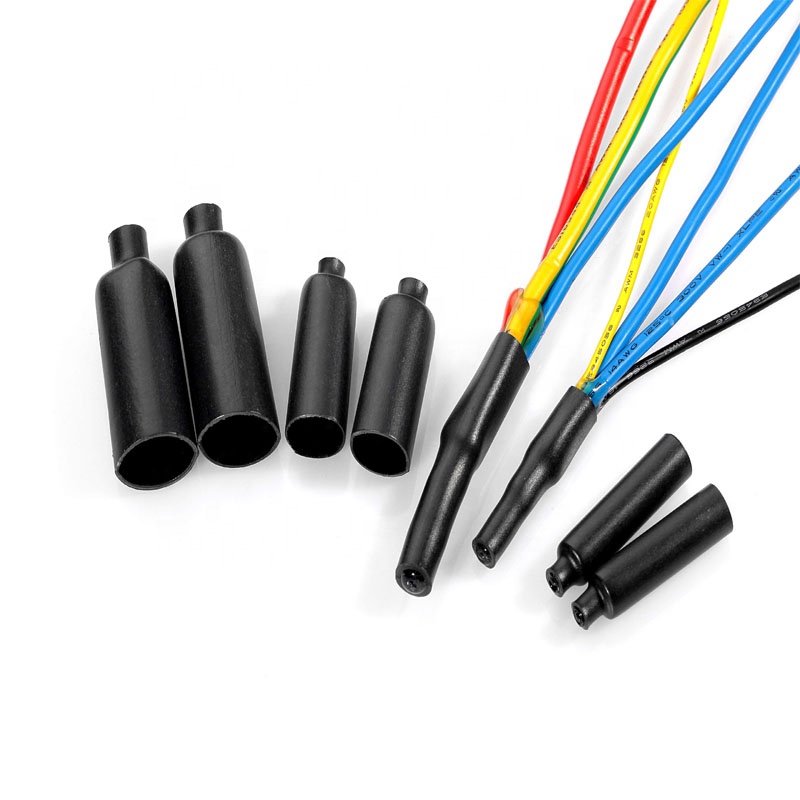

MiNi - Heat Shrinkable End Cap /
Cable waterproof heat shrink cap
WCAP-Mini Cable Heat Shrink End Cap is designed to provide mechanical and environment protection for electrical wire harness. Tough and tensile outer sheath provide stress-release and wear-proof protection for the covered part. The transparent cap can make see the covered parts, the black sealing cap is anti-flame.
Features and Benefits:
1, Shrink ratio: 4:1
2, Inner adhesive: water-proof, damp-proof, sealing
3, Defense against fluid and steam.
Application Case:
Operation indexes:
1, First Shrink Temp.: 100 ℃
2, Final Shrink Temp.: 135℃
3, Working Temp.: -40 ℃ to 105 ℃
Up to standard: Approvals
RoHs compliant, weather resistance.
Standard:
|
Part No . |
standard length (mm) |
As supplied (mm) |
After recovered (mm)
|
|||
|
Inner diameter (min.)
|
Inner diameter (max.) |
Total W.T.(min) |
Outer sheath W.T (min)
|
Adhesive W.T (min)
|
||
|
MINI CAP-1 |
30.35 |
5.72 |
1.27 |
1.20 |
0.64 |
0.56 |
|
MINI CAP-2 |
30.35 |
7.44 |
1.65 |
1.52 |
0.76 |
0.76 |
|
MINI CAP-3 |
40.50 |
10.85 |
2.41 |
2.1 | 1.1 | 1.0 |
Thickness tolerance: 0.1-0.15mm
Standard Colors: Black, Transparent
How to choose the size:
1,Generally choose the biggest size that the sealing cap can shrink and cling on the module.
2, Other length sealing cap can be provided according customers’ request.
