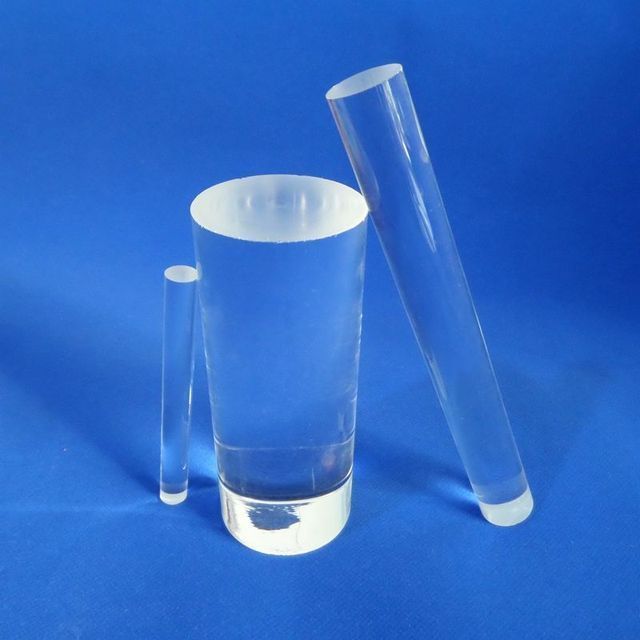

High-quality quartz rods, high-quality optical lens raw materials, exported to foreign countries
- $1.00 /piece
- 1 piece
- Donghai Kaiwang Quartz Products Co., Ltd.
- Jiangsu, China
- Ms Karen Sun
| model: | RE208 | Silica Composition: | 99.9% |
| Packaging Details: | The inner layer is white foam paper + plastic foam board, and the outer layer is a carton. | port: | Lianyungang, Shanghai Port |
| Outer diameter: | 3--150mm | payment terms: | Letter of Credit, Wire Transfer, Paypal |
| place of origin; place of origin: | Jiangsu, China | type: | Translucent Quartz Rod |
| length: | 20-1500mm | Supply capacity: | 1,000,000 pieces/month |
| brand: | open the net | Transmittance: | 93% |
| Ovality: | 0.2% | application: | Semiconductor, Solar, Chemical |
Please contact customer service to customize any specifications, thank you!

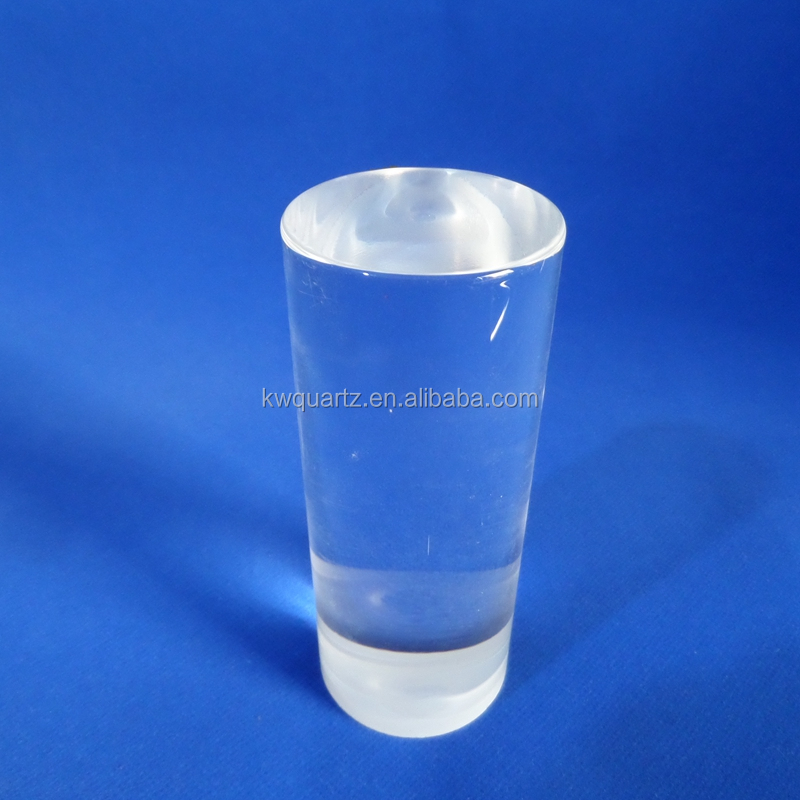

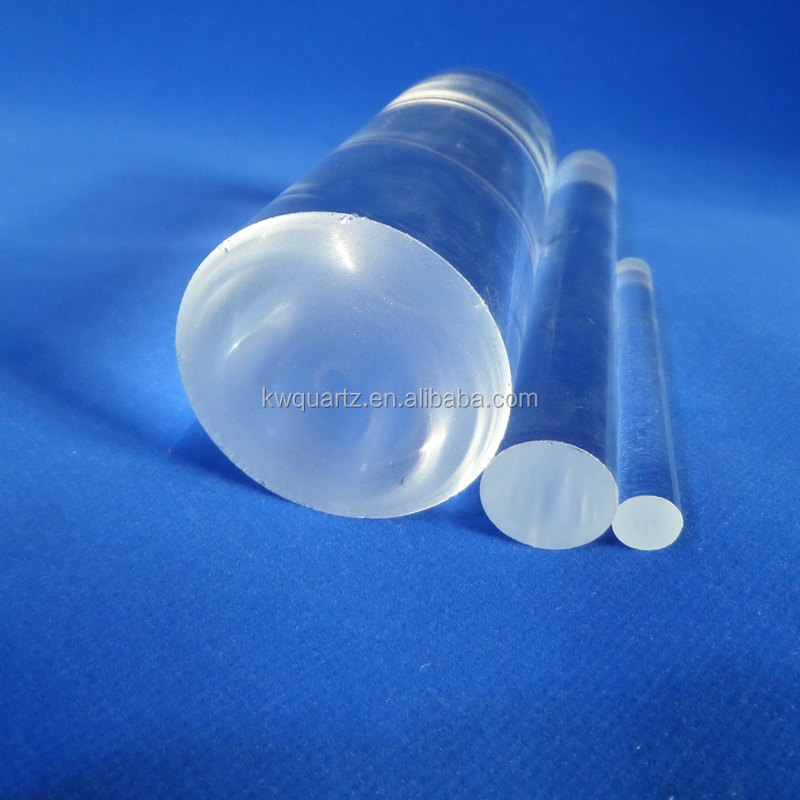

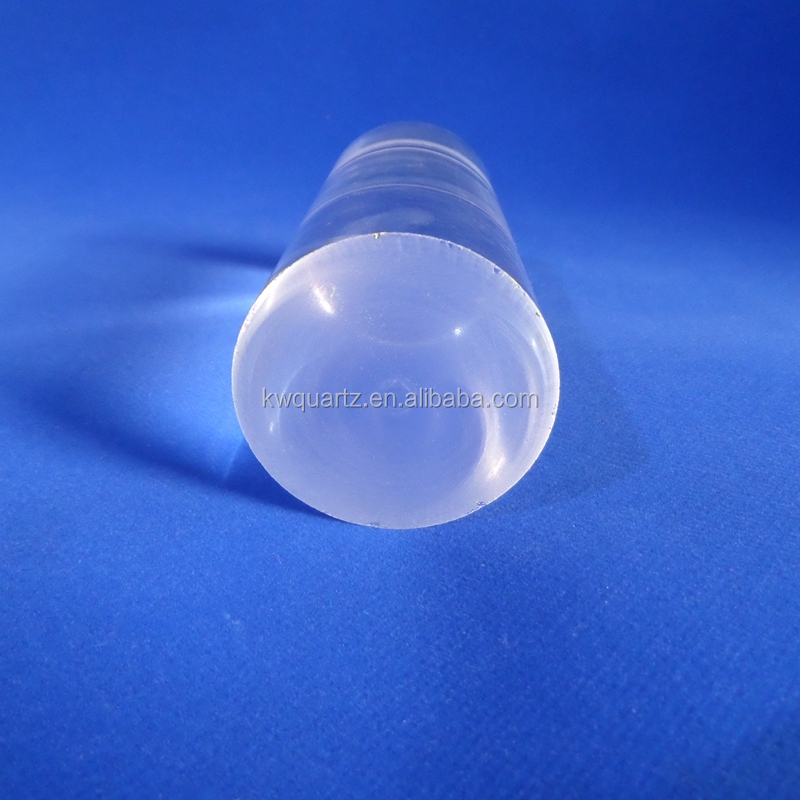

Quartz rod | |
SIO2: | 99.9% |
density: | 2.2(g/cm3) |
Mohs scale of hardness: | 6.6 |
Melting point: | 1732°C |
Operating temperature: | 1100°C |
The maximum temperature can be reached in a short time: | 1450°C |
Acid resistance: | 30 times that of ceramics and 150 times that of stainless steel |
Visible light transmittance: | More than 93% |
UV spectral region transmittance: | 80% |
resistance: | 10,000 times that of ordinary glass |
Annealing point: | 12300°C |
Softening Point: | 1710°C |
Strain point: | 1140°C |
aspect:
Outer diameter range | weight | siding | not round | Bow/1220mm | length |
6.00±0.15 | 1.0±0.10 | 10% | 1.5% | 2.5mm | 1220 |
8.00±0.15 | 1.0±0.10 | 10% | 1.5% | 2.5mm | 1220 |
9.00±0.15 | 1.0±0.10 | 10% | 1.5% | 2.5mm | 1220 |
10.00±0.15 | 1.0±0.10 | 10% | 1.5% | 2.5mm | 1220 |
11.00±0.15 | 1.0±0.10 | 10% | 1.5% | 2.5mm | 1220 |
12.00±0.15 | 1.0±0.10 | 10% | 1.5% | 2.5mm | 1220 |
13.00±0.15 | 1.0±0.10 | 10% | 1.5% | 2.5mm | 1220 |
15.00±0.15 | 1.20±0.10 | 10% | 1.5% | 2.5mm | 1220 |
18.00±0.15 | 1.50±0.10 | 10% | 1.5% | 2.5mm | 1220 |
19.00±0.15 | 1.50±0.10 | 10% | 1.5% | 2.5mm | 1220 |
