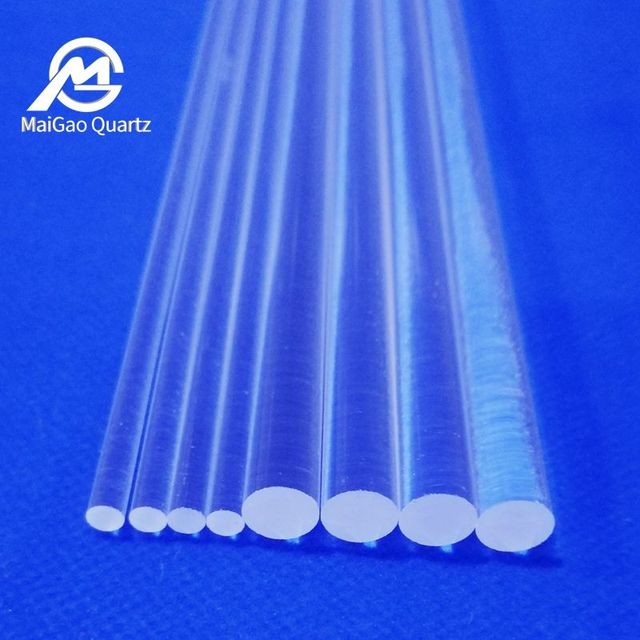

Quality assurance quartz glass rod light guide rod

PRODUCT DETAIL
type:Transparent Quartz RodPackaging Preview:
Silica Composition:99.99color:transparent
Ovality:0.2%Operating temperature:1100c-1200c
Optical Transmission:95%Packaging Details:Dust-free paper + bubble paper + carton + wooden box
Outer diameter:5-80Transmittance:85%
application:optical medical research aviationmodel:custom
place of origin; place of origin:Chinaport:Shanghai
Supply capacity:100 pieces per weekbrand:McGonagall
payment terms:L/C,T/T,Credit Cardsize:custom
Material:99.99% silica
company information



We specialize in the research, manufacture and sale of quartz products. We mainly produce and export quartz products, quartz crucibles, transparent quartz glass tubes, quartz glass tubes, quartz glass diffusion tubes, ground quartz glass tubes, quartz glass slides, quartz boats, quartz vessels, quartz mounds, quartz rods, light Building materials, medical equipment, scientific instruments, etc. We always remind ourselves that "customer-centric, quality first". We will do our best to make our customers happy!

Product Description



density2.2g/cm3
Compressive strength1100Mpa
Young's modulus72000Mpa
modulus of rigidity31000Mpa
Moh's hardness5.5~6.5
conversion point1280°C
Softening Point1780°C
Annealing point1250°C
Specific heat (20 ~ 350 °C)670J/kg.°C
Thermal conductivity (20 °C)1.4W/m.°C
short-term operating temperature

1300°C

long-term operating temperature

1100°C

tension

1270 C Fused Silica Glass Brick





Chemical composition (unit: ppm)

ironKsodiumplumcalciummagnesiumcoppermanganeseleadSecondtitanium
13.53.5120.50.30.5<0.01<0.22.0
advantage





We take quality assurance as our tenet, adopt high-end production equipment and professional production technicians, and carry out strict quality control on each processing procedure. Ensure that products meet customer requirements and make customers satisfied.

our service

1. Reply your inquiry within 24 hours.

2. Samples can be provided.

3. Guaranteed quality

4. Provide support for problem solving during the application or sales process.

other products

Our company also processes other products. For example, various specifications of quartz glass, quartz shaped products, spiral tubes, quartz tubes, quartz rods, crucibles, music bowls, etc. They have high physical and chemical properties. You can tell us your requirements or send us the drawings. We can customize for you.
