High temperature resistance Tetrafluoroethylene propylene FEPM TFE/P compound Steam resistant seal Rubber elastomer
- $44.00 / 20 - 999 kilograms
$42.00 / 1000 - 9999 kilograms
$40.00 / >=10000 kilograms - 20 kilograms
- Sichuan Fudi New Energy Co., Ltd.
- Sichuan, China
- Ms Doris Xie
PRODUCT DETAIL
| feature: | Low temperature resistance, high strength, chemical resistance | Minimum Order Quantity: | 20 kg |
| color: | custom made | grade: | Release grade |
| Package Preview: | application: | Auto parts, wire and cable grades | |
| Certificate: | ISO 9001 | Curing mechanism: | peroxide |
| Name: | FEPM composites | Packaging Details: | 25kg/carton 500kg/pallet |
| Brand Name: | Fudi | Origin: | Sichuan, China |
| Payment Terms: | wire transfer |
Product Description

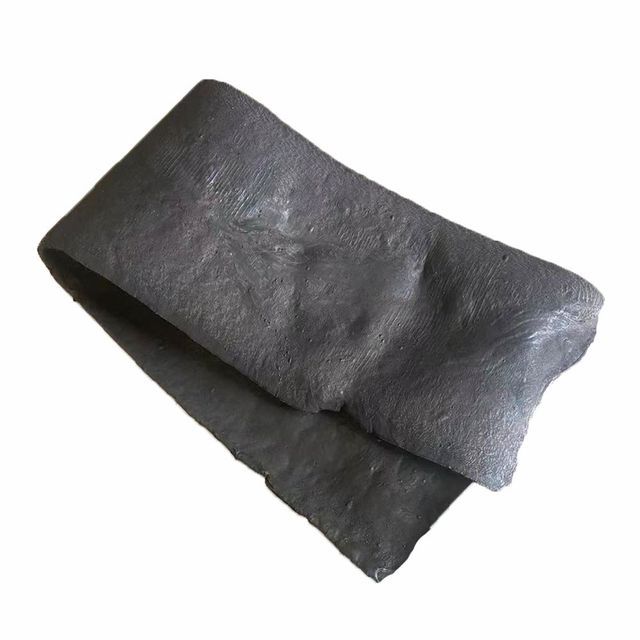

FD4665useGenuine AFLAS® raw materials from AGCTetrafluoroethylene propylene (FEPM) is a partially fluorinated polymer of propylene and tetrafluoroethylene. It has both high temperature resistance and chemical resistance.
The general characteristics of FD 4665 are as follows:
* Excellent chemical and steam resistance
* Excellent high temperature performance
* Peroxide crosslinking mechanism
* Processing methods: transfer molding, injection molding and compression molding.* Peroxide crosslinking mechanism
FD4665Can be used for O-rings and other sealing products in the petrochemical industry.
FD4665 | FD4675 | FD4685 | ||||
Fluoride content | 57 | 57 | 57 | |||
Density (23℃) (g/cm³) | 1.65±0.02 | 1.65±0.02 | 1.65±0.02 | |||
MDR 6 minutes arc 0.5° at 177 °C | ||||||
Minimum torque (N*m) | 0.24 | 0.24 | 0.24 | |||
Maximum torque (N*m) | 0.82 | 0.82 | 0.82 | |||
TS2 | 2′45″ | 2′45″ | 2′45″ | |||
T90 | 4′50″ | 4′50″ | 4′50″ | |||
Press cure: 15 minutes at 170 °C, post cure: 20 hours at 200 °C | ||||||
Tensile strength (Mpa) | ≥15 | ≥15 | ≥15 | |||
Elongation at break (%) | ≥260 | ≥260 | ≥260 | |||
Hardness Shore A | 65±2 | 75±2 | 85±2 | |||
Compression set (%) 200ºC 70H Compression rate 20% | ≤15 | ≤15 | ≤15 | |||
Please contact our customer service for detailed specifications
Email: [email protected]
application
Due to its excellent performance, FKM is widely used in different fields, including:
* Chemical processes and petroleum refining, due to their chemical resistance they are used in seals, pumps, gaskets, etc.;
* Analytical and process instruments: diaphragms, cylindrical fittings, ferrules, gaskets, etc.
* Semiconductor manufacturing;
* Food and medicine, also in contact with liquids due to their low degradability;
* Chemical processes and petroleum refining, due to their chemical resistance they are used in seals, pumps, gaskets, etc.;
* Analytical and process instruments: diaphragms, cylindrical fittings, ferrules, gaskets, etc.
* Semiconductor manufacturing;
* Food and medicine, also in contact with liquids due to their low degradability;
Advantages
Fudi has been committed to fluorine material solutions for more than 20 years. Our products range from basic chemical materials to fluorine products such as FKM, FVMQ, FFKM, PTFE, HNBR, AEM and different kinds of processing chemicals.
We focus on continuous improvement in four areas to provide competitive products.
We focus on continuous improvement in four areas to provide competitive products.
About Fudi
Sichuan Fudi New Energy Co., Ltd. was established in 2001 and has been focusing on fluorine material solutions for more than 20 years. Its product range covers basic chemical materials to fluorine products, such as FKM, FVMQ, FFKM, PTFE, HNBR, AEM, etc., as well as various processing
Chemicals.
Our factory is located in Chengdu, Sichuan, China, covering an area of more than 30,000 square meters, with more than 50 technicians and experienced employees, with an annual output of 1,000 tons of various fluorine materials.
Chemicals.
Our factory is located in Chengdu, Sichuan, China, covering an area of more than 30,000 square meters, with more than 50 technicians and experienced employees, with an annual output of 1,000 tons of various fluorine materials.
