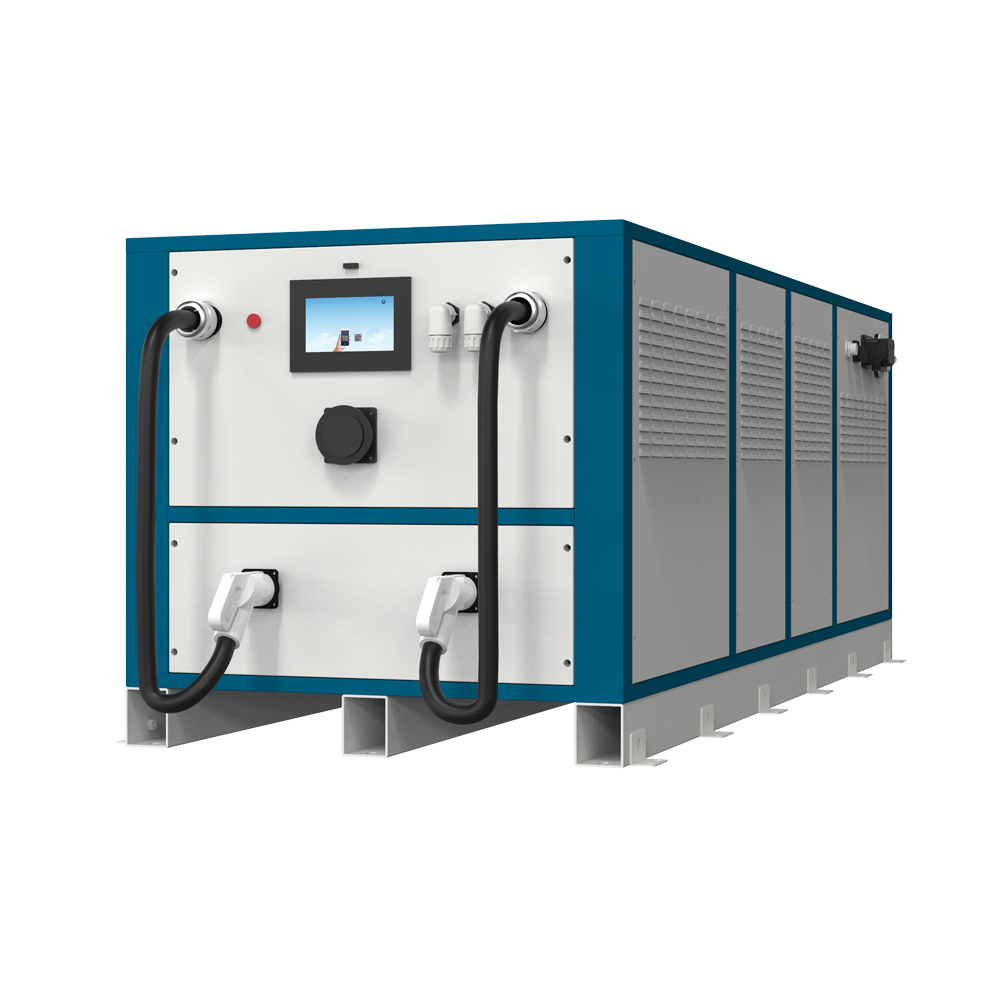

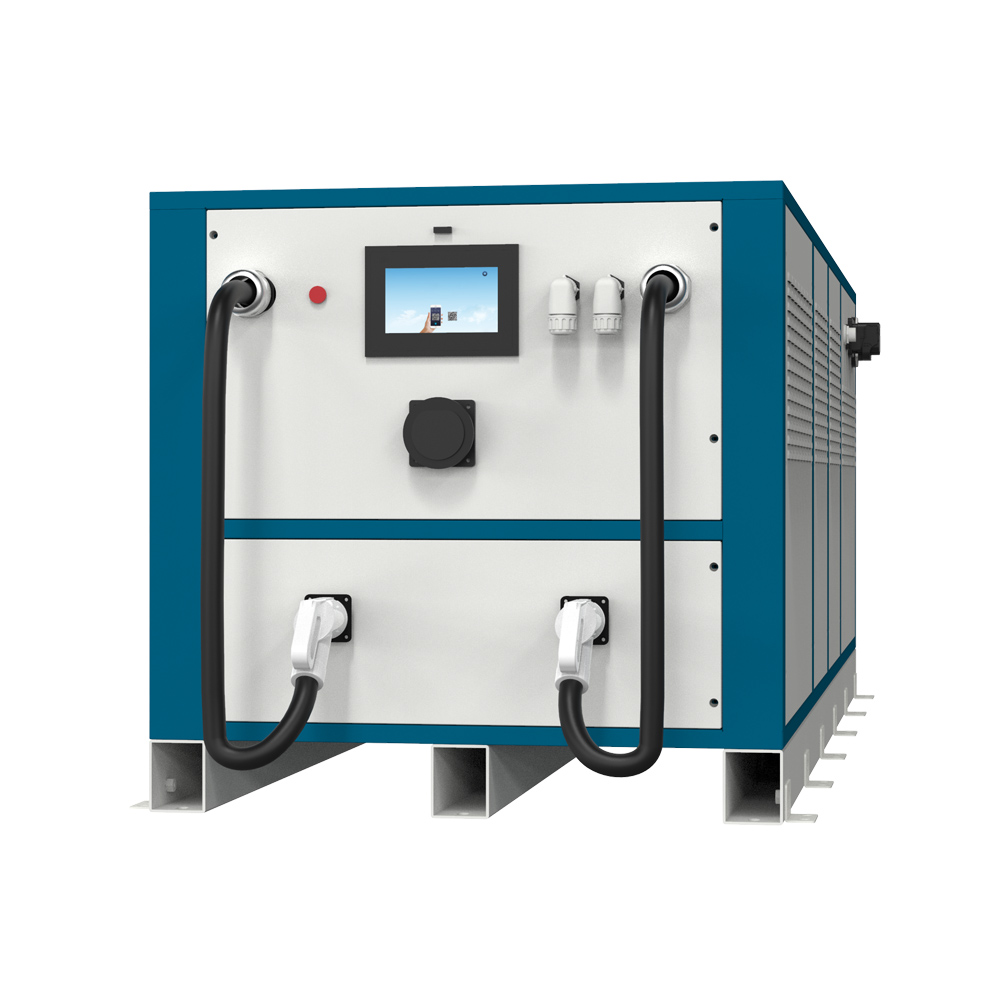

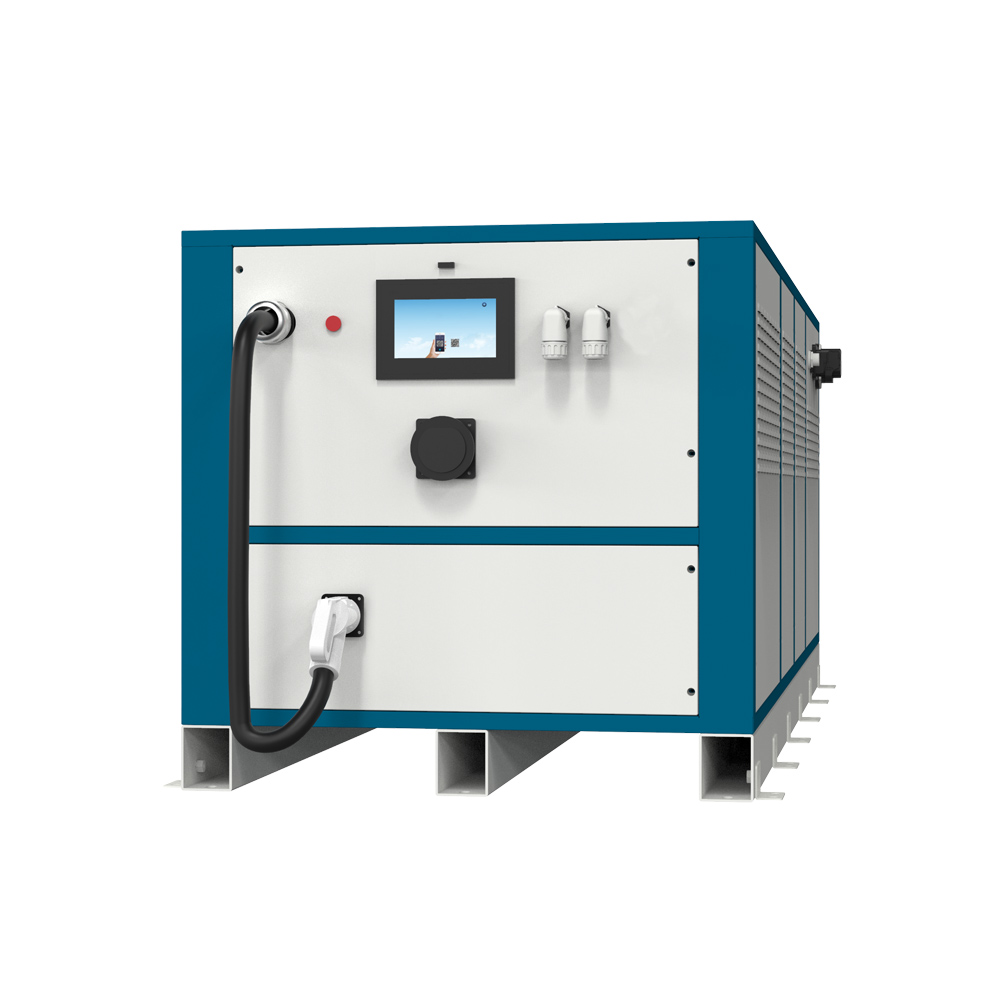

Highway Roadside Rescue Electric Vehicle Charger Mobile Emergency Fast DC Electric Vehicle Charging Station

PRODUCT DETAIL
port:Shenzhenproduct name:Emergency electric vehicle charging station
Output current:0-100A/0-250AUser Interface:7-inch touch display
Operating temperature:-10℃-60℃Recharge options:Public DC electric vehicle charger
Output Power:40kW/120kWmodel:CYD34K-40; CYD65K-40; CYD132K-120
Charge method:manual or passwordbrand:Future digital energy
Packaging details:Wooden packingOutput voltage (V):DC 200V-750V
Input voltage:DC 200V-750VProtection level:IP54
Place of origin:Guangdong, Chinapayment terms:Letter of credit, wire transfer
Output:DC 40KW/120KWInterface standards:GB/T, CCS2, CCS1, CHAdeMO
Package preview:battery capacity:34KWH/65KWH/132KWH lithium iron phosphate
Warranty:2 yearsSupply capacity:300 units per day
Related Products
Product Description
Require
parameter
Product number
CYD34K-40
CYD65K-40
CYD132K-120
Energy storage power supply
34KWh lithium iron phosphate
65KWh lithium iron phosphate
132KWh lithium iron phosphate
Output Power
40kW
120kW
The output voltage
DC 200V-750V
Output current
0-100A
0-250A
User Interface
7-inch touch display
charging method
manual or password
Operating temperature
-10℃-60℃
protection level
IP54
input interface
GB/T, CCS2, CCS1, CHAdeMO
Output Interface
GB/T, CCS2, CCS1, CHAdeMO
Product Size
1000*950*985mm
2300*866*782mm
product weight
420kg
680kg
1300kg

  • emergency mobile storage

  • Electric vehicle charging station

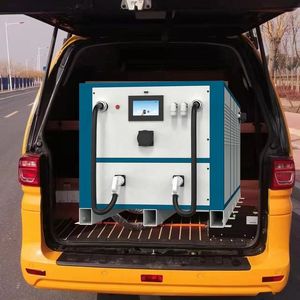

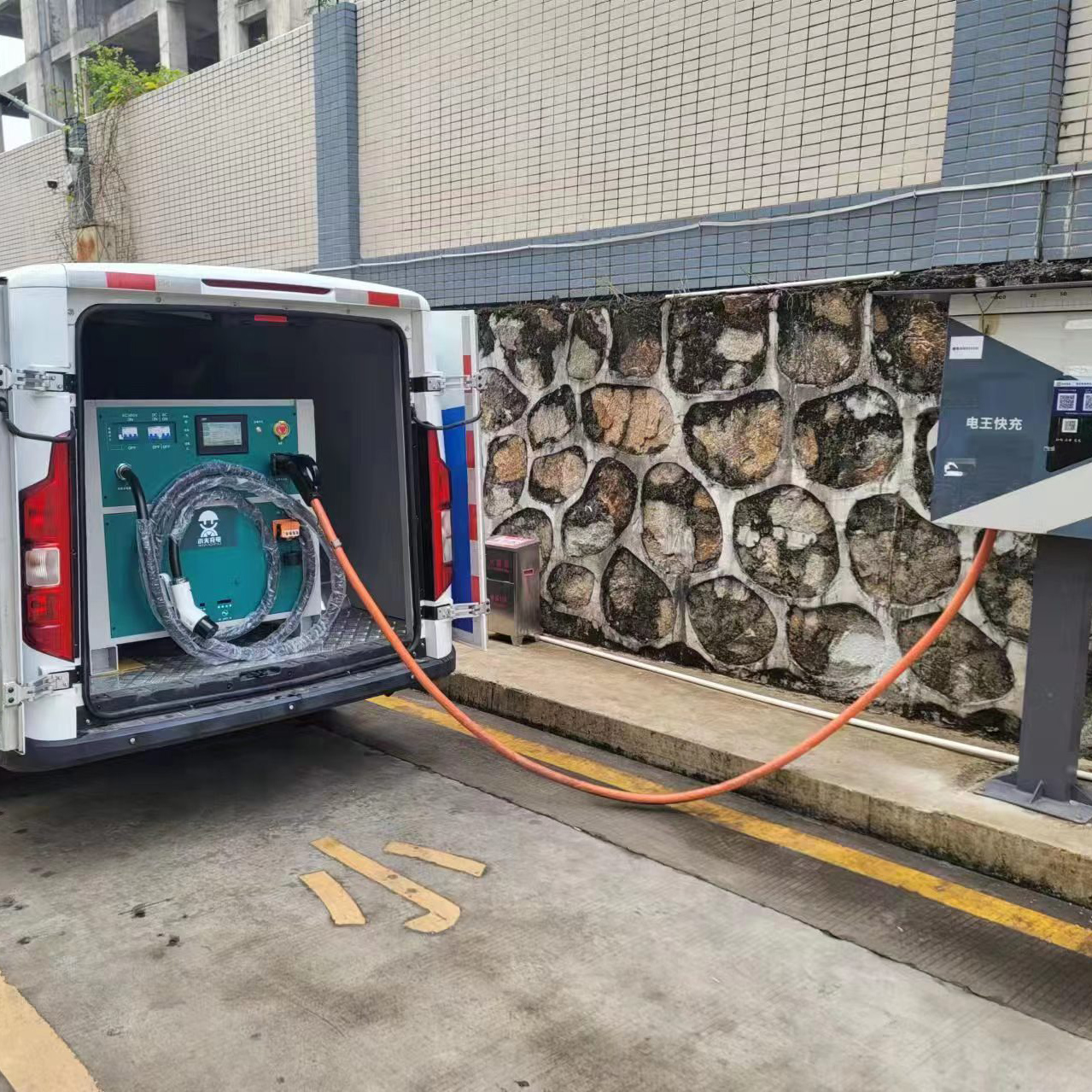

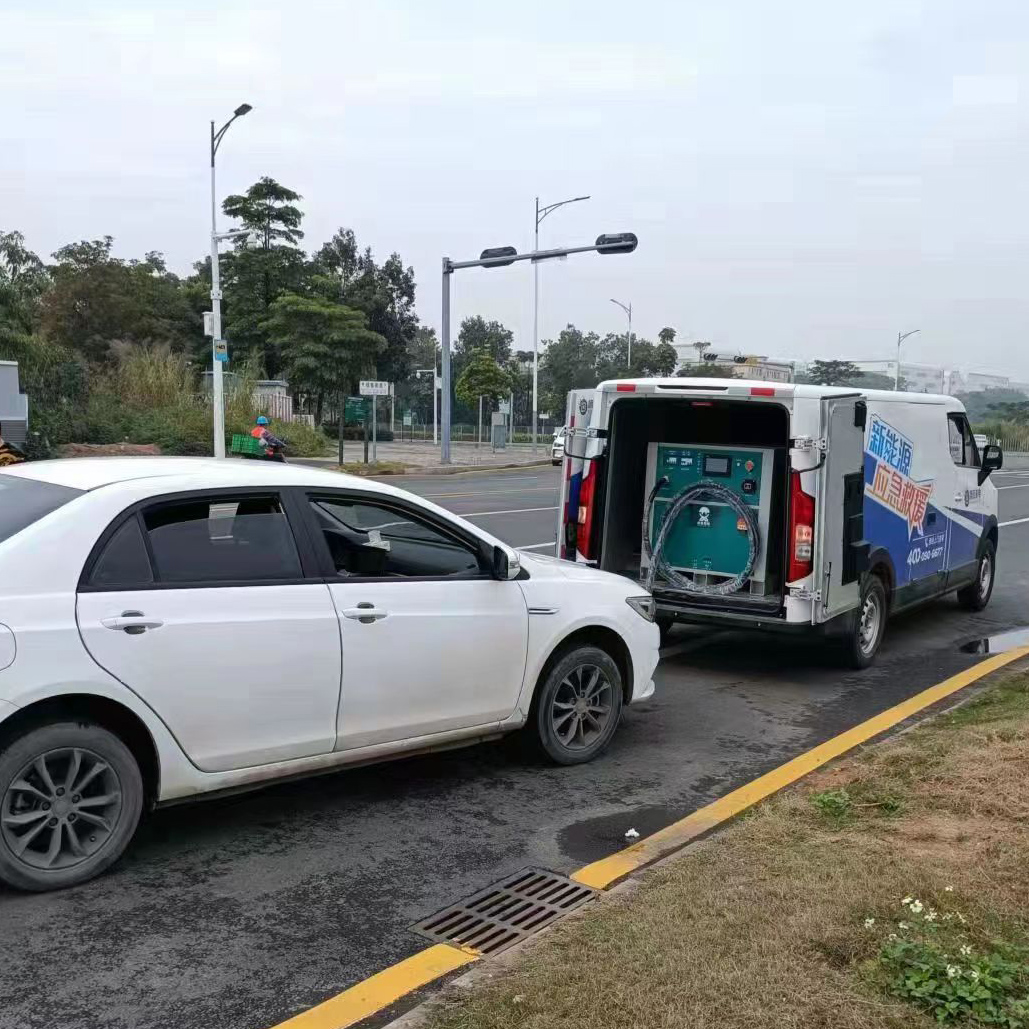

It provides a perfect DC fast charging solution for electric vehicles that have run out of power on roadside highways, such as buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, road rescue private vehicles, etc.

40KW charging station equipped with 34KWh LiFePO4 energy storage battery

40KW charging station, equipped with 65KWh lithium iron phosphate energy storage battery

The 120KW charging station is equipped with a 132KWh lithium iron phosphate energy storage battery
Product Usage

input charging
34kWh battery rechargeable
Via public DC electric vehicle charging stations
CCS2 (European standard), or CCS1 (American standard), or CHAdeMO (Japanese standard), or
GB/T (China standard) charging cable.

Output charging
40KW road rescue electric vehicle charging station output charging cable can
CCS1 (US Standard), or
CCS2 (EU standard), or
CHAdeMO (Japanese standard) or
GB/T (China standard) connector.
