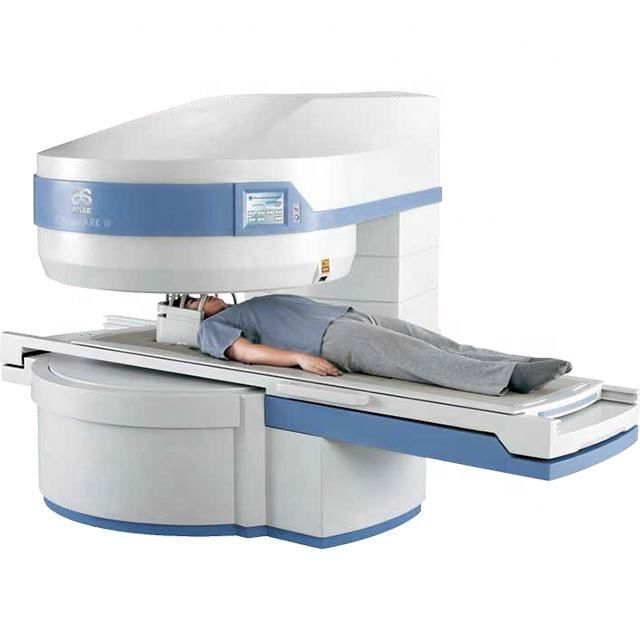

Hospital MRI machine medical system scanner for sale
- $19999.00 /unit
- 1 unit
- MEDSINGLONG CO LTD
- Guangdong, China
- Ms Ling Huang
| Instrument classification: | Class II; | Magnet Shape: | C-shape; |
| Warranty: | 2 years,2 years; | Brand Name: | MSL; |
| Package Preview: | ; | After-sale Service: | Online technical support; |
| Port: | Guangzhou; | Model Number: | MSLMRI13; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,Trade assurance,paypal,C/C; | Product name: | mri machine medical; |
| Shim Method: | Active/Passive; | Magnet Vertical Gap (Cover): | 40cm; |
| Accessibility(Horizontal Opening Angle): | 320°; | Supply Ability: | 1000 Units per Month; |
| Magnet Type: | Permanent Magnet Automatic constant temperature system; | Properties: | Medical MRI Equipments; |
| Homogeneity(40cm, DSV, VRMS): | ≤2.0ppm; | Place of Origin: | Guangdong, China; |
| Field Strength: | 0.3T; | Certificate: | CE ISO; |
| Packaging Detail: | Standard export package; |
Hospital MRI machine medical system scanner for sale
2.2 Max. Patient Weight ≥200kg(440lbs)
2.3 Patient Positioning Tools Laser Light Localizer for positioning of center slice
Motor-driven transfer to center of imaging volume
2.4 Position accuracy ±1mm
2.5 Emergency Call Key Yes
2.6 Intercom System Yes
No. | Technique Description | Parameter | Remark |
1 | Magnet System | ||
1.1 | Magnet Type | Permanent Magnet Automatic constant temperature system |
|
1.2 | Field Strength | 0.3T |
|
1.3 | Magnet Shape | C-shape |
|
1.4 | Homogeneity(40cm, DSV, VRMS) | ≤2.0ppm |
|
1.5 | Shim Method | Active/Passive |
|
1.6 | Magnet Vertical Gap (Cover) | 40cm |
|
1.7 | Accessibility(Horizontal Opening Angle) | 320° |
|
1.8 | 5 Gauss fringe field | X-axis: horizontal ≤2.5m Y-axis: Vertical ≤2.5m Z-axis: horizontal ≤2.5m |
|
2 | Patient Couch and Communication | ||
2.1 | Patient Couch Driven mode | Motor-driven |
|
2.2 | Max. Patient Weight | ≥200kg(440lbs) |
|
2.3 | Patient Positioning Tools | Laser Light Localizer for positioning of center slice Motor-driven transfer to center of imaging volume |
|
2.4 | Position accuracy | ±1mm |
|
2.5 | Emergency Call Key | Yes |
|
2.6 | Intercom System | Yes |
|
3 | Gradient System | ||
3.1 | Gradient Field Strength(Single Axis) | ≥28mT/m |
|
3.2 | Gradient Slew Rate (Single Axis) | ≥93mT/m/ms |
|
3.3 | Rise Time | ≤0.3ms |
|
3.4 | Gradient Cooling System(Gradient coils and Power electronics) | Air Cooling |
|
4 | RF System | ||
4.1 | RF System Type | Digital Transmit and Receive |
|
4.2 | Number of RF Channel | 4 |
|
4.3 | Transmitter Amplifier Peak Power | 6kW |
|
4.4 | RF Bandwidth of Receiver | ≥1MHz |
|
4.5 | PA Head Coil | Yes |
|
4.6 | PA Neck Coil | Yes |
|
4.7 | PA Body/Spine Coil (17 inch) | Yes |
|
4.8 | PA Body/Spine Coil (20 inch) | Yes |
|
4.9 | PA Knee Coil | Yes |
|
4.10 | PA Shoulder Coil | Yes |
|
5 | Computer System | ||
5.1 | Host Computer | DELL Computer (Professional for MRI) |
|
5.2 | System Software | Windows 7 |
|
5.3 | Operation Software | APEX |
|
5.4 | CPU Clock rate | 3.6GHz |
|
5.5 | Main Memory | 2GB |
|
5.6 | Color LCD Monitor | 19” |
|
5.7 | Keyboard and Mouse | Standard |
|
5.8 | Image Reconstruction Speed(256 x 256 Matrix) | 1500 FPS. |
|
5.9 | Hard Disk | 500 GB |
|
5.10 | Image Storage Capacity(256 x 256 Matrix) | 2,650,000 images |
|
5.11 | Media Driver | DVD RW | |
magnetic resonance imaging machine | ||
Max. Patient Weight ≥200kg(440lbs) | Patient Couch Driven mode Motor-driven | |
