How to buy the right CNC woodworking lathe?
- $5800.00 / 1 - 19 sets
$5500.00 / >=20 sets - 1 set
- Jinan Tianjiao Machinery Manufacture Co., Ltd.
- Shandong, China
- Ms Tian Jiao
Maximum turning diameter: | 160-300mm | motor: | servo motor |
Function: | Wood Turning + Grooving + Cylindrical Engraving | maximum. Swing Diameter (mm): | 300 mm |
Core components: | PLC, engine, motor | Applicable industries: | Building materials stores, mechanical repair shops, manufacturing plants, household, retail, construction works, advertising agencies |
weight: | 1600kg | Control System: | DSP or Adtech |
Maximum turning length: | 1500mm | application: | wooden round mold |
Power (W): | 4kW | payment terms: | L/C,Western Union,T/T,MoneyGram |
port: | Qingdao | Power (kW): | 3.5 - 5.5 |
Packaging Details: | Fumigation wooden box | Core Components Warranty: | 1 year |
Main selling point: | high rigidity | Mechanical test report: | if |
maximum. Workpiece length (mm): | 1500 mm | color: | white and green |
place of origin; place of origin: | Shandong China | Certification: | Chief Executive |
After Warranty Service: | Video technical support, online support | Supply capacity: | 300 sets per month |
After-sales service provided: | Online support | Packaging Preview: | |
Local service location: | United Arab Emirates | Showroom location: | United Arab Emirates |
Weight (kg): | 1500 | Health status: | new |
Voltage: | AC380V/50Hz | brand: | Tianjiao |
Warranty: | 1 year | Marketing Type: | New Products 2020 |
maximum. Turning length (mm): | 1500 mm | Video external inspection: | if |
Key words: | CNC Lathes for Wood Manufacturing | Dimensions (L*W*H): | 300*100*150cm |

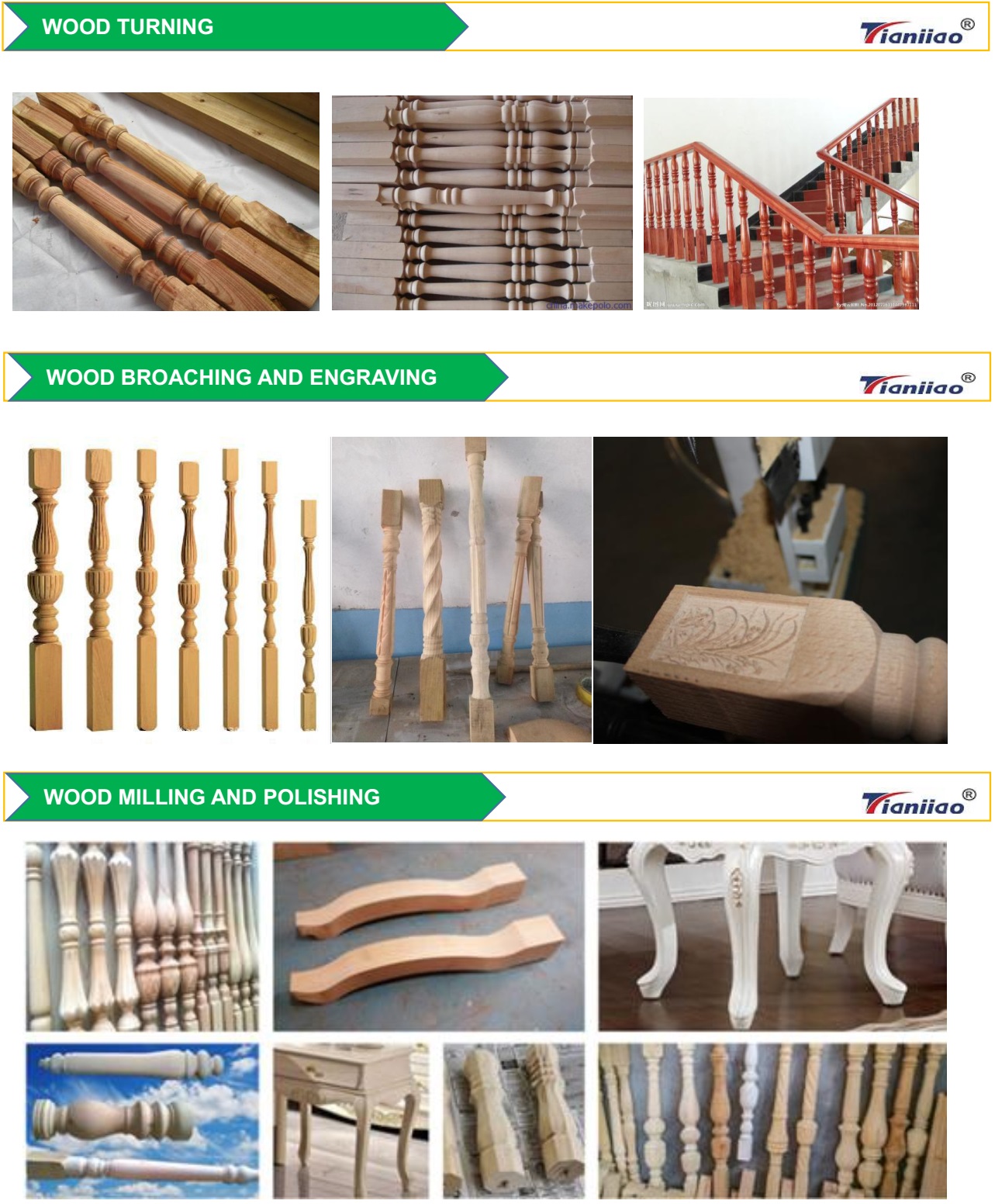

CNC woodworking lathe is suitable for all kinds of cylindrical workpieces, bowl tips, tubular tips and wood crafts, all kinds of stair columns, stair railings, stair columns, dining table legs, coffee table legs, sofa table legs, bar legs, Roman columns, general columns , washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children's bed column, chair arm column, chair stretcher, sofa and feet, bed rails, lamp posts, baseball bats, etc.
1. If your workpiece diameter is between 160-300mm, just turn it into a cylinder. Then you can select this model:

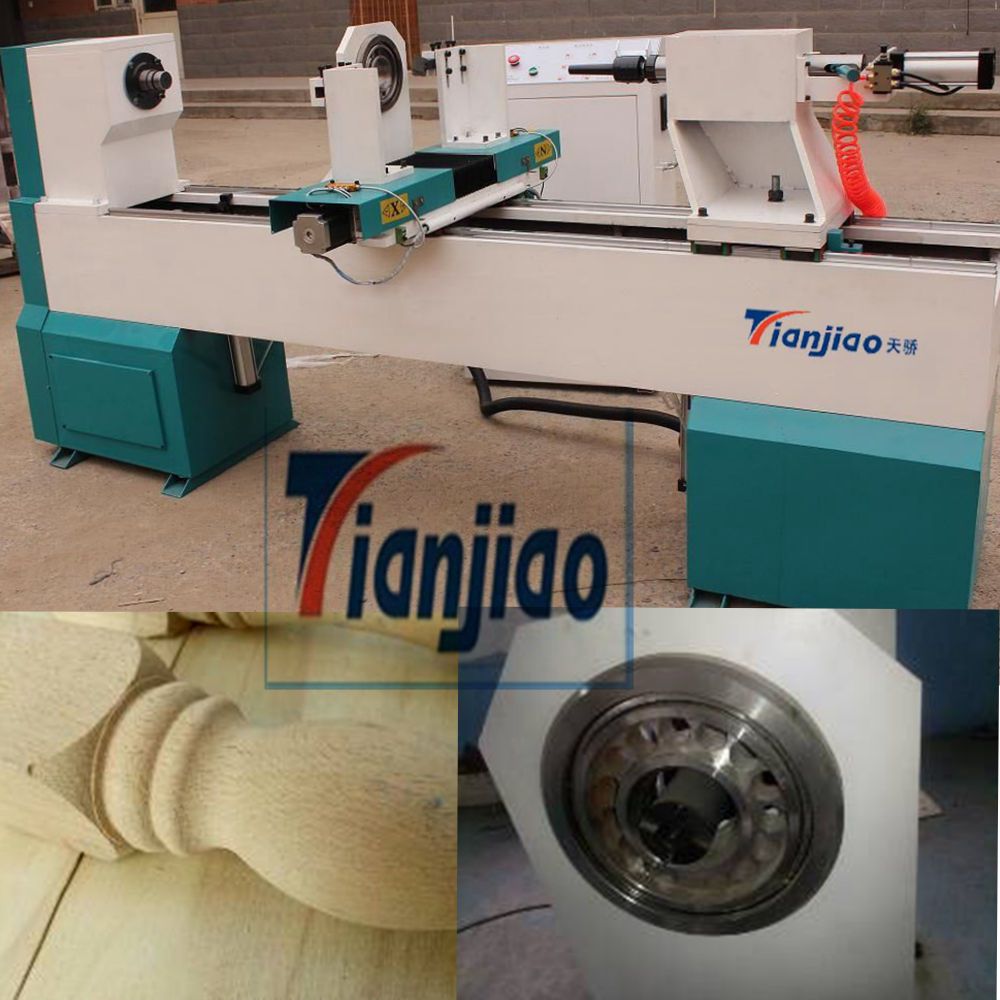

TJ-1530 Single axis double edge CNC woodworking lathe.
The maximum processing diameter of this machine is 300mm, and the maximum processing length is 1500mm. Mainly used for turning, it can process one material at a time.

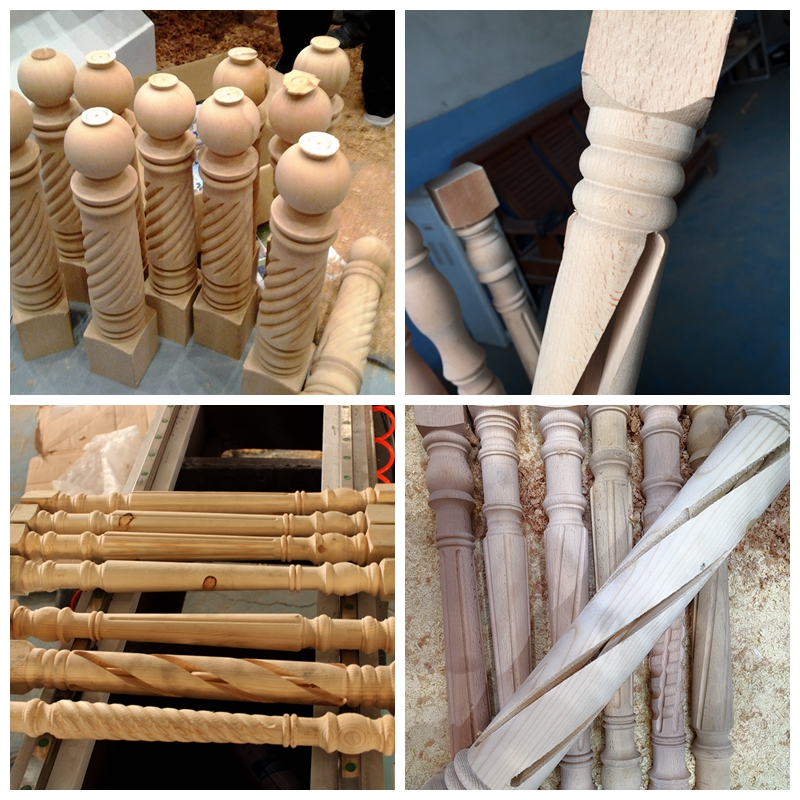

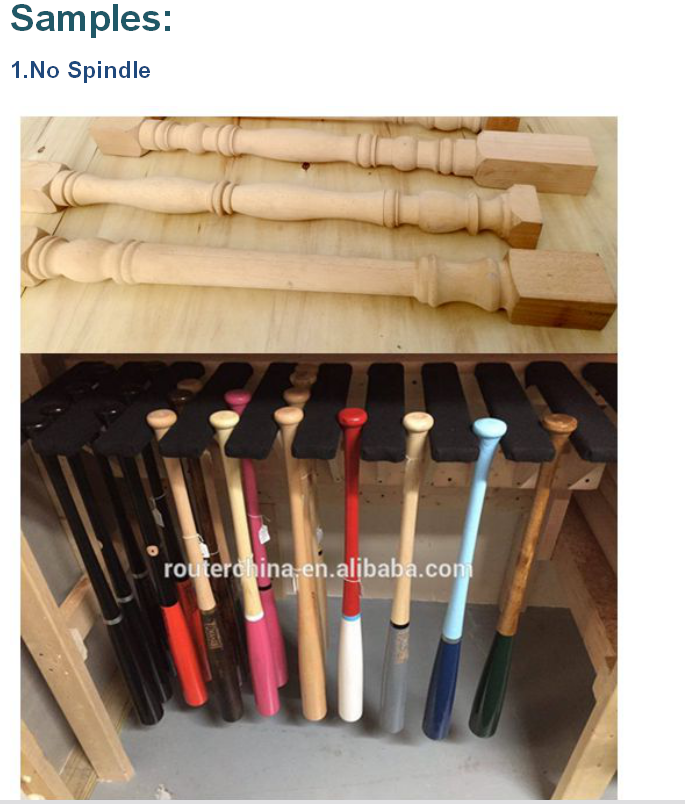

sample:
2. If your workpiece diameter is less than 160mm and you want to improve production efficiency, then you can choose this model:

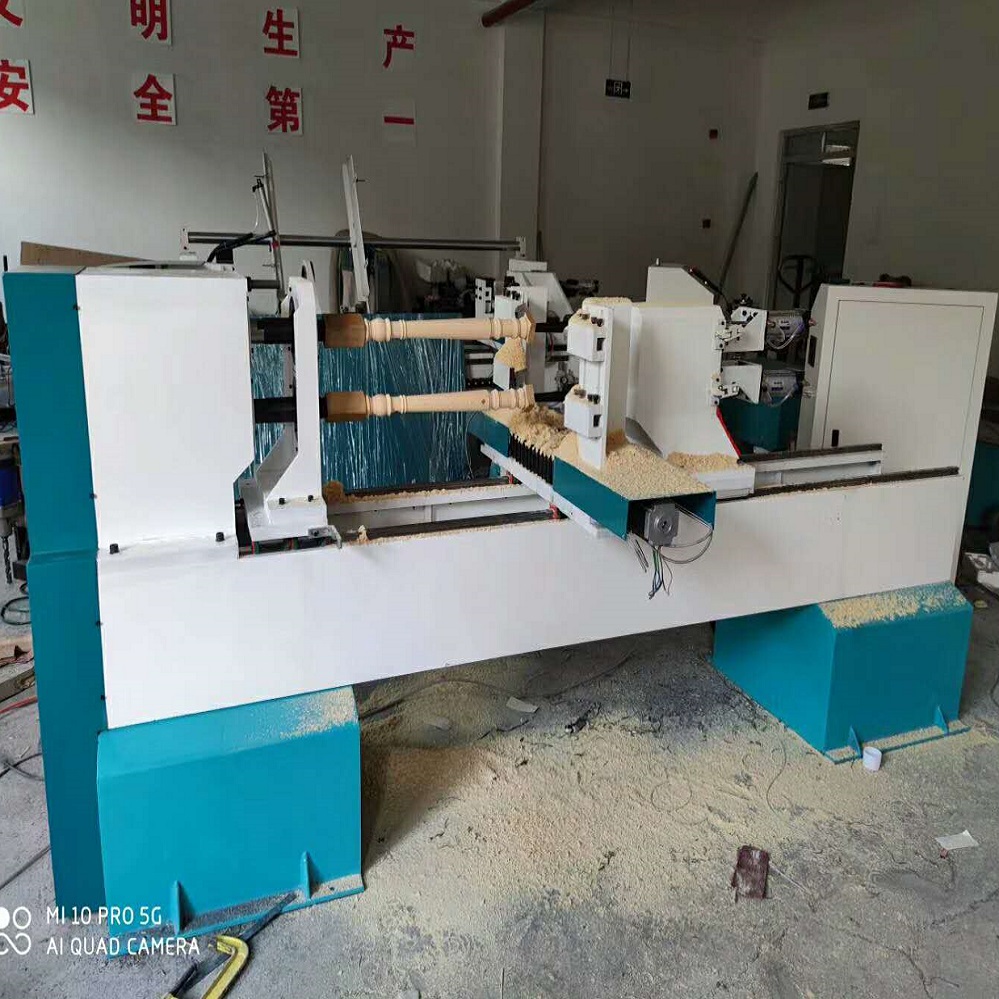

TJ-1516-2 Double-axis four-blade CNC lathe.
The maximum processing diameter is 160mm, and the maximum processing length is 1500mm. It is also mainly used for cornering. But two pieces of material can be processed at one time.

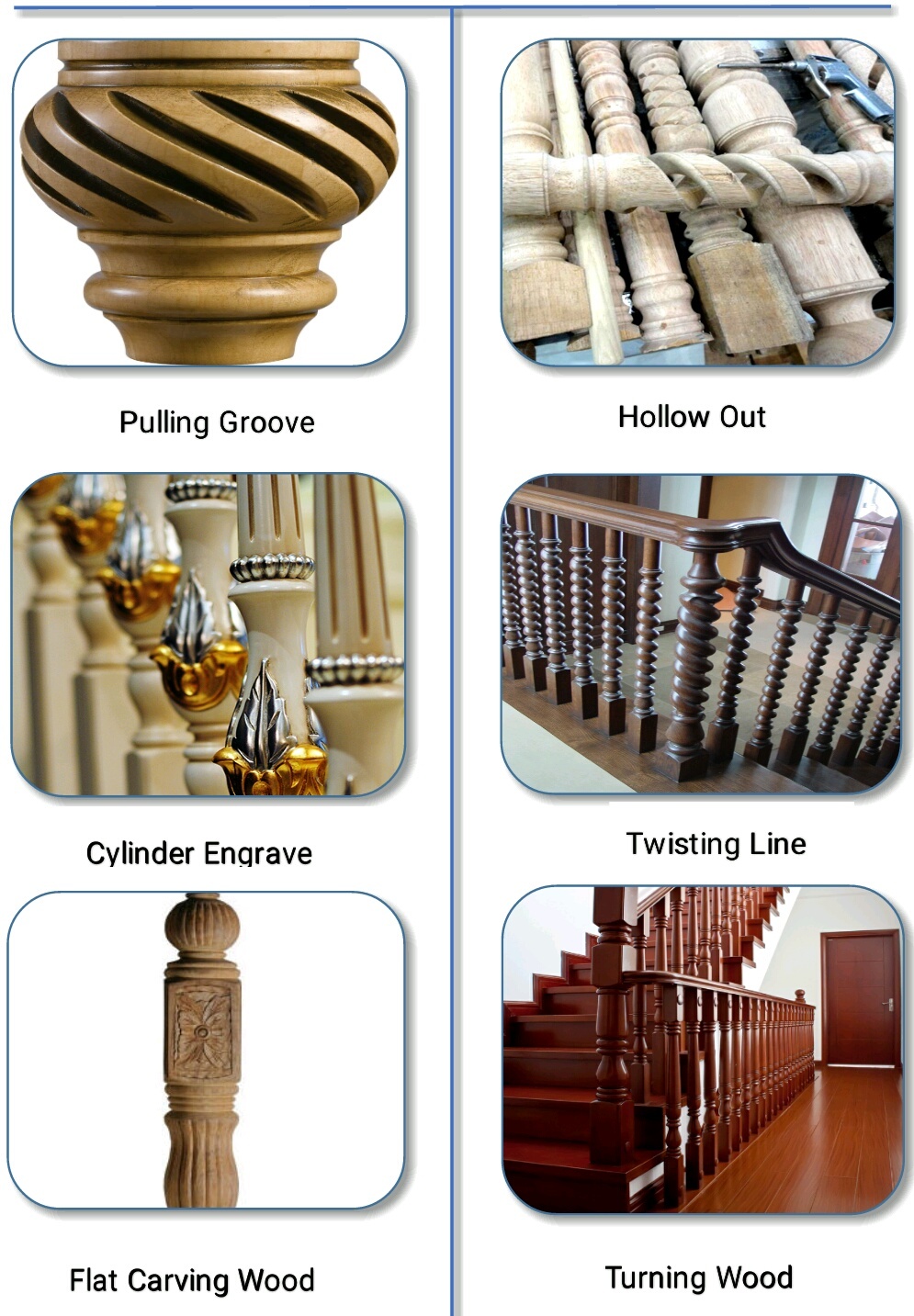

3. The above two models can only be turned, if you want to groove, twist or engrave, then we also have the following two models for you to choose:

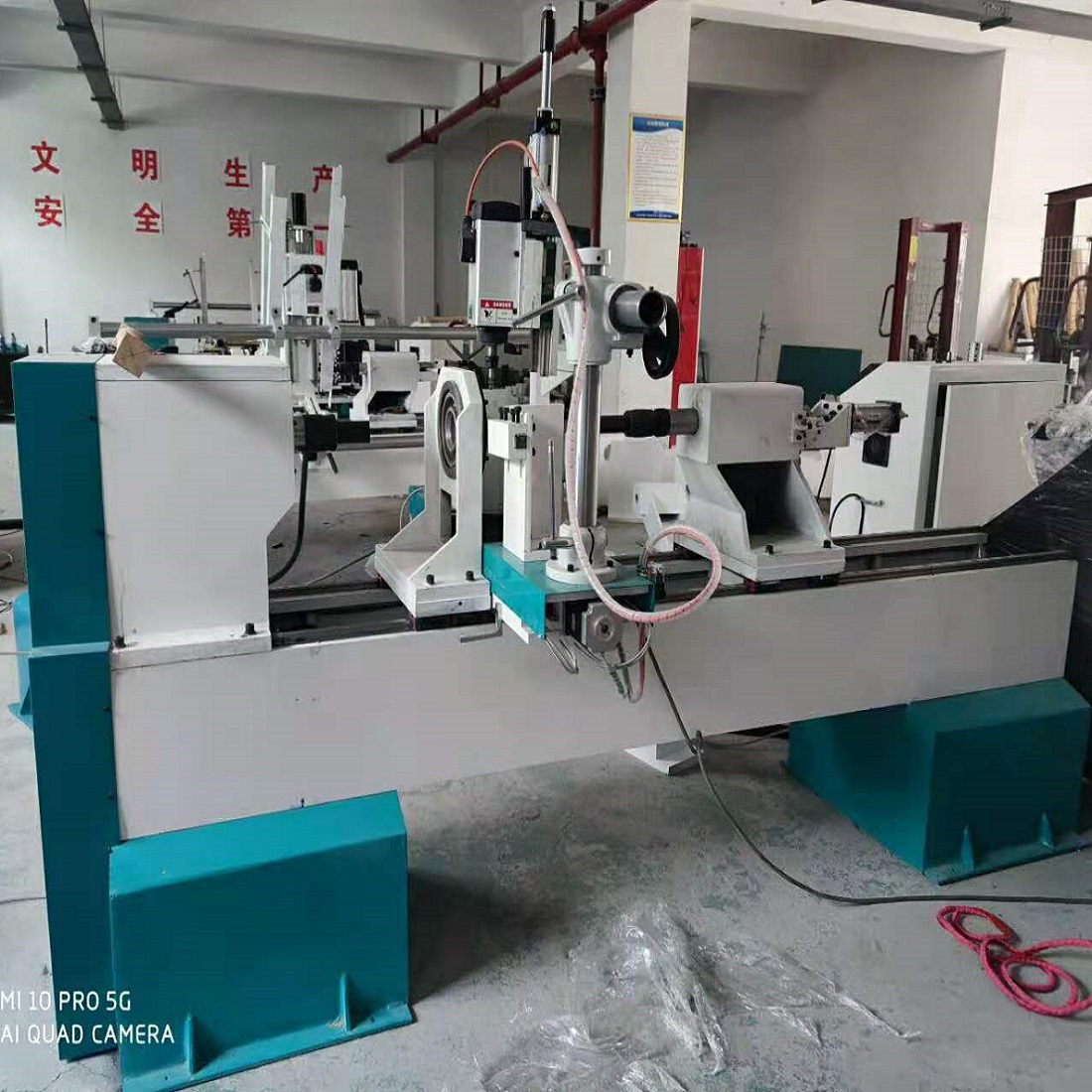

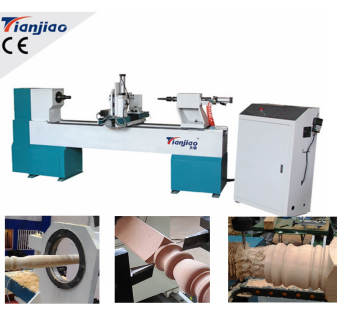

TJ-1530-S CNC woodworking lathe with spindle.
This is our TJ-1530-S CNC woodworking lathe, it can install 3-axis spindle and 4-axis spindle. A three-axis spindle can only engrave cylindrical materials, while a four-axis spindle can engrave square columns, just like a CNC router spindle.

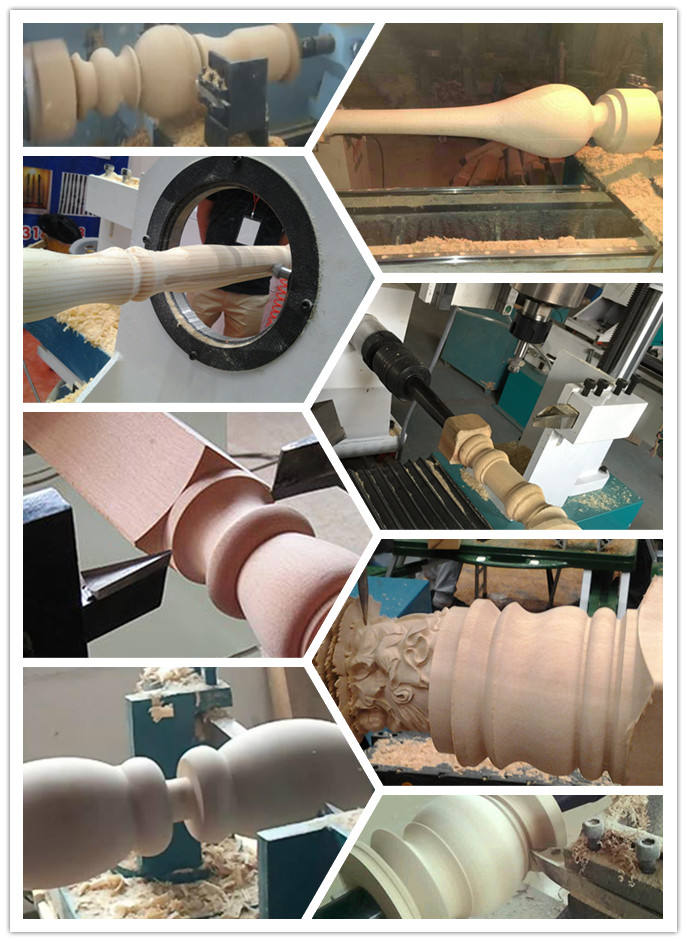

Sample CNC wood lathe with 3-axis spindle:
Sample CNC wood lathe with 4-axis spindle:
NC Wood profiling lathe
1.ApplicationsNC Wood profiling lathe
Wooden lathes are used for wood cutting. It can realize the turning of any rotor with the vertical axis and the horizontal axis, and can realize milling and engraving, ensuring the rotation stability of the processed product and high cutting efficiency. It is suitable for stair columns, curved circles, vases, table and chair legs, European furniture Roman columns, wooden hangers, washbasins, etc.; complex shapes such as cylinders, cones, curved, spherical and other complex shapes of rotating wood products or wooden semi-finished products.

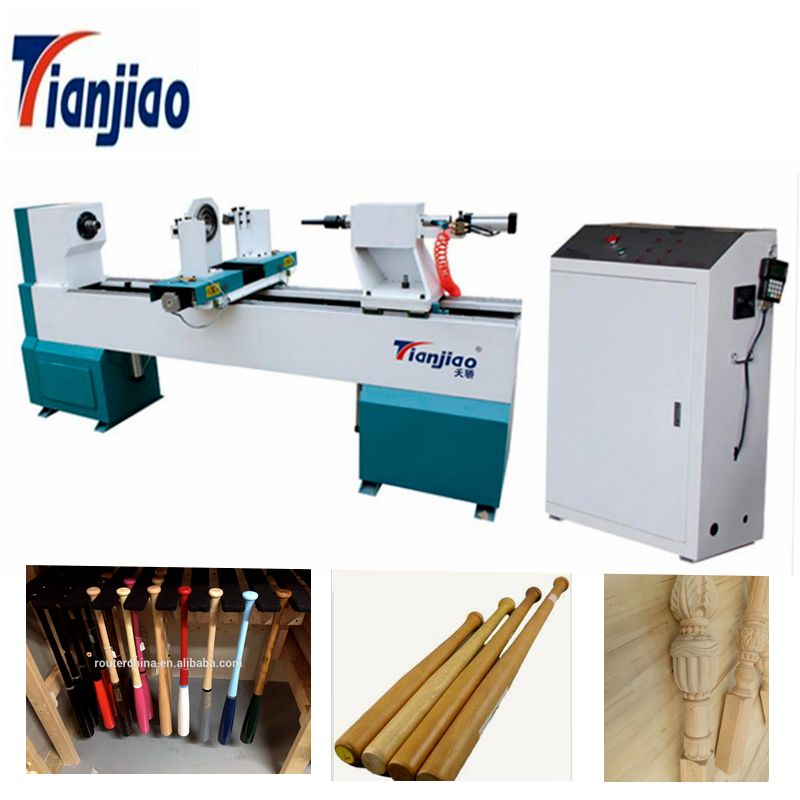

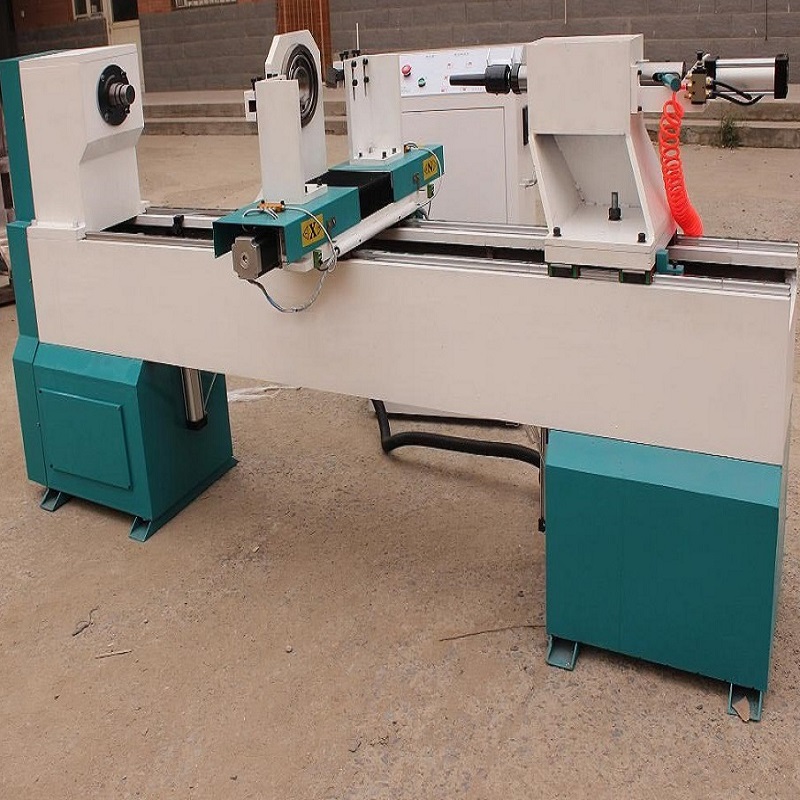

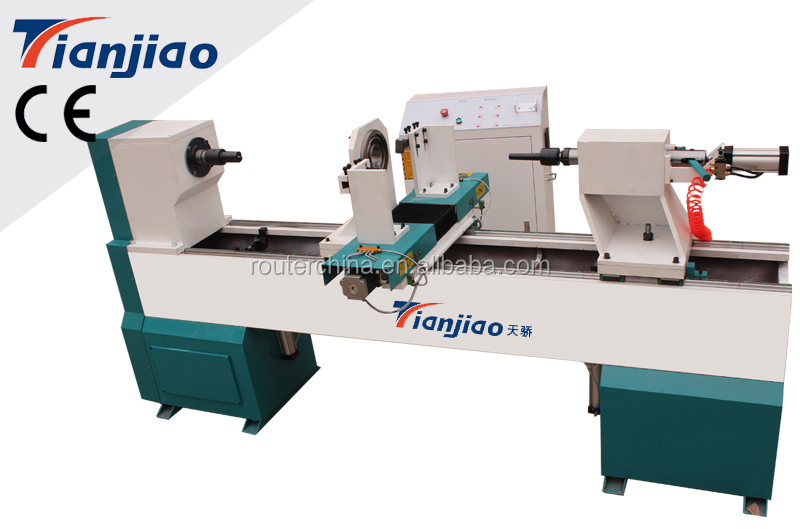

2. CNC W machine pictureood profiling lathe

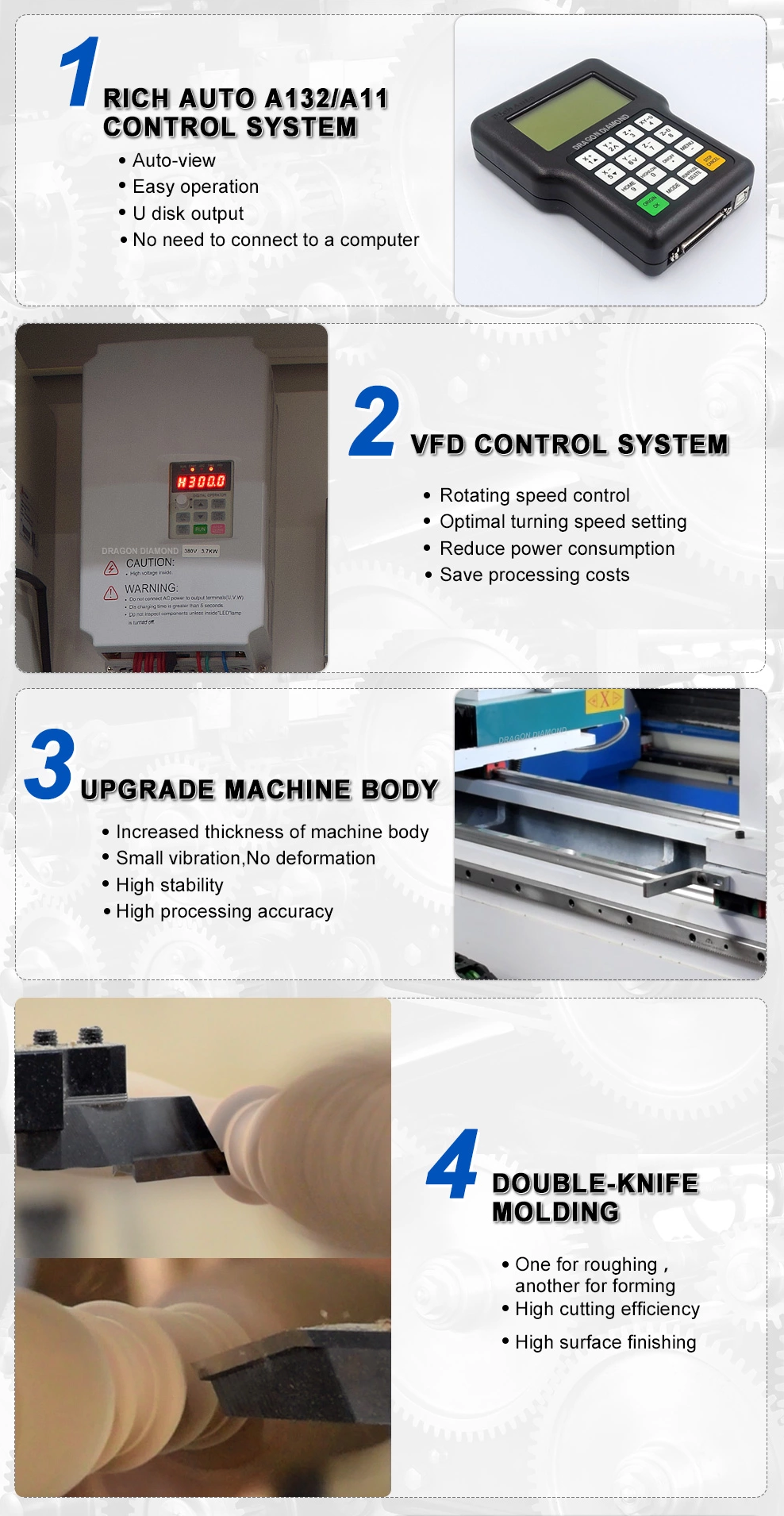

3. Features of CNC Wood profiling lathe
1. The maximum turning diameter is 300mm, and the length is 1500mm, 2000mm or 2500mm.
2. Integral cast iron bed, after high temperature annealing and vibration stress relief, stable and never deformed.
3. Adopt Taiwan TBI ball screw and Taiwan Shangyin square guide rail, with high precision and long service life.
4. High torque stepper motor and Yako driver ensure the wood turns quickly.
5. There are 2 tools on both sides of the machine tool (rough turning tool and fine turning tool work synchronously with layered processing), which improves work efficiency and workpiece surface quality. Simple operation, support CAD software, transfer .dxf files directly to the machine via USB.
4. CNC W parametersood profiling lathe
Model |
TJ1530 |
Maximum turning length |
1500mm |
Maximum turning diameter |
300mm |
Number of axes and blades |
Single shaft, 2 blades |
maximum feed rate |
200 cm/min |
Minimum setting unit |
0.01cm |
Spindle motor power |
4kW |
power supply |
AC380v/50hZ |
Dimensions |
300*100*150cm |
weight |
1600kg |
The whole machine will be completely wrapped with plastic wrap to avoid rusting during transportation, and then fixed on a sturdy iron steel pipe pallet with a wooden box for sea shipping.
inner packaging
· Cover the entire lathe with professional stretch film.
· Stretch film wrapping with foam protection at every corner.
Outer packaging
· Sandard exports wooden crates and crates.
· Save container loading space as much as possible.
transportation
· We support sea, air, ground and express.
Packaging Details
Outer packing: Standard sea export plywood box Inner packing: Stretch film and plastic film for humidity
PS: We can also pack according to your requirements.
ensure:
The whole machine is 12 months. Under normal use and maintenance, within 12 months, if there is a problem
With the machine, you will get spare parts for free. Within 12 months, you will get spare parts at cost.
You also get lifetime technical support and service.
technical support:
1. 24/7 phone, email or Skype technical support.
2, friendly English version of the manual and operation DVD.
3. Engineers can repair machinery overseas.
After-sale service:
Normal machines are properly adjusted before shipping. You will be able to use the machine as soon as you receive it.
In addition, you will be able to get free training advice on our machines at our factory. You will also get free advice and consultation, technical support and services by email/fax/telephone etc.
