March Expo 2021 Multifunctional automatic Double Axis wood copying lathe Turning Wooden Legs, Staircase, and Baseball Bat
- $5800.00 / 1 - 19 sets
$3500.00 / >=20 sets - 1 set
- Jinan Tianjiao Machinery Manufacture Co., Ltd.
- Shandong, China
- Ms Tian Jiao
| Application: | Wood Round Mould; | Video outgoing-inspection: | Provided; |
| control system: | DSP or Adtech; | Local Service Location: | UAE; |
| Showroom Location: | UAE; | Max. Length of Workpiece (mm): | 1500; |
| Max. Turned Length (mm): | 1500; | Warranty of core components: | 1 Year; |
| Key Selling Points: | High Rigidity; | Brand Name: | TianJiao; |
| Warranty: | 1 Year; | Machinery Test Report: | Provided; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Retail,Construction works ,Advertising Company; | Max. Swing Diameter (mm): | 300; |
| Max turning diameter: | 160-300mm; | Voltage: | AC380V/50Hz; |
| After Warranty Service: | Video technical support,Online support; | Marketing Type: | New Product 2020; |
| Core Components: | PLC,Engine,Motor; | Power(W): | 4kw; |
| Place of Origin: | Shandong China; | Keywords: | Wood Making Cnc Lathe Machine; |
| Max turning length: | 1500mm; | Dimension(L*W*H): | 300*100*150cm; |
| After-sales Service Provided: | Online support; | Power (kW): | 3.5 - 5.5; |
| Condition: | New; | Function: | Wood Turning+fluting+cylinder Engraving; |
| Motor: | Servo Motor; | Supply Ability: | 300 Set/Sets per Month; |
| color: | white and green; | Port: | QINGDAO; |
| Payment Terms: | L/C,Western Union,T/T,MoneyGram; | Packaging Detail: | fumigation-free wooden case; |
| Weight: | 1600kgs; | Certification: | CE; |
| Weight (KG): | 1500; | Package Preview: | ; |
March Expo 2021 Multifunctional automatic Double Axis wood copying lathe Turning Wooden Legs, Staircase, and Baseball Bat
CNC Wood Copying Lathe
1.Applications of CNC Wood Copying Lathe
Wood lathe machine is used for wood cutting. it can realize arbitrary rotor turning processing with coordination between the longitudinal axis and horizontal axis, then can realize milling, engraving, guarantee the processing product rotational stability, high cutting efficiency. Suitable for stair column, curved round, vase, table and chair legs, European furniture Roman column, wooden hangers, washbasin, etc.; cylindrical, conical, curved, spherical and other complex shapes of revolving wood products or wooden semi-finished products .

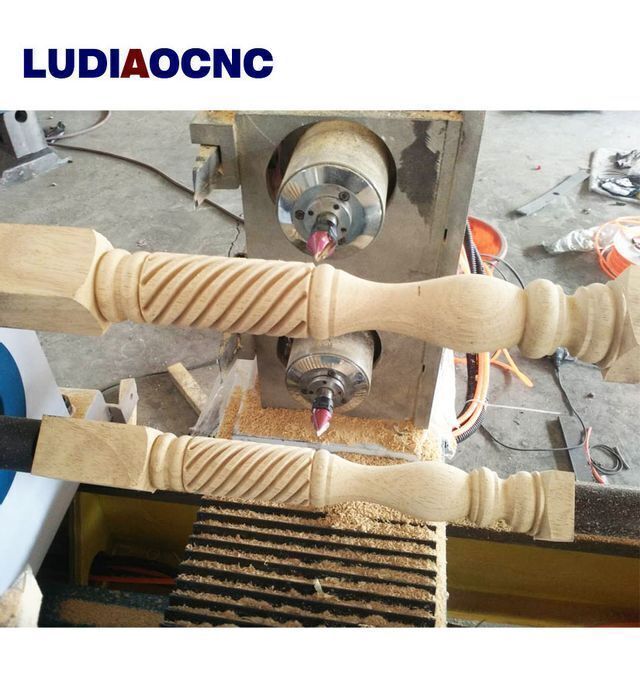

2.Machine picture of CNC Wood Copying Lathe
3.Features of CNC Wood Copying Lathe
1. Max turning diameter can be 300mm, length 1500mm, 2000mm or 2500mm.
2. Wholly cast iron lathe bed, which is high temperature annealing and vibrating stress relief, stabilized and will not be deformed forever.
3. Adopt Taiwan TBI ball screw and Taiwan Hiwin Square guide rail with high precision and long lifetime.
4. Big torque stepper motor and Yako driver guarantee wood turning with fast speed.
5. The Machine has 2 cutters at two sides of the machine, (the rough turning cutter and finish turning cutter work synchronously with layered process) and so that improve the efficiency and workpiece surface quality. Easy operation, support CAD software, transfer .dxf files to machine by USB directly.
4.Parameters of CNC Wood Copying Lathe
|
Model |
TJ1530 |
|
Max turning length |
1500mm |
|
Max turning diameter |
300mm |
|
Number of axis and blade |
single axis,2 blades |
|
Maximum feed rate |
200cm/min |
|
Minimum setting unit |
0.01cm |
|
Spindle motor power |
4kw |
|
Power supply |
AC380v/50hZ |
|
Overall dimensions |
300*100*150cm |
|
Weight |
1600kgs |
Whole machine will be totally wrapped with cling plastic to avoid rusting during shipping,then fastened on the stronger iron steel tube pallet with wooden box for sea shipment.
Inside Packing
· Use professional Stretch Film to cover the whole lathe.
· Stretch film package with foam protection in each corner.
Outside Packing
· Sandard export wooden cases and pylwood cases.
· Save space as much as possible for container loading.
Transport
· We support shipping, air, land and express.
Packaging details
outside package : standard marine export plywood caseInner package: stretch film and plastic film for humidity
PS: We can also make package according to your requests.
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong
with the machine, you will get spare part for free. Out of 12 months, you willget spare parts at cost price.
You will also get technical support and service all the lifetime.
Technical support:
1. Technical support by phone, email or Skype around the clock.
2. Friendly English version manual and operation video CD disk.
3. Engineer available to service machinery overseas.
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the machineimmediately after received machine.
Besides, you will be able to get free training advice towards our machine in our factory. You willalso get free suggestion and consultation, technical support and service by email/fax/tel etc
You can tell us the working piece material, size, and the request of machine function. We can
recommend the most suitable machine according to our experience.
Q2: This is the first time I buy the machine, is it easy to operate?
We can provide the operation manual or video for guiding. If it is hard for you learning, we can
also help you by “Team viewer”online, with telephone or Skype explain.
Q3: Can you customize the machine for me?
Yes, we provide customized solution, but considering the cost, we will recommend the
standard configuration to you first.
Q4: What is the guarantee? In case the machine break down?
The machine has 1 year guarantee, fail parts will be replaced for free if the machine under
“ normal operation”.
Q5: How about the documents after shipment?
We will send all the documents by air after shipment. Including packing list, commercial
invoice, B/L, and other certificates required by clients.
Q6: Delivery time?
For standard machine, it would be 7-10 working days; for non-standard machine, it would be
20 - 30 working days.
Q7: How is the payment?
Normally we accept T/T or L/C, if you like other terms, tell us in advance.
Q8: Do you arrange the shipment for me?
For FOB or CIF price, we will arrange shipment for you, for EXW price, you should arrange
the shipment by yourself.
Q9: How is the packing?
Step1: water proof wrapping film with foam protection in each corner.
Step2: Solid seaworthy wood box package with steel belt.
Step3: Save space as much as possible for container loading.
Why choose Tianjiao product?
1.Tianjiao product is widely used in almost all the materials which you can think of.
2.Tianjiao Company is specialized in cnc router and cnc lathe machine manufacturing and selling.
There is no middle man and no agent, so the price is moderate.
3.Tianjiao machine with high precision and high reputation is the most reliable goods you can choose
4.Tianjiao Company has all kinds machines in store, the delivery time is much shorter than other
companies.
5.Tianjiao Company has international tech service office and provides 24 hours online service and tech
support for customers.
