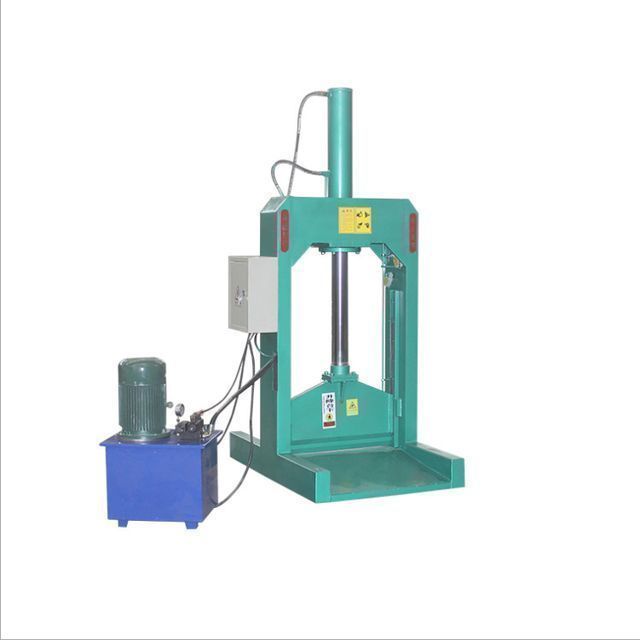

Hydraulic Knife for Rubber Bundle Shearing Machine for Rubber Processing
- $1500.00 /set
- 1 set
- Luohe Tengao Mechanical And Electrical Equipment Co., Ltd.
- Hunan, China
- Ms Yoyo Tian
PRODUCT DETAIL
| Power (kW): | 5.5kW | Supply capacity: | 100 sets per month |
| Glue cutting travel time: | 10-20 seconds | Packaging Details: | Plywood case; standard export package |
| type: | hydraulic | Core components: | motor, other |
| Cutting force (T): | 30 tons | Packaging Preview: | |
| Tool: | Monopolar | Warranty: | 1 year |
| brand: | Ascend | Cutting stroke (mm): | 700 |
| product name: | Hydraulic rubber tapping machine | model: | XQ-660 |
| Applicable industries: | Manufacturing, Farms, Energy and Mining | Voltage: | 220V/380V |
| Showroom location: | not any | Main selling point: | easy to operate |
| preset pressure: | 12T-40T | Cutting width: | 660mm |
| Video external inspection: | if | Core Components Warranty: | 1 year |
| Health status: | new | Energy source: | hydraulic |
| Working pressure: | 30Mpa | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,AliPay |
| Weight (kg): | 600kg | place of origin; place of origin: | Henan, China |
| Mechanical test report: | Not available | Marketing Type: | New Products 2020 |
| After Warranty Service: | Video technical support | Rubber Cutting Force: | 30KN |
| port: | Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou, etc. | style: | vertical |
| Dimensions (L*W*H): | 1100*1300*2300mm |
Product Description
Hydraulic Knife for Rubber Bundle Shearing Machine for Rubber Processing
This machine is mainly suitable for cutting natural rubber, synthetic rubber and other plastic materials. especially
Suitable for installing and cutting small rubber materials next to the mixer.
This machine is mainly composed of glue cutting machine, frame, working cylinder, base, auxiliary workbench, hydraulic
systems and electrical systems. The blade of a rubber knife.
When cutting raw rubber, put the rubber under the tapping knife manually, then press the start button, the rubber
The cutting knife is driven by the piston rod to cut the rubber along the slider on the rack.
The frame is equipped with upper and lower limit switches to control the reversing valve to change the direction of movement
Cutter, while also protecting the cylinder head.
Suitable for installing and cutting small rubber materials next to the mixer.
This machine is mainly composed of glue cutting machine, frame, working cylinder, base, auxiliary workbench, hydraulic
systems and electrical systems. The blade of a rubber knife.
When cutting raw rubber, put the rubber under the tapping knife manually, then press the start button, the rubber
The cutting knife is driven by the piston rod to cut the rubber along the slider on the rack.
The frame is equipped with upper and lower limit switches to control the reversing valve to change the direction of movement
Cutter, while also protecting the cylinder head.

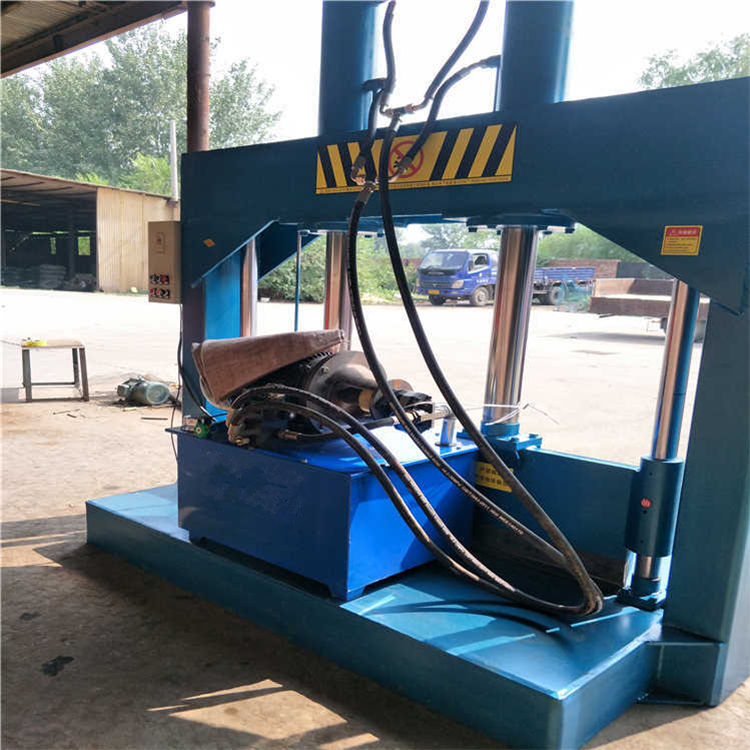

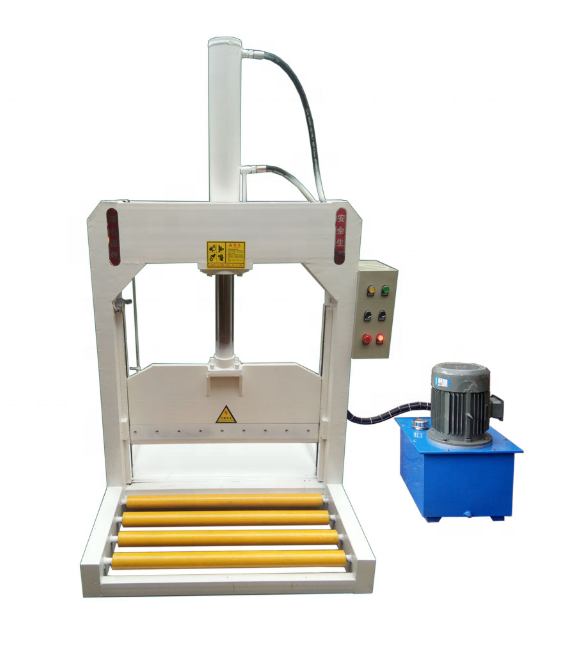

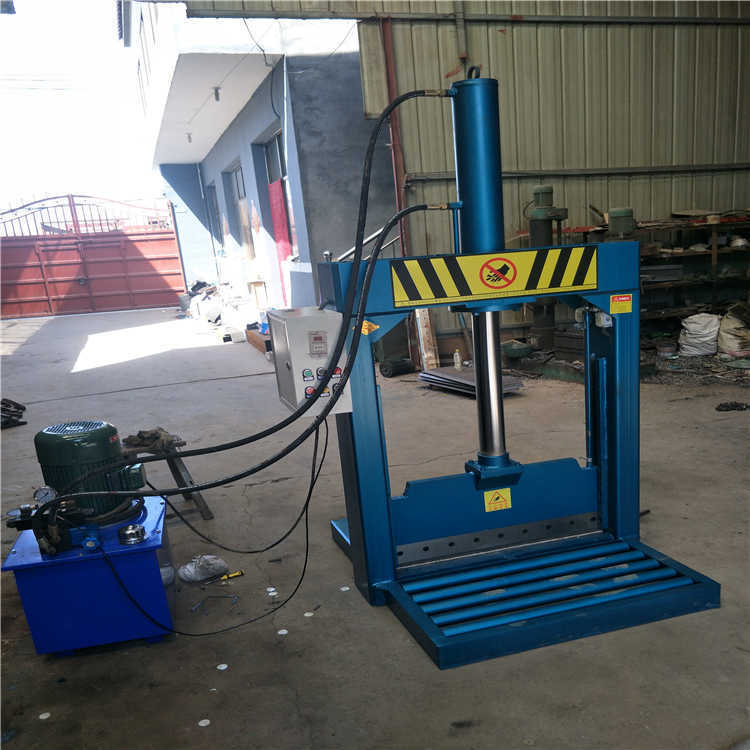

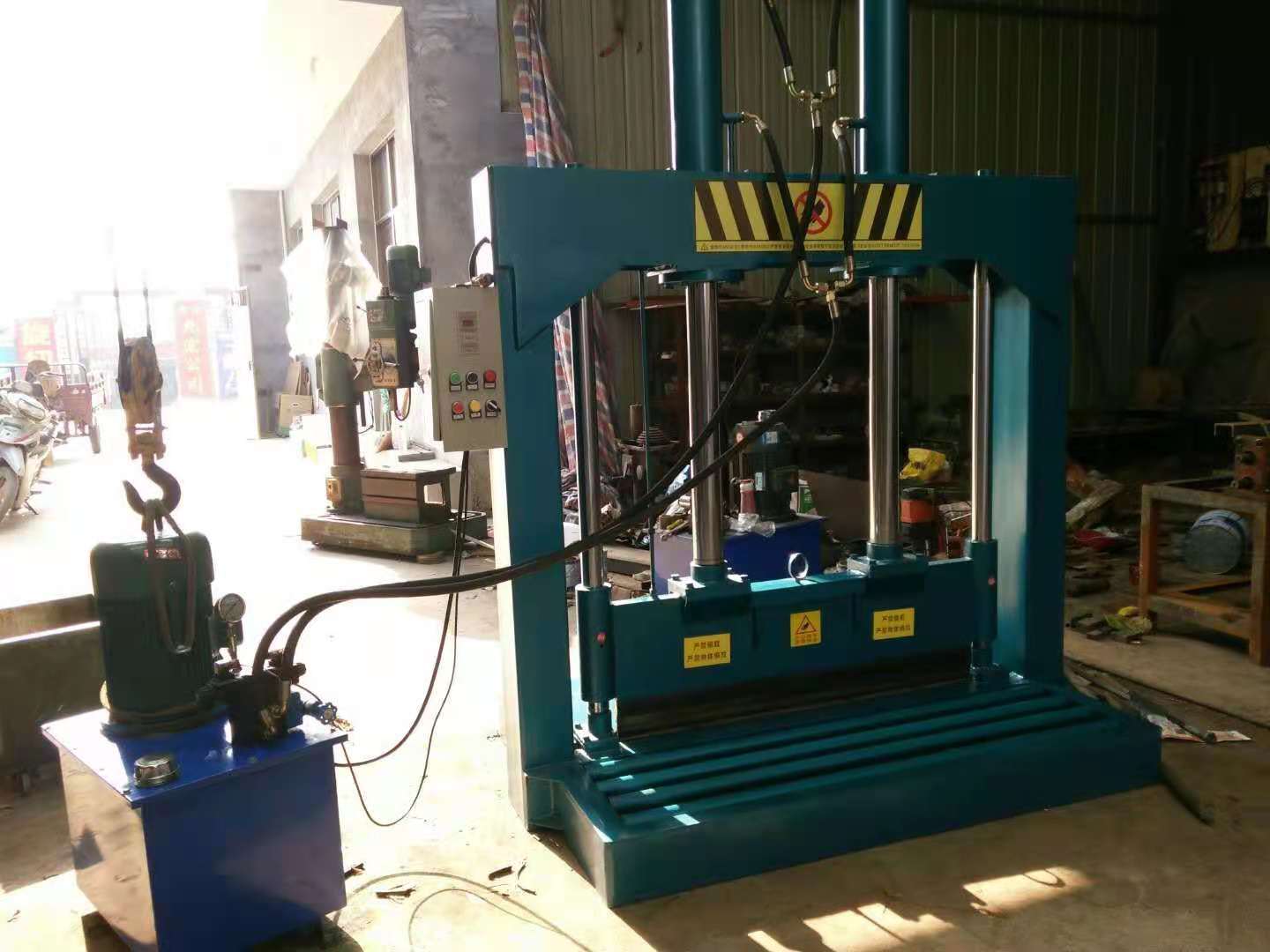

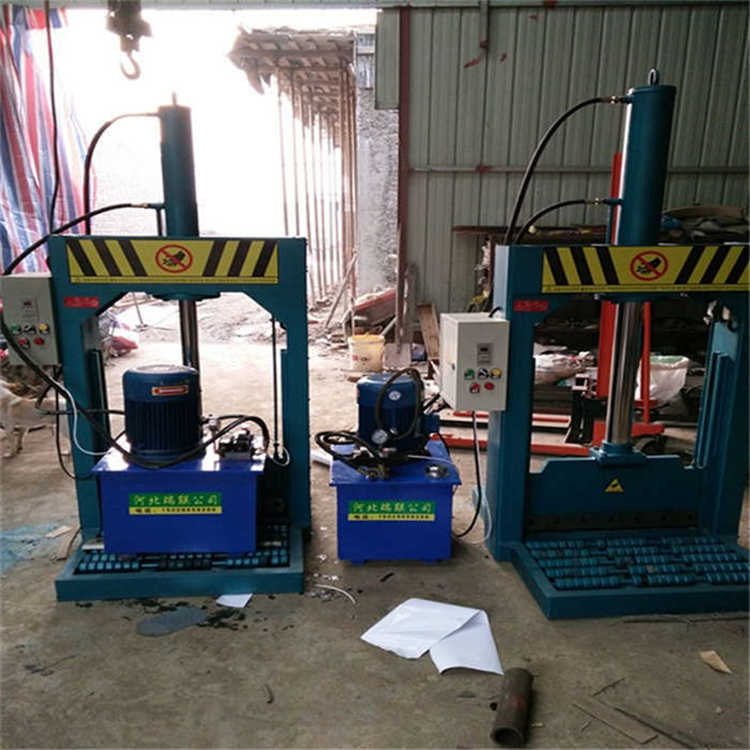

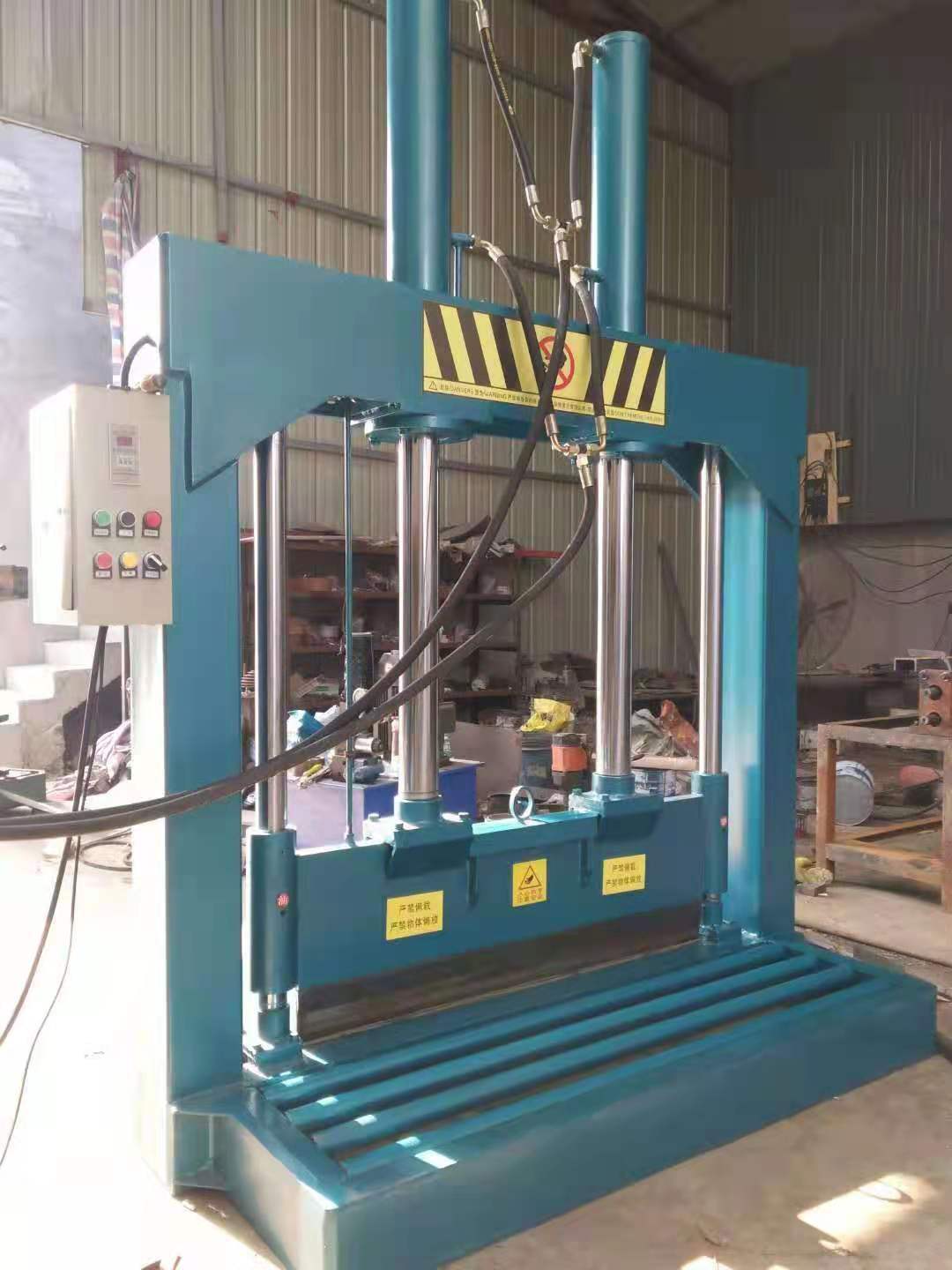

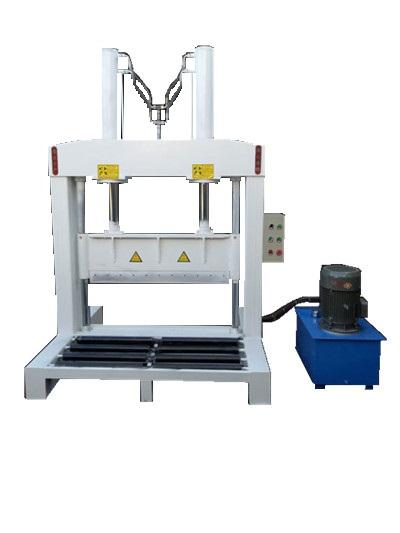

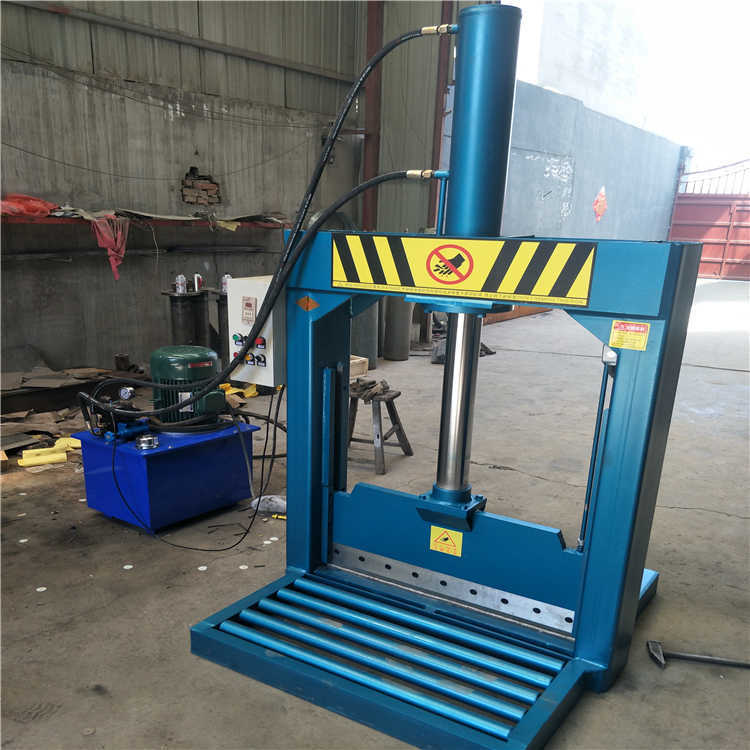

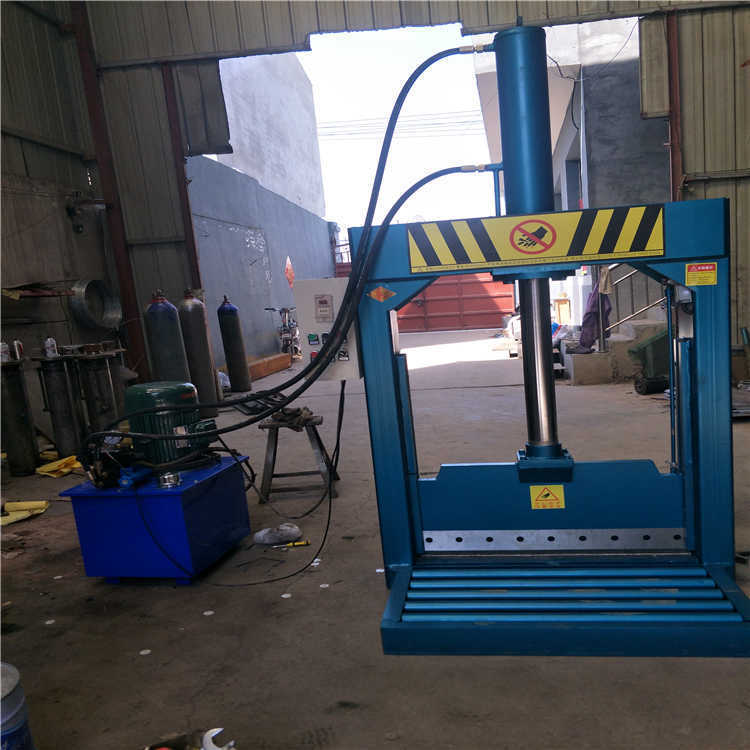

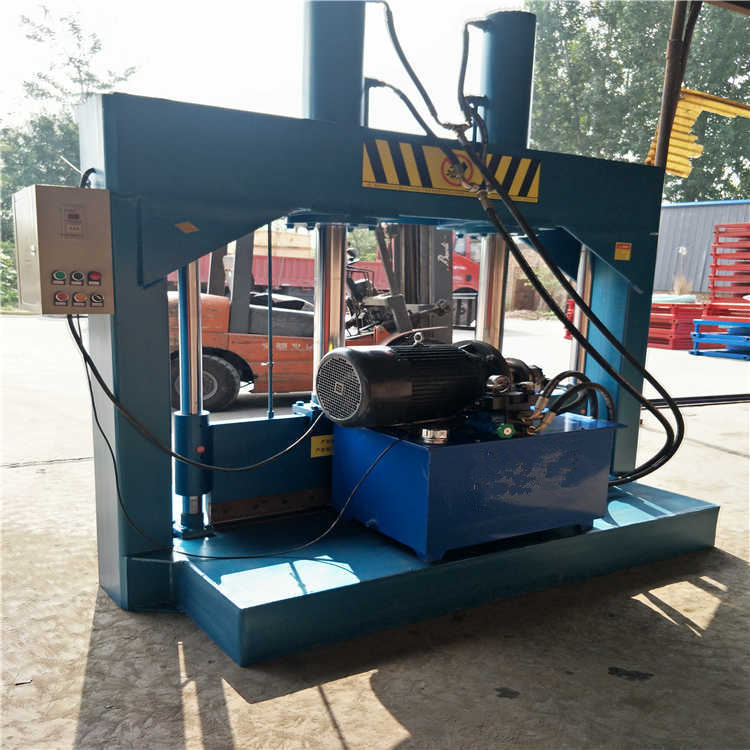

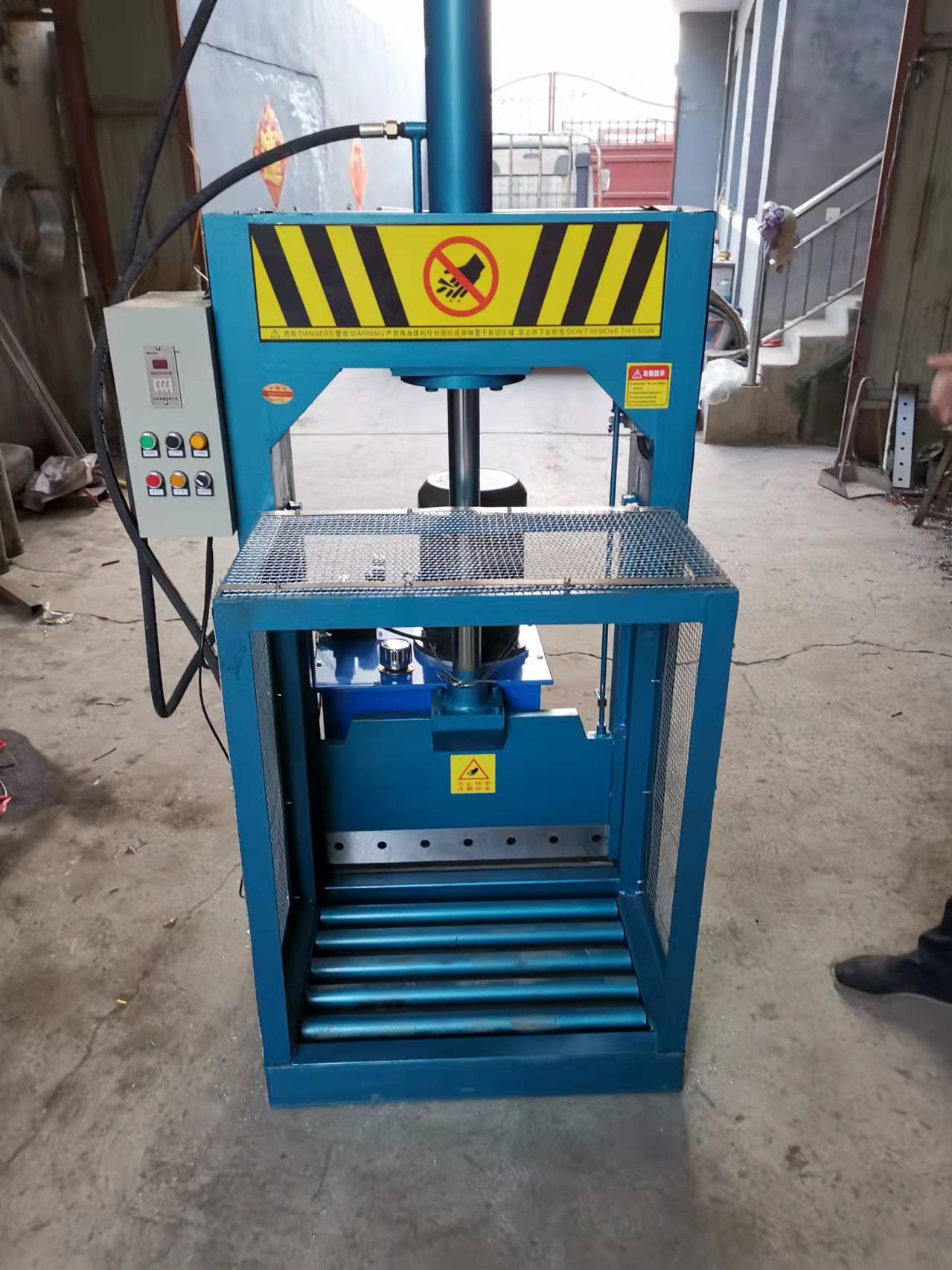

detailed picture
product name | Hydraulic Rubber Cutting Machine | ||||
Model | YE660 | YE800 | YE1000 | ||
Blade width | 660mm | 800mm | 1000mm | ||
height travel | 600mm | 600mm | 600mm | ||
pressure | 30T | 35T | 40T | ||
Wheel height from the ground | 200mm | 200mm | 200mm | ||
Shear rate | 10 times/min | 10 times/min | 10 times/min | ||
Motor Power | 5.5kw, three-phase | 7.5kw, three-phase | 11kw, three-phase | ||
Voltage | 380V/50 60HZ | 380V/50 60HZ | 380V/50 60HZ | ||
aspect | 1100*900*1200mm | 1100*1050*1200mm | 1100*1250*1200mm | ||
weight | 600kg | 800kg | 1000kg | ||
control method | automatic | automatic | automatic | ||
