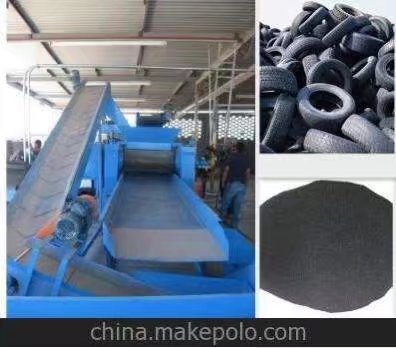

Rubber cutting machine/rubber powder machine/tire powder production
- 1 piece
- Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.
- Shandong, China
- Mr daguang qiu

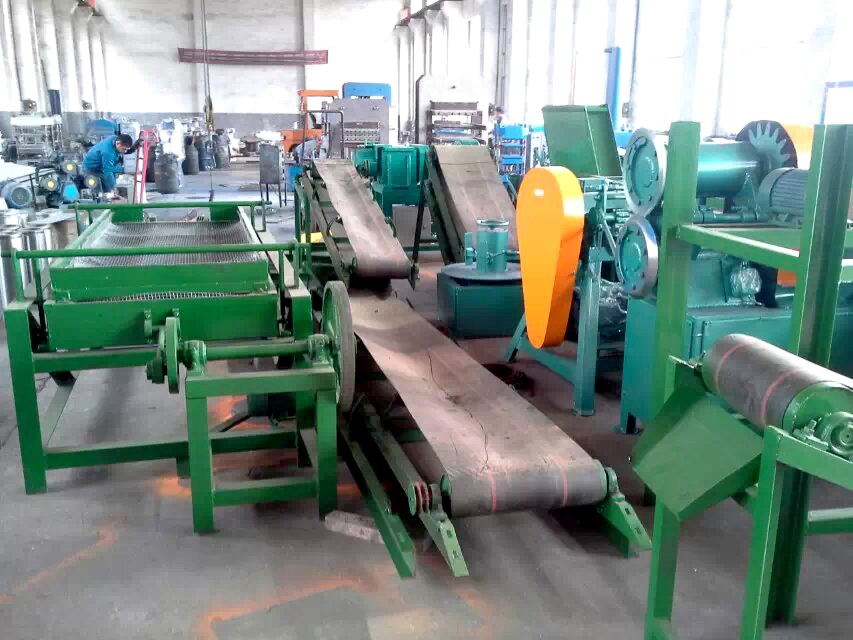

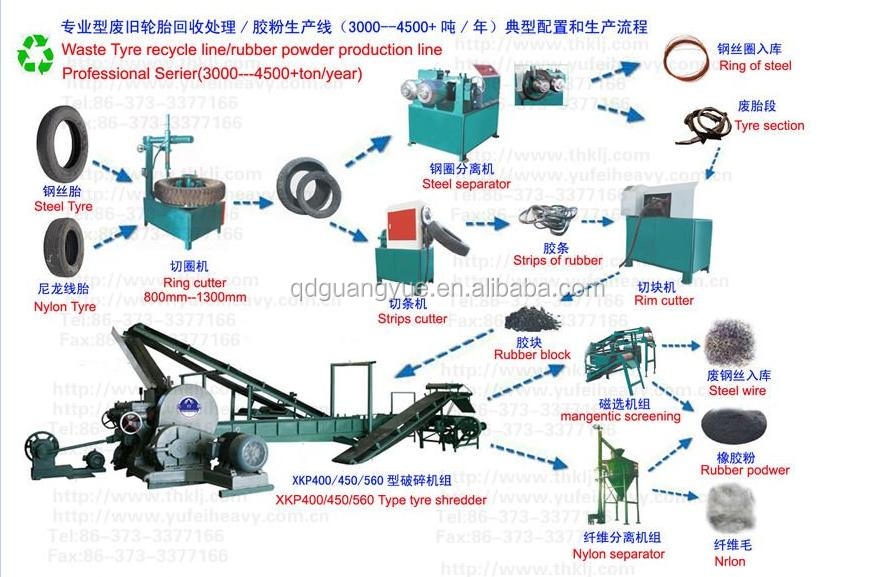

Rubber cutting machine/rubber powder making machine/rubber powder production line
Application of tire rereader
They are used to recycle tires to make rubber powder

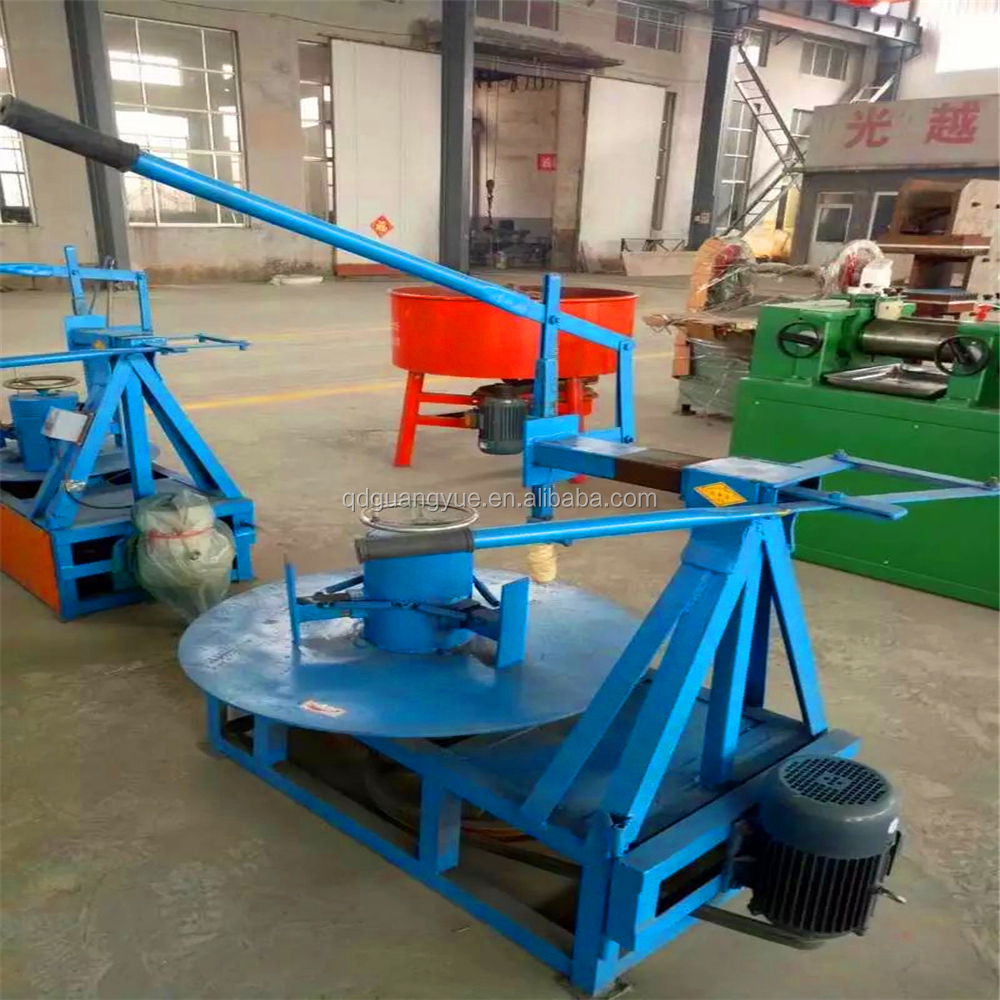

1-1. Circular incision
|
thing |
Specification |
|
Motor power |
5.5 |
|
Speed of main screw |
46.8 r/min |
|
Maximum diameter of tire |
1200mm |
|
aspect |
1100*900*1700mm |
|
Purpose: Cut the steel ring from the tire
|
|

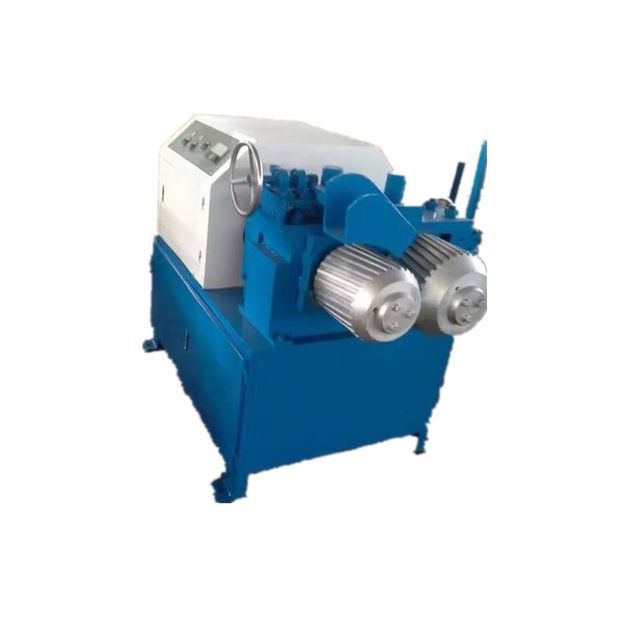

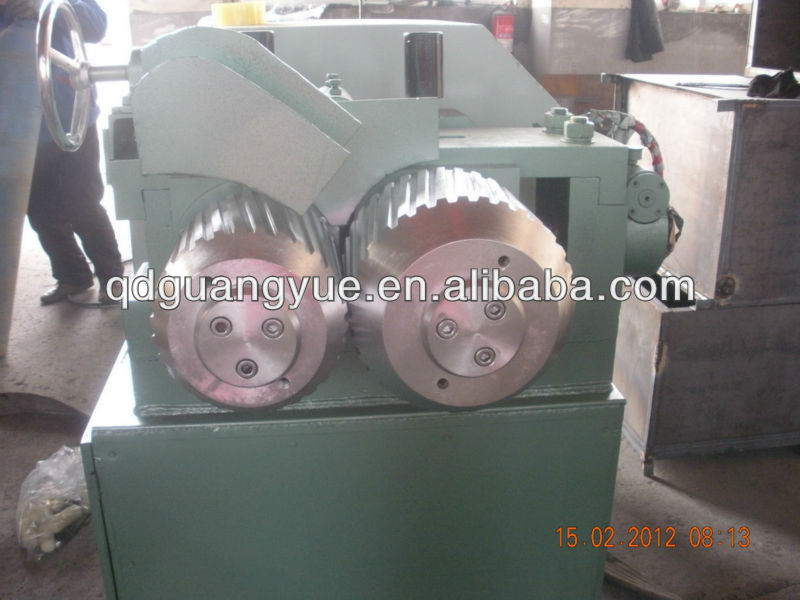

1-2. Ring machine
|
thing |
Specification |
|
Motor power |
15 kW |
|
Linear velocity of front roller |
15.5 m/min |
|
Speed ratio |
1.1 |
|
aspect |
1520*1150*12101mm |
|
Purpose: After one step, separate the steel ring from the rubber. |
|

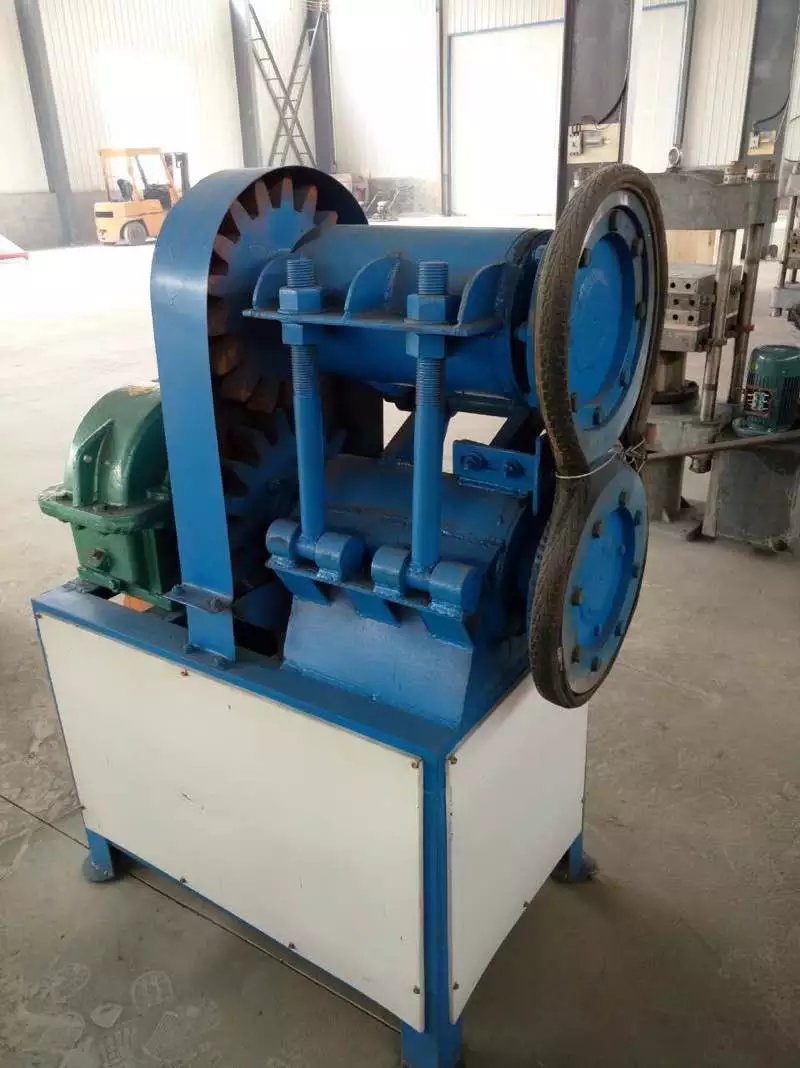

1-3. Strip Cutter
|
thing |
scope |
|
Motor power |
5.5kw |
|
Disc diameter |
380mm |
|
Rotation speed |
18.4r/min |
|
aspect |
1290*870*1550 |
|
Purpose: Cut old tire inserts
|
|
1-4. Block Cutter
|
thing |
Specification |
|
Motor power |
11kw |
|
Speed of main screw |
420 R/min |
|
Diameter of the cutting knife |
200mm |
|
aspect |
1130*830*1100 |
|
Purpose: Cut the strips into pieces |
|

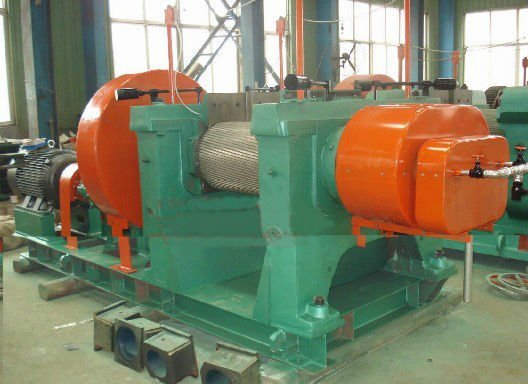

1-5. tyre crusher
Purpose:
Crush the rubber pieces into rubber powder and granules.
|
thing |
XKP-560 |
|
Front roll diameter (mm) |
560 (smooth) |
|
Rear coil diameter (MM) |
510 (grooves) |
|
Working length (mm) |
800 |
|
Linear velocity of the front roll (m/min) |
25.56 |
|
ratio |
1:1.30 |
|
Maximum gap (mm) |
15 |
|
Capacity (kg/h) |
600-800 |
|
Motor (KW) |
75 |
|
Dimension (L*W*H) (mm) |
5064*2284*1978 |
|
Weight (kg) |
18000 |

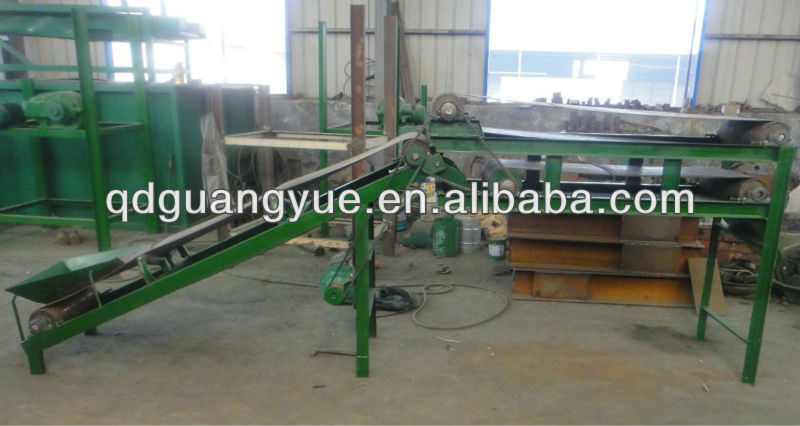

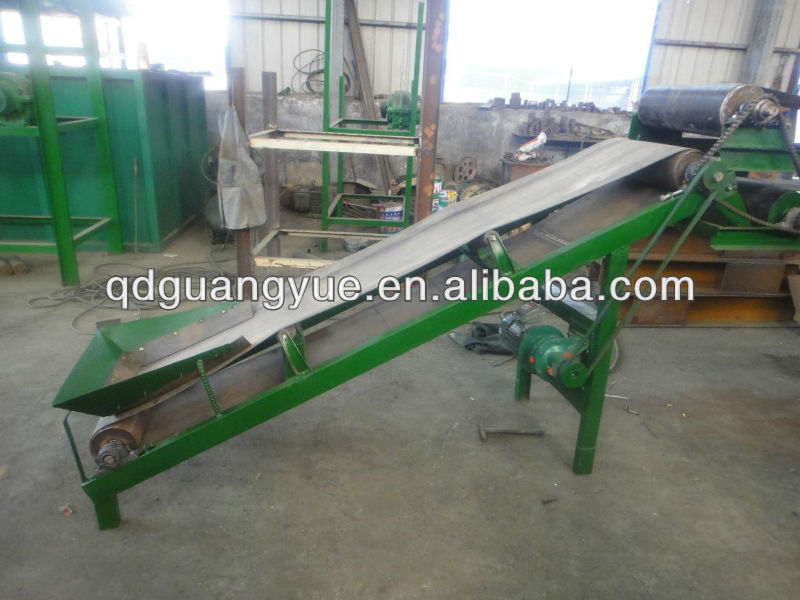

1-6.-big conveying equipment
Motor power: 2.2kW
Conveyor length: 8000mm
Belt width: 550mm
Speed: 40m/min
Transport the rubber blocks to the crusher.
1-7. Small conveying equipment
Motor power: 1.1kW
Conveyor length: 3M
Belt width: 400mm
Speed: 30m/min
1-8. Magnet separator
Motor power: 1.1kW
Belt width: 400mm
Speed: 30m/min
Purpose: Separate the steel pieces from the rubber powder.
1-9
Motor power: 1.1kW
Belt width: 400mm
Speed: 30m/min

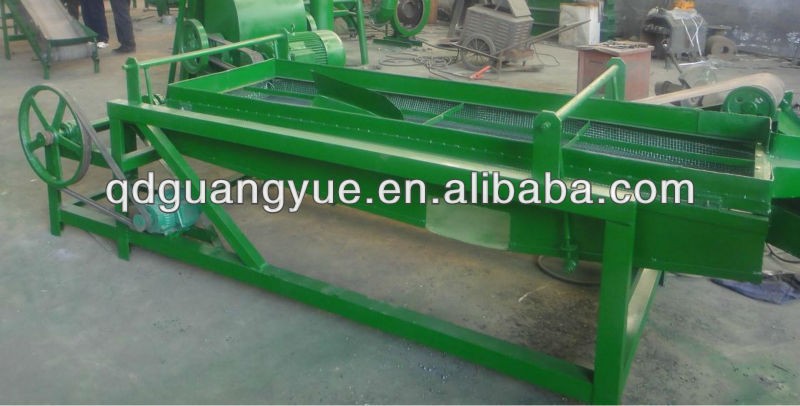

1-10. Shake the screen
Working length: 6000mm
Working width: 1000mm
Motor power: 7.5kW
Size: 7800*1250*600mm
Purpose:
(1) Separate the rubber particles from the powder, fix the particles to the crusher, and then send the powder to the magnet separator through a small conveyor belt.
(2) Separate the textile thread from the rubber powder
1-11.Small shake screen
Working length: 3000mm
Working width: 1500mm
Motor power: 3kW
1. Special manufacturers with professional production team and technical support
The senior sales team communicates with customers face to face via email, phone number.
2. Provide customers with professional explanations about the machine (technology, application, usage guide, etc.)
Best post-sales -- Follow the entire production situation, provide photos of the machines loaded into the container, tracking the customer's operations and usage when any problems occur.
3. Reasonable price
4. Comfortable cooked food time
5. More than 30 years of export capacity experience
