Rubber grinder made in China

Price:$6000.00 / 1 - 1 sets
$5800.00 / >=2 sets
Min. Order:1 set
Supplier:Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.
Region:Shandong, China
Contact:Mr daguang qiu

PRODUCT DETAIL

Packaging details:	Bulk in 20/40ft containers or as per your needs	port:	Qingdao
Dimensions (lengthwidthheight):	435018501780mm	Video outbound inspection:	if
Roller bearing:	Dry grease lubrication/thin oil lubrication	Supply capacity:	30 sets of discussions per month
seat:	Cast or weld	Drum diameter:	450mm
color:	based on customer's needs	Post-warranty service:	On-site maintenance
Three types of shrubs:	Nylon bushing/copper bushing/ball bearing	Showroom location:	Morocco, Argentina, South Korea, Chile, United Arab Emirates, Algeria, Kazakhstan, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia, Turkey, United Kingdom, United States, Italy, France, Vietnam, Philippines, Saudi Arabia, Indonesia, Russia ,Thailand
Main selling points:	High security level	Core components:	PLC, engine, bearing, motor, pressure vessel, gear
Place of origin:	Shandong Province, China	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machine Repair Shops, Household Use, Retail, Food Stores, Print Shops, Construction Engineering, Energy and Mining, Food and Beverage Stores, Others, Advertising Agencies
history:	More than 30 years of expertise	Certification:	ISO9001:2008/CE/S.GS
Core component warranty:	3 years	payment terms:	Letter of credit, wire transfer
Weight (kg):	4000kg	Health status:	new
After-sales service provided:	Overseas service machinery	Roll length (mm):	1800mm
Year:	Products after order	Warranty:	2 years
Rolls-Royce:	Chilled cast iron roller	Roll diameter (mm):	450mm
Mechanical test report:	if	Voltage:	220v/380v/440v/460v according to customer requirements
brand:	Kozuki

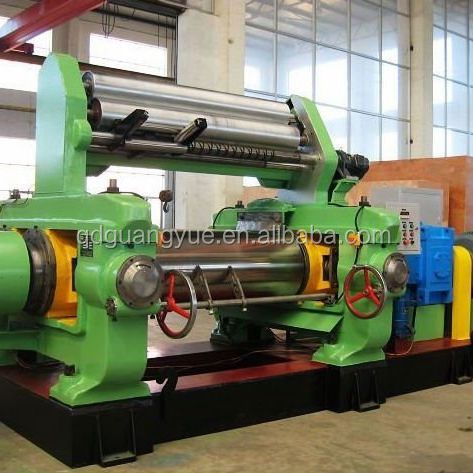

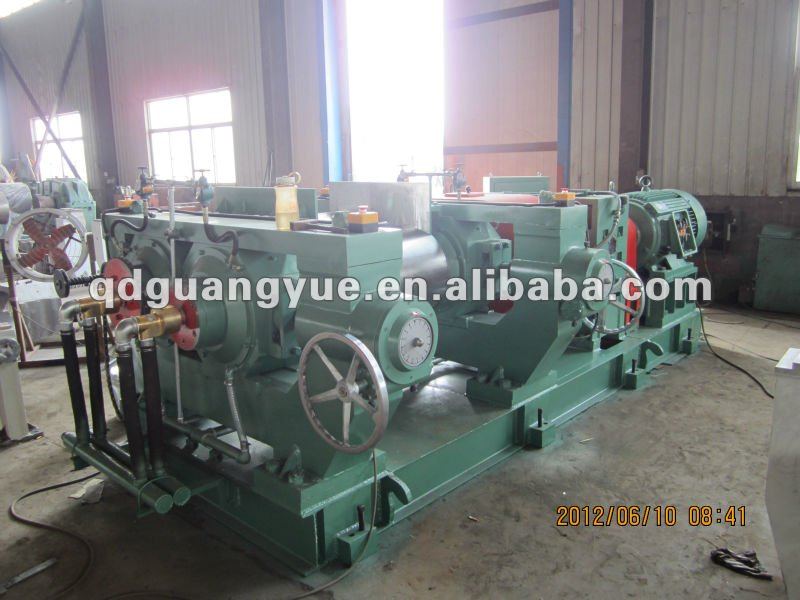

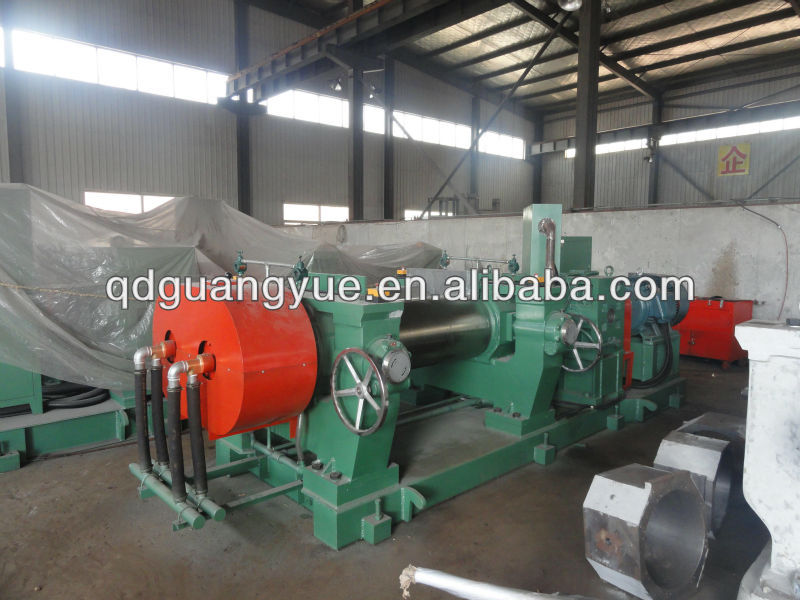

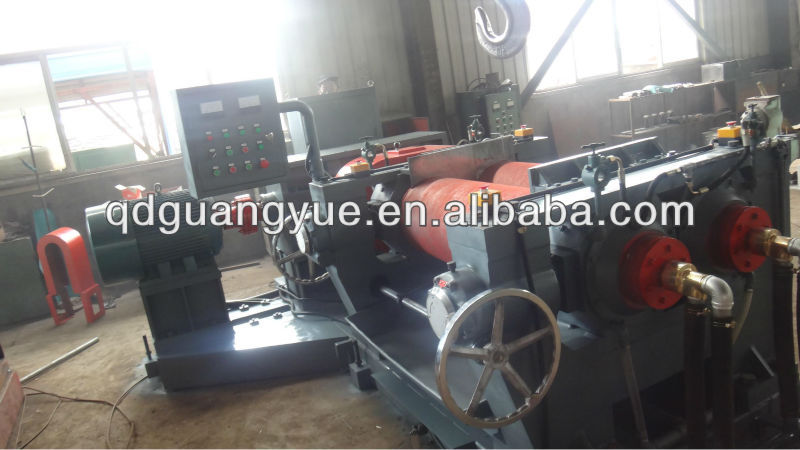

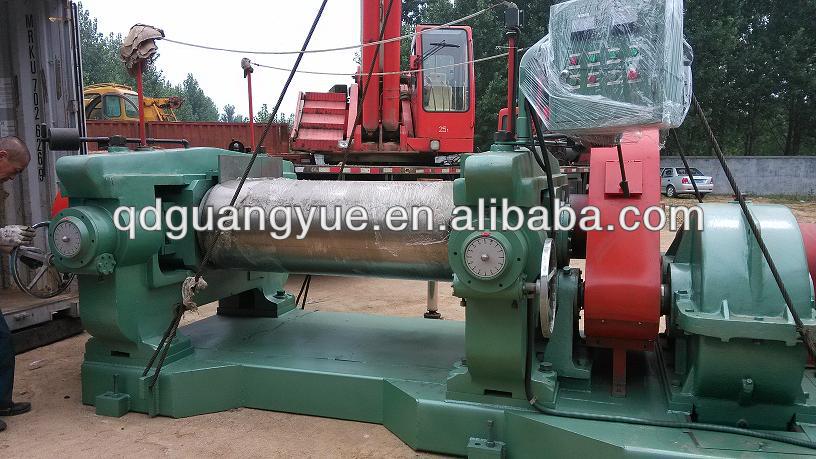

rubber mill With CE, SGS, ISO
Alias: Rubber mixing machine. Open rubber mixing mill, open rubber mixing mill, rubber open mixing mill, two-roller rubber open mixing mill, Two-roller open mill.
1. Certification:watte hasISO9001:2008, SGS, CEQuality standards and provide various certifications as per customer requirements Requirements: Such as CO, CIQ, SASO, etc.
2. Main features:
(1) Roll material: cast iron alloy (LTG-H), quenched and precision machined, hardness HS 75. (2) Bearings: double row rolling bearings, reducing energy consumption by 30%. (3)Roll gap adjustment: electric automatic or manual (4) Voltage: variable frequency speed regulating motor (5) Reducer: airtight oil-immersed type, ZSYE reducer (there are many options: hard tooth surface, gear reducer. The price is different), virtually noiseless, safe

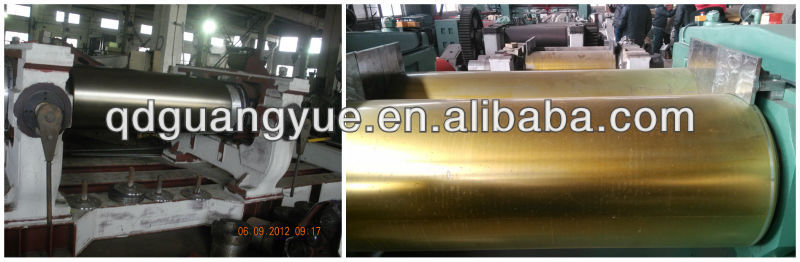

3. Coil material:
The roller is made of cast iron alloy (LTGH),its surfaceyes75HS, back Quenching andPrecision Machiningit is better than Other companies, (usually 72HS). The working surface is well ground and machined. tSmooth surface, uniform temperature, high hardnessandlong lasting.

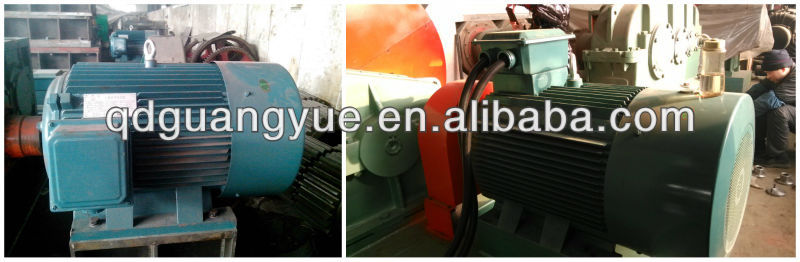

4. Motor:
We have always used electrical components from Omron, Siemens and other brands, and you can also choose ordinary brands. All motors are high quality and High efficiency, energy saving, low noise and small vibration

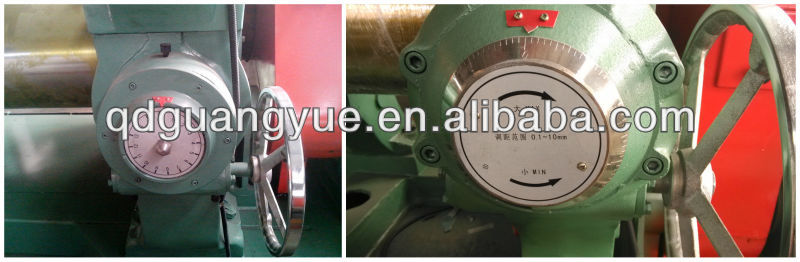

5. Roll gap adjustment:
The roller gap adjustment is realized manually or electrically, with high precision and sensitivity.

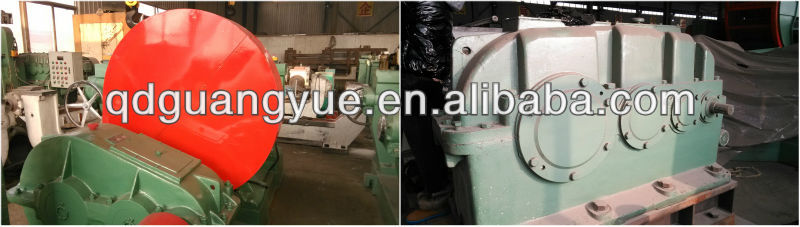

6. Reducer:
The reducer has a hard tooth surface, level 6 accuracy, no noise, no vibration, safety, and higher transmission efficiency. (There are many options with different prices), gear box (double output shaft transmission)
7. Framework: The base is welded as a whole frame, which is easy to install and maintain.
8. Stock bending machine:The film and knife can be cut and assembled directly as needed to improve the mixing quality. Reduce energy consumption.

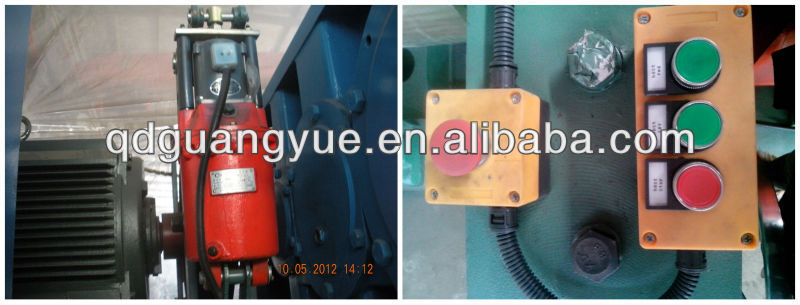

9. Emergency braking device:
The machine is also equipped with an emergency braking device. In the event of an emergency, just pull the safety lever Or press the emergency button and the machine will stop immediately. Safe and reliable.

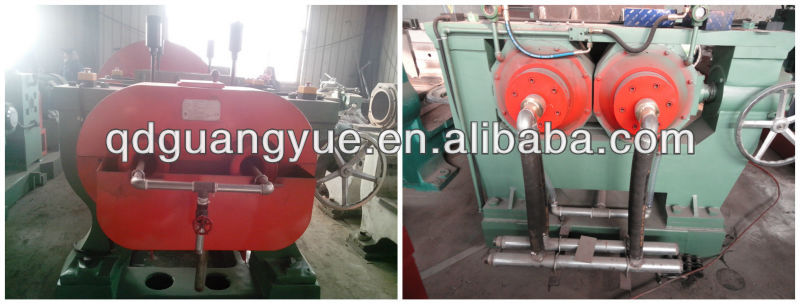

10. Cooling system:(with swivel joint andExternal tapping)
Universal swivel joint with internal nozzles, hoses and headers. The pipeline is completed up to the supply pipe terminal, where Energy consumption is reduced by 30% and the efficiency is high.
11. Automatic grease lubrication system and supporting bearings
12. others:
us,Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.Build high-quality rubber machinery, from materials to production,We use goodHigh-quality materials, fullymanagement system, returnExcellent after-sales service,we hope become onereliablefactoryFor you! 1. Professional manufacturer with professional production team and technical support 2. Our well-trained professional engineers and staff can provide exclusive and unique solutions to our customers. the best After-sales - Track the production status throughout the entire process, provide machine packing photos, and track the operation status Customer usage when issues arise. 3. Reasonable price and flexible delivery time 4. More than 30 years of experience in export capabilities
13.technologyparameter:
Version	XK-160	XK-250	XK-300	XK-400	XK-450	XK-560
Roll diameter (mm)	160	250	300	400	450	Chapter 560
Roll length (mm)	320	620	750	1000	1200	1530
Front roller surface speed (m/min)	8.89	15.3	15.1	18.65	24.32	27.72
friction ratio	1:1.35	1:1.1	1:1.27	1:1.27	1:1.27	1:1.2
Maximum nip (minimum)	4	8	8	10	15	15
Feeding amount per amount (kg)	1-2	10-15 days	15-20 days	18-35	25-50	35-50
Power (kW)	5.5	18.5	number 22	37	55	90
Dimensions (lengthwidthheight)	11609201370	312013221500	358015501695	435018501780	567023901670	584522841978
Weight (kg)	1000	4000	5200	7800	12000	23000

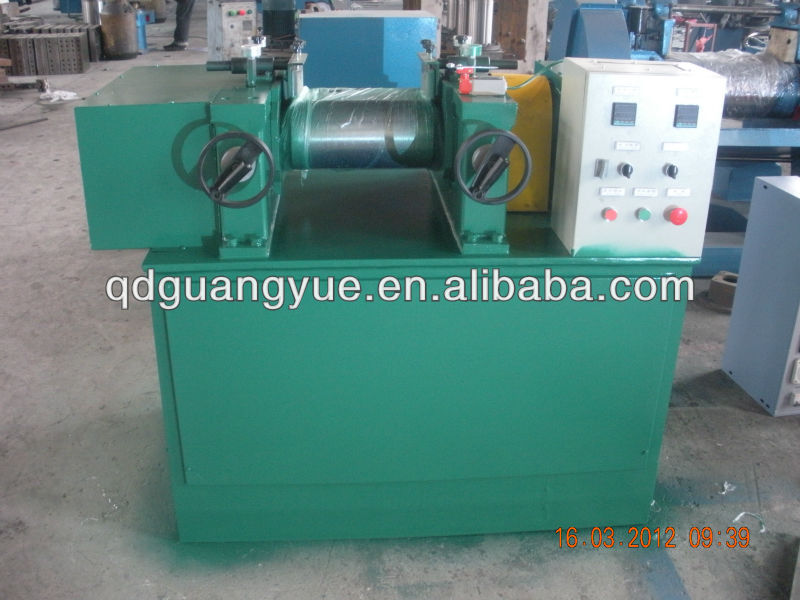

Vietnam orders XK-160 laboratory rubber mixing machine
xk-400 mixer UK customer order
XK-450 rubber mixing machine exported to Türkiye
XK-560 rubber mixing machine exported to Ethiopia
