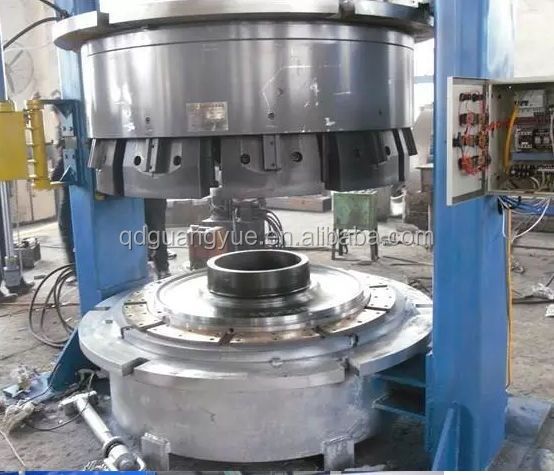

Segmented mold thermal tire retreading machine/tire retreading thermal method

Segmented mold thermal tire retreading machine/tire retreading thermal method

1. Introduction

Hot tire retreading vulcanized rubber mold machine updates old tire retreading production line specifications
1. Tire retreading tire vulcanizer
2. Thermal oil or steam heating
3. Cars, trucks, and OTR are all acceptable
4. All renovated

Hot tire retreading vulcanized rubber mold machine updates old tire retreading production line processing

For tire cleaning, first dry the tire → Check the tire → Polish the tire → Polish the tire external damage → Polish the internal tire damage → Check the tire twice → Repair the internal damage → Apply adhesive on the top of the tire → Dry the tire twice → Repair the external damage → Attach the middle rubber segment → Tread forming → Assemble the envelope → Assemble the inner tube → Assemble the vulcanized rim → Inspect the inner tube and vulcanized rim → Vulcanize → Remove the vulcanized rim → Remove the inner tube → Remove the envelope → Inspect the finished product → Decorate the tire → Store the tire.
PID electronic control system vulcanization temperature vulcanization pressure inner tube air pressure vulcanization time parameters automatic temperature compensation automatic pressure compensation, steam and thermal oil heating can be used. It has automatic alarm, timing and other functions.

Optional tire sizes

5"-15", 15"-22.5", 22.5"-25", 25"-33", 33"-51"

vertical
The mold has good sealing performance, no leakage, energy saving and environmental protection. The vulcanization speed is fast and the operation is very simple, especially for large tires, which can be raised and lowered directly, saving time and effort.

1.Model: GY-1200

2. Power: 15kw

3. Voltage: 220V/380V

4. Dimensions (length*width*height): 3100*2100*2550mm

5. Tire mold: 2, 6, 9 PCS (including 1 set of tire mold)

6. Temperature: 145℃

7. Weight: 7000kg

8.Material: carbon steel

9. Oil station working pressure: 12Mpa

10. Maximum internal pressure of tire: 2Mpa

11. Control gas pressure: 0.3Mpa

Machines required:

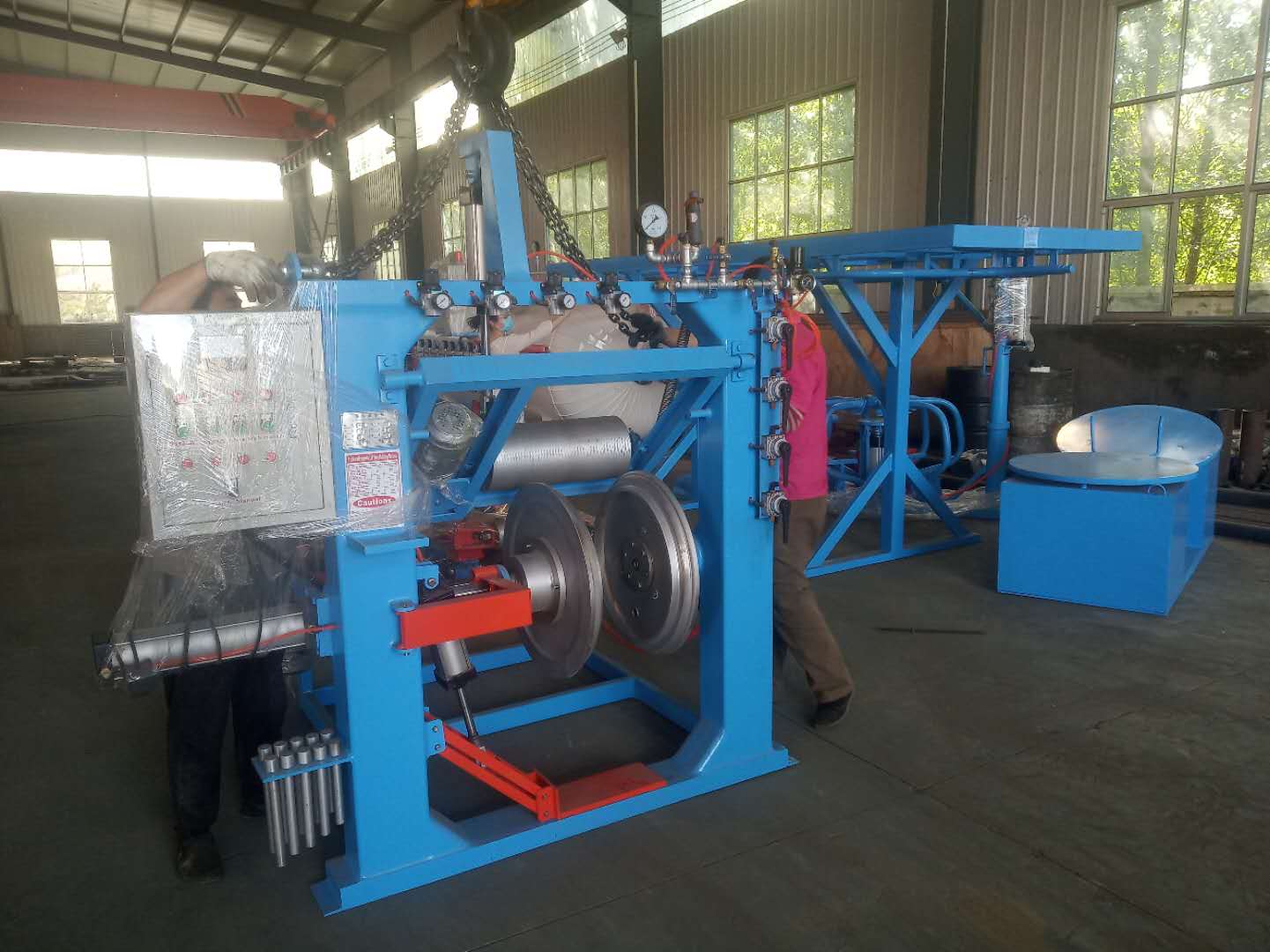

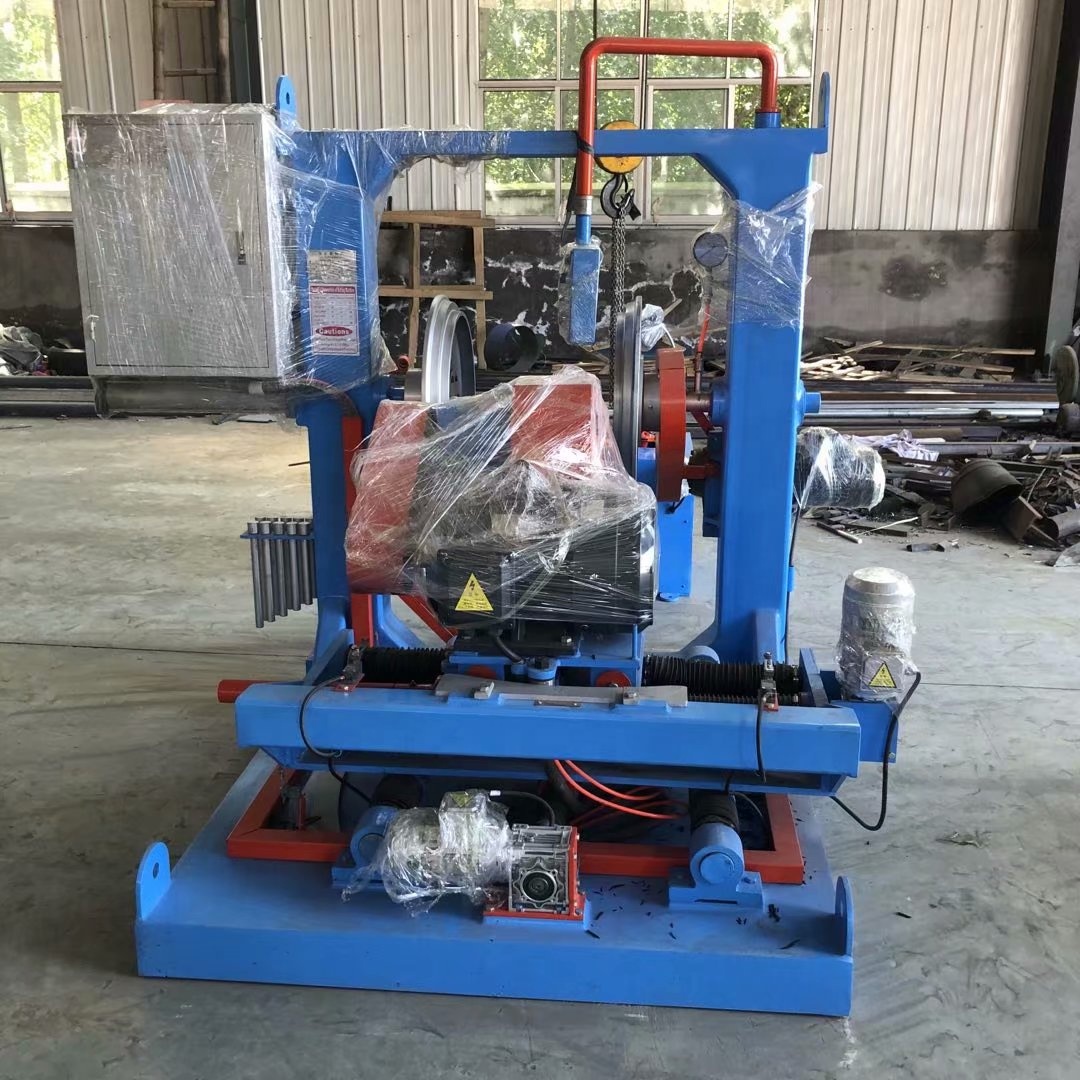

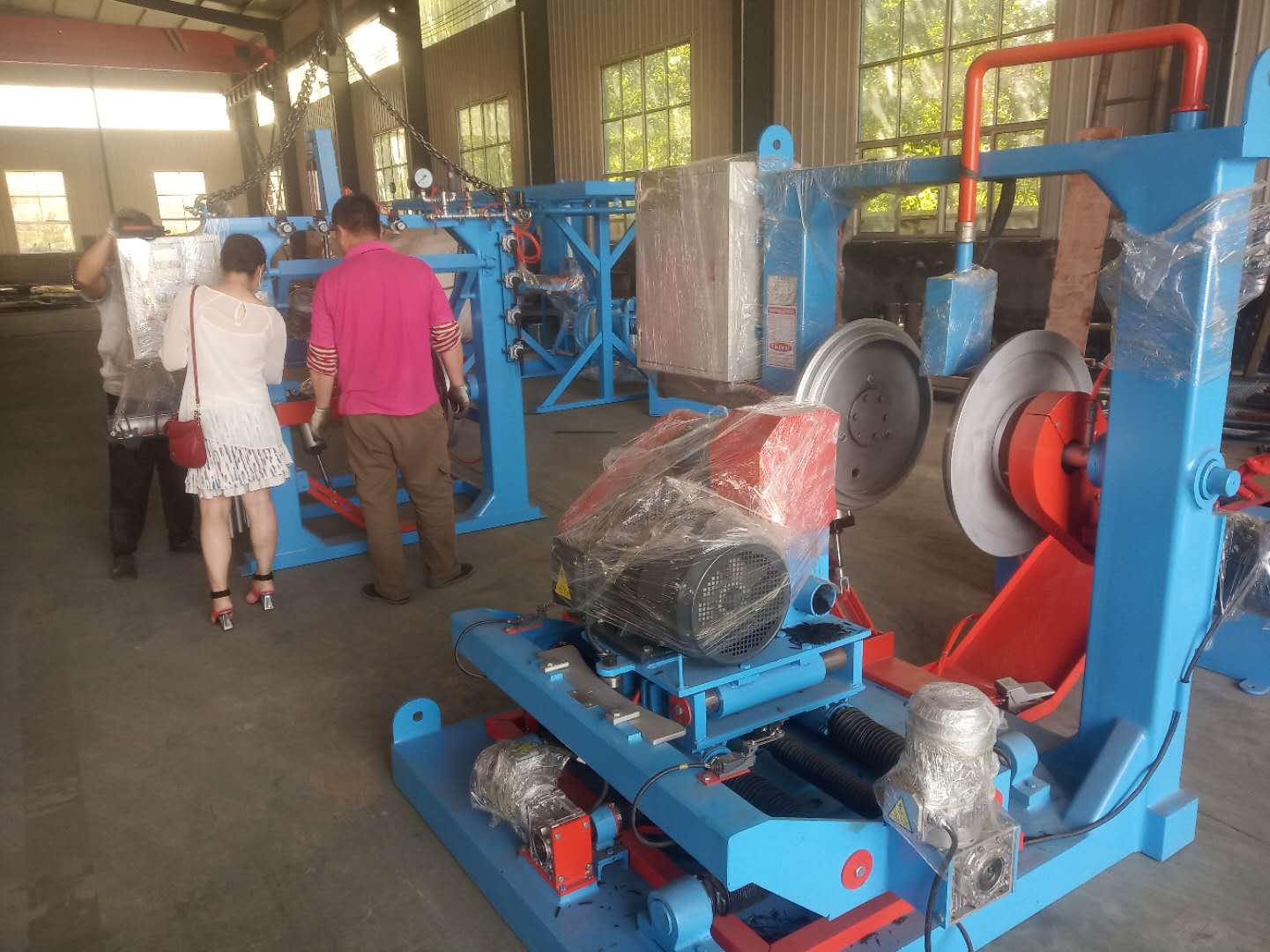

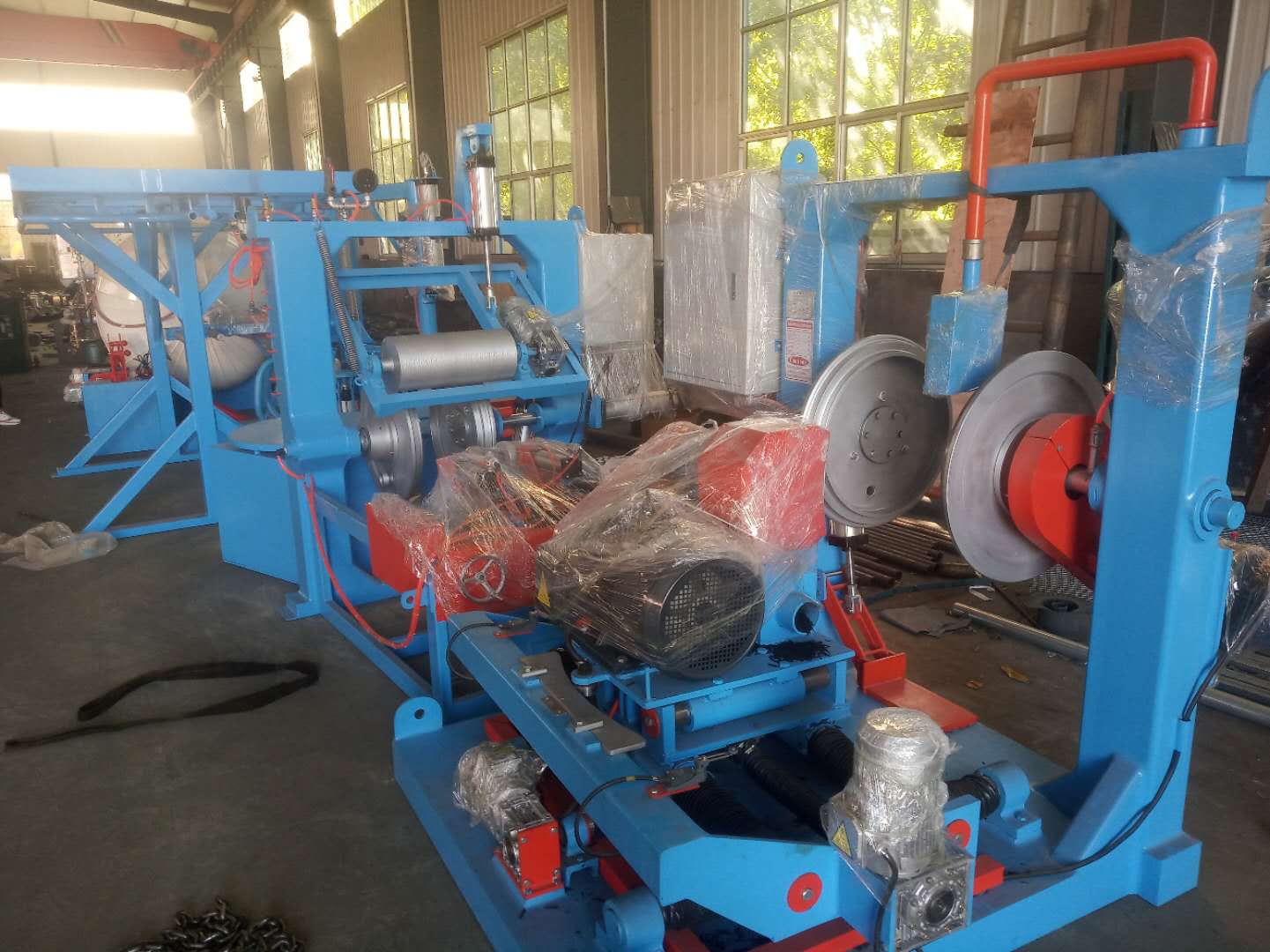

1. Segmented mold vulcanizing machine (hot tire retreading machine) 2. Tire polishing machine

3. Tire building machine 4. Tire repair rubber rack 5. Mixing machine 6. High pressure air pump

7. Rubber extruder 8. Rubber extrusion gun 9. Tread rubber 10. Sidewall rubber

11. Rubber pad
