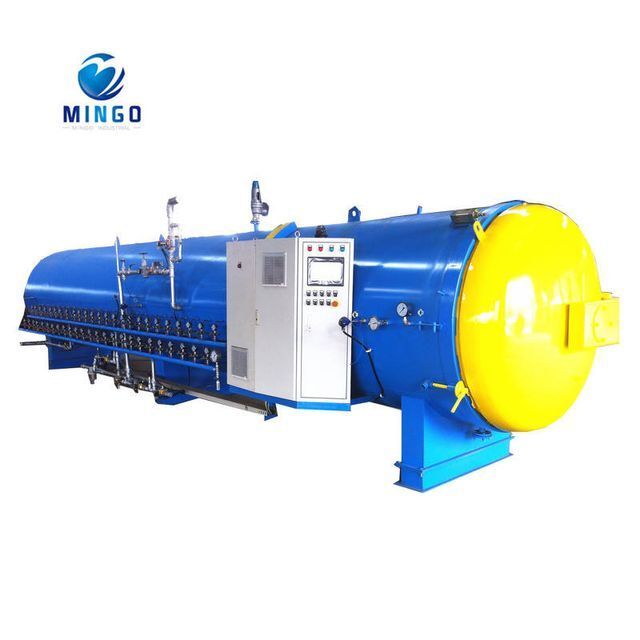

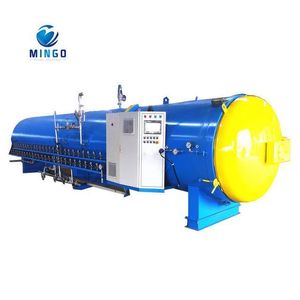

Full automatic high quality tyre retreading plant for sale
- $88000.00 /set
- 1 set
- Shandong Mingo Industrial Equipment Co., Ltd.
- Shandong, China
- Mr
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Customized: | All dimentions, temperatures, pressures, colors can be customized; |
| Place of Origin: | China; | Work temperature: | 150~200℃ curing temperature; |
| Warranty: | 1 Year; | Key Selling Points: | Energy saving; |
| Port: | Qingdao; | Dimension(L*W*H): | 12000MM*2500MM*2500MM; |
| Name: | Tyre retreading machine; | After-sales Service Provided: | Field installation, commissioning and training; |
| Voltage: | 380V/220V,for your optional; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops; |
| Package Preview: | ; | Certification: | ASME,CE; |
| Packaging Detail: | under costomer`s requirement; | Control manners: | Automatic control; |
| Brand Name: | Mingo; | Medium: | Hot-air; |
| Condition: | New; | Power: | 330000; |
| Function: | Tyre retreading; | Material: | Carbon Steel Q345R; |
| Design pressure: | 1.0Mpa; | Design temperature: | 180℃; |
| Weight: | 15000KG; | Supply Ability: | 10 Sets per Month; |

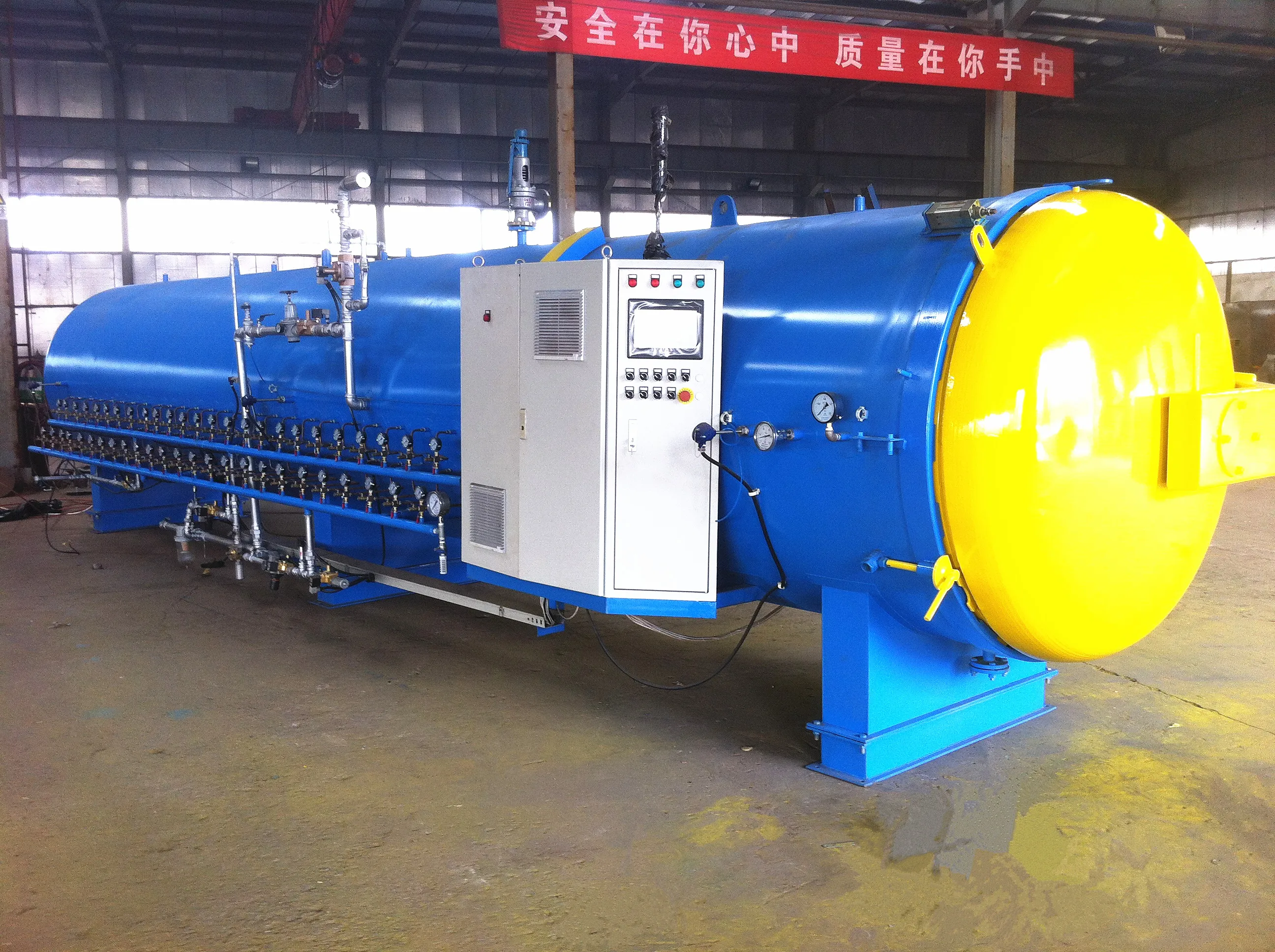

Full automatic high quality tyre retreading plant for sale
Rubber vulcanization is a chemical process at a given pressure, temperature and time for converting natural rubber into more durable materials by the addition of sulfur. These additives modify the polymer by forming cross-links (bridges) between individual polymer chains. Vulcanized materials are less sticky and have superior mechanical properties. And vulcanization autoclave is used widely for this chemical process.
Widely used in vulcanization of rubber products, SBR thermoplastic as well as the carbonization and degreasing of bamboo, such as, rubber, cable, printing and dyeing, chemical, building materials and other industries. Mainly used in rubber products, rubber hose, rubber roller etc.
Heating mode:
1.Heat conduction oil heating
2.Steam direct heating
3.Electrically heated air
4.Electrically heated steam

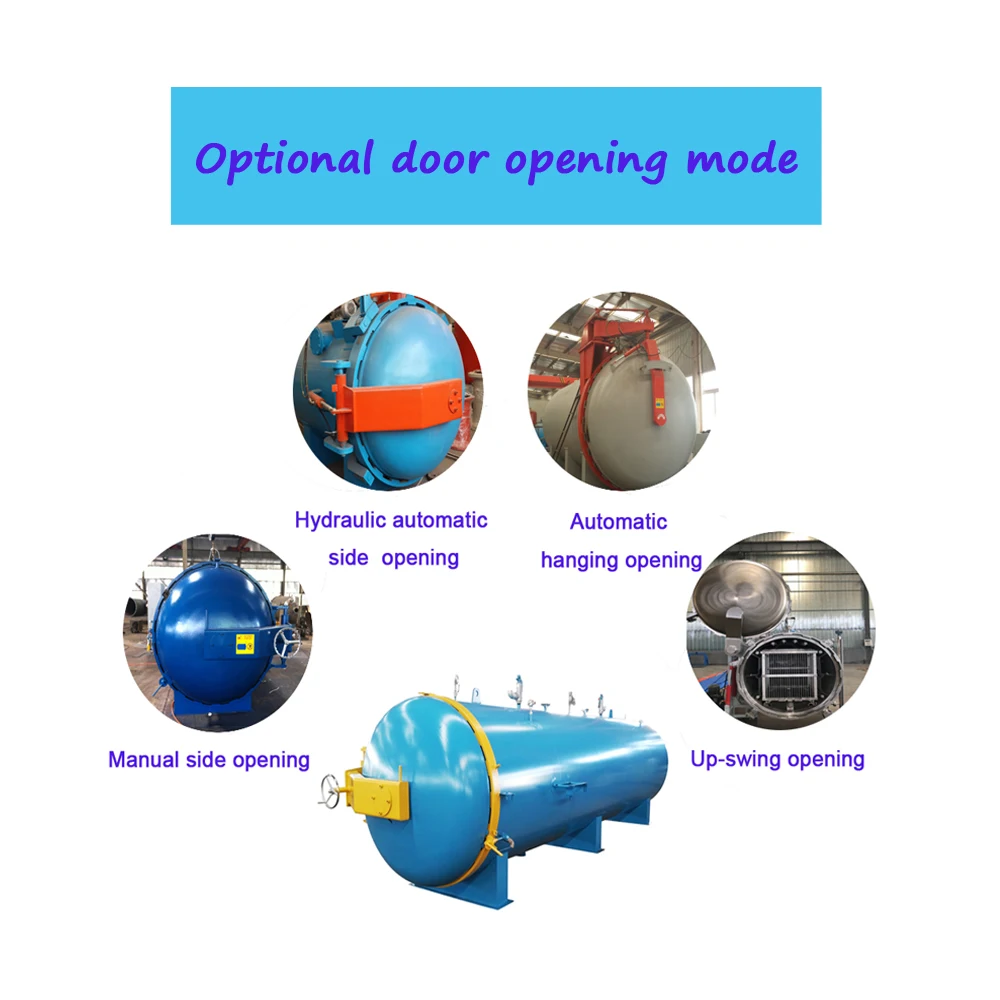

Door opening mode:
1.Power-driven
2.Hand-driven
3.Hydrodynamic-driven
4.Various types of vulcanization tank and quick-opening door safety interlocking devices can be provided separately.(Company advantage)
Sealing mode:
Inflatable silicone seal rings are used for tank door flanges which is simple and convenient to maintain and the sealing effect is obviously better than other methods with more than 2 years of service life.
Safety chain mode:
1.Pressure automatic safety interlock
2.Manual safety chain

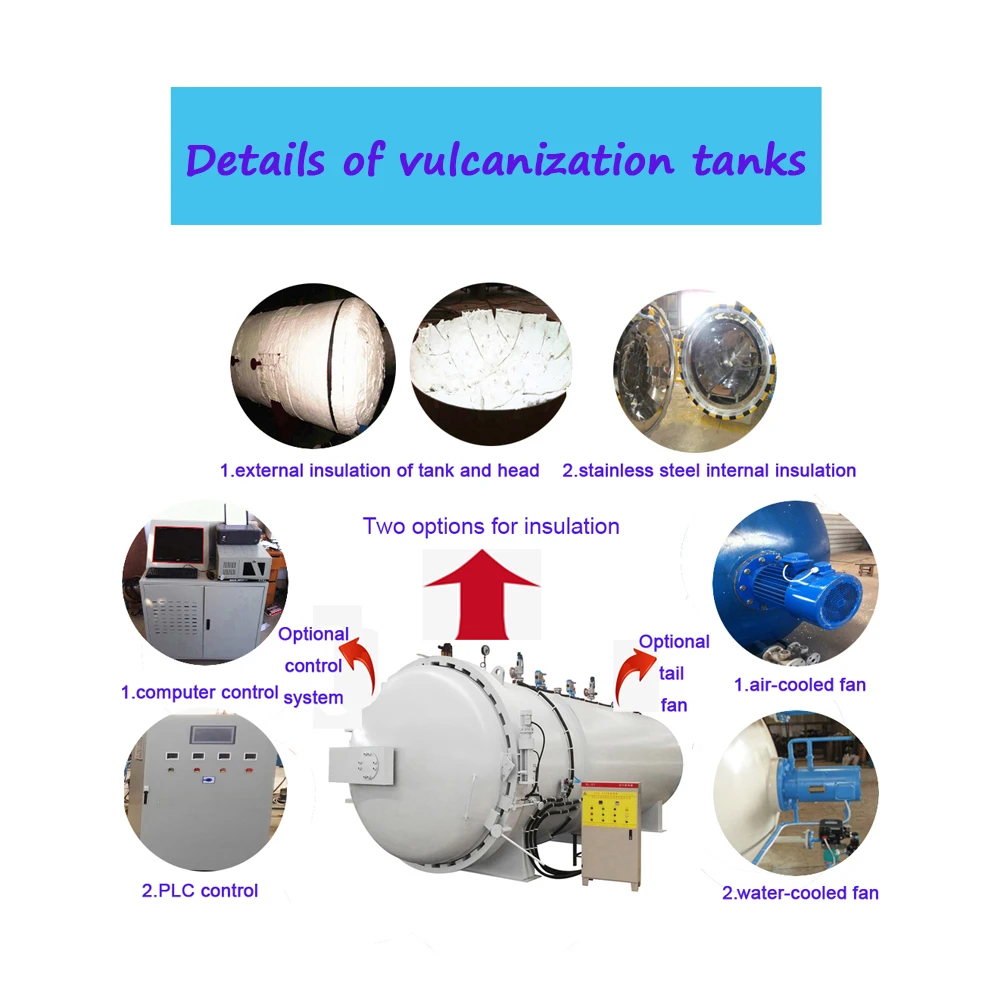

Temperature control mode:
It uses double layer external insulation, saving thirty percent of energy consumption than ordinary insulation.
Pressure control mode:
(1) Pressure in vulcanization tank is automatically controlled by pneumatic corner valve.
(2) Set up manual valve for easy manual control.
(3) Set up another set of disc pressure gauge.
(4) The tank body is designed with two flanged open safety valves, which can be opened automatically after the designed pressure is reached.
Time control mode:
After setting working procedure, heating/keep-heating time and vulcanization time all will be automatically controlled.
Loading mode:
Two rails in tank, using national standard guide rail.
Production flow:
Brand and Material of Major Components
No. | item | material |
1 | dished head | carbon steel Q345R |
2 | tank | carbon steel Q345R |
3 | flange | forged carbon steel |
4 | safety interlocking device (pressure automatic) |
|
5 | track | carbon or stainless steel |
6 | manual door opening device |
|
7 | saddle | carbon steel Q235B |
8 | High temperature and high pressure fan ventilator | air or water cooling |
9 | thermal insulation head | carbon steel Q235B |
10 | Insulation material (double layer) | aluminum silicate cotton |
Q: Are you manufacturer or trading company?
A: We are a professional manufacturer.
Q: What is your business scope?
A: There are categories such as vulcanization tank, autoclave tank, food sterilization pots, etc.
Q: What if there is something wrong with the machine within one year?
A: We have two ways to solve the problem.
a. Phone call/on-line service to solve the problem.
b. We will take video to show ’how to solve the problem’. All the problems can be solved by video guidance.
Q: How about the installation? And what if the machine goes down?
A: We will do that. There are two options.
a. We could appoint our engineer to your company to install and debug, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still is under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on your side.
