Laboratory double-roll rubber and plastic color mixing machine, high quality and low price

PRODUCT DETAIL
payment terms:L/C, T/TShowroom location:Egypt
Voltage:220-510VYear:2019
Coil Length(mm):320 mmReel Diameter(mm):160 mm
Local service location:EgyptCertification:ISO9001,BV,SGS,BV
Front roller speed (rpm):1 - 1.35weight:100kg-1130kg
brand:AinoPower (kW):5.5
After warranty service:Online support, on-site maintenance and repair servicesMain selling points:multifunctional
type:banbury mixerHealth status:new
Roll ratio (front/rear):8.95Supply capacity:600 sets per year
notes:Bearing, nylon sleeve grease LUB, copper sleeve oil LUBOrigin:Shandong China
Roll working diameter:160-660 mmDrive motor power:5.5-245kw
Weight (kg):120 kgFront roller working line speed:8.95-28.6 m/min
Packaging Details:Standard export packagingWorking length:300-3000mm
Applicable industries:manufacturing plantWarranty:1 year
Dimensions (L*W*H):1380*860*320mmcapacity:1-165kg
After-sales service provided:Video technical support, on-site installation and commissioning training, online support, on-site service by overseas engineersport:Qingdao
type:Open mill

China Manufacturer Price XK-250 Open Mill Rubber Mixing Machine



feature:



1. The roller is made of chilled cast iron. Divided into hollow rolls and drilled rolls. The inside of the hollow roll is machined. The hollow roll surface can be smooth or grooved. The grooved roll has full groove surface, partial groove surface and so on.



2. The roller is supported by roller bearings, with low noise and long service life.



3. Rolling bearings are lubricated with grease and oil.



4. The pressure transmitter system can directly display the working pressure and control the feeding amount. Automatic shutdown and save or print pressure value when overpressure.



5. The product complies with the national safety standard (the standard is the same as the European standard.)



6 The bottom frame is an integral frame, which is easy to install.



7 stock benders for direct rubber sheets and knives can be cut and assembled according to your needs.



8. Automatic lubricating system for grease or oil and matching bearing bush.

Technical Information:





type

XK-160

XK-250

XK-300

XK-400

XK-450

XK-560

XK-660

Roll working diameter(mm)

160

250

300

400

450

560

660

Reel Working Length(mm)

320

620

750

1000

1200

1530

2130

Front roller surface speed (m/min)

8.95

14.1

15.1

18.65

24.26

27.72

28.6

friction ratio

1:1.35

1:1.17

1:1.27

1:1.27

1:1.27

1:1.2

1:1.24

Maximum nip (mm)

4.5

8

8

10

15

15

15

Each batch capacity (kg)

1-2

8-15

15-20

18-35 years old

25-50

35-50

165

Motor Power

(kilowatt)

5.5

18.5

twenty two

37

55

Post-90s

245

Dimensions (mm

1380*860

*1320

3400*1500

*1800

3580*1550

*1695

4350*1850

*1785

5200*2380

*1840

5845*2284

*1978

7465*3662

*2080

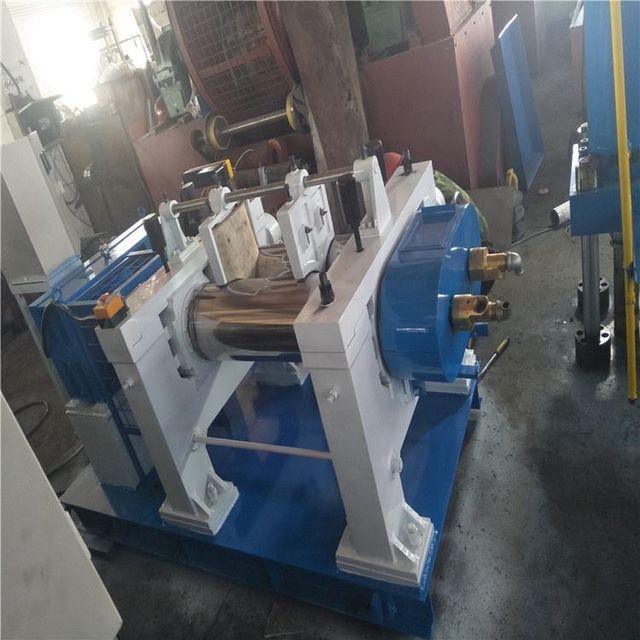

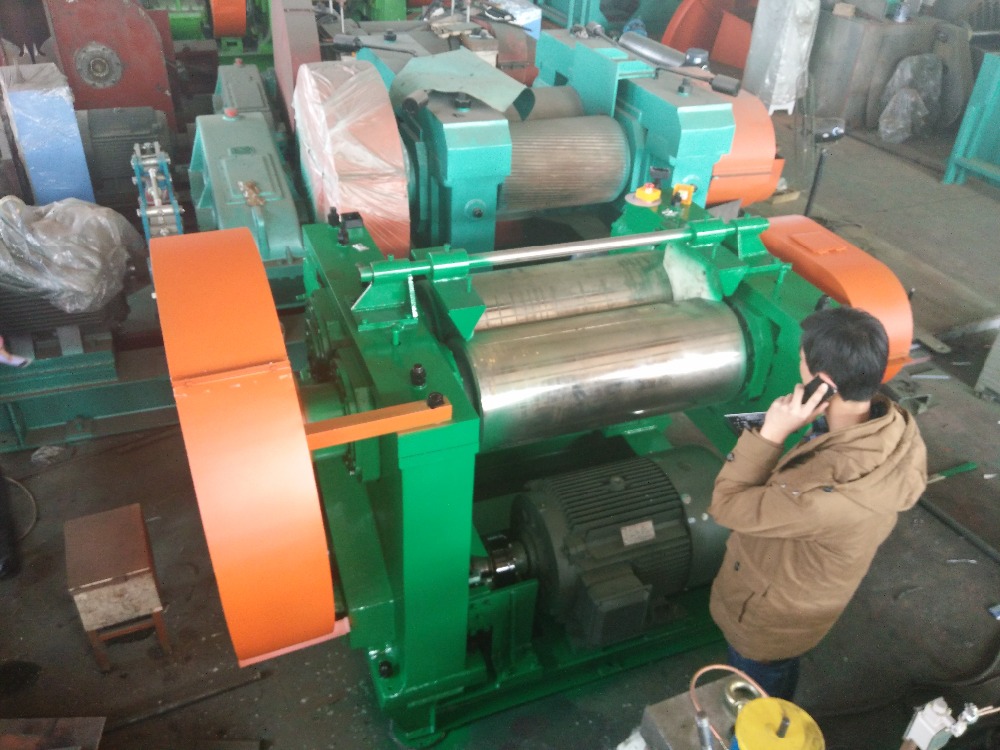

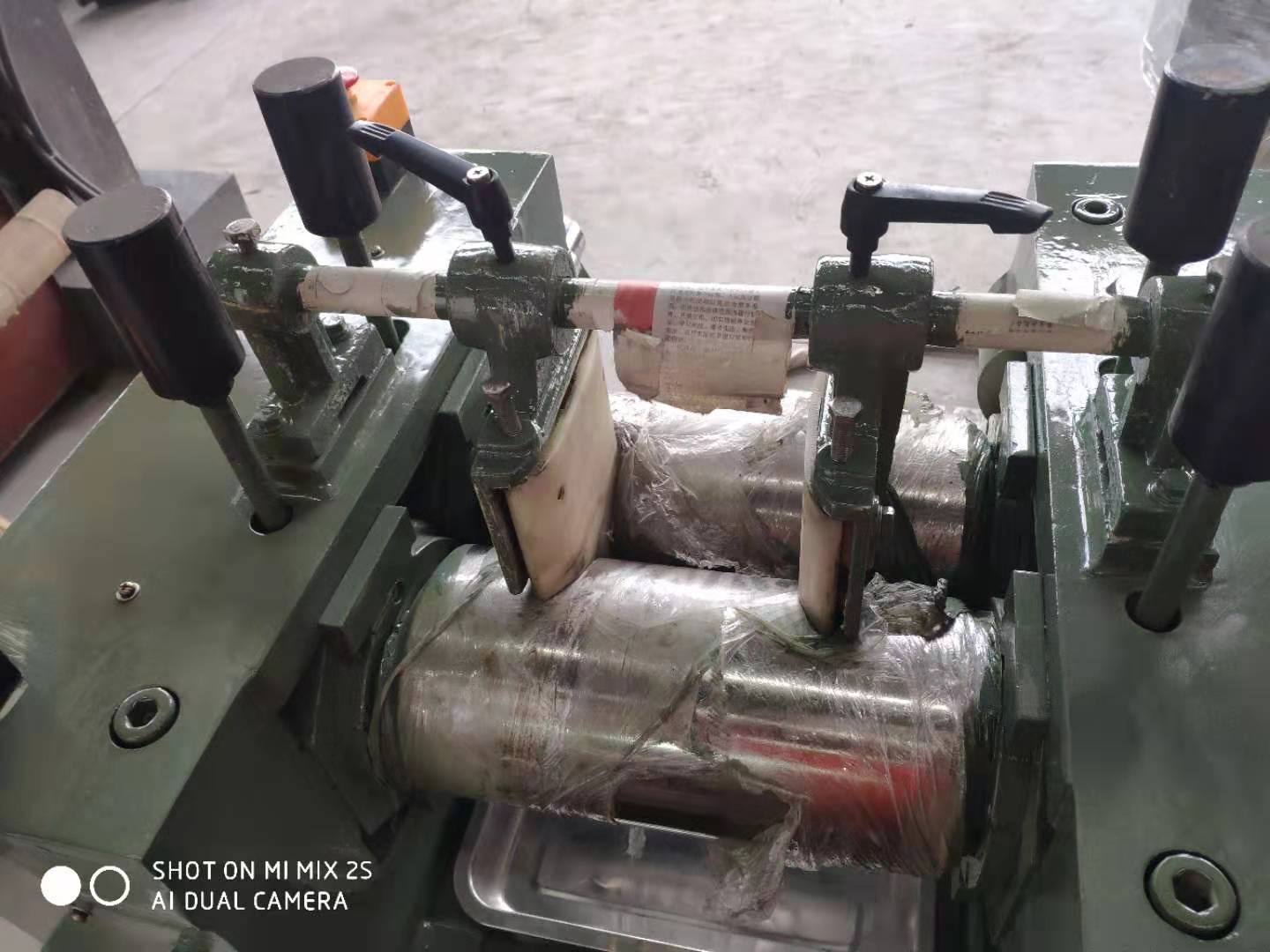

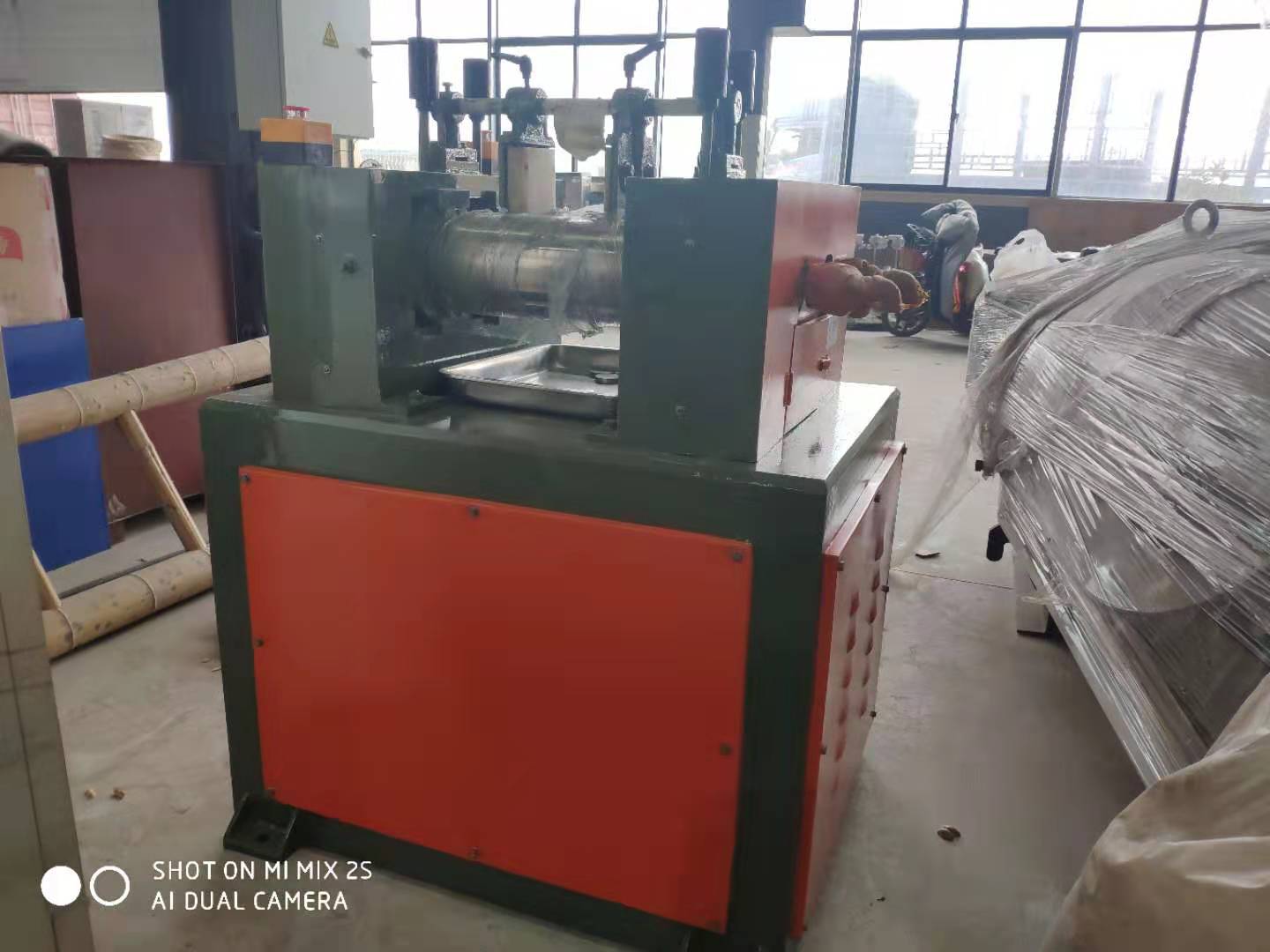

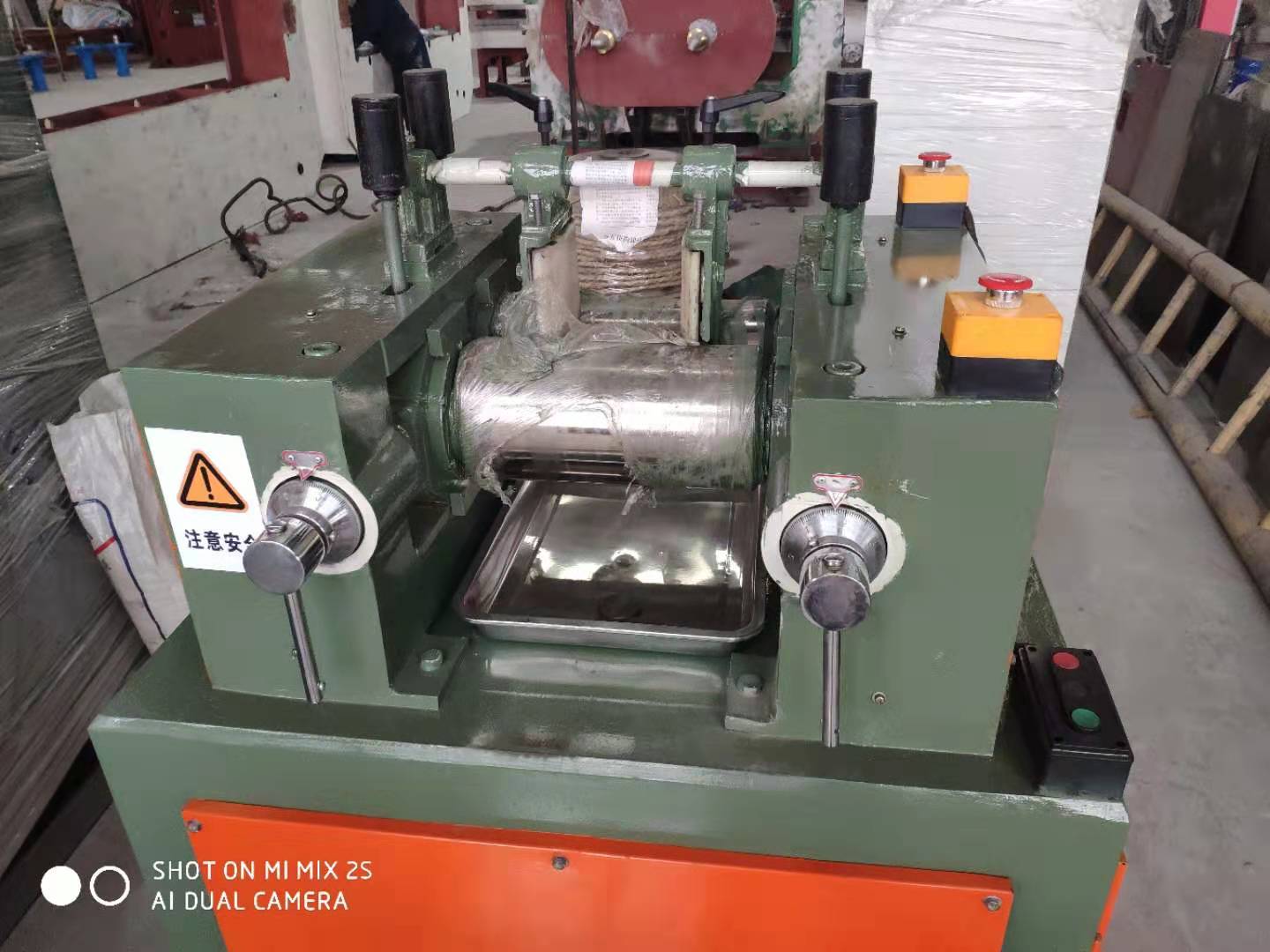

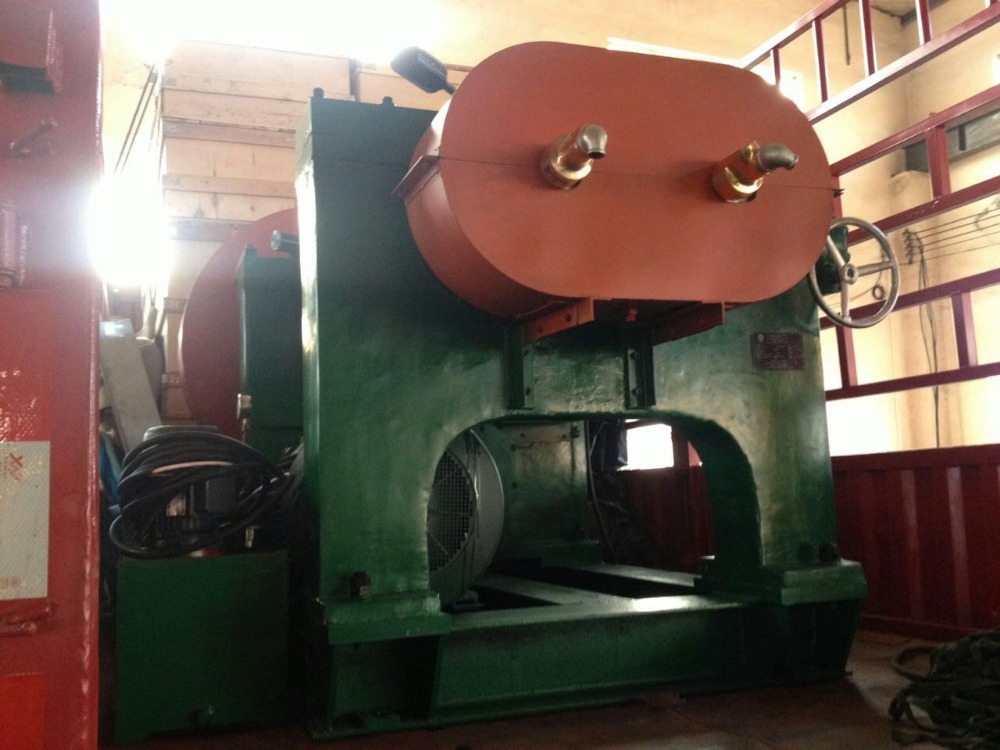

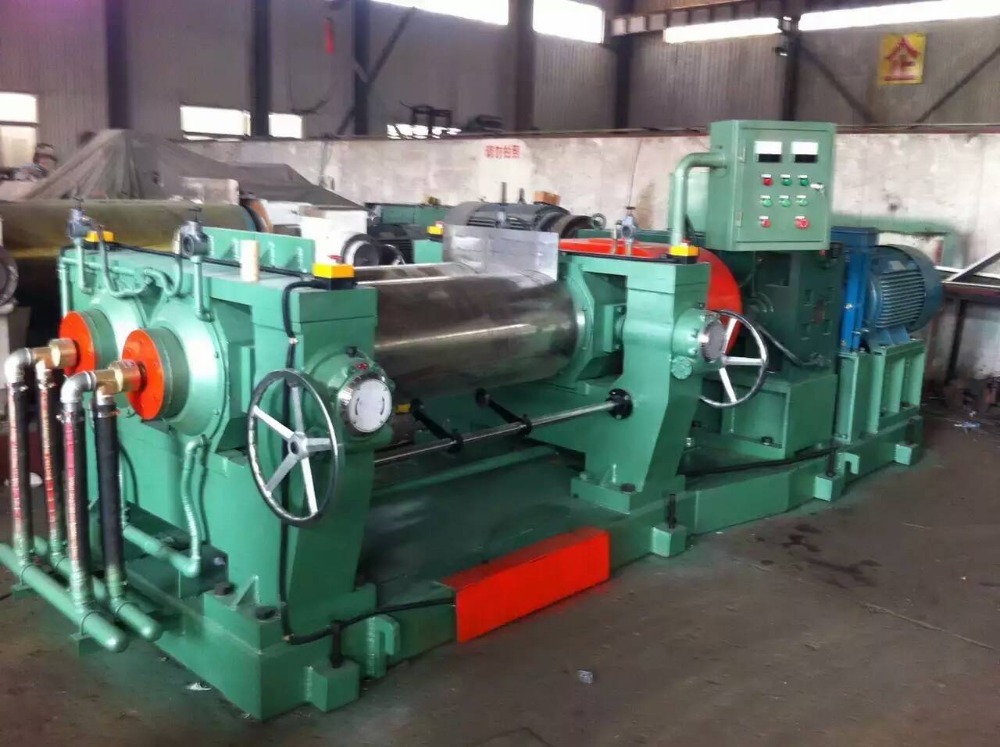

Machine picture:

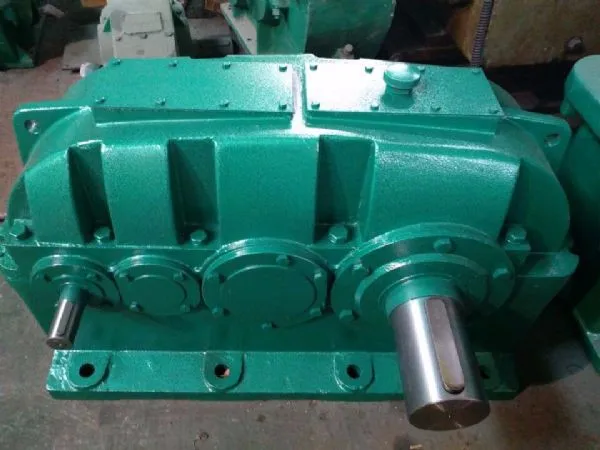

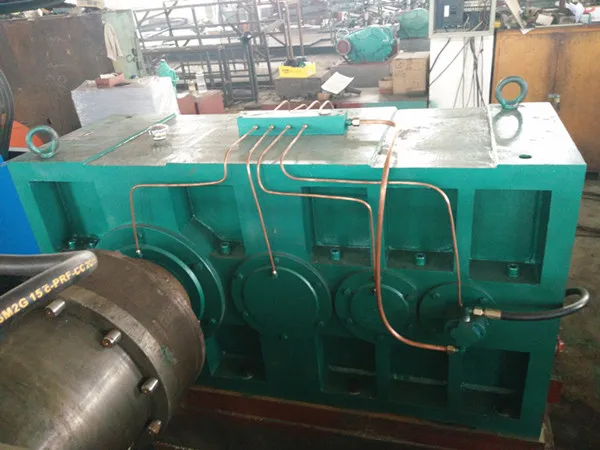

reducer









1) Gap adjustment method:
Manual or electric (by motor)
2) Lubrication method:
Manual or automatic; grease or thin oil

3) Emergency stop device:
Lever and panic button
4) Roller bearings:

Nylon bushing or copper bushing or spherical roller bearing
