Tyre Tread Vulcanizing Machine / Rubber Tread Making Equipment / Rubber Tyre Vulcanizing
- $10000.00 /set
- 1 set
- Qingdao Eenor Science&Technology Co., Ltd.
- Shandong, China
- Mr kimsun pang
| Weight: | none; | press system: | oil hydraulic control system; |
| Condition: | New; | Certification: | ISO9001:2008/CE; |
| Warranty: | 1 year; | Delivery Detail: | 50 days; |
| machine type: | Tyre Tread Vulcanizing Machine; | Dimension(L*W*H): | none; |
| Port: | qingdao; | Supply Ability: | 10 Sets per Month Tyre Tread Vulcanizing Machine; |
| Payment Terms: | L/C,T/T,Western Union; | Model Number: | XLB-Q4100x460x5, Jaw type("C" shape); |
| Brand Name: | eenor; | control system: | PLC control system; |
| Packaging Detail: | exporting standard(wooden box packing); | Power: | 3000; |
| Type: | Vulcanizer; | Place of Origin: | Shandong, China; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | type: | Tyre Tread Vulcanizing Machine; |
| Voltage: | 220-510V; | color: | as your require; |

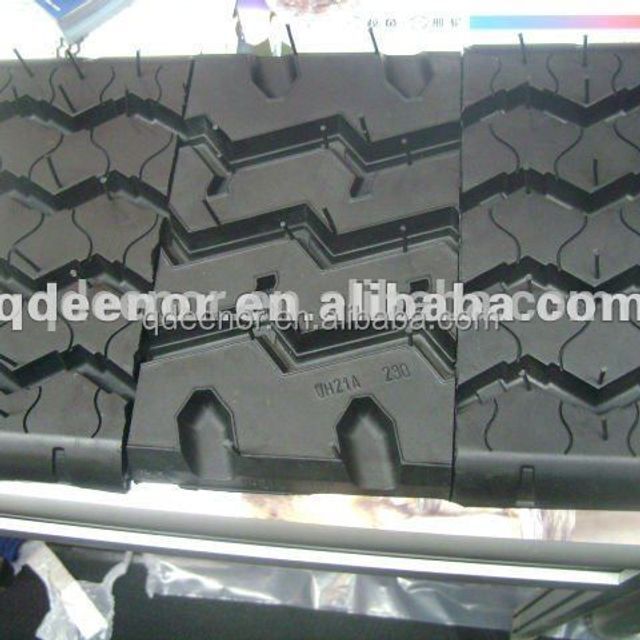

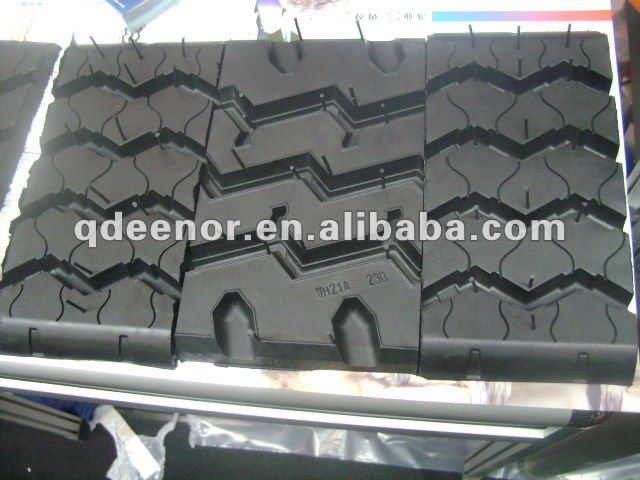

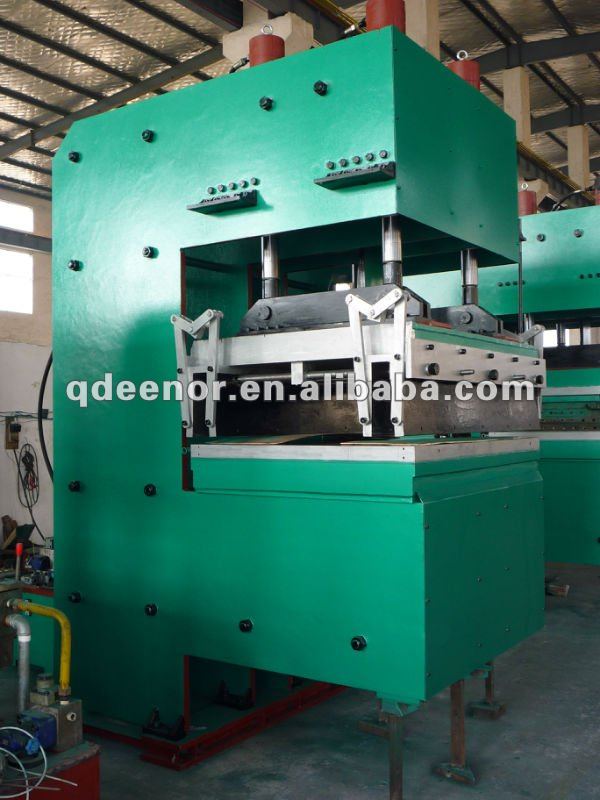

Tyre Tread Vulcanizing Machine / Rubber Tread Making Equipment / Rubber Tyre Vulcanizing
Application:

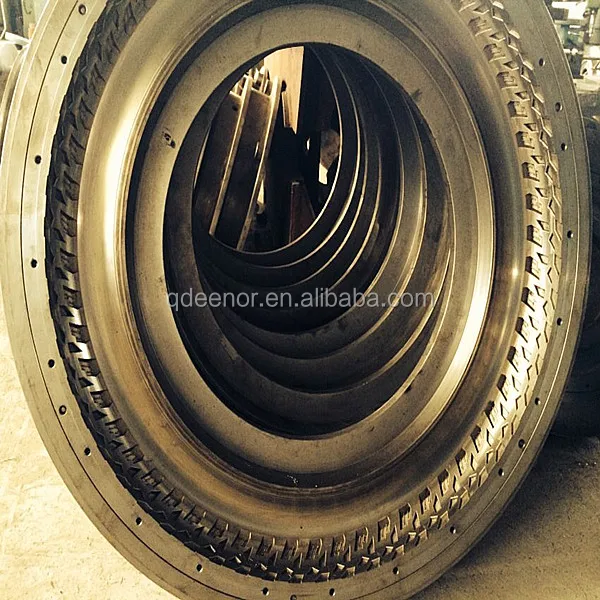

Vulcanizing press is used for vulcanizing various rubber products, actually it's a heating press equipment. Plate vulcanizing press mainly used for rubber belt, in our practical application, we usually add mold to produce all kinds of rubber and plastic proiducts, like shoes tread, packing ring and so on.
Structure:

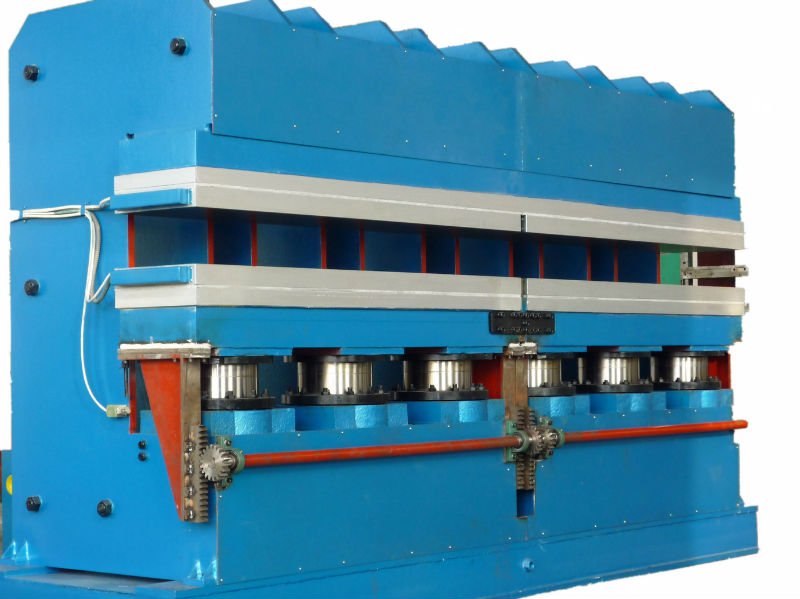

The machine consists of oil hydraulic control system, piston, hot plate and PLC control system.
Features:
1.Oil hydraulic control system: it has eight 3kw power motor to make sure the pressure, the valve control the rate of flow and control the piston up and down.
2.Piston: is made of chilled cast iron, the surface added alloy, that makes it more hardness.
3.Hot plate: is made of alloy iron, used nickel-chrome resistance wire to heat the plate, the max working temperature between 300°C and 400°C.
4.PLC control system: the advanced control system compare with common electrical relay.
5.Automatic exhaust system: in production, the air in rubber can't come out only once press, so it need press several times before vulcanizing.
All of those all has several type components, like the power of motor, the size of hot plate, our engineer and me will combine your requirement assemble the best equipment, trust us.
Technical parameters:
The detailed explanation of this machine:
NO. | Type | XLB-Q4100x460x5, Jaw type("C" shape) | |
1 | Total pressure | MN | 7.00 (700 Tons) |
2 | Plate size | mm | 4100x460x70 |
3 | Plate clearance | mm | 125 |
4 | Diameter of pistons | mm | 285mm |
5 | Number of piston | Set | 8 sets |
6 | Piston stroke | mm | 250 mm |
7 | Working layer |
| 2 layers |
8 | Plate pressure | Kg/cm2 | 37.0 kg |
9 | Operation system |
| PLC and touch screen control panel Brand: Mitsubishi |
10 | Heating mode |
| Electric |
| Structure |

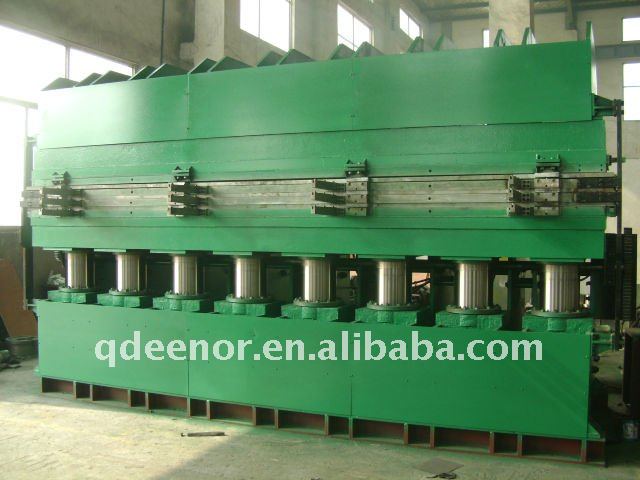

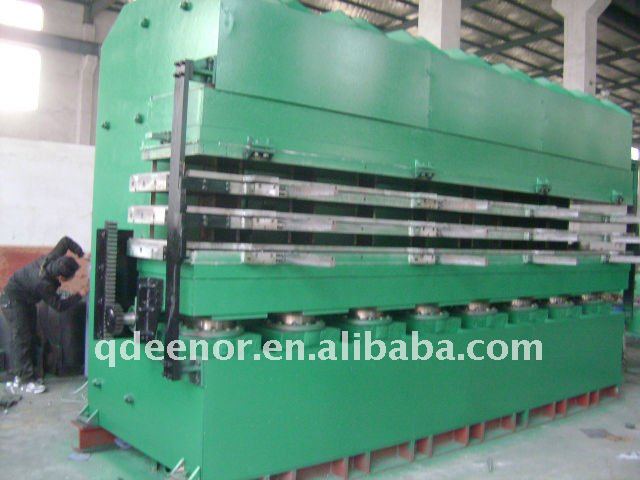

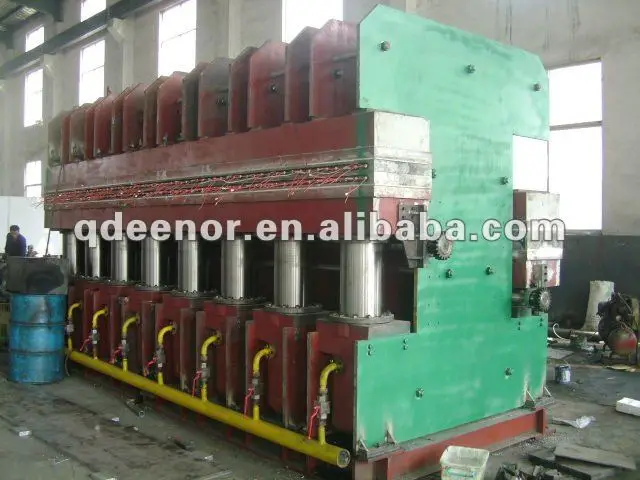

| Jaw type structure |
Remarks: 1. The machine has automatic alarm, opening and closing moulds. Automatic fill pressure, Automatic exhaust, curing time etc. 2.Packing : exporting standard(wooden box packing) 3.warranty: 1 year guarantee period. 4.we also can according to customers' requirement, and design the non-standard model of tyre vulcanizing machine. | |||
Pictures:
We are professional rubber machine manufacturer with 10 years experiences in China. All products have been certified by the State Bureau of Technical Supervision, and have been exported to South Asia, mid East, East Europe, South and North America Africa, Australia and so on.
FAQ:
1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our
facotry to visit.Warm welcome visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,BV,ISO,SGS certification,pls confirm the quality.All our machines have 1
year guarantee, will provide lifetime maintenance.
Why choose us?
We are ready to give them a turnkey solution, by designing the line according to their space, designing all electrical Installation, water installation, civil foundation, training their people and proving that they will get the targets for production according to the design.
The cost of the machinery they are paying is one off but the correct production design and machine configuration in order to get the production targets is the most important point. Even if somebody got the cheapest machine
quotation, at the end of the day, what is count are the production quantity, quality and the durability of the
machines so to cover the investment in the correct time.
A satisfies customer can bring you ten more customers but one disappointed customer can send away one hundred customers. Reputation in the market is the most important factor for keeping business healthy and in growing
line.
Guarantee & After-sale service:
♥One year guarantee for whole machines
♥24 hours technical support by email
♥Calling or door - to -door service.
♥Provide videos for each machine.
